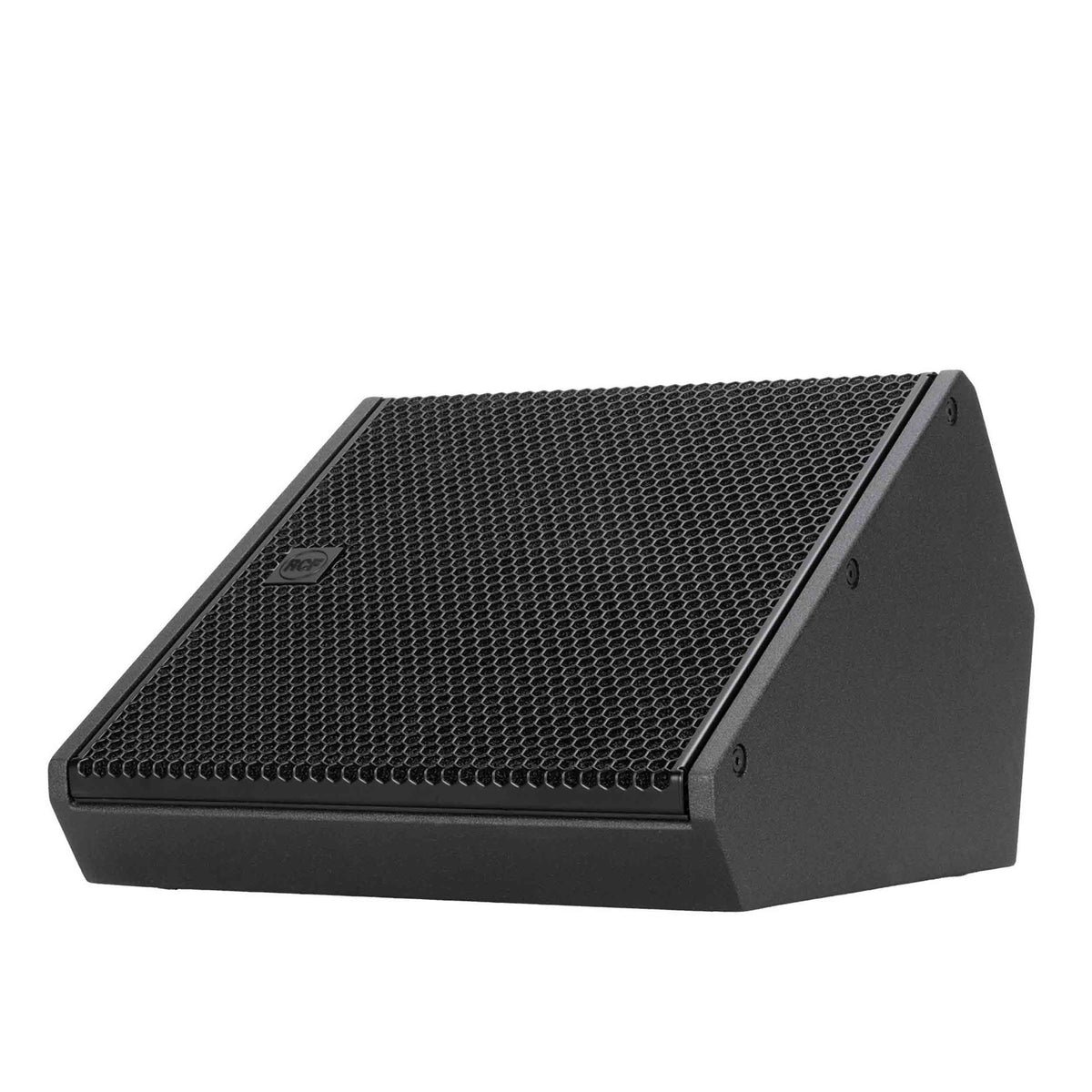

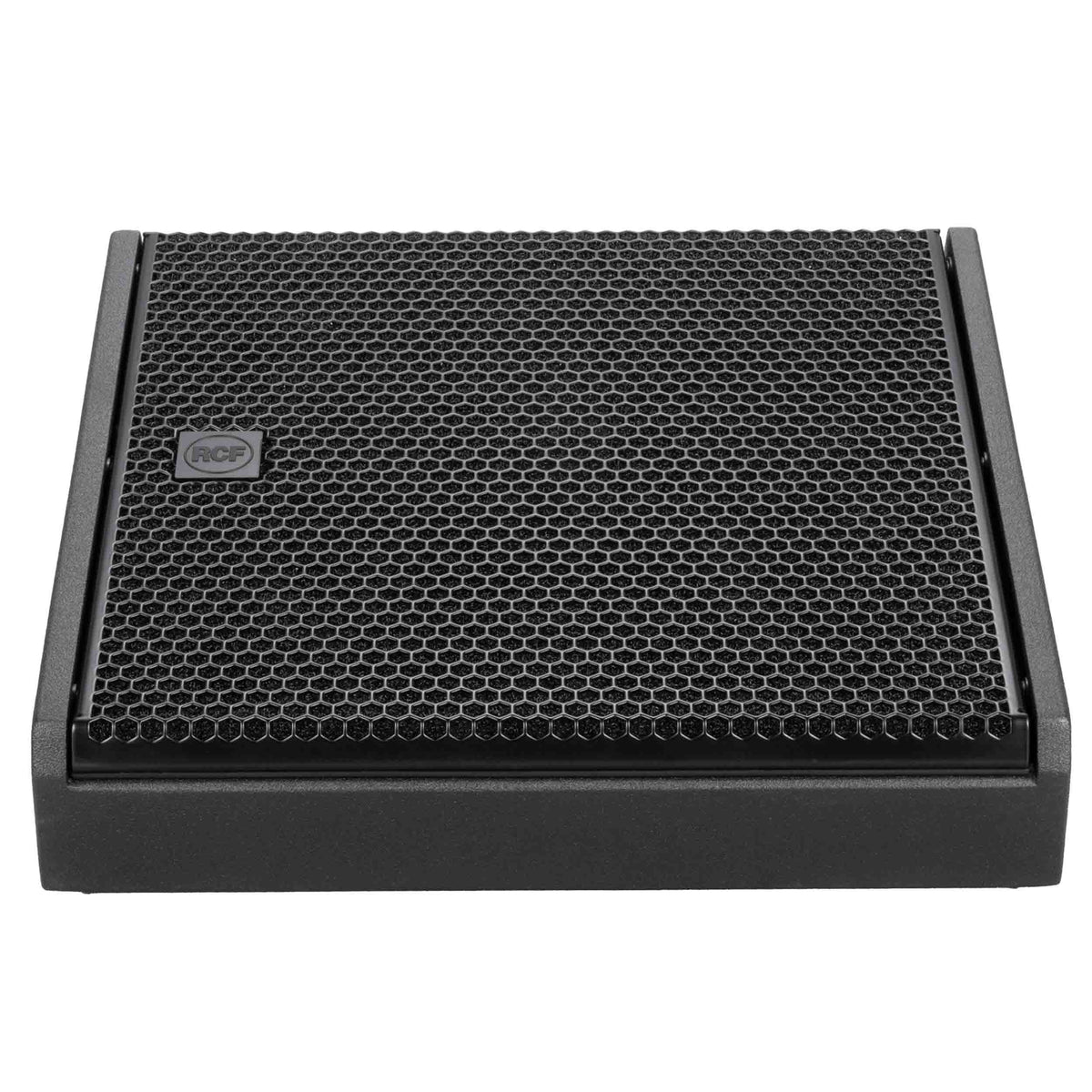

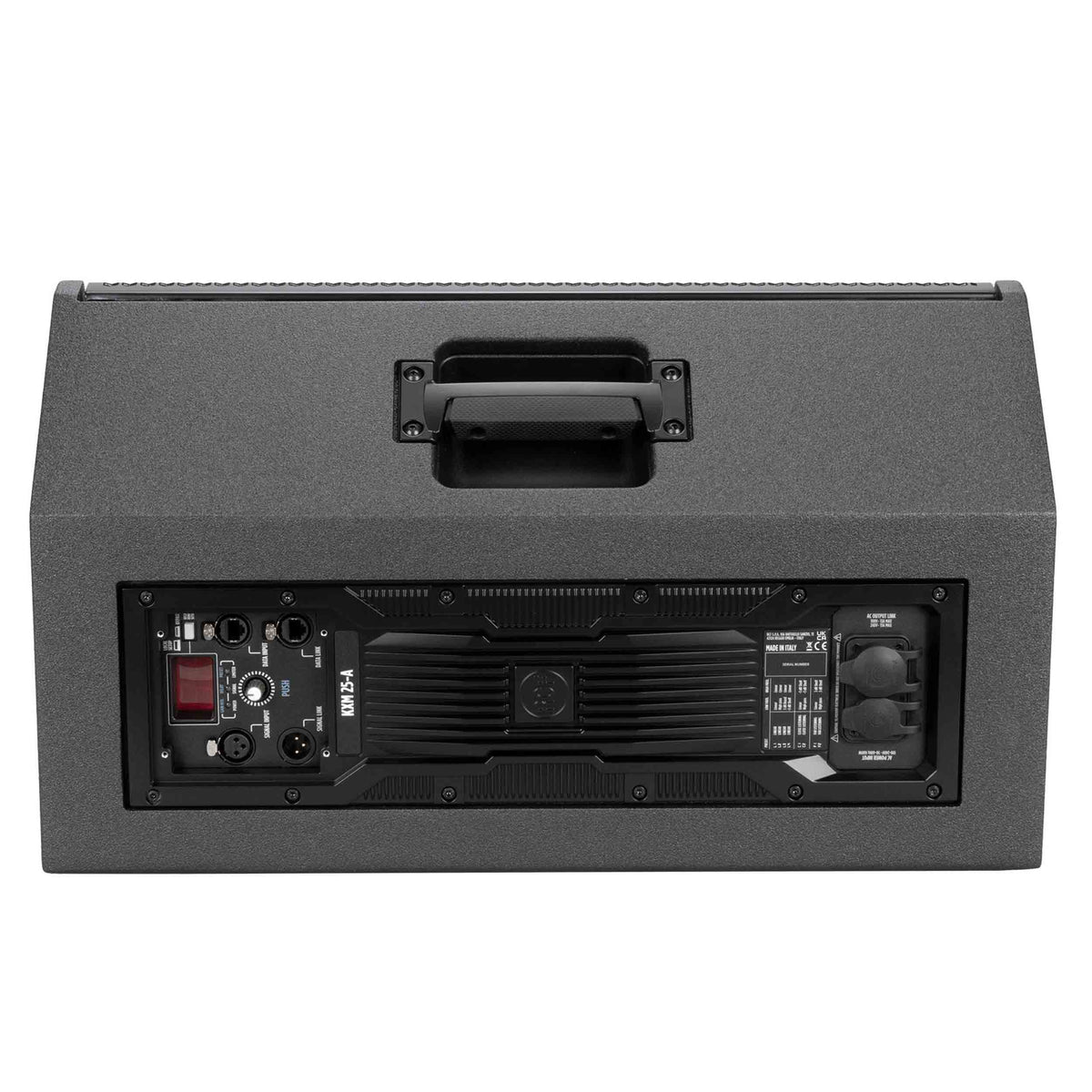

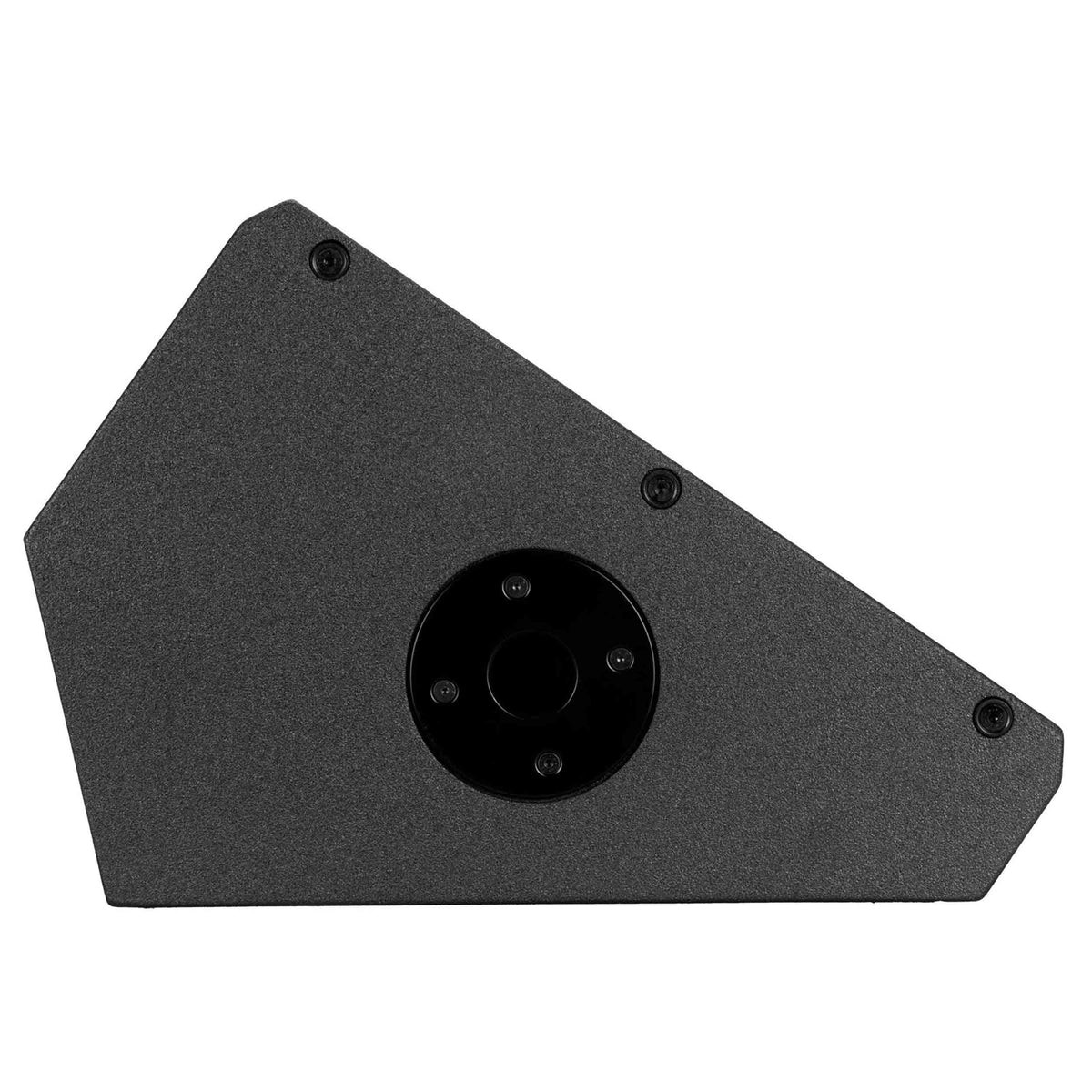

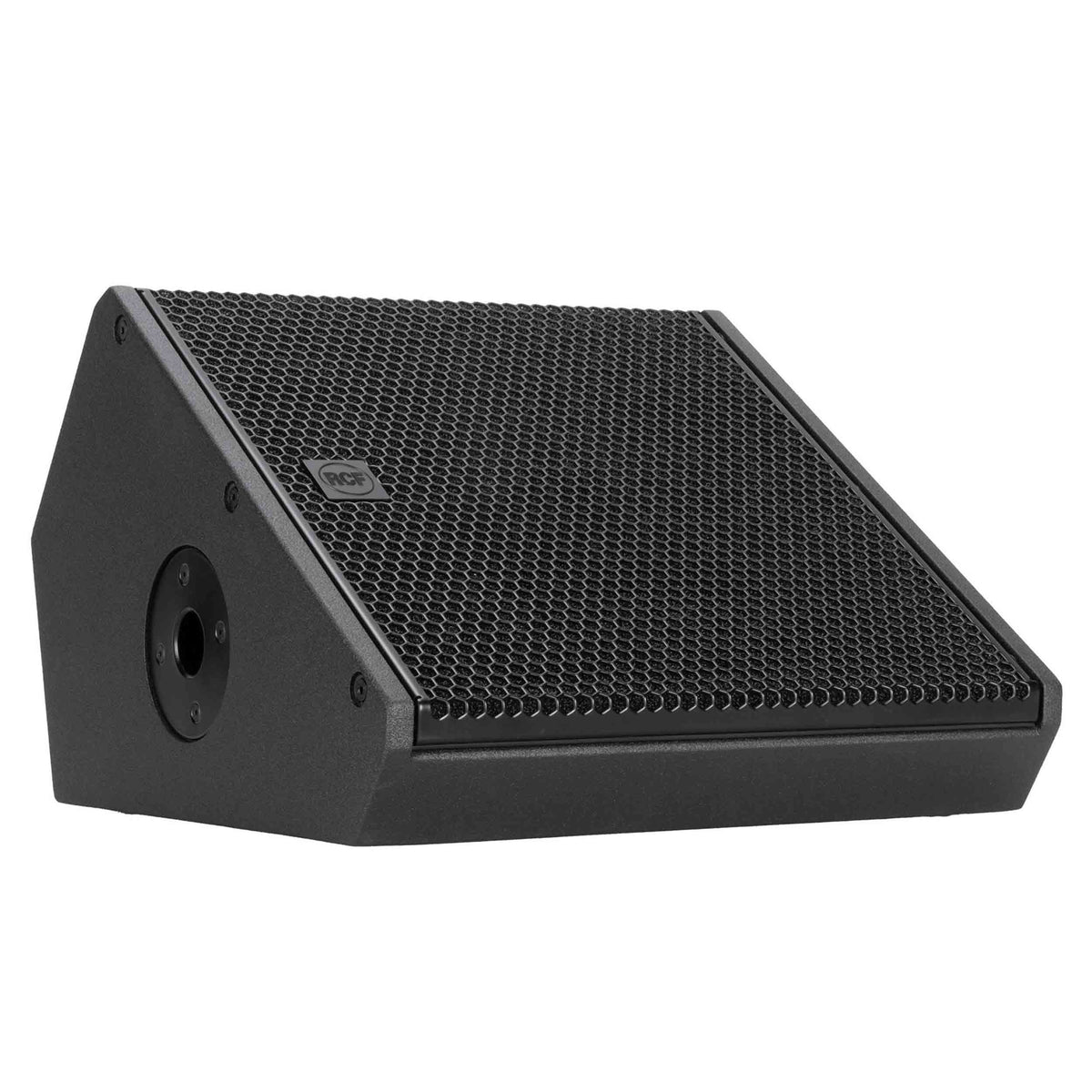

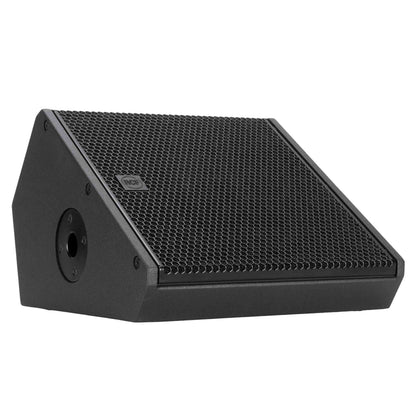

RCF KXM-25-A Active High Performance Coaxial Stage Monitor - 3200W

Name: RCF KXM-25-A Active High Performance Coaxial Stage Monitor - 3200W
Brand: RCF
SKU: H-RCF-KXM25A

Request a quote

Model / SKU: H-RCF-KXM25A

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

The RCF KXM-25-A is a very high-output active stage monitor engineered for maximum impact, precision, and controlled coverage in demanding professional environments. Delivering up to 137 dB maximum SPL with a powerful 3200W peak Class-D amplifier, it provides a focused 60° x 60° constant-directivity pattern for exceptional monitoring clarity and increased gain-before-feedback. Its multifunctional cabinet design also allows it to perform effectively as a portable FOH speaker or fill system.

Coaxial Precision & Advanced DSP Performance

At the core of the KXM-25-A is a coaxial transducer design featuring a 15-inch neodymium woofer with a 3.5-inch voice coil and a 2.5-inch neodymium coaxial compression driver. This configuration delivers highly coherent sound with improved phase alignment and consistent coverage as performers move across the stage. Integrated FiRPHASE and Bass Motion Control technologies enhance clarity, linearity, and low-frequency performance while maintaining excellent signal integrity and minimizing distortion even at high output levels.

Tour-Ready Construction & Intelligent Control

Built for the rigors of touring and professional live production, the KXM-25-A features a reinforced wooden enclosure with internal bracing to reduce vibrations and maintain acoustic precision. A heavy-duty powder-coated steel grille with internal foam protection helps safeguard the transducers from dust and impact during transport and daily operation. Integrated RDNet networking enables centralized monitoring and remote control, while powerCON® TRUE1 TOP locking connectors provide secure and reliable power connections for demanding indoor and outdoor applications.

Product Specifications:

Frequency Response: 50 Hz, 20 kHz

Max SPL: 133 dB @ 1m

Horizontal Coverage: 60°

Vertical Coverage: 60°

HF Driver: Coaxial 1.5" Neodymium (2.5" Voice Coil)

LF Driver: Coaxial 15" Neodymium (3.5" Voice Coil)

Input Signal: Balanced / Unbalanced

Input Connectors: XLR, RDNet Ethercon

Output Connectors: XLR, RDNet Ethercon

Input Sensitivity: -2 dBu / +4 dBu

Crossover Frequency: 900 Hz
