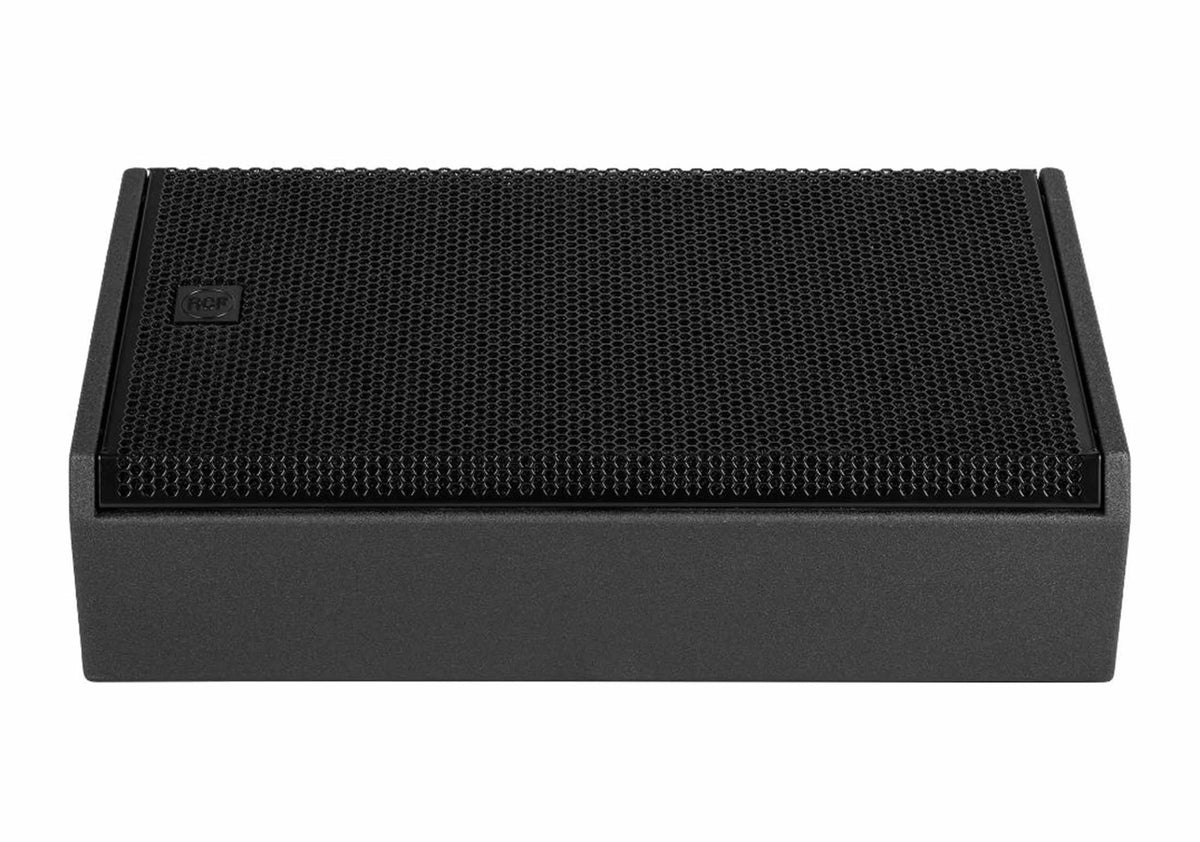

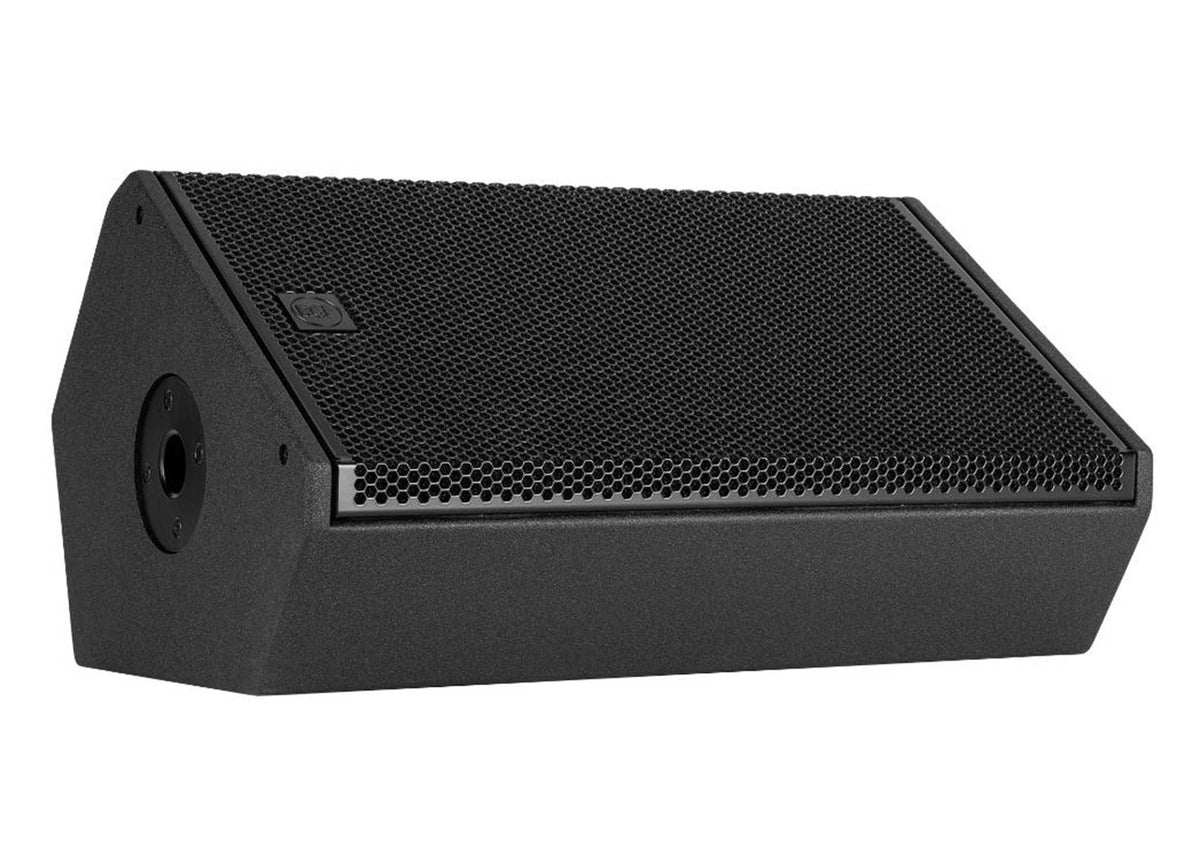

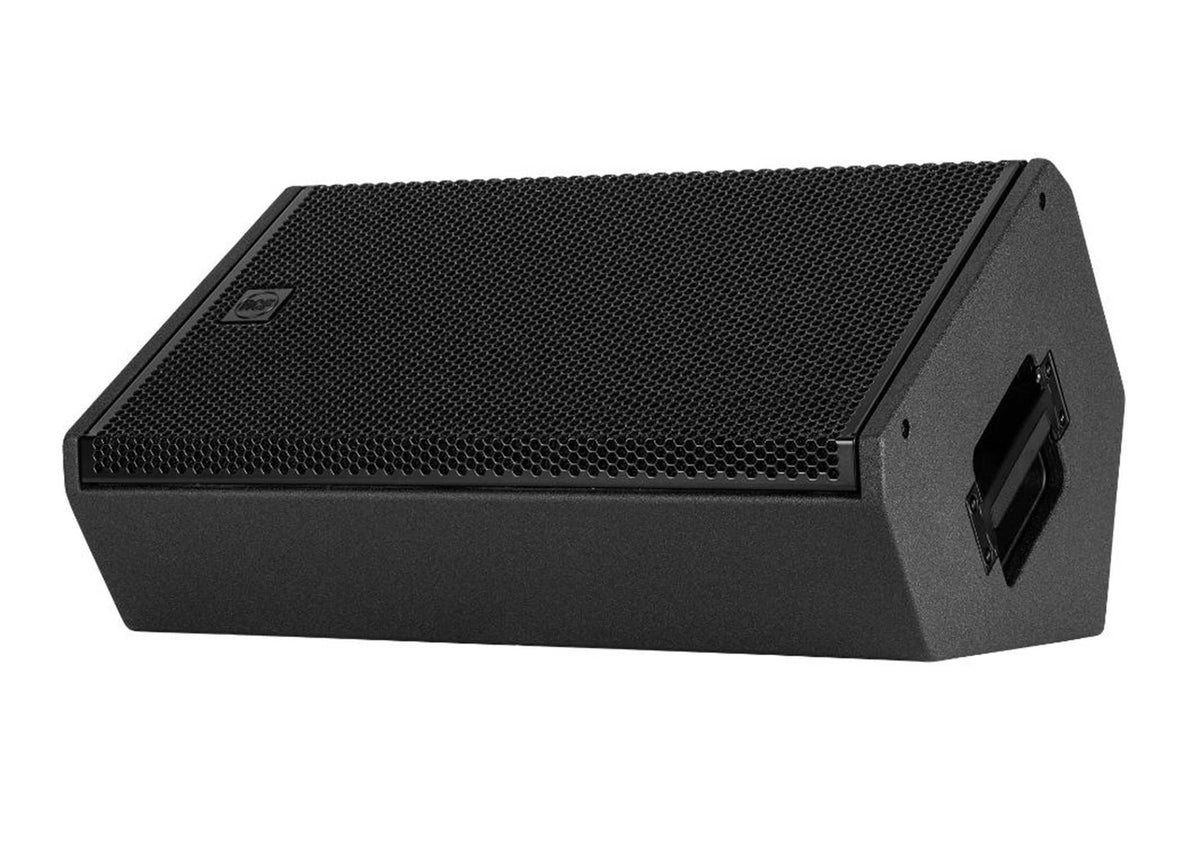

The RCF NX 912-SMA is a high-performance active stage monitor designed for sound providers, musicians and bands. Featuring a powerful 2,100W Class-D amplifier, this monitor delivers up to 130 dB SPL with exceptional clarity and deep bass response. The 12” woofer and 1.75” compression driver, paired with RCF’s proprietary FiRPHASE and Bass Motion Control DSP processing, ensure a transparent sound with minimal phase distortion. The TRW waveguide provides a 100° x 70° constant directivity coverage, making it perfect for stage monitoring, standalone PA use, or as a satellite speaker with a subwoofer. The rugged, all-wood cabinet is lightweight, easy to transport, and built for reliability in demanding live performance settings.
Product Specifications:
Max SPL: 130 dB
Frequency Response: 50 Hz - 20 kHz
Coverage: 100° x 70°
Woofer: 12” with 2.5” voice coil
Compression Driver: 1.75” voice coil
Amplifier Power: 2,100W Peak (700W HF + 1,400W LF)
Crossover Frequency: 1600 Hz

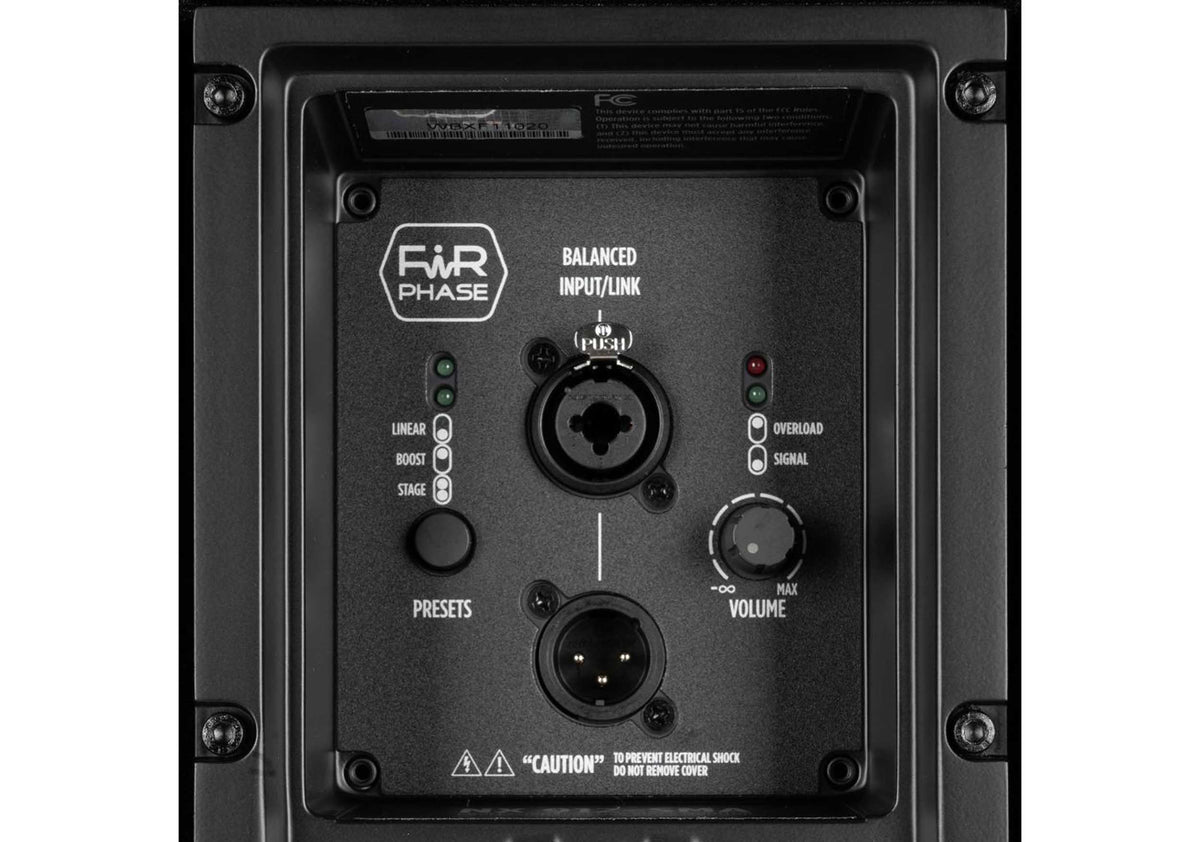

Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Cooling: Convection
Cabinet Material: Plywood

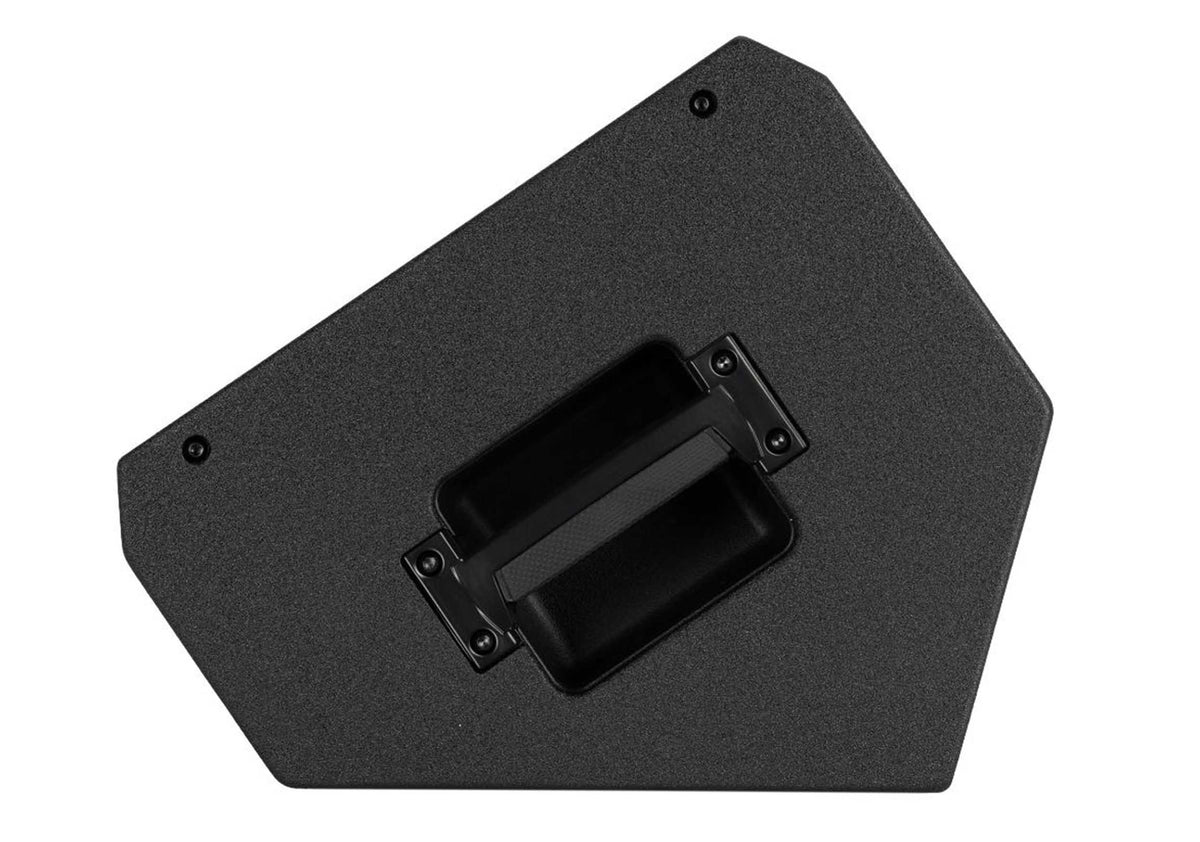

Handles: 1 on side, 1 on top

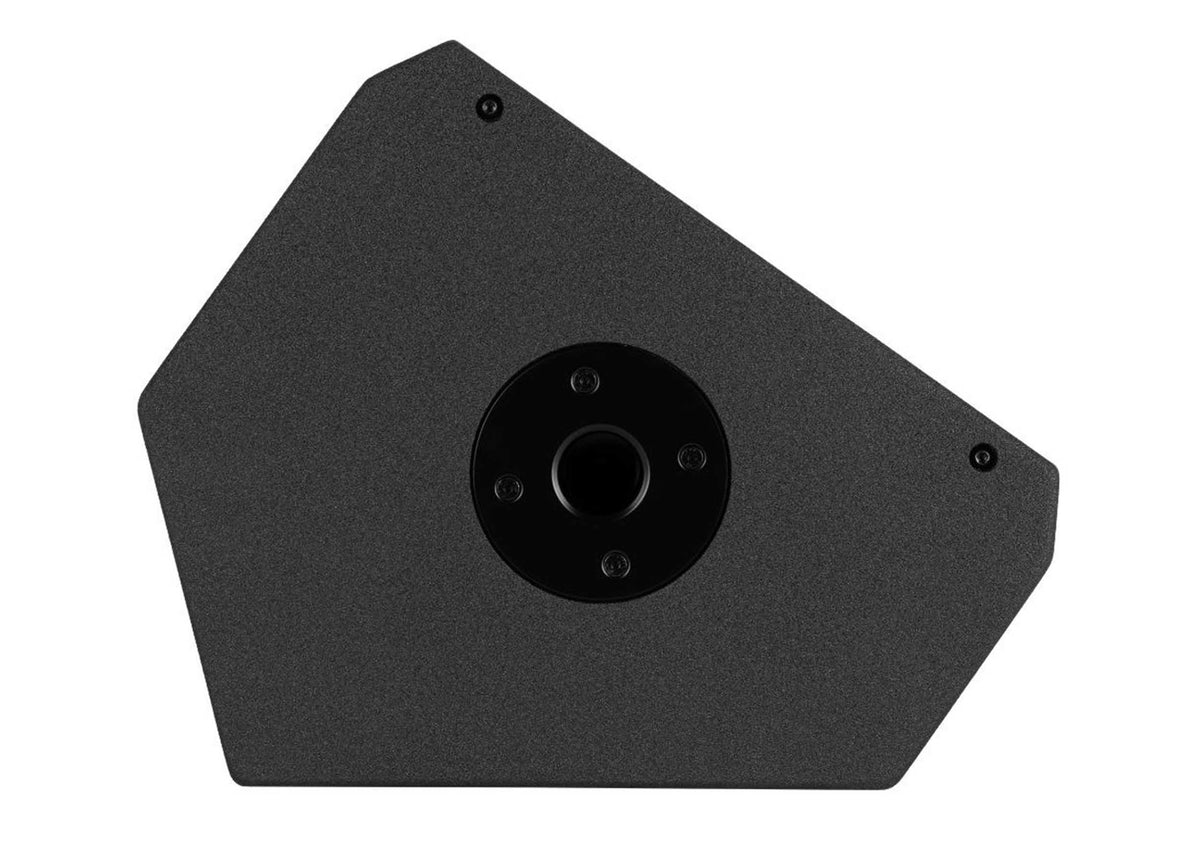

Pole Mount: 35 mm insert
Weight: 20 kg / 44.09 lbs
Dimensions (H x W x D): 320 x 620 x 394 mm
Package Weight: 23 kg / 50.71 lbs
