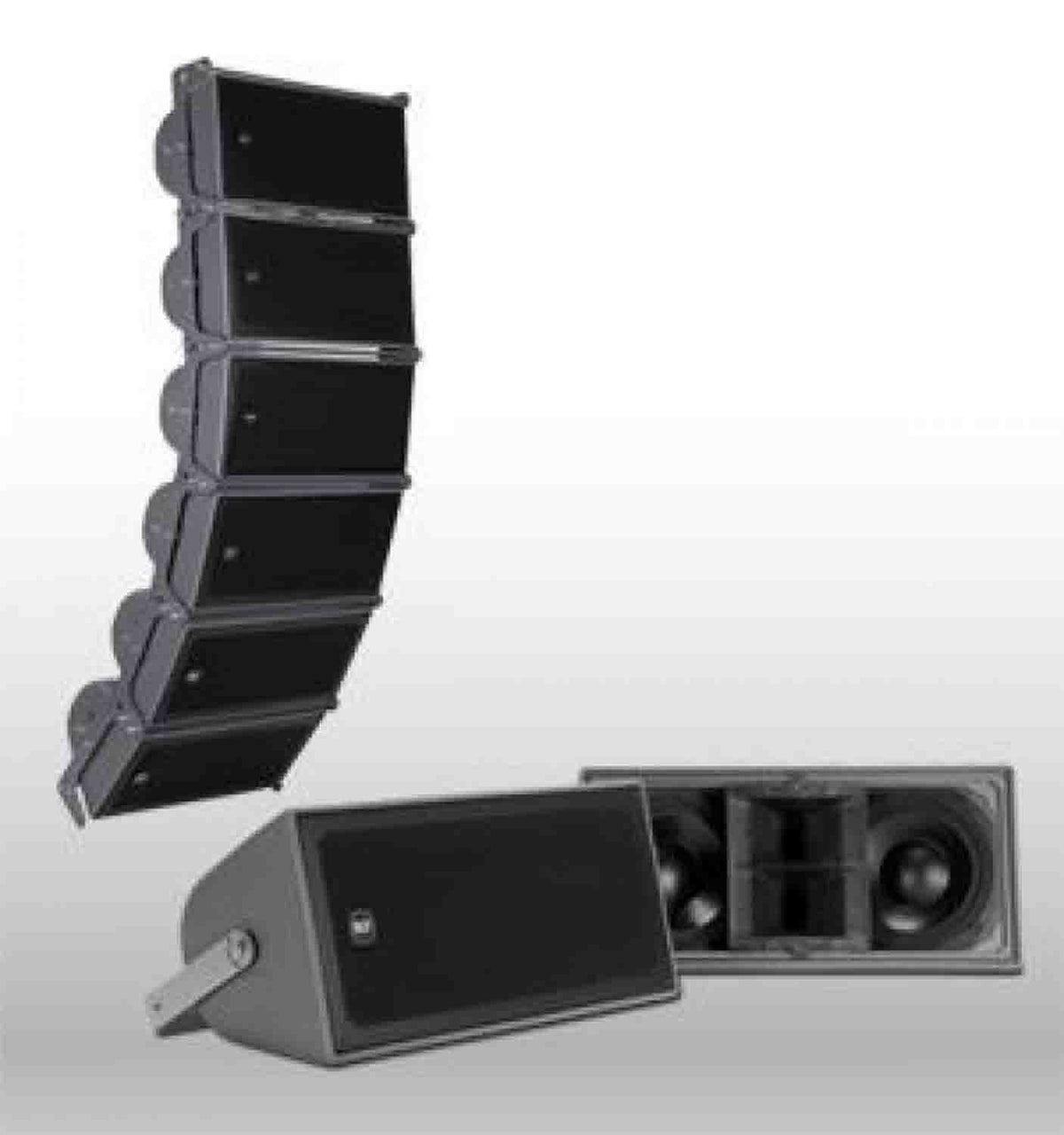

The RCF P5228, 8-Inch 500-Watt Weatherproof 2-Way Speaker System is an IP55 (International Protection Rating) weatherproof full range, two-way line array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20° vertical coverage. The low frequency transducers are two 8" woofers with a 2.5" voice coil.
The cabinet is a single-piece rotational molded enclosure, made in medium density polyethylene, is fully UV protected, and equipped with 4 x M8 brass inserts and a stainless-steel U-Bracket. Connections to the amplifier are made through a watertight multi-pole connector. The grille is custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.
Product Specifications
| Specification | Value |
|---|---|
| Frequency Response | 80 Hz - 20 kHz |
| Maximum SPL (@ 1 m) | 131 dB |
| Coverage Angle | Horizontal: 90°, Vertical: 20° |
| Directivity (Index, Q) | 11 |
| Sensitivity | 98 dB |
| Impedance | 8 Ω |
| Power Handling | 500W |
| Peak Power Output | 2000W |
| Recommended Amplifier Power | 1000W |
| Protection | Dynamic |
| Crossover Frequencies | 1300Hz |
| Box Weight | 38 lbs |
| Box Dimensions (LxWxH) | 24 x 12 x 12 inches |
