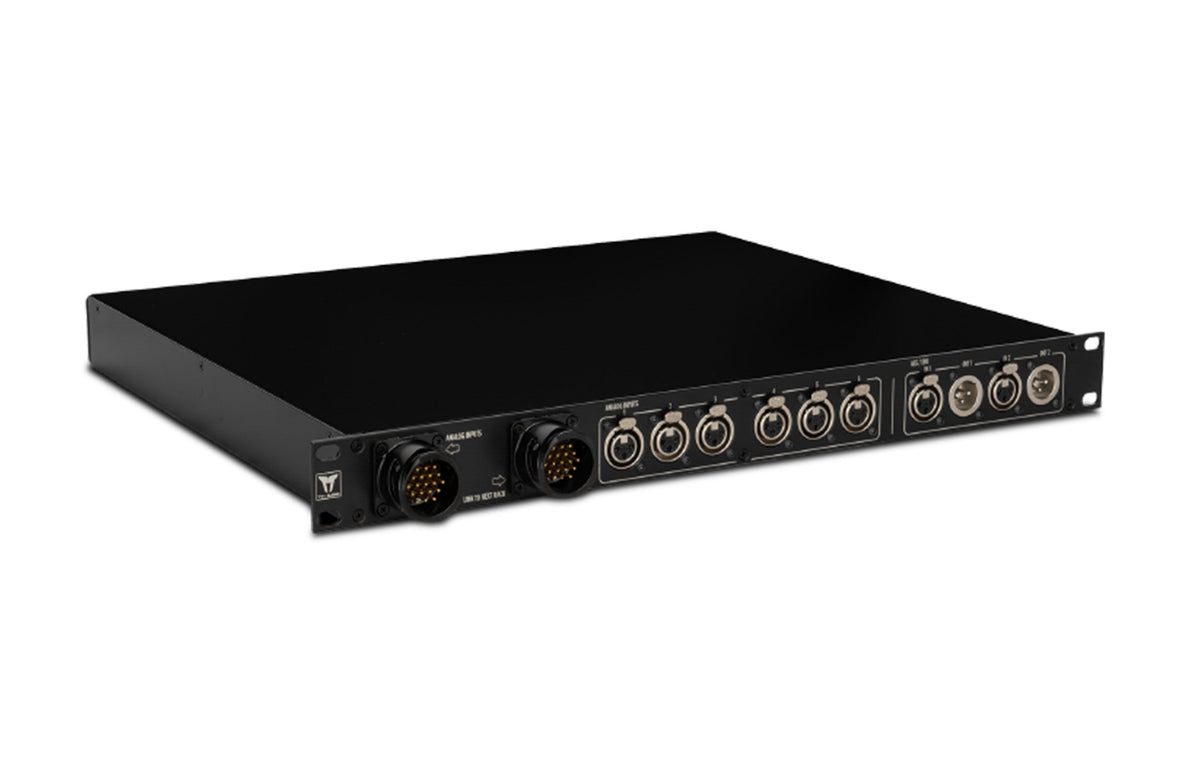

RCF SD 6/4, 6-Channel Signal Distribution Box - Black

The RCF SD 6/4 Signal Distribution Box 6 Channel is a professional-grade 6-channel signal distribution unit designed for efficient audio signal routing in live sound and installation environments. Housed in a compact 1RU rackmount steel chassis, it allows signals from an S-COM 19 connector or six front-panel XLR inputs to be distributed across ten rear-panel XLR outputs. Inputs 1 and 2 are paralleled to multiple outputs, enabling flexible signal duplication. Additionally, integrated AES/EBU input and output connectors provide digital signal connectivity, making it suitable for both analog and digital audio systems. Built with robust construction and reliable connectivity, this unit is ideal for complex audio setups requiring organized and stable signal distribution.

Product Specifications:

Front Connectors:

1x Analog input 6 channel connectors (S-COM 19 pin)

1x Analog Link 6 channel connector (S-COM 19 pin)

6x Analog XLR input connector (female XLR 3 pin)

2x AES input (female XLR 3 pin)

2x AES output (male XLR 3 pin)

Rear Connectors:

3x Analog XLR output connector (male XLR 3 pin)

3x Analog XLR output connector (male XLR 3 pin)

4x Analog XLR output connector (male XLR 3 pin)

2x AES output (male XLR 3 pin) - LINK

2x AES input (female XLR 3 pin) - LINK

Standard Compliance:

Safety agency: CE compliant

Cabinet/Case Material: Steel

Color: Black

Rack mounting: 19", 1U

Product Height: 44 mm / 1.73 inches

Product Width: 480 mm / 18.9 inches

Product Depth: 370 mm / 14.57 inches

Product Weight: 3.5 kg / 7.72 lbs

Shipping Height: 100 mm / 3.94 inches

Shipping Width: 530 mm / 20.87 inches

Shipping Depth: 350 mm / 13.78 inches

Shipping Weight: 4.5 kg / 9.92 lbs
