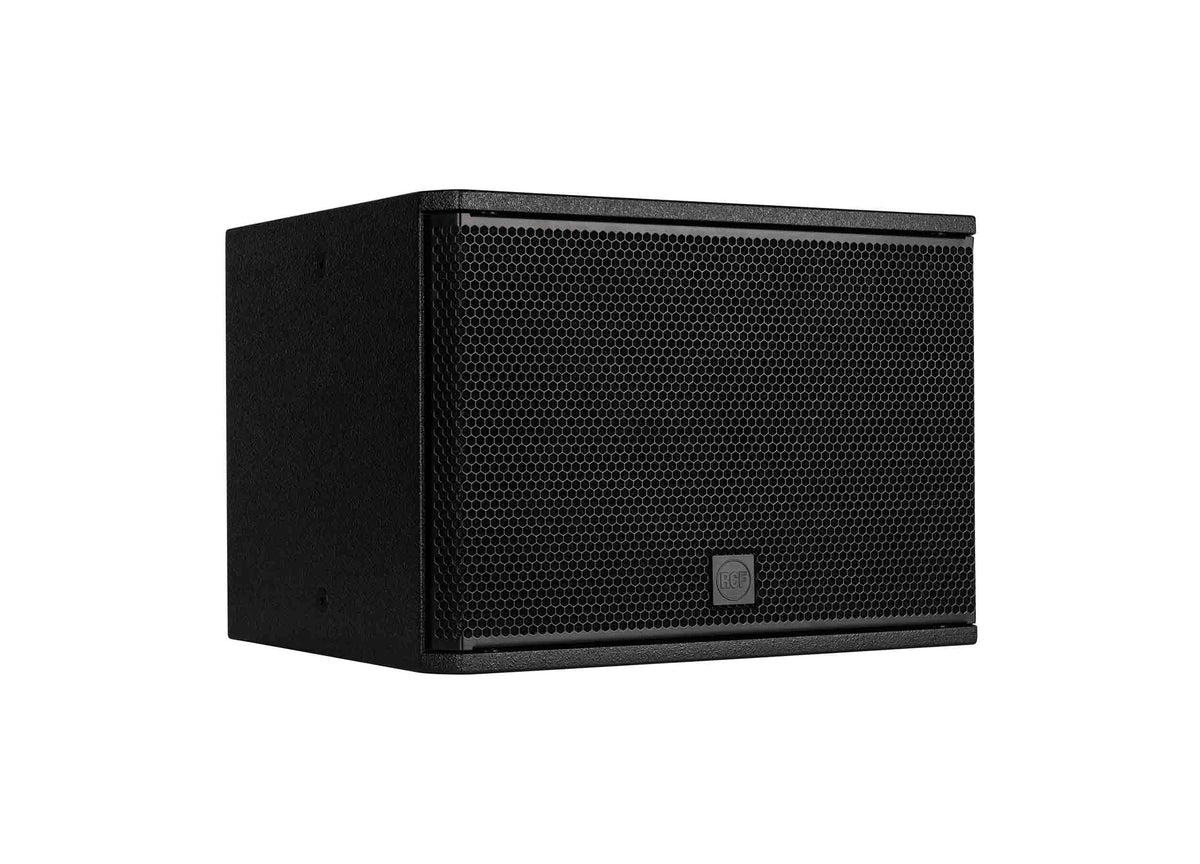

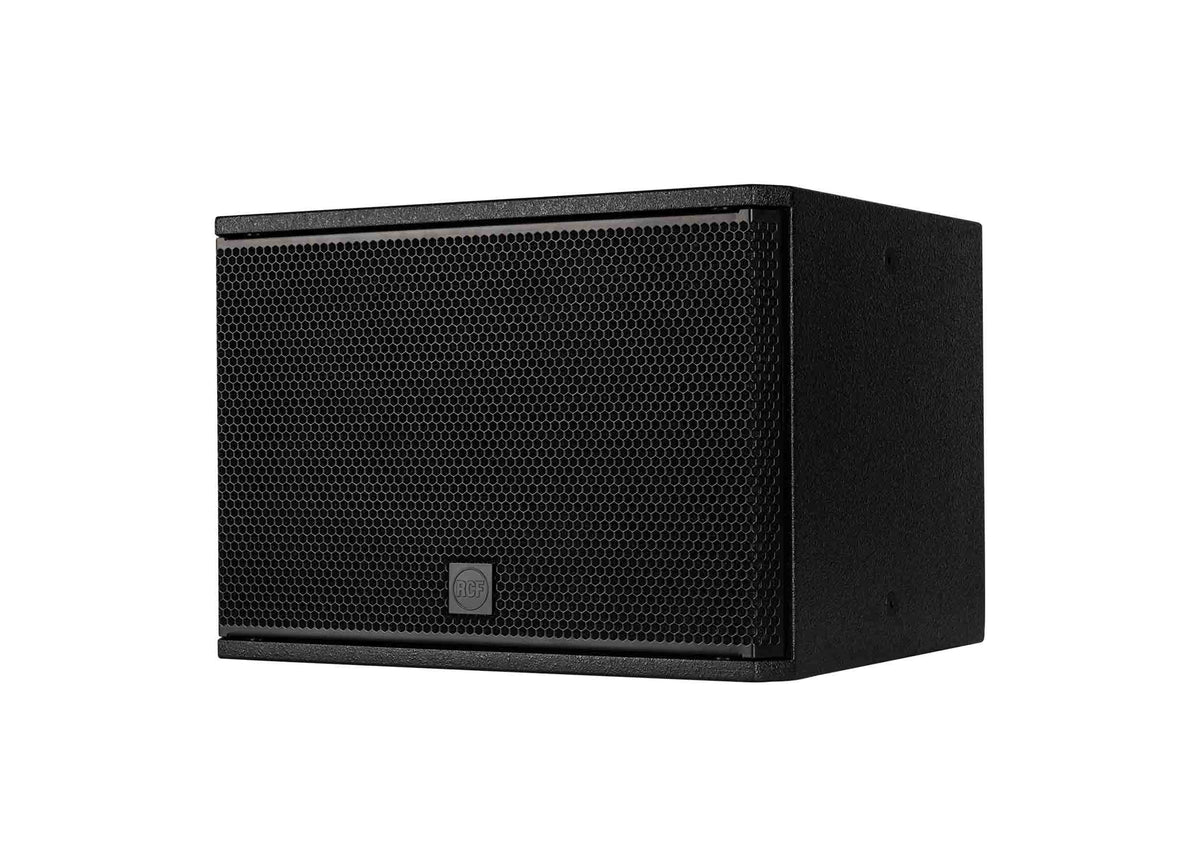

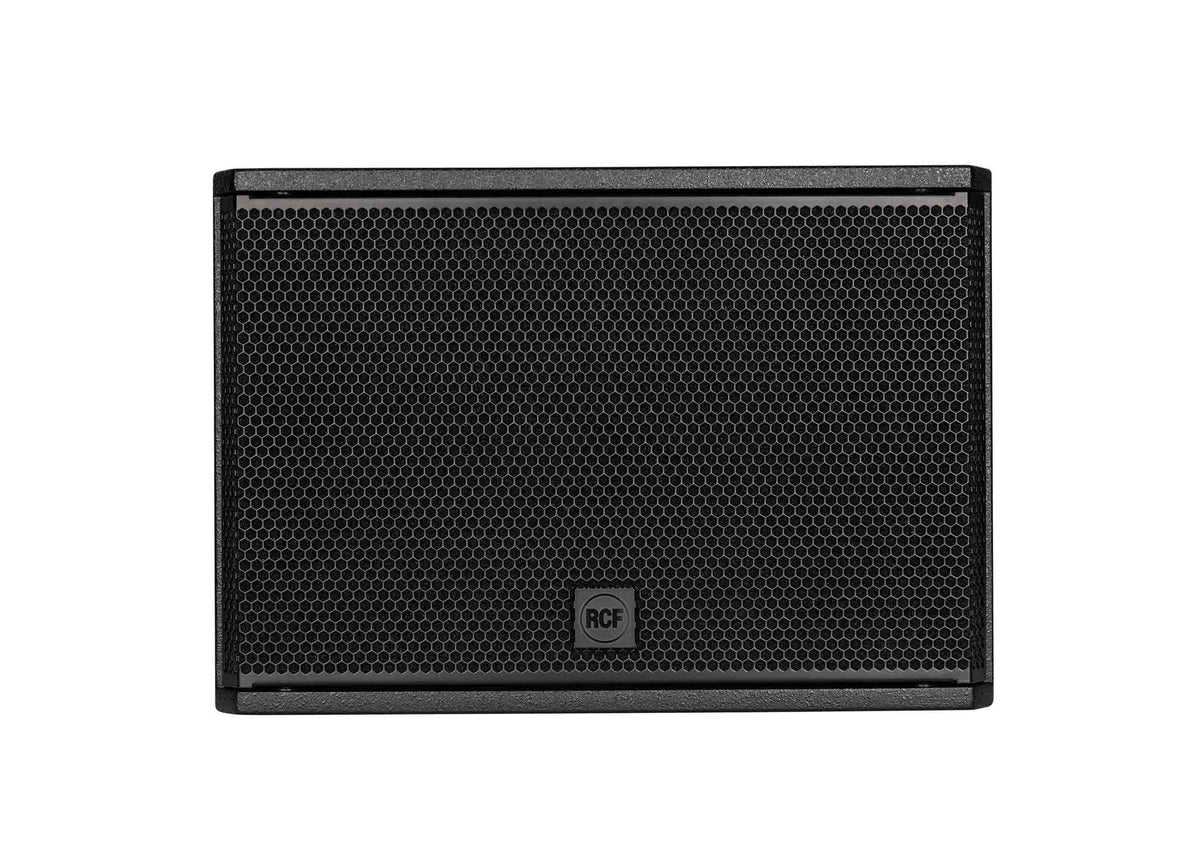

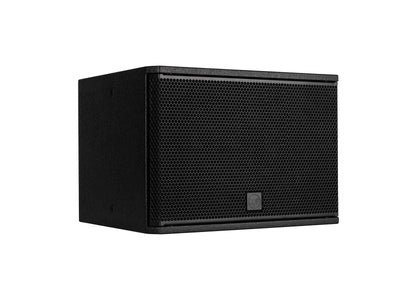

RCF SUB-S12 Passive 12-InchBass Reflex Subwoofer - 1600 W

Name: RCF SUB-S12 Passive 12-InchBass Reflex Subwoofer - 1600 W
Brand: RCF
SKU: H-RCF-SUBS12

Request a quote

Model / SKU: H-RCF-SUBS12

In a hurry? Call us.

1-800-700-4542
System design direct line: (213) 816-4102

Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

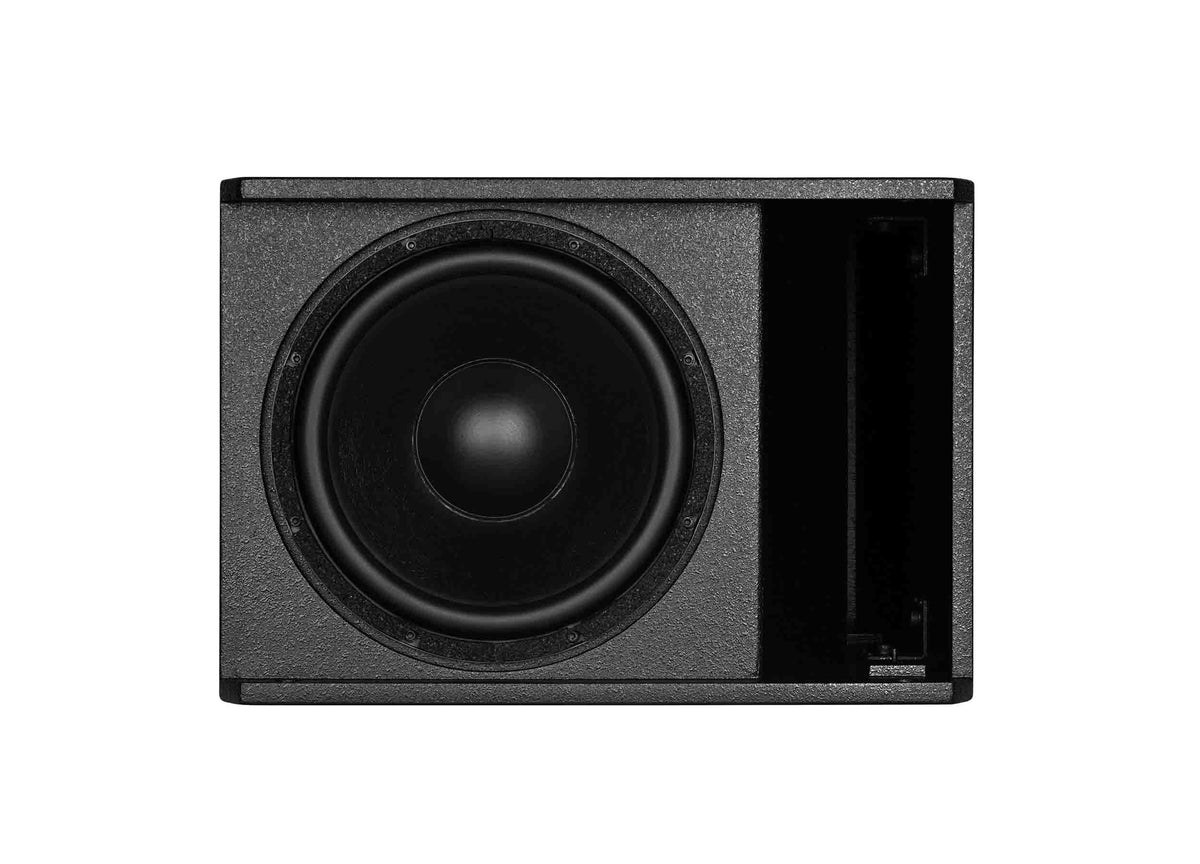

The RCF SUB-S12 Passive 12-InchBass Reflex Subwoofer - 1600 W is a high power, compact subwoofer system ideal for those installations where the physically small size and impact of a 12'' driver are desired. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 12” woofer with a 2,5” voice coil. Woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.

Powerful Lows

RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience.

State Of the Art Transducers

The low-frequency transducers are a 10'', 12” and a 15'' high-power woofers, both with a 2.5'' voice coil. Their design is the result of the latest refinements in compact subwoofers production, resulting in a fast and controlled reproduction of the bass frequency range.

Multipurpose Sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.

Improve The Audio Atmosphere

Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.

Product Specifications:
Frequency Response: 40 Hz, 200 Hz

Max SPL (1m): 125 dB

Sensitivity: 93 dB

Power Section:

Amplification: Full Range

Impedance: 8 ohms

Power Handling: 400 W RMS

Peak Power: 1600 W PEAK

Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, IPS 1.5K, IPS 2.5K, QPS 6.0K

Transducers:

Woofer: 1 × 12", 2.5" voice coil

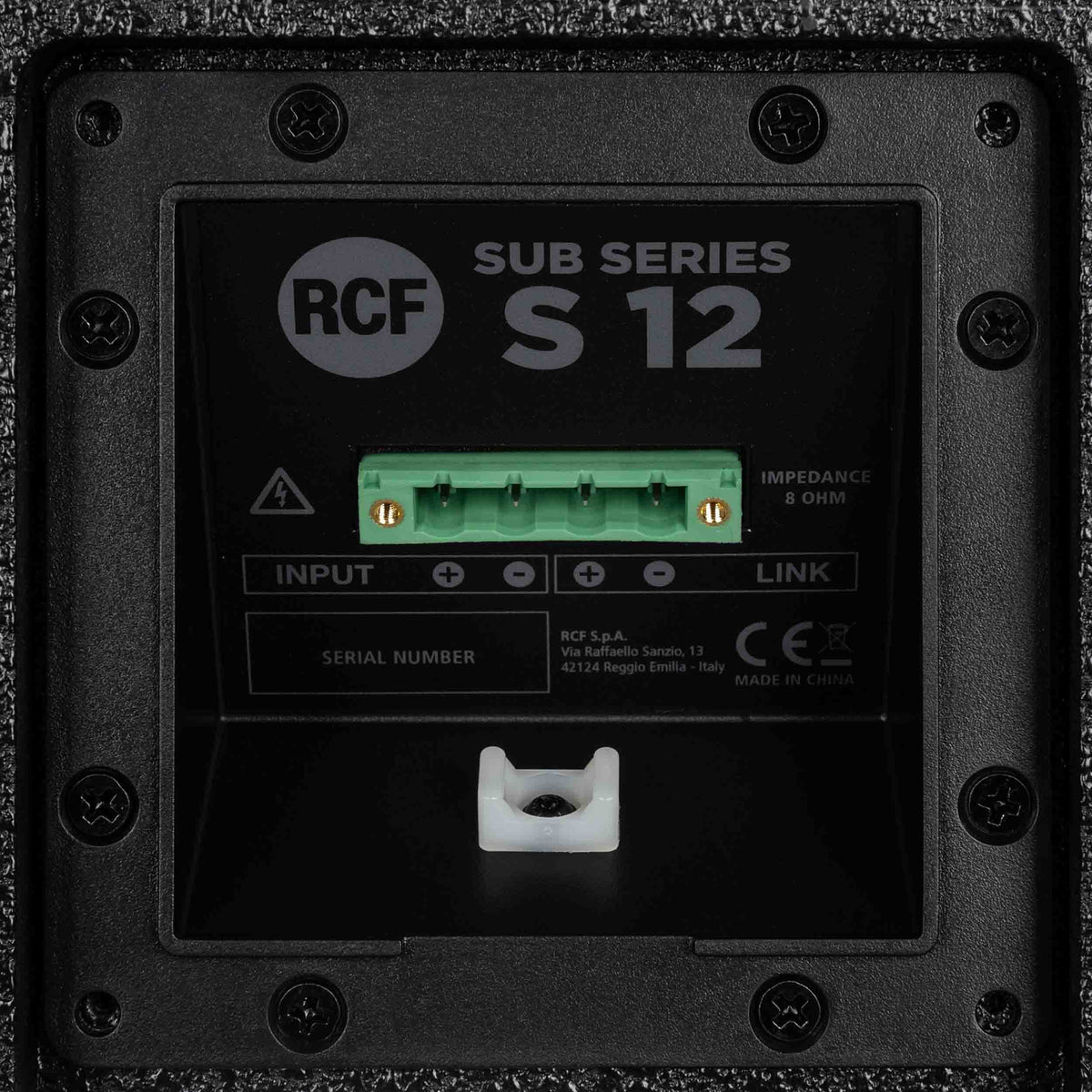

Input/Output Section:
