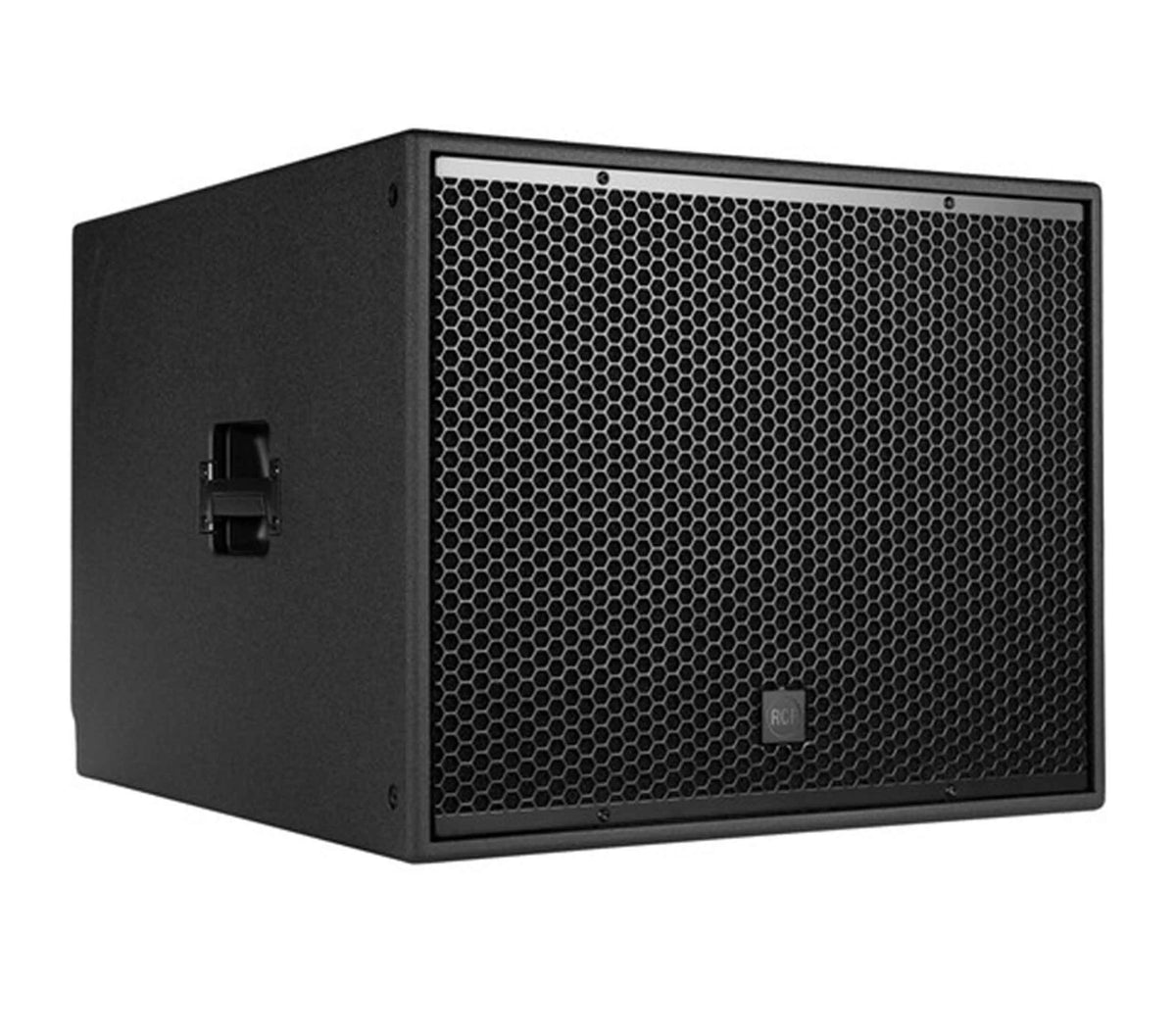

RCF SUB-S19 WP Weatherproof Passive Subwoofer 1500W with IP67 Connectors - 19 Inch

The RCF SUB-S19 WP is a high-power 19-inch passive subwoofer designed for demanding outdoor sound reinforcement applications. It features a 19-inch HyperVented neodymium woofer with a 4-inch voice coil, delivering up to 1500W of power handling, 6000W peak power handling, and a maximum SPL of 139 dB. Its bass-reflex enclosure provides an extended low-frequency response from 30 Hz to 200 Hz.

Advanced Transducer & Bass Performance

The SUB-S19 WP uses advanced transducer technology featuring a lightweight aluminum core voice coil, high-damping cellulose cone material, composite spiders, and a 4-layer inside-outside voice coil design. The long-excursion woofer is engineered to deliver powerful, fast and articulate bass while maintaining accurate reproduction of low-frequency detail. The enclosure can be ground-stacked and configured for cardioid arrays to improve rear rejection.

Weatherproof Construction for Outdoor Applications

Built for demanding environments, the SUB-S19 WP features a high-quality multi-ply plywood cabinet finished with a durable black polyurea coating for waterproofing, corrosion resistance, abrasion resistance and impact protection. A powder-coated steel grille incorporates acoustically transparent, water-repellent fabric for enhanced weather resistance. Two IP67-rated Amphenol connectors provide protected professional connectivity, while the integrated M20 threaded pole mount and two side handles support flexible installation and transport.

Product Specifications:

Application: High-Powered Outdoor Sound Reinforcement

Enclosure Type: Bass-Reflex

System Design: 19-Inch Cone Subwoofer

Woofer: 1 × 19-Inch Neodymium Woofer

Woofer Type: HyperVented Neodymium

Voice Coil: 4-Inch

Voice Coil Construction: 4-Layer Inside-Outside

Cone Material: High-Damping Cellulose

Magnet: Neodymium

Power Handling: 1500 W RMS

Peak Power Handling: 6000 W Peak

Nominal Impedance: 8 Ohms

Maximum SPL: 139 dB @ 1 m

Frequency Response: 30 Hz, 200 Hz (-10 dB)

Amplification: Passive

Recommended Amplifiers: XPS 16K, XPS 16KD

Connector Protection: IP67

Pole Mount: Integrated M20 Threaded Mount

Mounting: Ground-Stackable

Array Configuration: Cardioid-Arrayable

Handles: 2 Side Handles

Cabinet Material: Multi-Ply Plywood

Cabinet Finish: Heavy-Duty Polyurea Coating

Grille Material: Steel

Grille Protection: Water-Repellent Protection

Weather Resistance: Weatherproof Construction

Impact Protection: Polyurea Impact-Resistant Coating

Safety Compliance: CE Compliant

Product Weight: 97 lbs

Product Dimensions: 21.02" H × 25.59" W × 28.74" L

Shipping Weight: 105.82 lbs

Shipping Dimensions: 22.24" H × 26.77" W × 29.92" L
