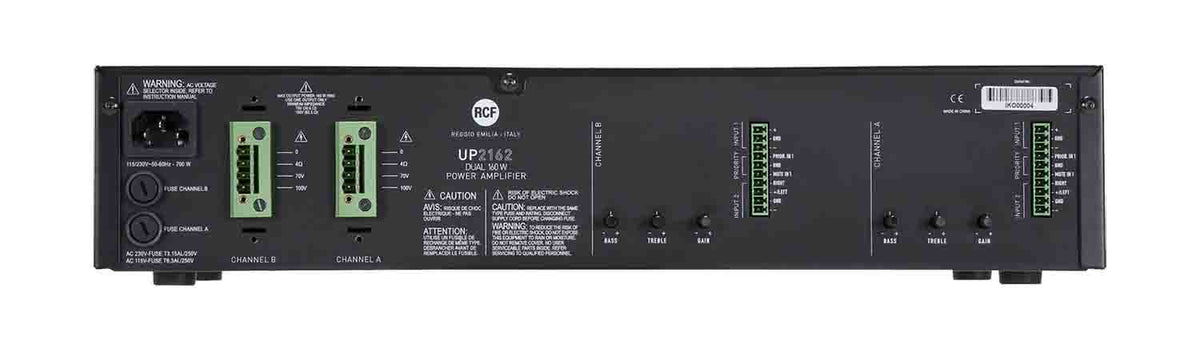

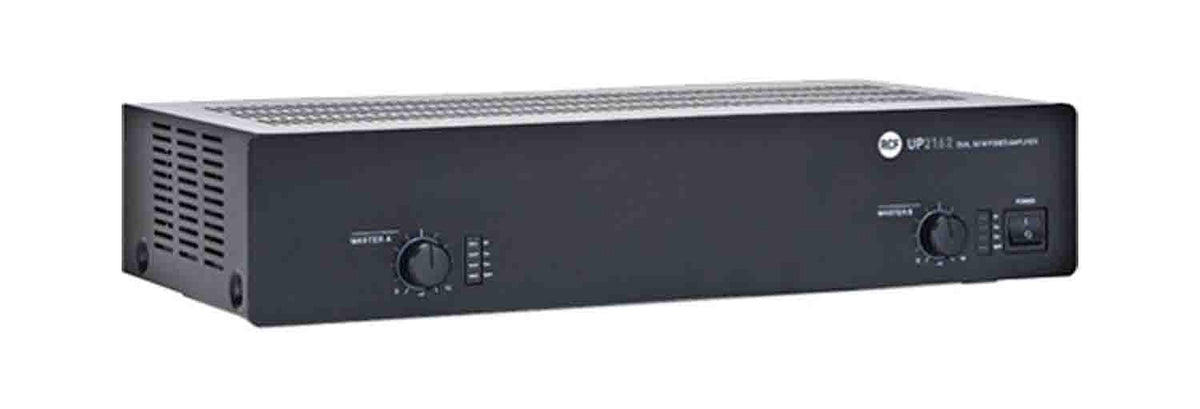

RCF UP-2162 2 Channel Power Amplifier - 2 x 160 Watt

The RCF UP-2162 2 Channel Power Amplifier - 2 x 160-Watt features two separated and independent 160W amplifiers. Each amplifier section has two audio inputs, of which one is with Priority function through a closing contact. Both audio inputs are at Line level for pre-amplified signals or music sources such as CD players and tuners. The amplifier output is available for either low impedance (min. 4 ohm) loudspeakers, or for loudspeakers with a 100-70V transformers. This Class D amplifier features a switching power supply. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications.

Product Specifications:

Power Output: 2 x 160W RMS

Frequency Response: 50 Hz to 18 kHz

Distortion: < 0.3%

Signal / Noise: 80 dB

Crosstalk: 80 dB

Line Input Impedance: 20 kOhms

Auxiliary Input Impedance: 20 kOhms

Tones    Bass/Treble: 100 Hz, ±8 dB

Output Impedance: 4 ohms

Output Voltage: 70 V (31 ohms) / 100 V (62 ohms)

Operating Voltage: 115-230 VAC, 50/60 Hz

Power Consumption: 2 x 350 W

Controls: Master volume, Treble, Bass, Gain

Protections: Overload, short circuit, thermal

Dimensions: 3.4 x 17.4 x 8.6" (88 x 444 x 220 mm)

Weight: 15.43 lb (7 kg)

Package Weight: 14 lbs

Package Dimension: 20, 13, 8”
