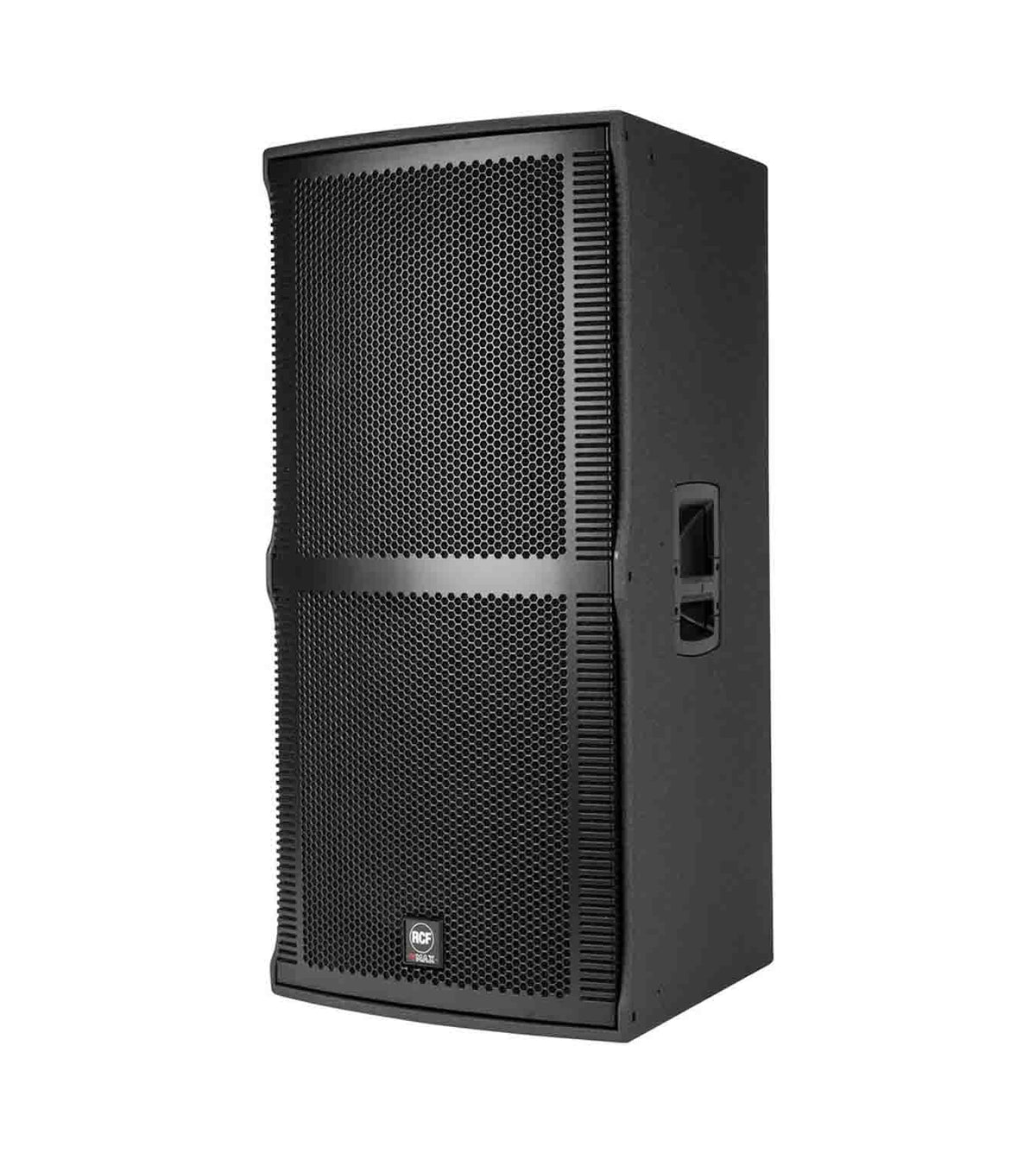

RCF VMAX-V45, 15-Inch 2-Way Full Range Passive Loudspeaker
RCF VMAX-V45, 15-Inch 2-Way Full Range Passive Loudspeaker
Model / SKU: H-RCF-VMAXV45
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The RCF VMAX-V45, 15-Inch 2-Way Full Range Passive Loudspeaker is a two-way full range loudspeaker system that incorporate 2 x 15” LF transducers and a compression driver. The LF drivers are equipped with a 4" voice coil and ferrite motor mounted in a vented enclosure with optimized front loading. It features a 4" HF titanium compression driver, loaded on a constant directivity horn with a perfect coverage of 90° x 40°.
It offers substantial power and efficiency for a variety of professional applications that include portable systems, primary sound reinforcement, plus permanent installations, and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD (Constant Matching Design) horn in relation to the woofer system, loaded on a neodymium compression driver with a 4" titanium diaphragm assembly for smooth, controlled dispersion.
The two 15" low-frequency transducers are equipped with a 4” voice coil. The system includes a high-level crossover network that features markedly lower (than conventional) induction values in series with the woofer. This innovation is called LICC (Low Impedance Compensated Crossover). The benefit is delay reduction, reduced phase shift and superior transient response. Dynamic high-frequency driver protection is accomplished with a bulb lamp dynamic chosen to complement the power curve of the driver. The cabinet shape will allow the V45 to be used in the standard configuration as well as in stage monitor model. Furthermore, M10 threaded inserts are provided for optional mounting hardware in installed sound applications. A rugged steel pole mount is being installed at the bottom.
Product Specifications:
Frequency Response: 30 to 20,000 Hz
Maximum SPL: 137 dB
Sensitivity: 1 W / 1 m: 99 dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 40°
Compression Driver: 1.4" neo, 4" voice coil
Woofer: 15" neo, 4" voice coil
Power Handling: 2 x LF: 1800 W
MF/HF: 140 W
Input Signal: 4 Ohms
Input Connector: 2 x Speak on NL4
Input Sensitivity: 4 dBu
Crossover Frequencies: 1200 Hz
Protections: Bulb lamp dynamic
Material: 15 mm Birch plywood
Hardware: Pole mount, 10 x M10
Handles: 1 per side
Box Dimensions (LxWxH): 44 x 22 x 23" (112 x 56 x 58 cm)
Package Weight: 139
