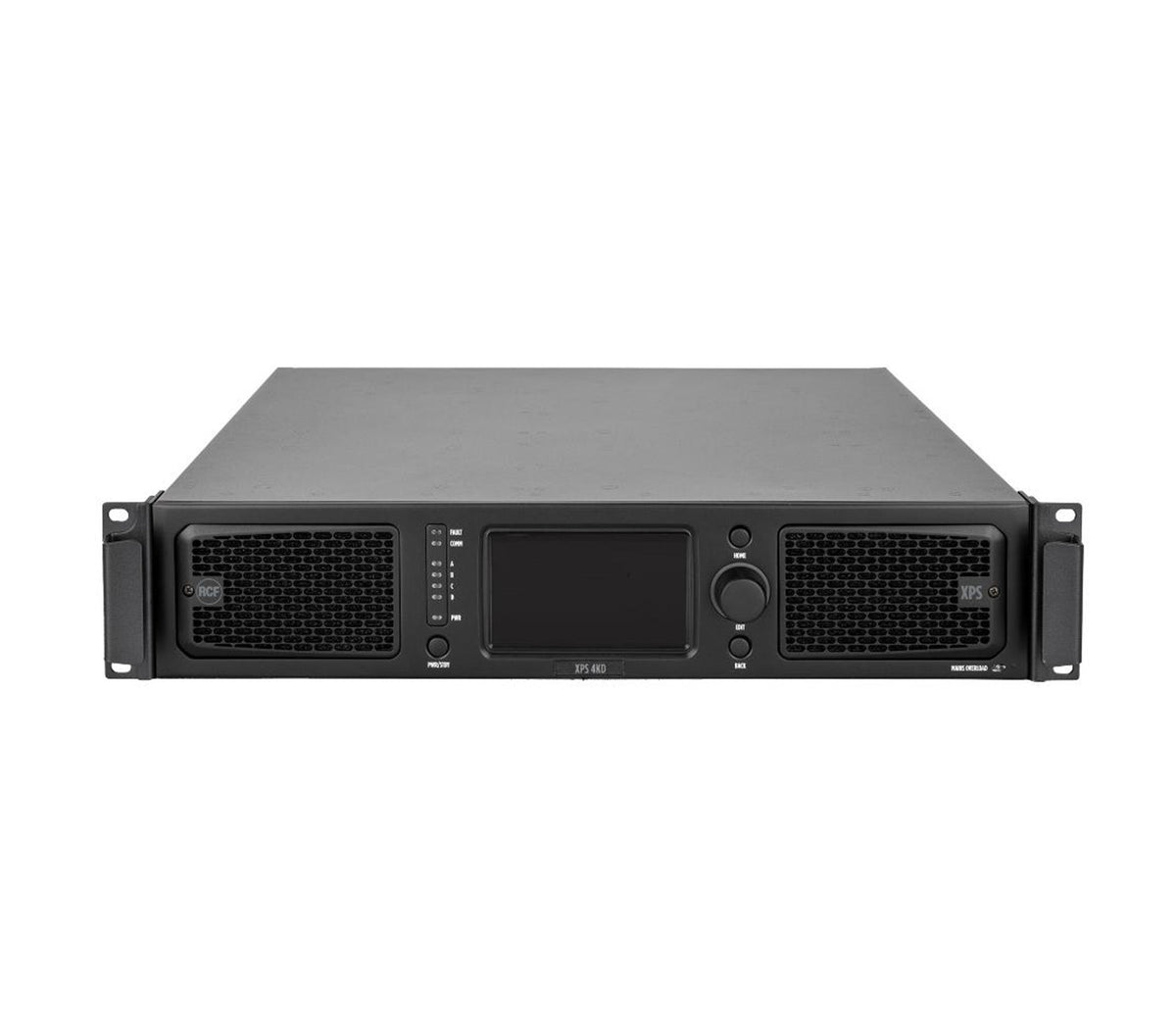

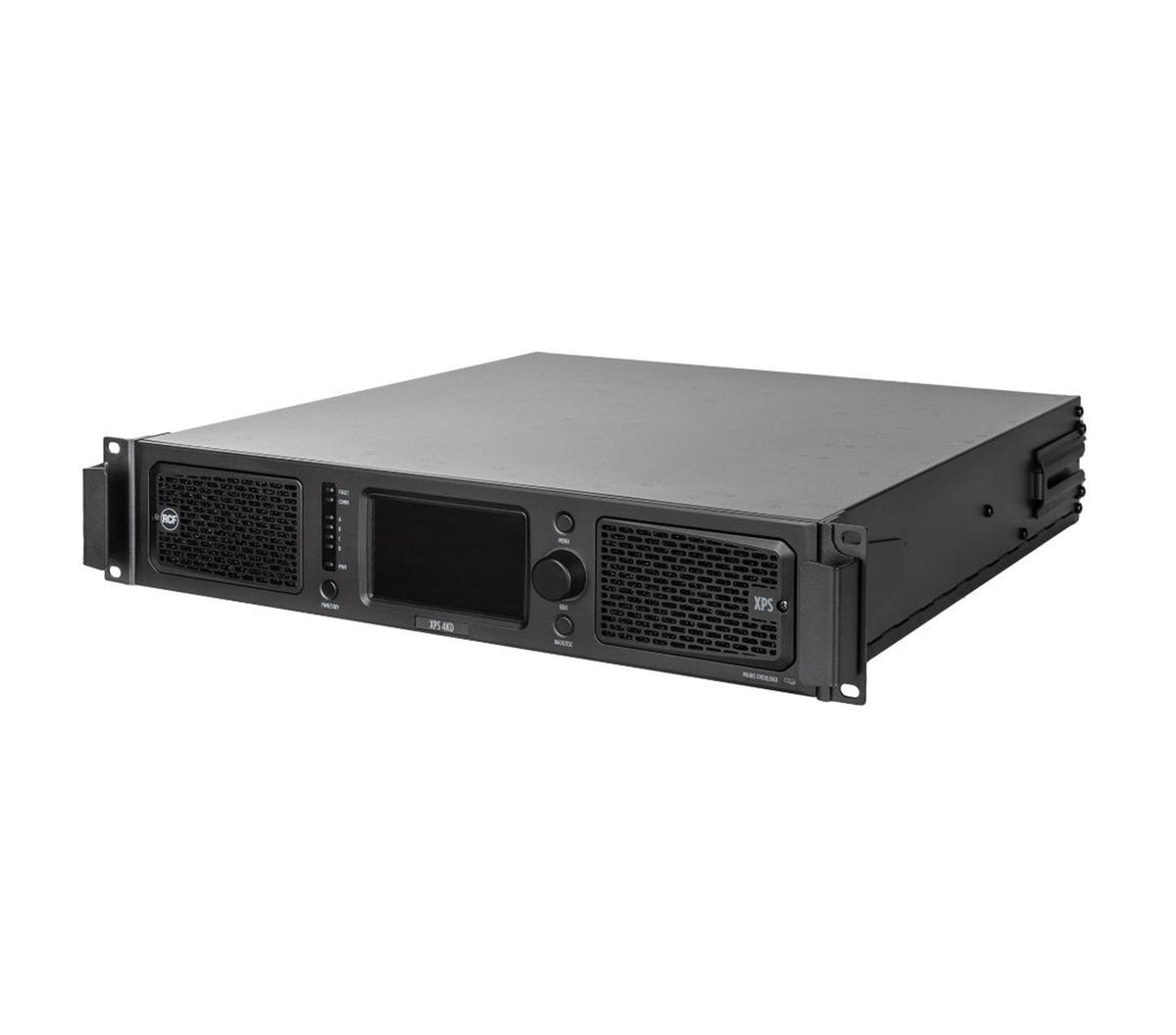

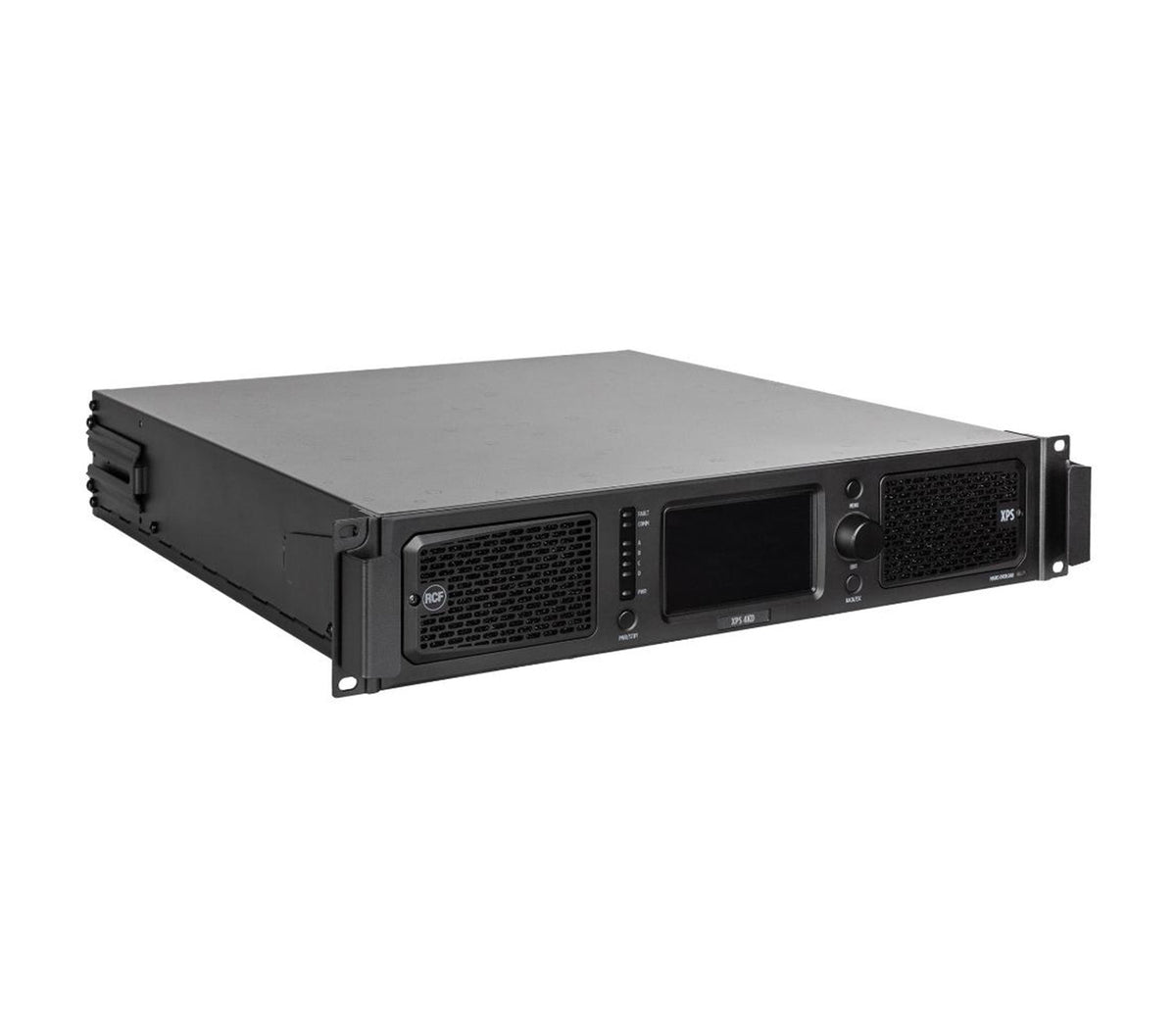

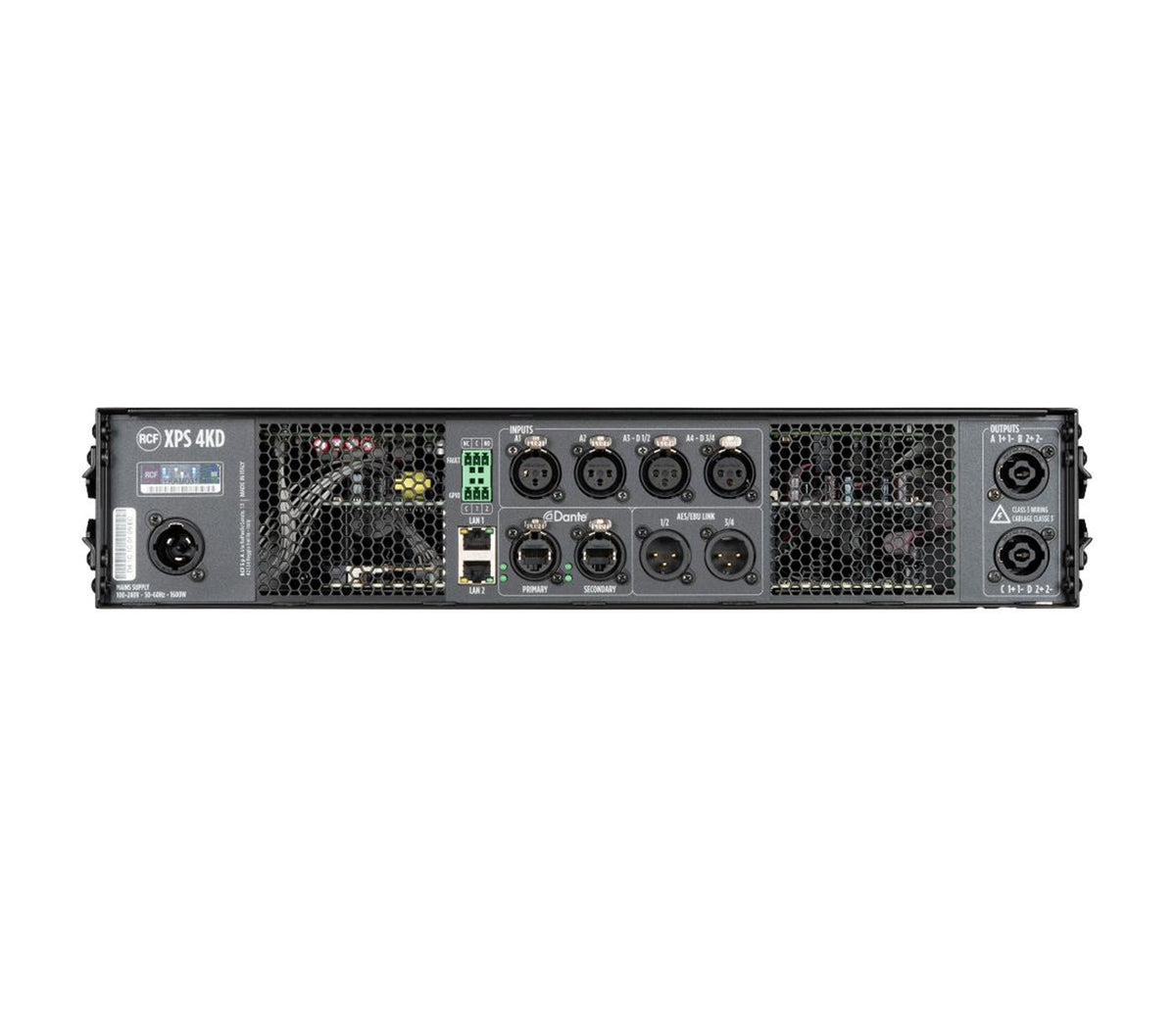

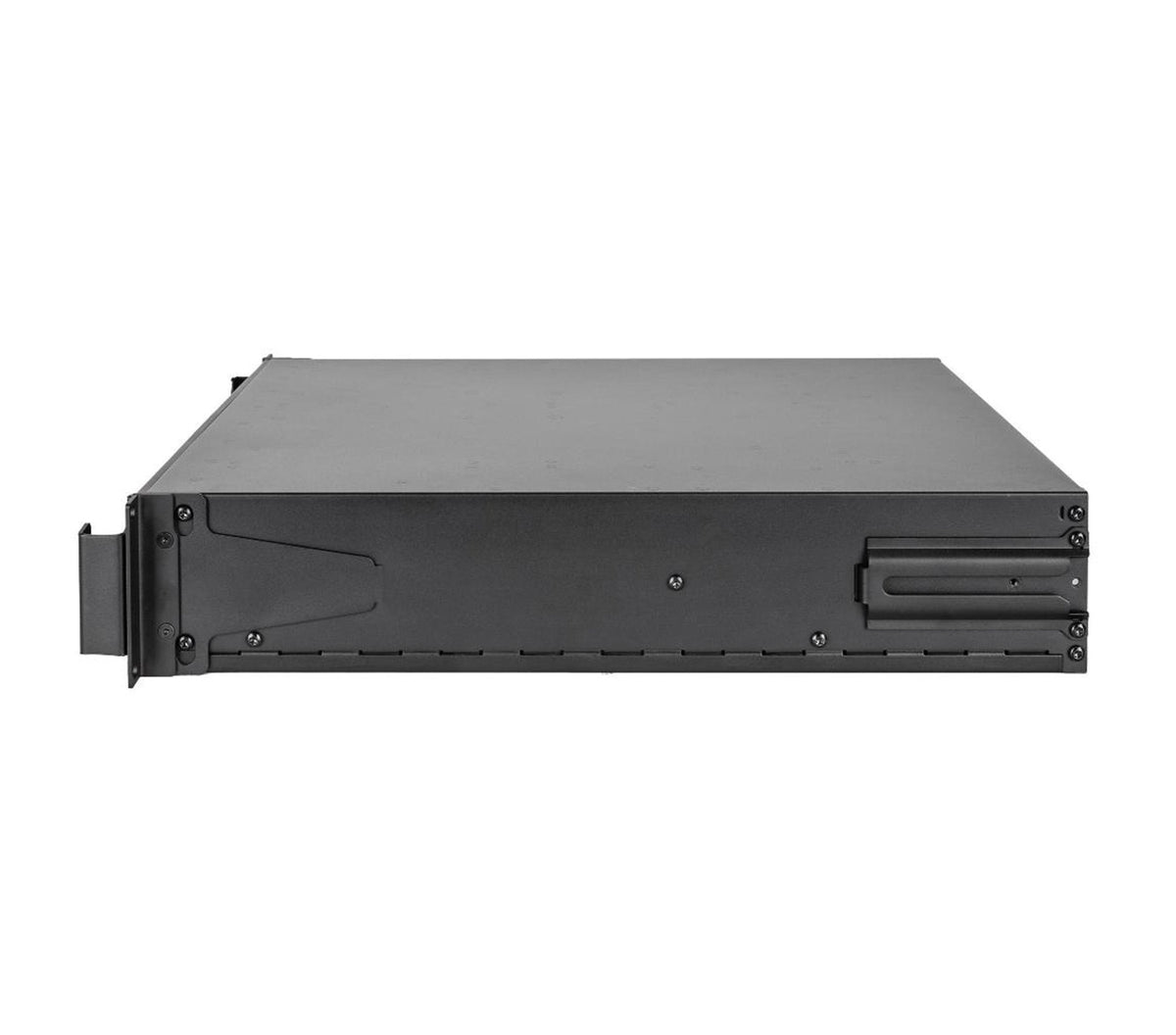

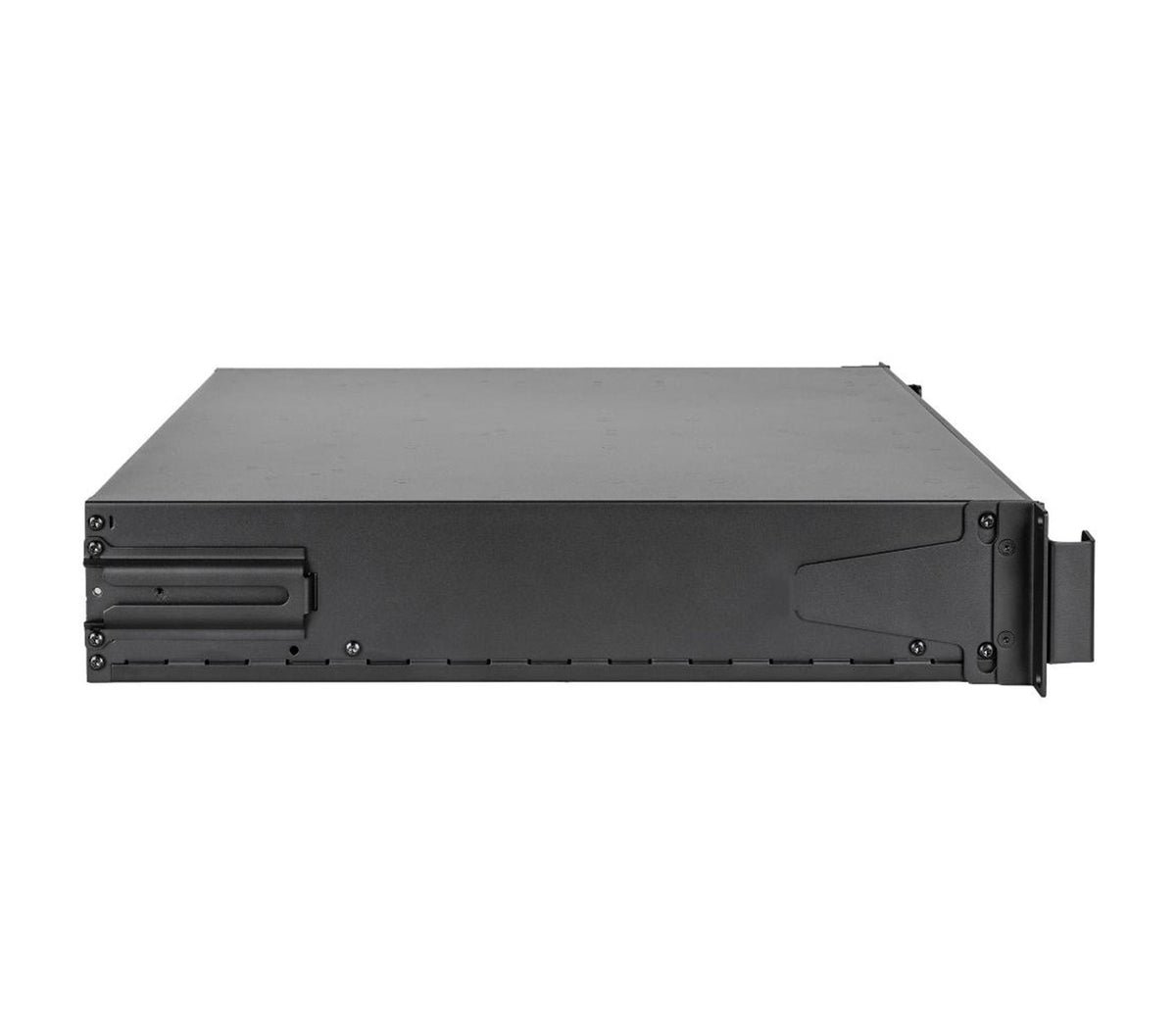

RCF XPS-4KD 4-Channel DSP Power Amplifier with Dante - 4000W

The RCF XPS 4KD is a four-channel Class D DSP power amplifier designed for demanding professional installed sound applications. Delivering 4000W of total continuous power, with 4 × 1000W at 4 ohms, it combines high power density with advanced digital processing in a compact 2U chassis.

Dante Networking & Advanced Audio Processing

The XPS 4KD provides 8 Dante digital input channels alongside AES/EBU and analog connectivity, enabling flexible integration into modern networked audio systems. Each output features up to 4000 ms of delay, EQ filters, crossovers, FIR filters, multiband compression, RMS limiting, power limiting, and thermal limiting, while RCF technologies such as FiRPHASE, Bass Shaper, and driver excursion control provide advanced system optimization.

RDNet Management & Professional System Integration

The amplifier provides comprehensive system management through RDNet, Gigabit Ethernet, onboard RCF speaker presets, and a front-panel 4.3-inch color touchscreen. With flexible routing, extensive protection circuitry, exceptional signal-to-noise performance, and Class D modules with SMPS and advanced PFC, the XPS 4KD is well suited to high-performance installed sound systems.

Product Specifications:

Amplifier Class: D

Total Continuous Power: 4000W

Output Power: 4 × 1000W @ 4 ohm / 4 × 700W @ 8 ohm

Frequency Response (-3 dB): 20 Hz, 23,000 Hz

Analog Input SNR: >108 dB

Digital Input SNR: >112 dB

Crosstalk: <70 dB

THD+N: <0.2%

Gain: 32 dB

Damping Factor: >200 @ 4 ohm

Total Inputs: 16

Line Inputs: 4

Line Connectors: XLR

Digital Inputs: 12

Digital Connectors: EtherCON, XLR

Digital Formats: AES/EBU, Dante

Dante Input Channels: 8

GPI Inputs: 2

Programmable GPI: Yes

Photo-Coupled GPI: 2

Signal Outputs: 4

Signal Output Connectors: XLR

Power Output Connectors: Speakon

GPO Outputs: 3

Programmable GPO: Yes

DSP: 2 SHARC 40-bit Floating Point + 2 ADAU 32-bit Fixed Point, 96 kHz

EQ Filters: Peaking, High/Low Shelving, High/Low Pass

Advanced Processing: FiRPHASE, Bass Shaper, Air Compensation, Mid-Low Correction, Driver Excursion Control, Dynamic PEQ, Multiband Compressor

Limiters: RMS, Dynamic, Power, Thermal

Output Delay: 0-4000 ms per Channel

Tone Controls: Yes

High-Pass Filter: 10-1000 Hz

Crossover Range: 2500-3500 Hz

Automatic Gain Control: Yes

Network: Gigabit Ethernet

Speaker Presets: RCF Speaker Presets Library

Control: Front Panel Touchscreen and PC Software

System Integration Protocol: Proprietary OSC-Based Protocol

RDNet: Onboard

Cooling: Forced

Protections: Short Circuit, Thermal, DC, Fuse, VHF

Operating Temperature: -5°C to +40°C Continuous

Reduced Power Temperature: -5°C to +50°C

Fan Noise Idle: <28 dBA

Fan Noise Maximum: <48 dBA

Operating Voltage: 100-240V, 50/60Hz

Nominal Current @ 100-120V: 14A

Nominal Current @ 220-240V: 8A

Standby Power Consumption: 30W

Idle Power Consumption: 100W

Maximum Power Consumption: 2600W

Cabinet Material: Metal

Rack Mounting: 19", 2U

Handles: 2 Metal Rack-Mount Handles

Safety Agency: CE Compliant

Product Weight: 24.25 lbs

Product Dimensions: 3.49 H × 18.98 W × 18.99 L

Shipping Weight: 30.86 lbs

Shipping Dimensions: 5.91 H × 22.83 W × 23.62 L
