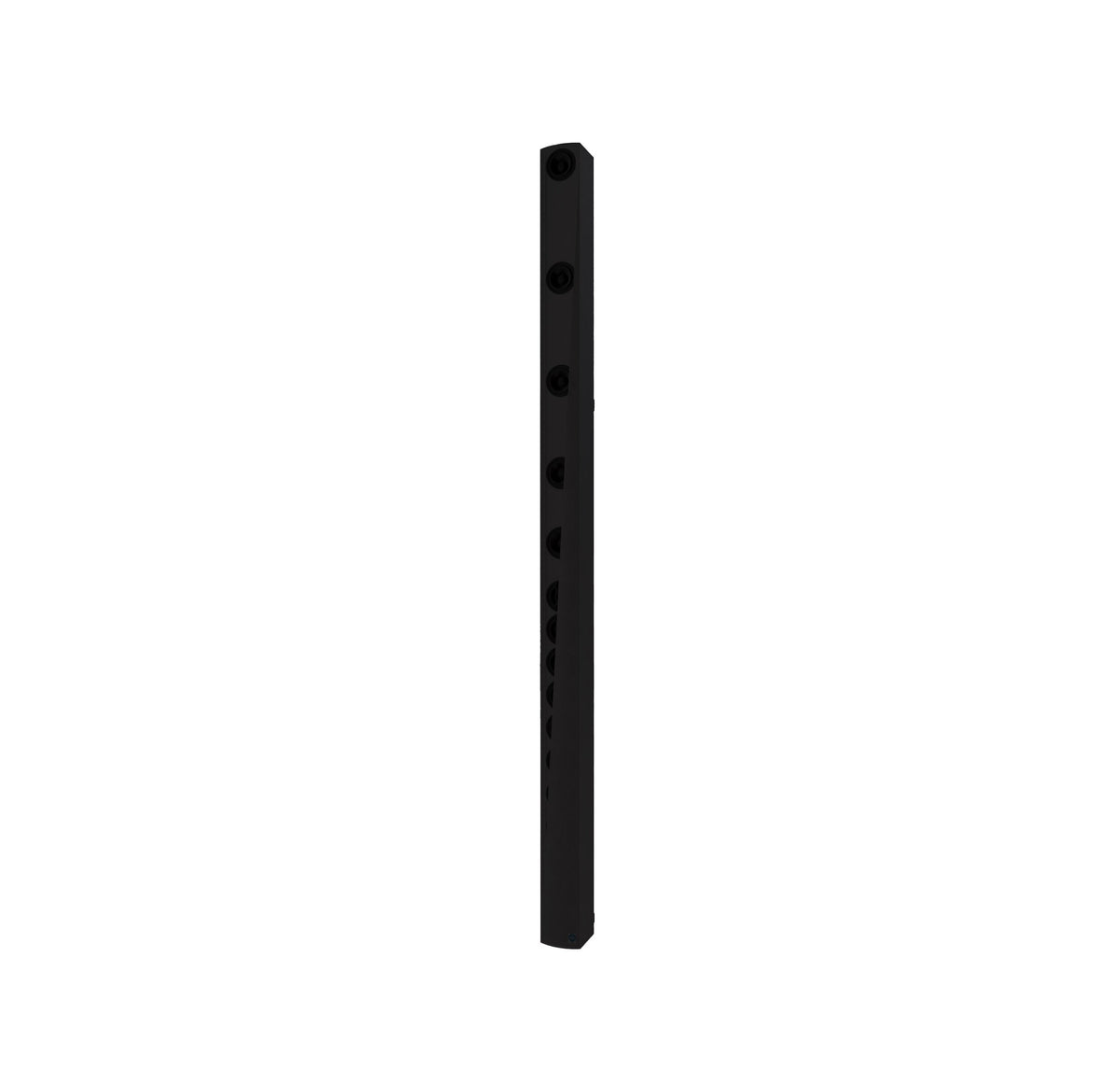

Renkus-Heinz IC24-16-RN-BK Digitally Steerable Line Array Speaker
Renkus-Heinz IC24-16-RN-BK Digitally Steerable Line Array Speaker
Model / SKU: H-RENK-IC2416RNBK
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Renkus Heinz IC24-16-RN-BK, Digitally Steerable Line Array Loudspeaker Systems ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to 8 steerable beams can be individually shaped and aimed from a single IC24-16-RN-BK column using the powerful software-controlled DSP.
Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.
Product Specifications:
Sensitivity: 1.4 V (for rated power output)
Freq. Range: 80 Hz to 20 kHz (-10 dB)
Max SPL: 136 dB peak, (106 dB @ 100 Ft. (30.5 meters)
Power Consumption: Idle: 1.0 A (120 V) / 0.5 A (240 V)
1/8 Power: 2.0 A (120 V) / 1.1 A (240 V) (onset of limiting)
1/3 Power: 5.3 A (120 V) / 2.9 A (240 V) (hard limiting)
Horiz. Dispersion: 150° up to 3 kHz; 120° above 3 kHz
Vert. Opening Angle: 5°, 10° and 15°
Vert. Aiming Angle: Adjustable from -30° to +30°
Typical Throw: 195 Ft. (60 meters)
Beam Control: Effective down to 250 Hz
System Latency: 8ms analog input to outputPreset 0
No. Transducers: 11 coaxial trasnsducers, each having triple tweeters
5x 4″ LF/MF Transducers progressively spaced
No. Amp. Channels: 16
Finish: Black
Transducers: Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm
Inputs: Analog Audio: 2 balanced inputs on Phoenix ConnectorsAES/EBU - Phoenix ConnectorRJ45 connector for Ethernet Control
Computer Controls: Gain, Mute, On/Standby, Input SelectionCompression8-Band Parametric EQShelving & Rolloff FiltersDelayPreset Configuration Selection
Status Indicators: PowerSignalOverdriveThermalMuteInput PadPreset Configuration Selection Readout
Hanging Method: 3-point hinges or Metric M6 thread eye-bolts
Enclosure: Extruded Aluminum with perforated steel grille
Shipping Weight: 108 lbs.
Shipping Dimensions: 7 x 6 x 111 inches
