RF Venue COMB8CP-STAGE 8-Channel In-Ear Monitor Upgrade Pack with CP Stage Antenna
RF Venue COMB8CP-STAGE 8-Channel In-Ear Monitor Upgrade Pack with CP Stage Antenna
Model / SKU: H-RFVE-COMB8CPSTAGE
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The RF Venue COMB8CP-STAGE is an 8-channel in-ear monitor upgrade pack designed to deliver reliable, high-quality wireless performance with a compact and easy-to-use system. The complete bundle includes the COMBINE8 active IEM transmitter combiner, CP Stage Antenna, and coaxial interconnect cables, providing everything needed to configure up to eight channels of professional in-ear monitoring.
The CP Stage Antenna features a circularly polarized design that provides excellent signal coverage while helping reduce dropouts, noise, and interference. Its lightweight, durable, weather-resistant enclosure makes it ideal for both portable applications and permanent outdoor installations. The antenna can be easily mounted on a microphone stand, providing flexible placement to improve IEM and wireless microphone signal performance.
The COMBINE8 active transmitter combiner combines up to eight IEM transmitter signals into a single antenna connection, reducing intermodulation distortion and improving overall system reliability. It also includes the DC Octopus power cable, which provides power to up to eight compatible IEM transmitters while eliminating the need for multiple external power supplies. With included coaxial cables and a plug-and-play setup, the COMB8CP-STAGE delivers a complete solution for professional stages, live events, and installed audio systems.

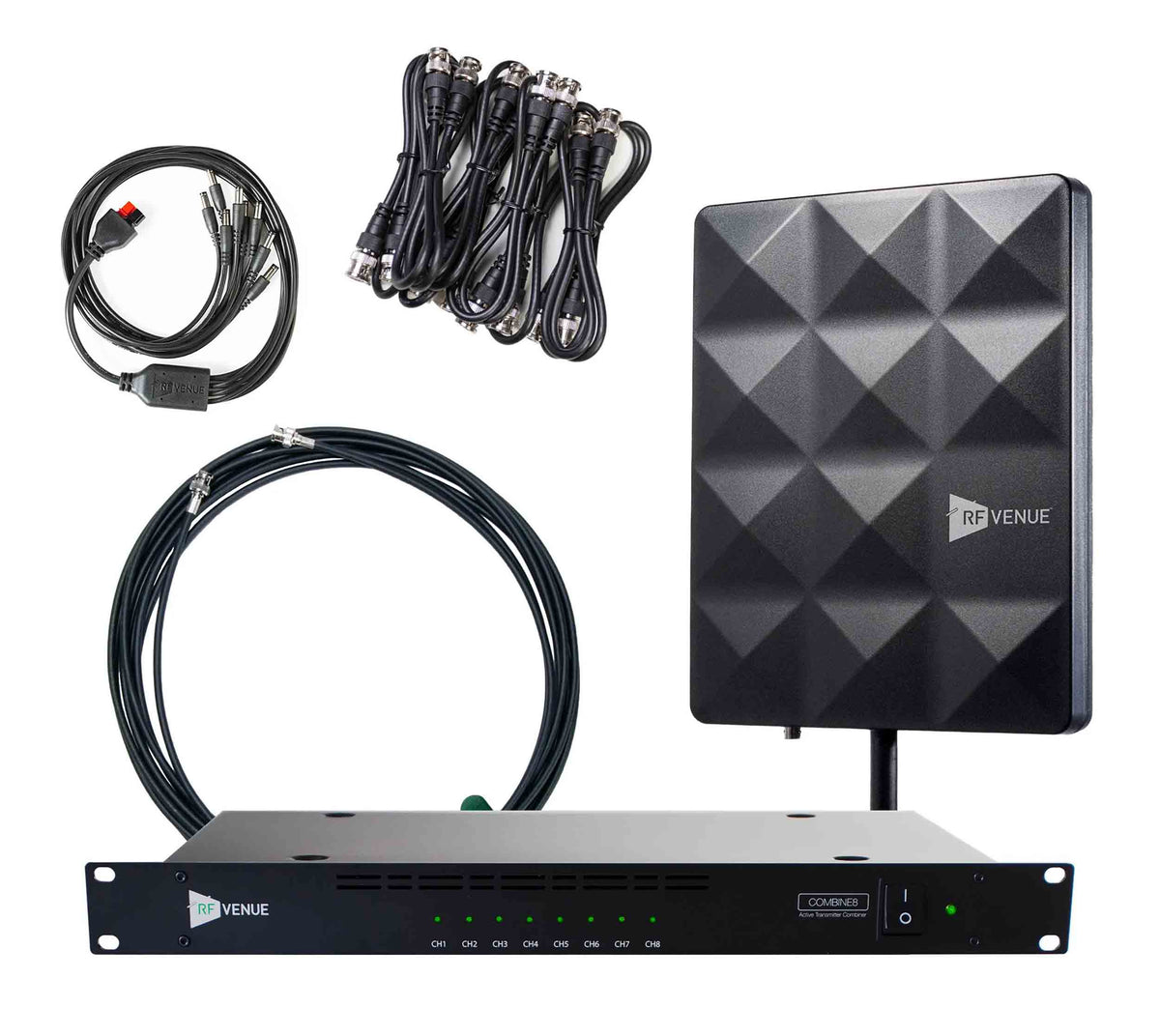

What's Included in the Box:
CP Stage Antenna
COMBINE8 IEM Transmitter Combiner
IEC Power Cable
25' RF Venue Low Loss Antenna Cables
1 BNC Interconnect Cables
DC Octopus 8-connector power distribution cable
Product Specifications:
Operating Range: 470-608 MHz
RF Inputs: 8 x BNC
Antenna Output: 1 x RF Output
Full System Gain: 0 dB (±2 dB)
Maximum RF Input Power: +18 dBm (60 mW)
LED Signal Indicator Threshold: > +5 dBm
Power Consumption: 84 W
AC Input Voltage: 100-240 VAC, 50/60 Hz, 2 A
DC Output: 12 VDC, 4 A
Dimensions: 18.90 x 1.77 x 10.24" (480 x 45 x 260 mm)
Weight: 3.7 kg (8.16 lbs)
