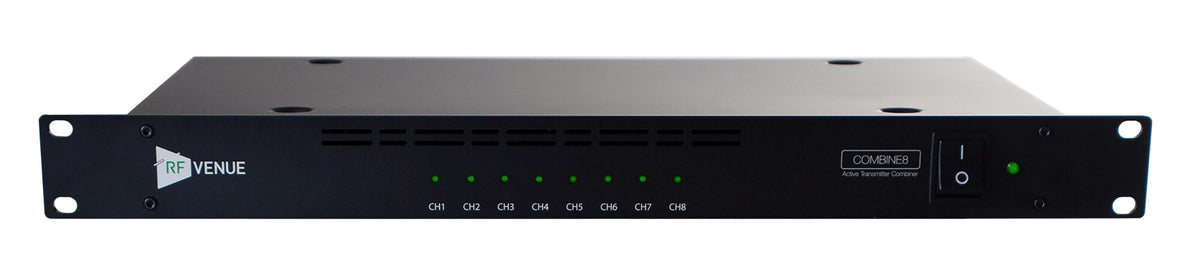

RF Venue COMBINE8 8-Channel In-Ear Monitor Antenna Combiner

The RF Venue COMBINE8 is an eight-channel IEM (In-Ear Monitor) antenna combiner designed to simplify multi-channel wireless monitoring systems. It actively combines RF signals from up to eight IEM transmitters into a single transmitting antenna, helping reduce intermodulation artifacts caused by adjacent transmitters and delivering improved wireless audio performance.

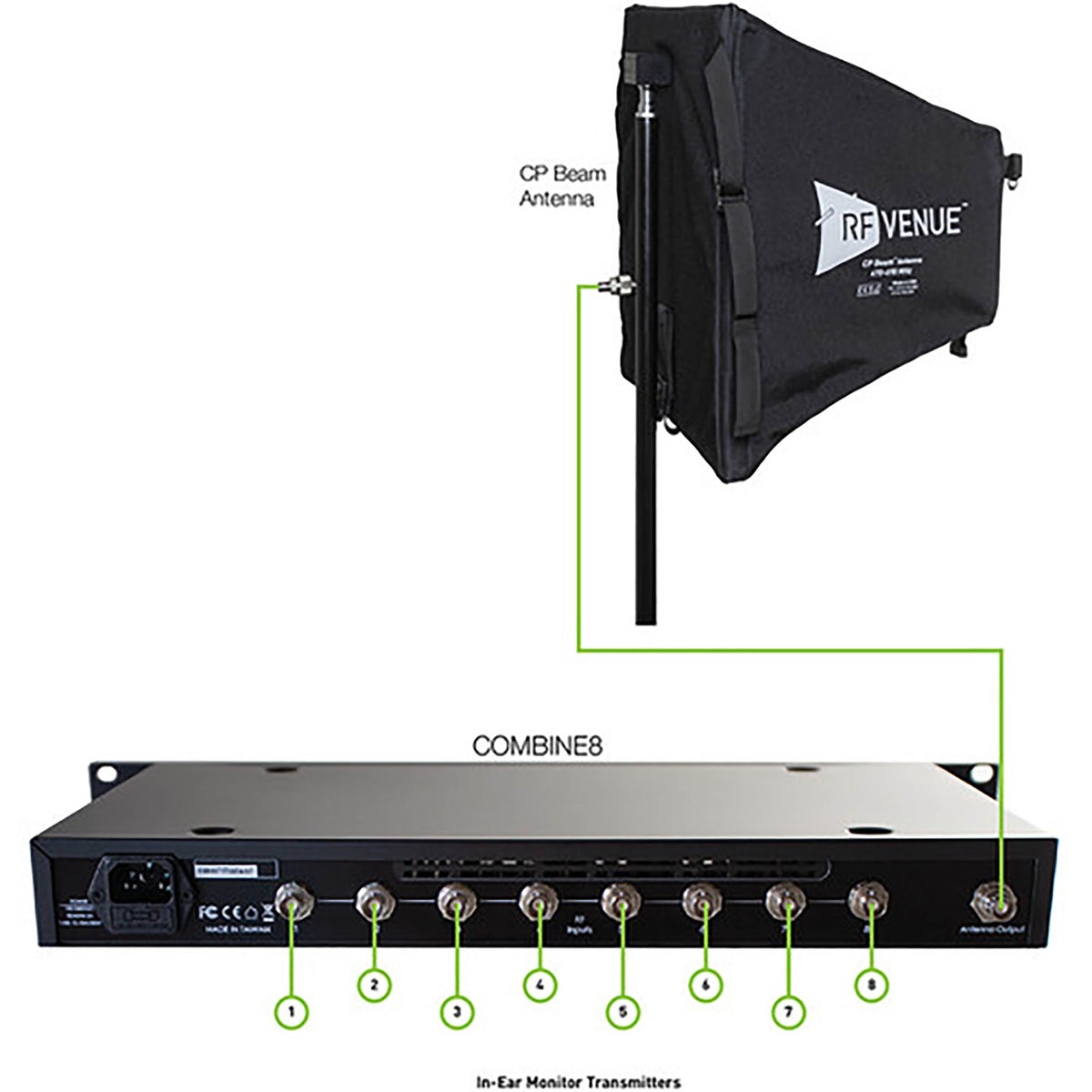

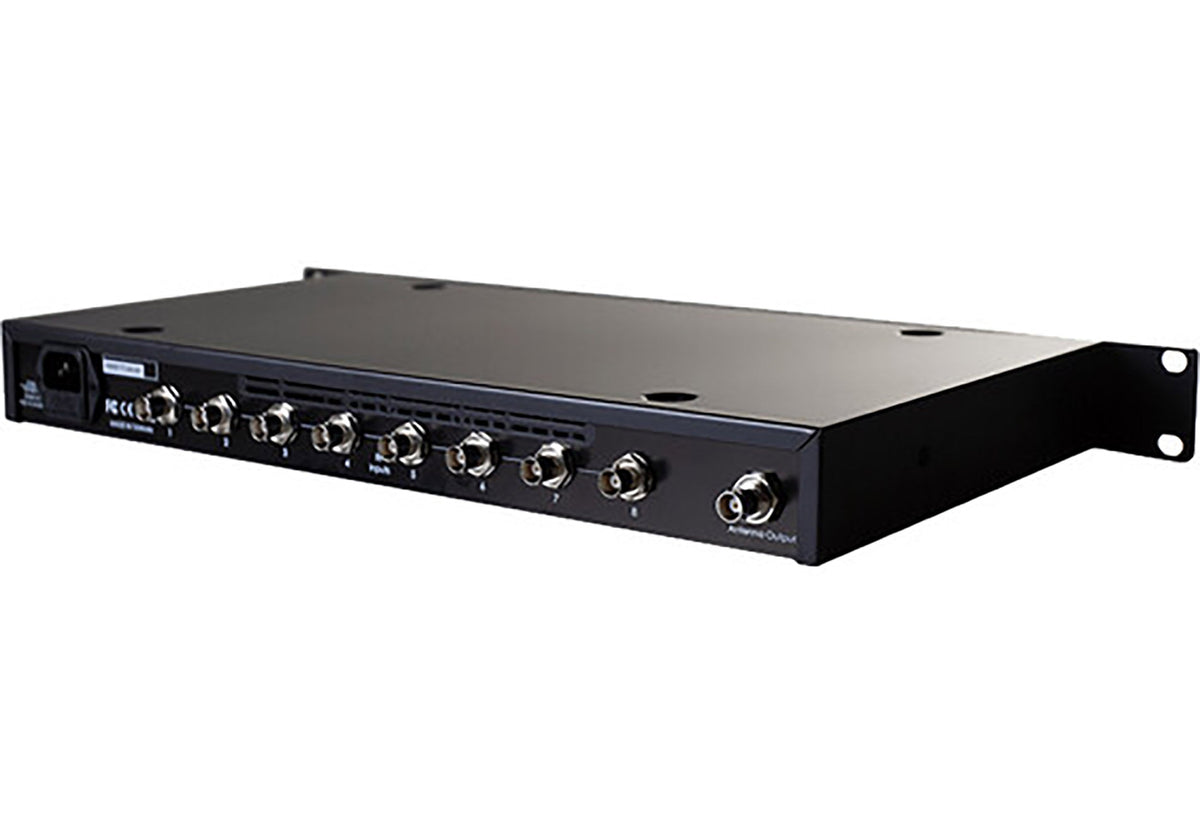

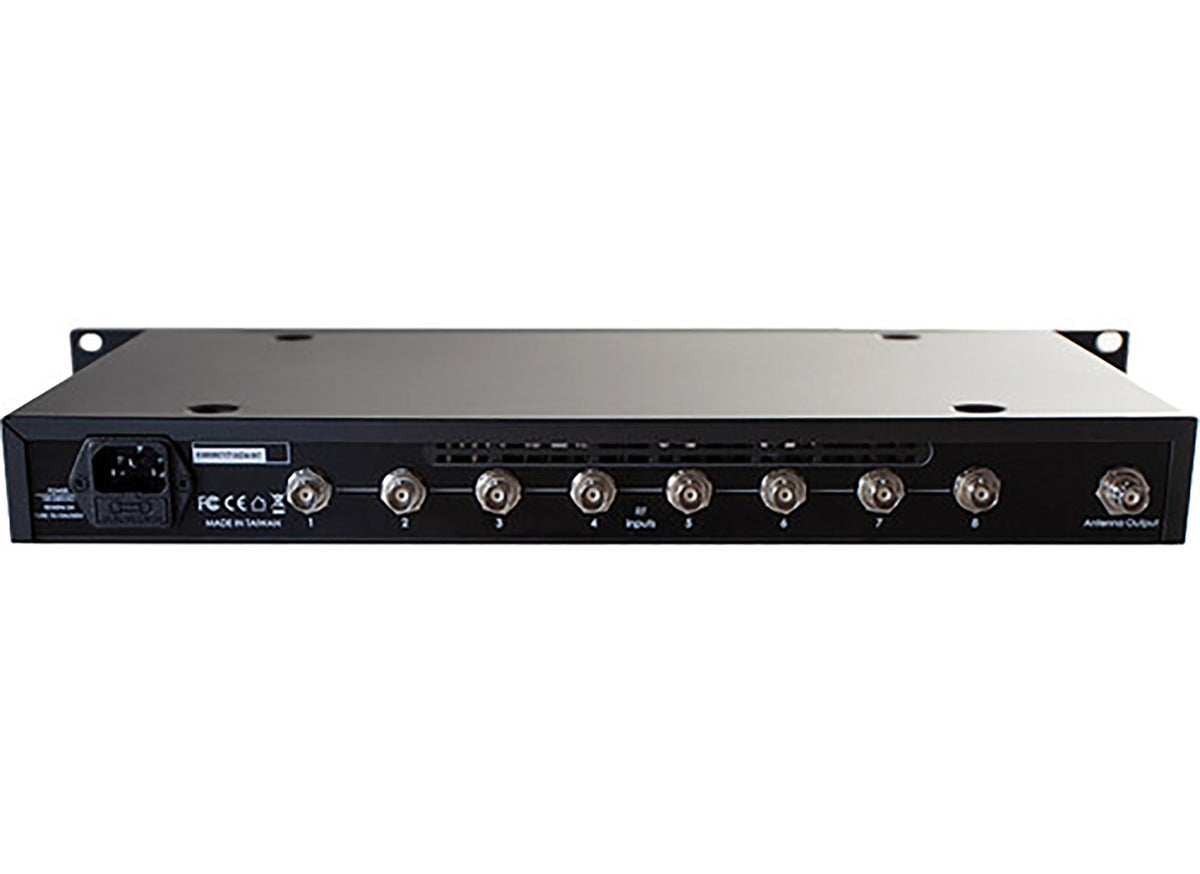

The COMBINE8 is compatible with any brand of IEM transmitter operating at 50mW or less and works with virtually any type of directional antenna. Its rear panel features eight BNC transmitter input connectors and a single BNC antenna output, providing a straightforward and efficient solution for professional wireless system installations.

An external DC power supply is included to provide power for up to eight IEM transmitters, eliminating the need for multiple wall adapters and reducing cable clutter. For expanded convenience, the COMBINE8 is also available as part of RF Venue's 8-Channel In-Ear Monitor Upgrade Pack, which includes a CP Beam helical antenna and a 25-inch low-loss RG8X coaxial cable for a complete IEM antenna solution.

What's Included:

RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)

8 x BNC Jumper Cables

Auxiliary DC Power Supply for up to 8 Transmitters

AC Power Cable

Auxiliary AC Power Cable

Product Specifications:

Channels: 8 IEM transmitter inputs

Function: RF antenna combiner

Compatibility: Any IEM transmitter up to 50mW output

Antenna Compatibility: Supports any directional antenna

RF Inputs: 8 × BNC connectors

RF Output: 1 × BNC antenna output

Power Supply: External DC power supply

DC Power: Supports up to 8 IEM transmitters

Intermodulation Reduction: Minimizes interference between adjacent transmitters

Included Accessories: External DC power supply

Weight: 2.6 kg (5.8 lb)

Dimensions (L × W × H): 19 × 2 × 10 in
