RF Venue D-OMNID5 5-Channel UHF Wireless Microphone Upgrade Bundle with Diversity Omni Antenna
RF Venue D-OMNID5 5-Channel UHF Wireless Microphone Upgrade Bundle with Diversity Omni Antenna
Model / SKU: H-RFVE-DOMNID5
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The RF Venue D-OMNID5 5-Channel Wireless Microphone Upgrade Pack with Diversity Omnidirectional Antenna and DISTRO5 HDR UHF Distribution System is a complete RF solution designed to enhance wireless microphone performance and reduce signal dropouts. This bundle combines the Diversity Omni Antenna with the active DISTRO5 HDR 5-channel antenna splitter to provide reliable RF distribution for professional audio installations.
The Diversity Omni Antenna delivers consistent wireless coverage, while the DISTRO5 HDR high-dynamic-range splitter receives signals from remotely mounted antennas and distributes them to up to five wireless microphone receivers. With a 470-698 MHz operating range, the system provides flexible compatibility for a wide range of UHF wireless microphone applications.
The package includes two 25-foot low-loss coaxial antenna cables, ten 1.5-foot low-loss BNC cables, and a DC Octopus cable for convenient 12V DC power distribution to compatible receivers. Featuring a rugged all-metal half-rack design, rack-mount hardware, and expandable cascading capability, this bundle is ideal for live events, broadcast setups, conference rooms, houses of worship, and other professional wireless audio environments.

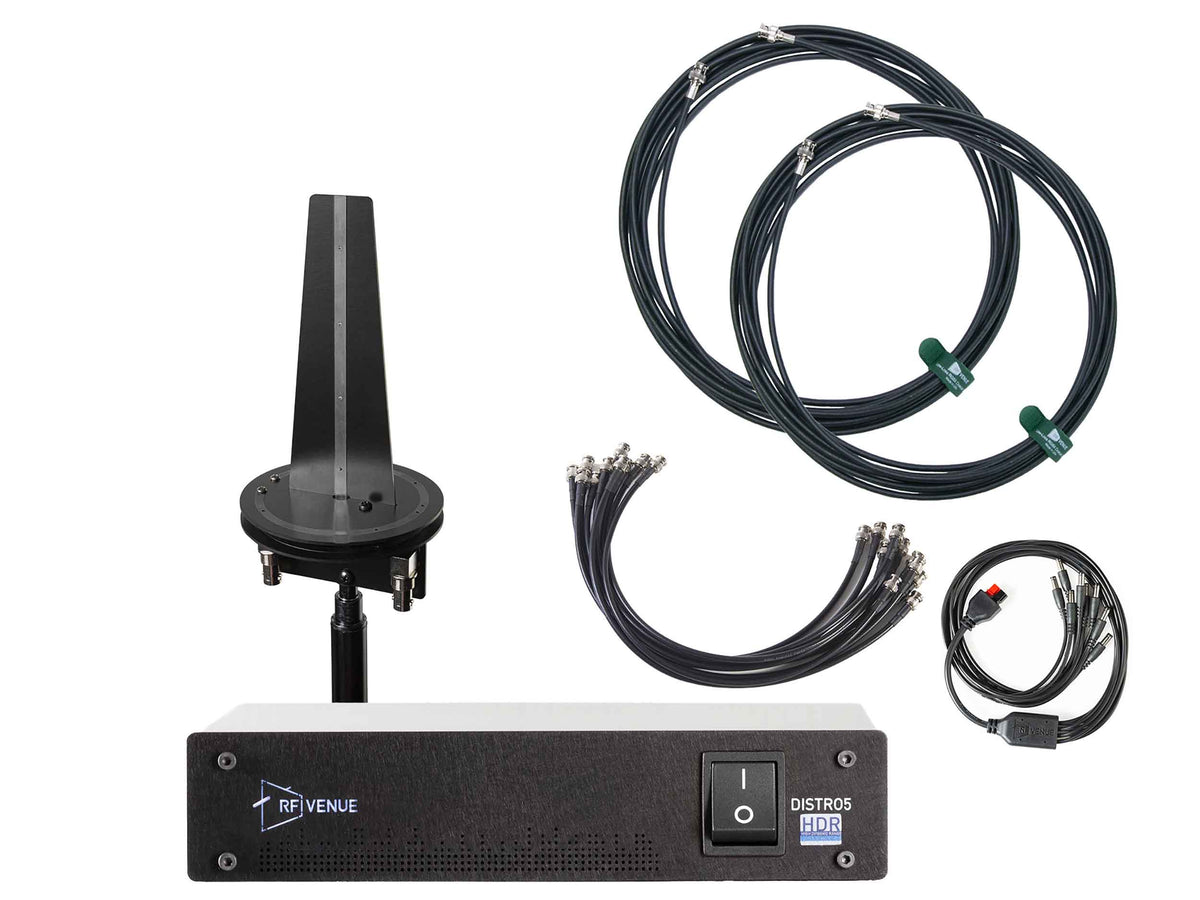

What's Included in the Box:
RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
Half-Rack Connecting Plate and Hardware
Set of Rack Ears (Long and Short)
IEC Power Cord
Stand Mount
Weather-Resistant Cover
Product Specifications:
Product Type: Wireless Microphone Upgrade Pack
Antenna Type: Diversity Omnidirectional Antenna
Distribution System: DISTRO5 HDR
Frequency Range: 470-698 MHz
Channels Supported: Up to 5 Receivers
RF Distribution: Active UHF Antenna Splitter
Antenna Coverage: Omnidirectional
Power Output: 12V DC Receiver Power Distribution
Chassis Design: All-Metal Half-Rack
Rack Mount: Includes Rack Ears & Hardware
Cable Included: 2 × 25 ft Low-Loss Coaxial Cables
BNC Cables Included: 10 × 1.5 ft Low-Loss BNC Cables
Compatibility: UHF Wireless Microphone Systems
Applications: Live Events, Broadcast, Conference Rooms, Houses of Worship
Weight: Approx. 8 lb
Dimensions: Approx. 18 × 14 × 6 in
