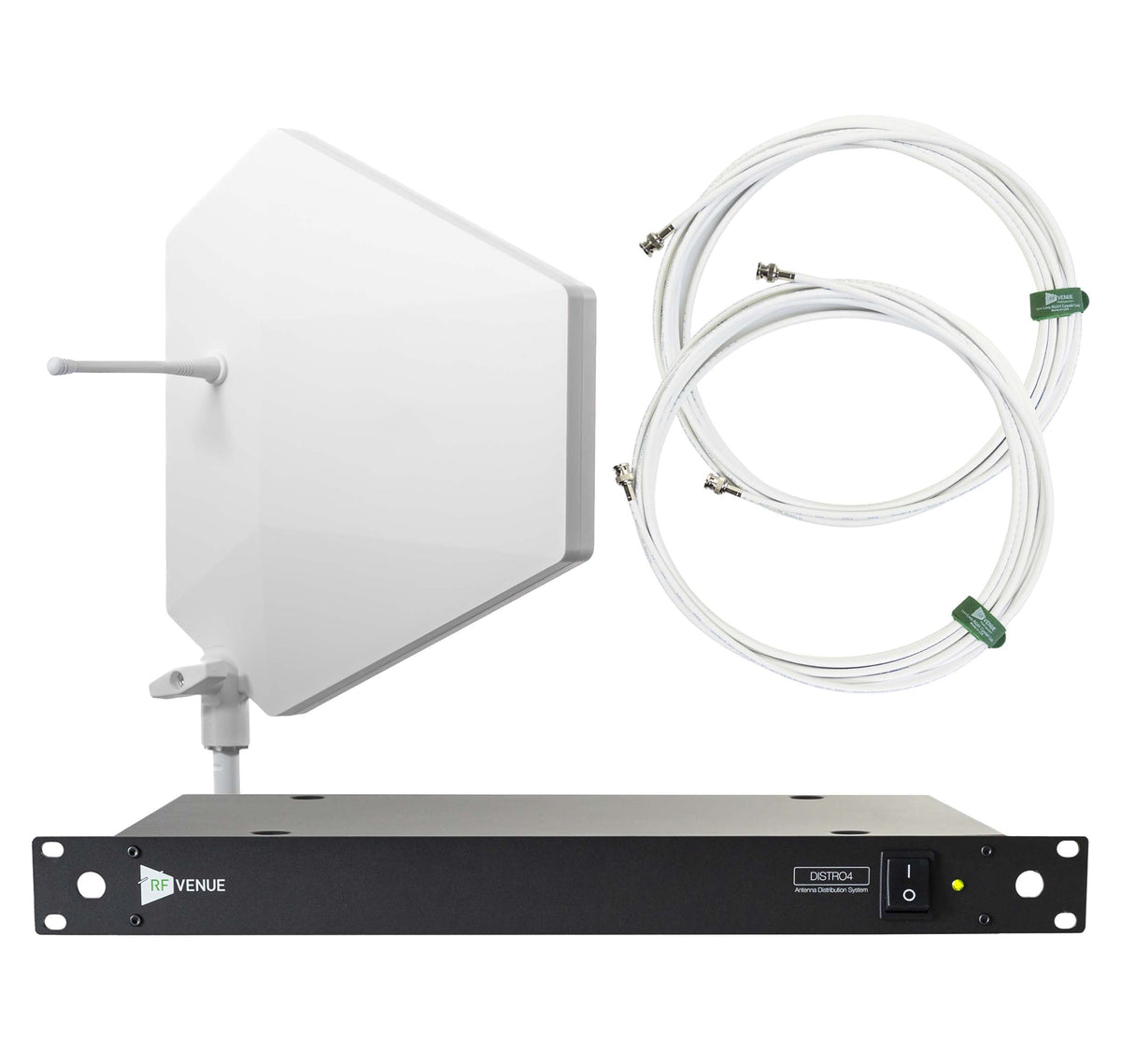

RF Venue DFIN-IPXWDISTRO4 4-Channel Wireless Mic Upgrade Pack with Diversity Fin IPX Antenna, White
RF Venue DFIN-IPXWDISTRO4 4-Channel Wireless Mic Upgrade Pack with Diversity Fin IPX Antenna, White
Model / SKU: H-RFVE-DFINIPXWDISTRO4
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The RF Venue DFIN-IPXWDISTRO4 4-Channel Wireless Mic Upgrade Pack is a complete RF solution designed to improve wireless microphone reception and reduce signal dropouts in demanding professional audio environments. This turnkey bundle includes the weather-resistant Diversity Fin IPX Antenna and the DISTRO4 4-Channel UHF Antenna Distribution System, providing reliable RF signal distribution and amplification for multiple wireless receivers.
The Diversity Fin IPX Antenna features a rugged, IP-rated housing designed for touring, rental inventories, and permanent outdoor installations. Its patented cross-linear polarization technology combines LPDA and dipole elements to capture both vertical and horizontal RF signals, helping eliminate multipath interference and maintain consistent wireless performance regardless of transmitter orientation.
The DISTRO4 rackmount distribution system simplifies wireless setups by splitting and distributing diversity RF signals from the antenna to multiple receivers while reducing cable clutter. With included coaxial BNC cables and professional-grade construction, the RF Venue DFIN-IPXWDISTRO4 is an ideal solution for live events, broadcast, houses of worship, and other applications requiring dependable wireless audio performance
What's Included in the Box:
RF Venue Diversity Fin IPX Antenna (Black, 470 to 928 MHz)
2 x Dipole Antenna
2 x Spare Dipole Antenna
Threaded EU Microphone Stand Adapter
10 x Coaxial RF Cables
4 x DC Power Jumpers
AC Power Cord
Product Specifications:
Operating Frequency: 470 MHz - 928 MHz (Antenna)
Distribution Frequency Range: 470 MHz - 952 MHz
Supports: Up to 4 Wireless Receivers
Antenna Polarization: Cross-Linear (Vertical & Horizontal)
Antenna Type: Passive
Weather Rating: IP44 Weather-Resistant
RF Gain: +3 dB (±2 dB)
Impedance: 50 Ohms
AC Input Voltage: 100V - 240V Switching
DC Output Voltage: 12V DC (1A x 4 Outputs)
Antenna Connector: Downward-Facing BNC-F (50Ω)
Antenna Mount: 5/8"-27 Threaded (EU Adapter Included)
Antenna Finish: Matte Black
Dimensions: Antenna: 16.75" × 14.88" × 3"; DISTRO4: 2" × 19" × 10"
