The RF Venue DFINWD5 is a 5-channel wireless microphone upgrade bundle designed to improve RF signal coverage and reduce dropouts in professional audio installations. The package includes the white Diversity Fin Wall-Mount Antenna and the DISTRO5 HDR 5-channel UHF distribution system, making it ideal for classrooms, conference rooms, houses of worship, and live event venues operating within the 470-698 MHz frequency range.
The Diversity Fin antenna features a proprietary cross-polarized design that captures both vertical and horizontal RF signals for enhanced wireless microphone performance. Its wall-mount bracket enables a clean, permanent installation while providing reliable RF coverage for multiple wireless receivers.
The bundle also includes low-loss coaxial cables for antenna and receiver connections, along with a DC Octopus power cable to distribute 12V DC power to compatible receivers. Compatible with most diversity wireless microphone systems, the DFINWD5 provides a complete, organized solution for expanding and optimizing wireless microphone setups.

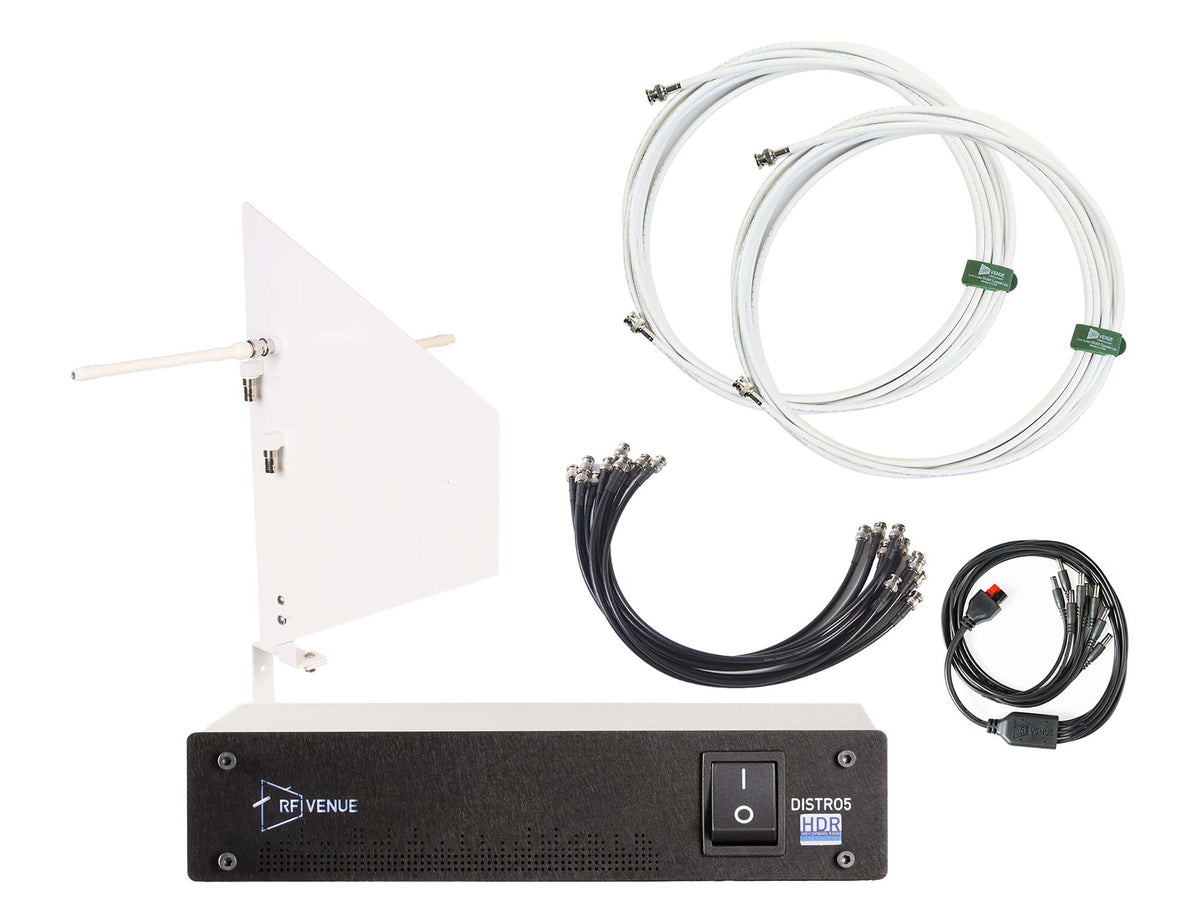

What's Included in the Box:
RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
Half-Rack Connecting Plate and Hardware
Set of Rack Ears (Long and Short)
IEC Power Cord
Product Specifications:
Product Type: Wireless Microphone Upgrade Bundle
Distribution System: DISTRO5 HDR
Antenna Type: Diversity Fin Wall-Mount Antenna
Antenna Color: White
Frequency Range: 470-698 MHz
Channels Supported: Up to 5
RF Distribution: Active UHF Distribution
Polarization: Cross-Polarized (LPDA + Dipole)
Mounting: Wall Mount
Compatibility: Most Diversity Wireless Microphone Systems
Cable Included: 2 × 25 ft Low-Loss Coaxial Cables
Distribution Cables: 10 × 1.5 ft Low-Loss Coaxial Cables
Power Cable: DC Octopus 12V DC Power Distribution Cable
Recommended Use: Classrooms, Conference Rooms, Houses of Worship, Live Events, Broadcast Installations
Weight: Approx. 5 lb (2.3 kg)
Dimensions (L × W × H): Approx. 18" × 12" × 6"
