Sennheiser EW 500 G4-935-AW+ Wireless Handheld Mic - 470-558 MHz
Sennheiser EW 500 G4-935-AW+ Wireless Handheld Mic - 470-558 MHz
Model / SKU: H-SENN-EW500G4935AW
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

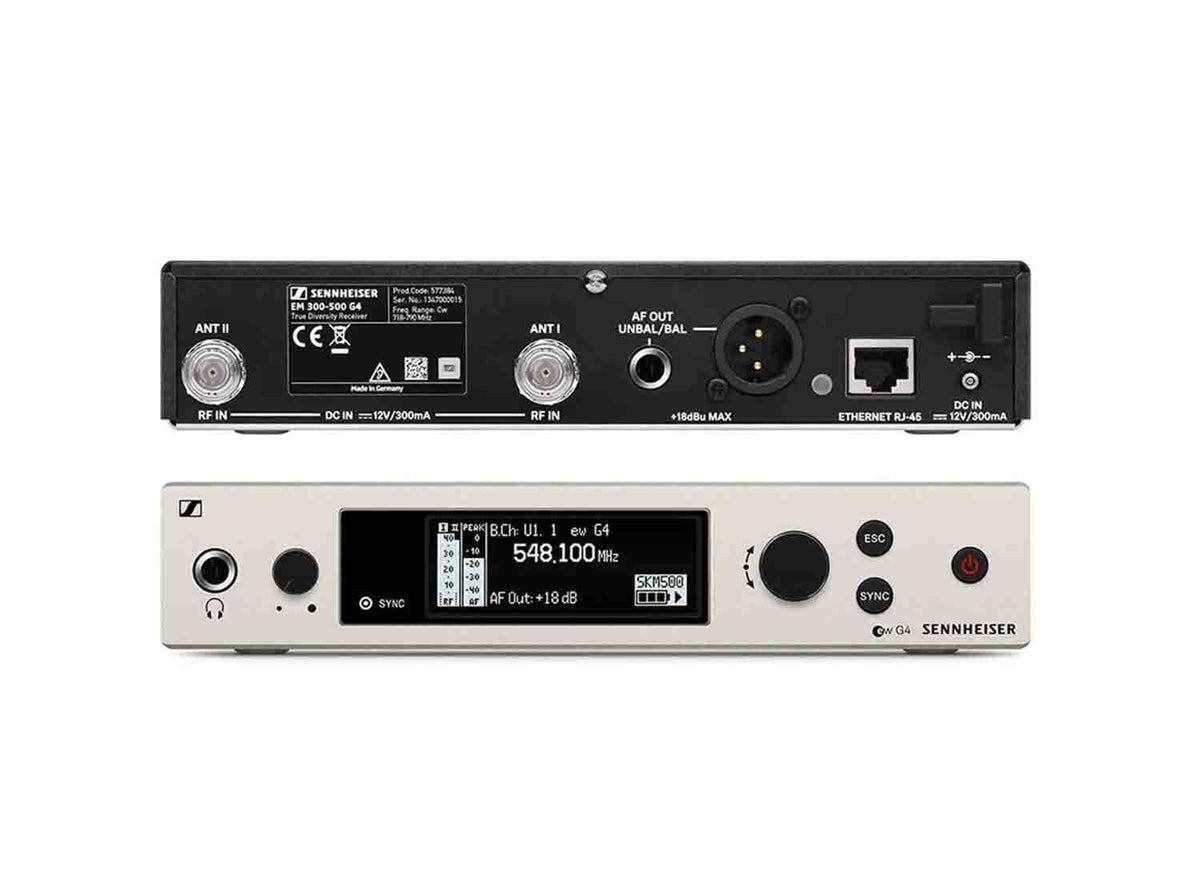

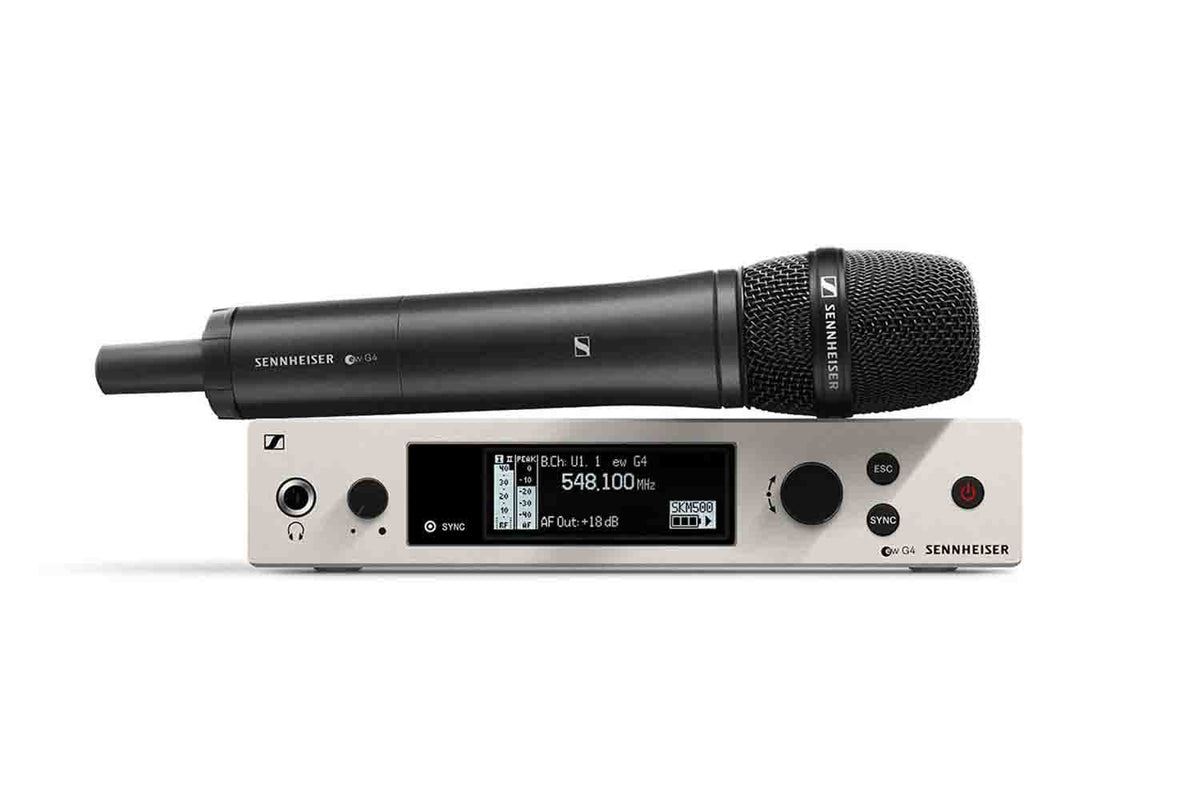

The Sennheiser EW 500 G4-935-AW+ is a Wireless Handheld Microphone System (AW+: 470 to 558 MHz). Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups. True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control. Easy and flexible wireless synchronization between transmitter and receiver via infrared. Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups. High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations.
What's in the Box
EM 300-500 G4 true diversity receiver

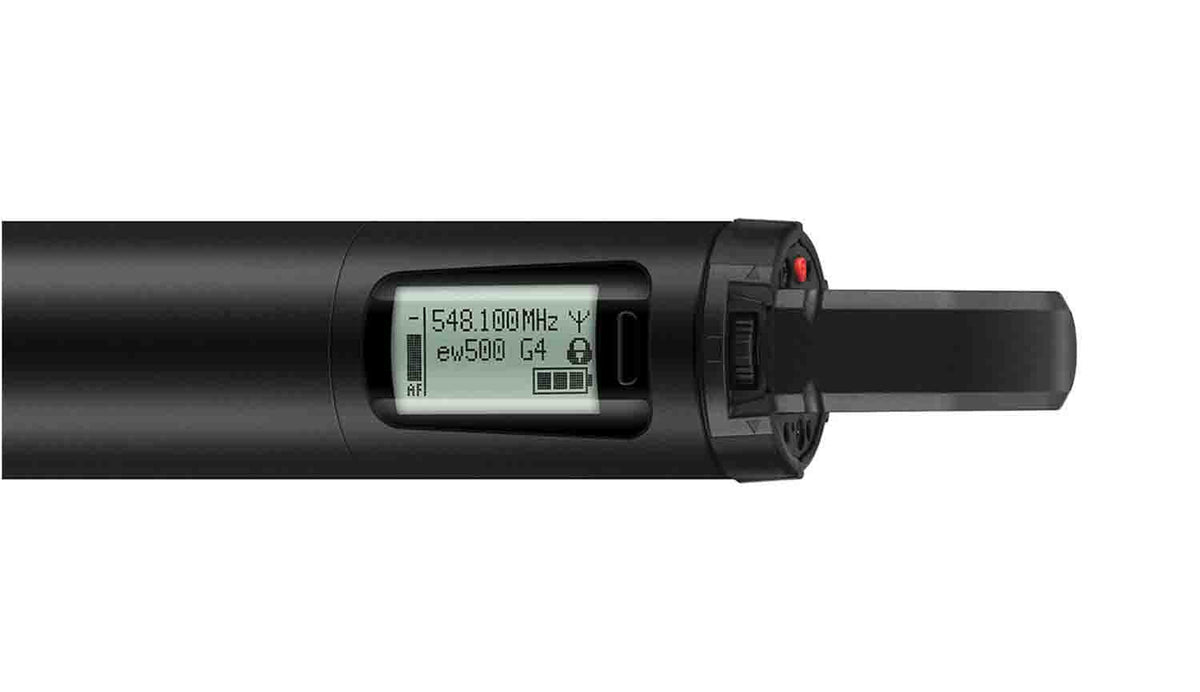

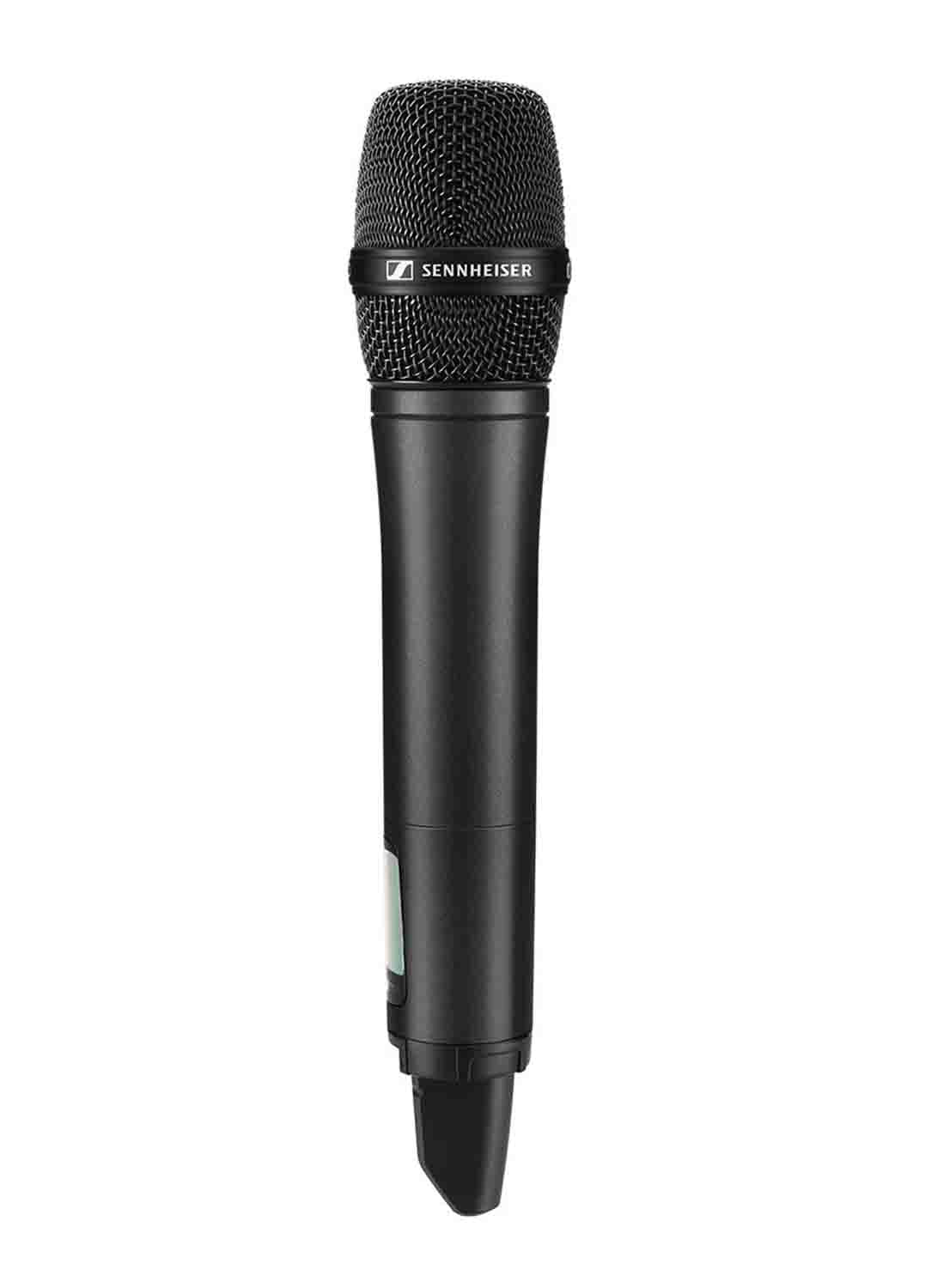

SKM 500 G4 handheld transmitter
MMD 935-1 microphone head (only 935 variants)
MMD 945-1 microphone head (only 945 variants)
MMK 965-1 microphone head (only 965 variants)
MZQ 1 microphone clamp
2 AA batteries
Power supply
GA 3 rackmount set
2-rod antennas
Quick guide
Safety guide
Manufacturer declaration sheet
Product Specifications:
Simultaneous Systems Per Band: Up to 32
System Analog/Digital: Analog
System Frequency Range: 470-558 MHz (AW+ band)
System Operating Range: 330 ft. Line-of-sight
System Microphone Included: Yes
System Channel Selection: Auto/Manual
Microphone Type: Dynamic
Microphone Polar Pattern: Cardioid
Microphone Max SPL: 154dB SPL
Microphone Frequency Response: 80Hz-18kHz
Transmitter Form Factor: Handheld with Mic Capsule
Transmitter Mute Feature: Yes
Transmitter Battery Type: 2 x AA, 1.5 V or BA 2015 accupack
Transmitter Battery Life: 8 hours
Transmitter Dimensions: 7.57" x 1.61" (without capsule)
Transmitter Weight: 0.35 lbs.
Receiver Antenna Type: Detachable
Receiver Signal/Noise Ratio: ≥115dB (A-weighted)
Receiver Type: Rackmount
Receiver Rack Spaces: Half-rack
Receiver Displays: OLED
Receiver Outputs: 1 x XLR, 1 x 1/4"
Receiver Data I/O: 1 x Ethernet
Receiver Power Source: 12V DC power supply
Receiver Dimensions: 8.35" x 1.7" x 6.61"
Receiver Weight: 2.16 lbs.
