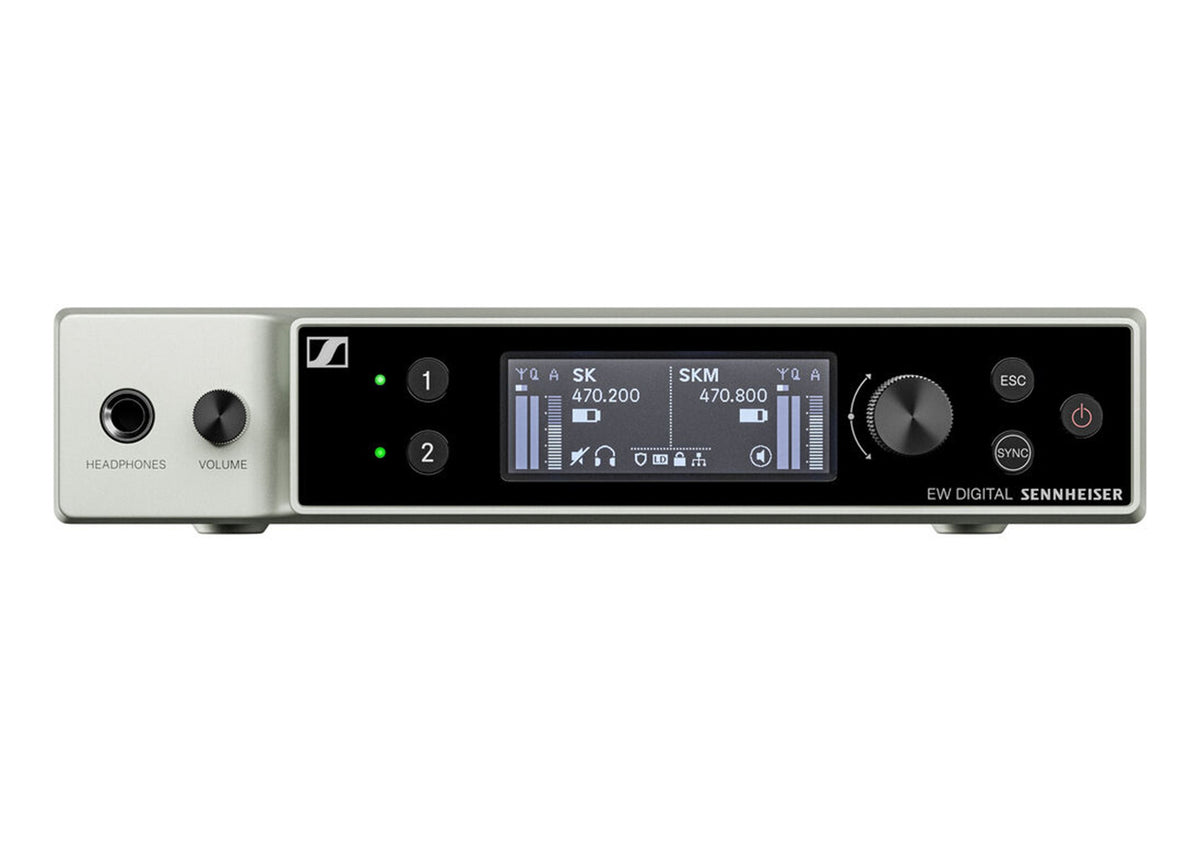

Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver - 520-607 MHz

The Sennheiser EW-DX EM 2 is a professional, half-rack, dual-channel digital wireless receiver compatible with EW-DX SK bodypack, SKM handheld, and TS tabletop transmitters. Built into a rugged all-metal chassis, it is designed to withstand the demands of both portable setups and permanent A/V installations. The receiver can sit on a tabletop or be rack-mounted using the included hardware, making it versatile for live performances, presentations, and broadcast environments. Its wide 87 MHz tuning range and UHF operation provide reliable long-range performance (up to 330') while avoiding interference from 2.4 GHz Wi-Fi signals.

Equipped with intelligent switching diversity, an equidistant tuning grid, and Link Density mode, the EW-DX EM 2 delivers stable audio even in RF-challenging environments. It supports up to 146 channels in standard mode and up to 293 channels in Link Density mode, while AES-256 encryption ensures secure, private transmissions. Dual high-contrast OLED screens and intuitive front-panel controls make setup quick and easy, and the receiver pairs via Bluetooth with transmitters from up to 120 feet away. Auto-scan functionality further simplifies finding the cleanest available frequencies for interference-free operation.

Advanced network management options include the Smart Assist app for iOS/Android, Control Cockpit software for Windows, and Wireless Systems Manager for large-scale deployments, allowing full monitoring, frequency planning, and remote adjustments. The receiver also supports third-party interface plug-ins for integration into complex setups. Rear-mounted, detachable antennas can be upgraded for extended range and improved reliability, and the EW-D ASA splitter allows multiple receivers to share antenna signals without intermodulation issues, ensuring consistently clear, professional wireless performance.

Product Specifications:

Wireless Technology: Digital UHF

Diversity: Yes

Max Operating Range: 328.1 ft / 100 m (Line of Sight)

Receiver Type: 1x Tabletop / Rack-Mountable

Number of Audio Channels: 2

RF Frequency Band: R1-9: 520 to 607.8 MHz

Number of RF Channel Frequencies: 3480

Max Transmitters per Band: 293

Dynamic Range: 134 dB

Latency: 1.9 ms

Encryption: AES 256

Built-In Recorder: No

Mobile App Compatible: Yes

App Name: Smart Assist

Mounting Options: Rackmount with included rack ears, 1 U

Antenna: 2x Removable BNC

Audio I/O: 2x 1/4" TRS Unbalanced Output, 2x XLR 3-Pin Balanced Output

Network I/O: 1x RJ45

Frequency Response: 20 Hz to 20 kHz +3 dB

Display: LCD (Non-Backlit)

Power Requirements: AC/DC Power Adapter, PoE

AC/DC Power Adapter: 11 to 13 VDC (Included)

Input Power: 100 to 240 VAC, 50 / 60 Hz

Product Weight: 2.20 lbs / 1.0 kg (without antennas)

Product Dimensions (L x W x H): 8.3 x 7.4 x 1.7 in / 212 x 189 x 44 mm
