Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver - 470-550 MHz

The Sennheiser EW-DX EM 2 is a professional, half-rack, dual-channel digital wireless receiver engineered for demanding live sound, broadcast, and installed A/V environments. Built into a rugged all-metal chassis, it is designed for both tabletop use and rackmount installations using the included mounting kit. Fully compatible with EW-DX SK bodypack, EW-DX SKM handheld, and EW-DX TS tabletop transmitters-and backward-compatible with EW-D systems-the EW-DX EM 2 offers a flexible and future-ready wireless solution for portable rigs and permanent setups alike.

Operating in the UHF band, the EW-DX EM 2 delivers exceptional wireless reliability with an extended range of up to 330 feet and an expansive 80 MHz tuning bandwidth providing access to up to 3,200 frequencies. Intelligent Switching Diversity continuously compares signals from dual antennas to ensure clean, uninterrupted audio, while the equidistant tuning grid eliminates complex frequency coordination. For high-density environments, Link Density Mode enables operation of up to 269 simultaneous microphone channels, and AES-256 encryption ensures secure, interference-free transmission even in challenging RF conditions.

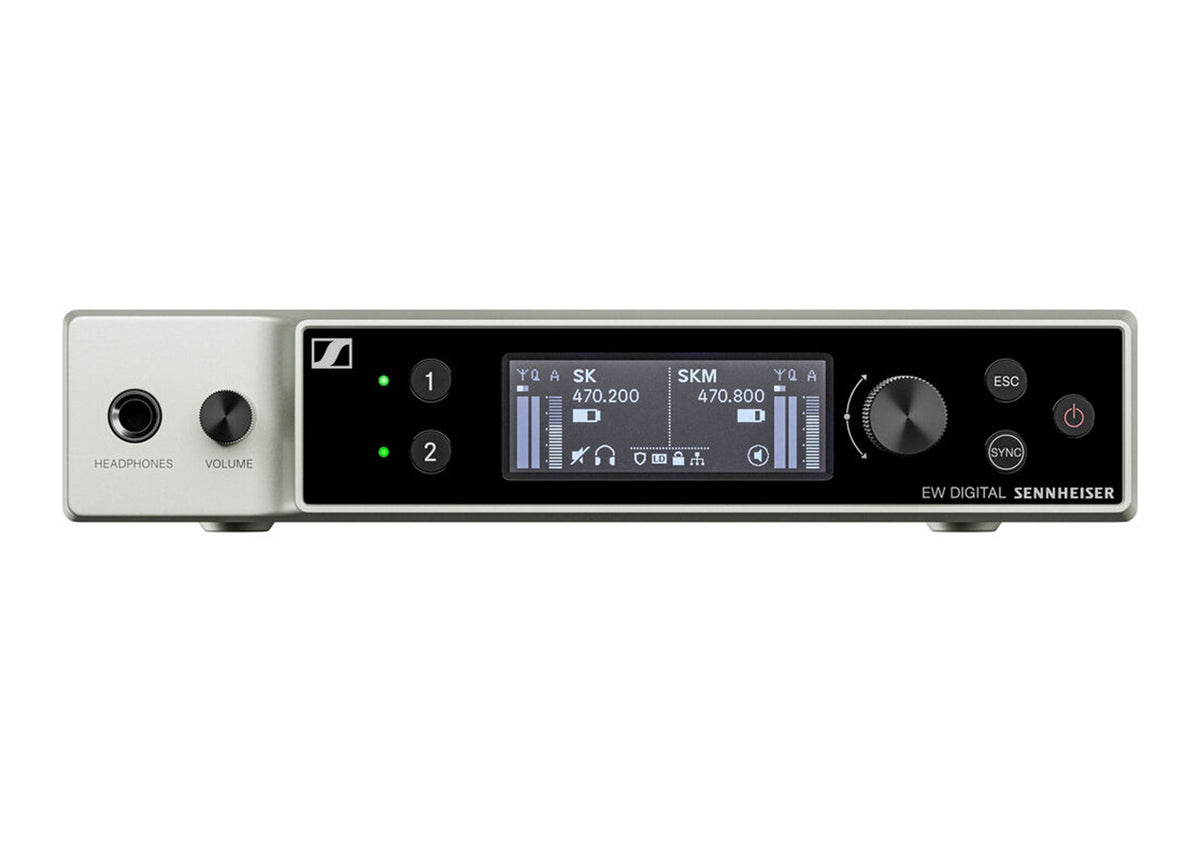

Designed for speed and ease of use, the receiver features intuitive front-panel controls and dual high-contrast OLED displays showing RF levels, audio output, and transmitter battery status. Bluetooth connectivity allows remote pairing, syncing, and configuration via the Smart Assist mobile app, while Sennheiser Control Cockpit and Wireless Systems Manager software provide powerful network-based monitoring, frequency coordination, and system management. With balanced XLR and unbalanced 1/4" outputs, expandable antenna options, and full compatibility with professional RF accessories, the EW-DX EM 2 is a robust, scalable wireless receiver built for modern production workflows.

Product Specifications:

Wireless Technology: Digital UHF

Diversity: Yes

Max Operating Range: 328.1 ft / 100 m (Line of Sight)

Receiver Type: 1x Tabletop / Rack-Mountable

Number of Audio Channels: 2

Included Transmitters: No

Microphone Type: No microphone included

Included Charging Case: No

RF Frequency Band: Q1-9: 470.2 to 550 MHz

Number of RF Channel Frequencies: 3200

Max Transmitters per Band: 269

Dynamic Range: 134 dB

Latency: 1.9 ms

Encryption: AES 256

Built-In Recorder: No

Mobile App Compatibility: Yes

Supported Platforms: Android and iOS

App Name: Smart Assist

Mounting Options: Rackmount with included rack ears 1U

Antenna: 2x removable BNC

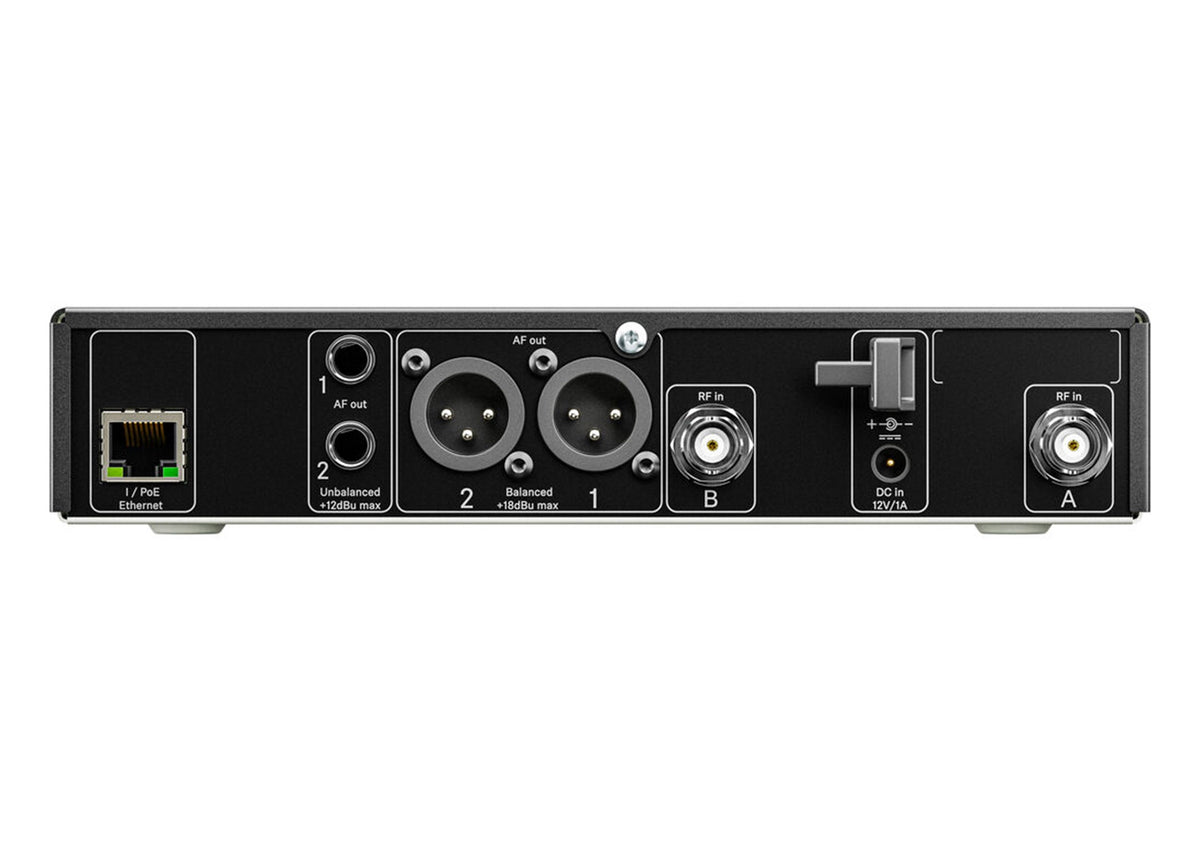

Audio Outputs: 2x 1/4" TRS unbalanced, 2x XLR 3-pin balanced

Network I/O: 1x RJ45

Frequency Response: 20 Hz to 20 kHz +3 dB

Display: LCD non-backlit

Power Requirements: AC/DC power adapter, PoE

AC/DC Power Adapter: 11 to 13 VDC included

Input Power: 100 to 240 VAC 50/60 Hz

Environmental Resistance: No

Product Weight: 2.20 lbs / 1.0 kg without antennas

Product Dimensions (L x W x H): 8.3 x 7.4 x 1.7 in
