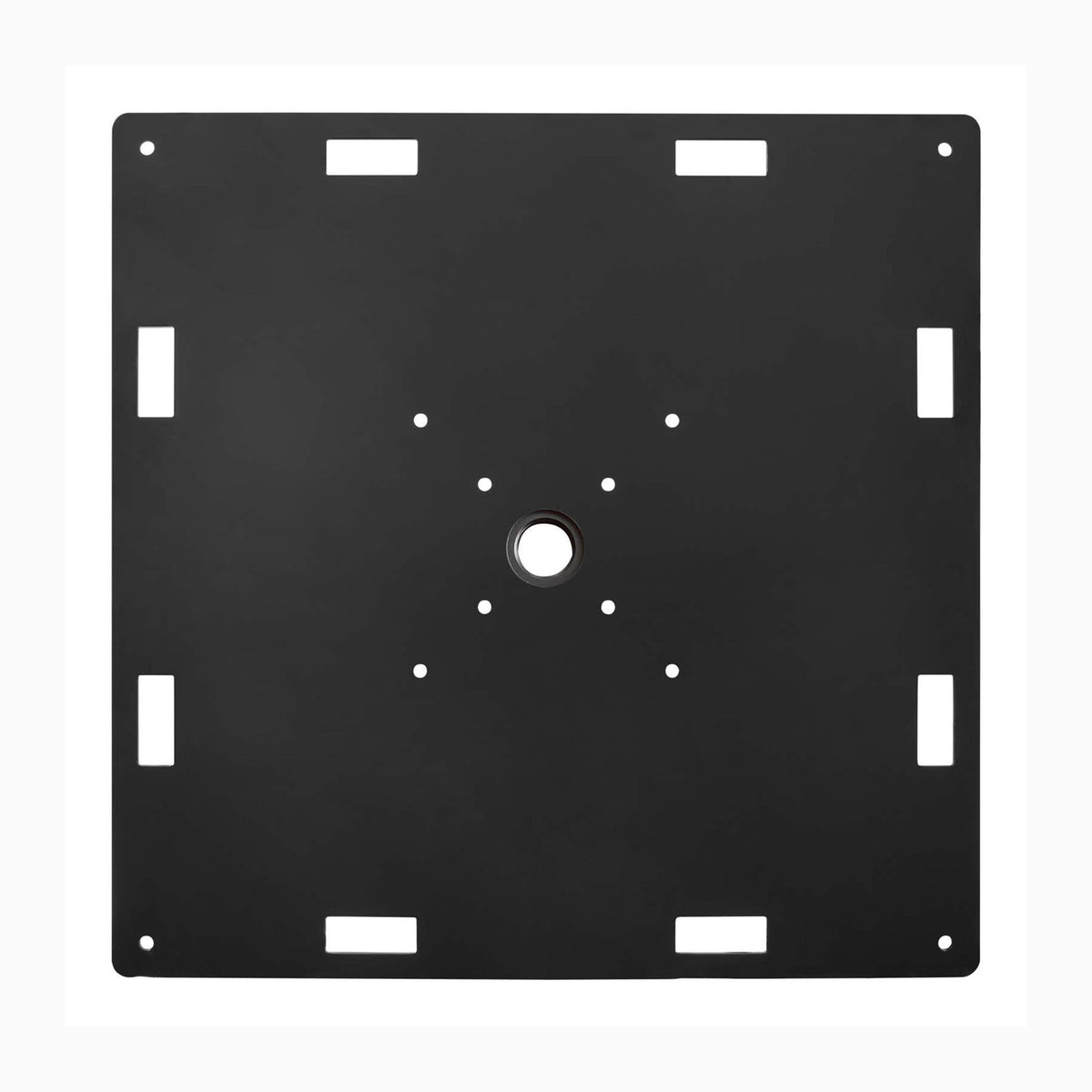

Show Solutions BP4848-STEEL-R1 Base Plate with 1" Raised Frame and Welded Schedule 40 Flange - 9mm Thick
Show Solutions BP4848-STEEL-R1 Base Plate with 1" Raised Frame and Welded Schedule 40 Flange - 9mm Thick
Model / SKU: H-SHOW-BP4848STEELR1
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Show Solutions BP4848-STEEL-R1 is a heavy-duty 48" x 48" steel top plate designed for professional staging, truss support, and structural applications. Its 9mm thick steel construction delivers exceptional strength and durability for demanding load requirements in event production environments.
The integrated 1" raised frame enhances rigidity and structural stability while improving load distribution across the base. A single welded 1.5" Schedule 40 flange provides a secure mounting point for truss, pipe, or other structural connections.
Built for touring productions, theaters, festivals, and permanent installations, the BP4848-STEEL-R1 offers a reliable and robust foundation for large-scale staging and rigging systems where maximum strength is required.
Product Specifications:
SKU: BP4848-STEEL-R1
Product Type: Steel Raised Base Plate
Material: Steel
Plate Size: 48" x 48"
Plate Thickness: 9mm (0.35 in)
Frame Type: 1" Raised Structural Frame
Flange Type: 1 x Welded 1.5" Schedule 40 Flange
Flange Position: Center Welded Mount
Finish: Powder Coated Black
Application: Heavy-duty truss base support for staging, lighting towers, and rigging systems
