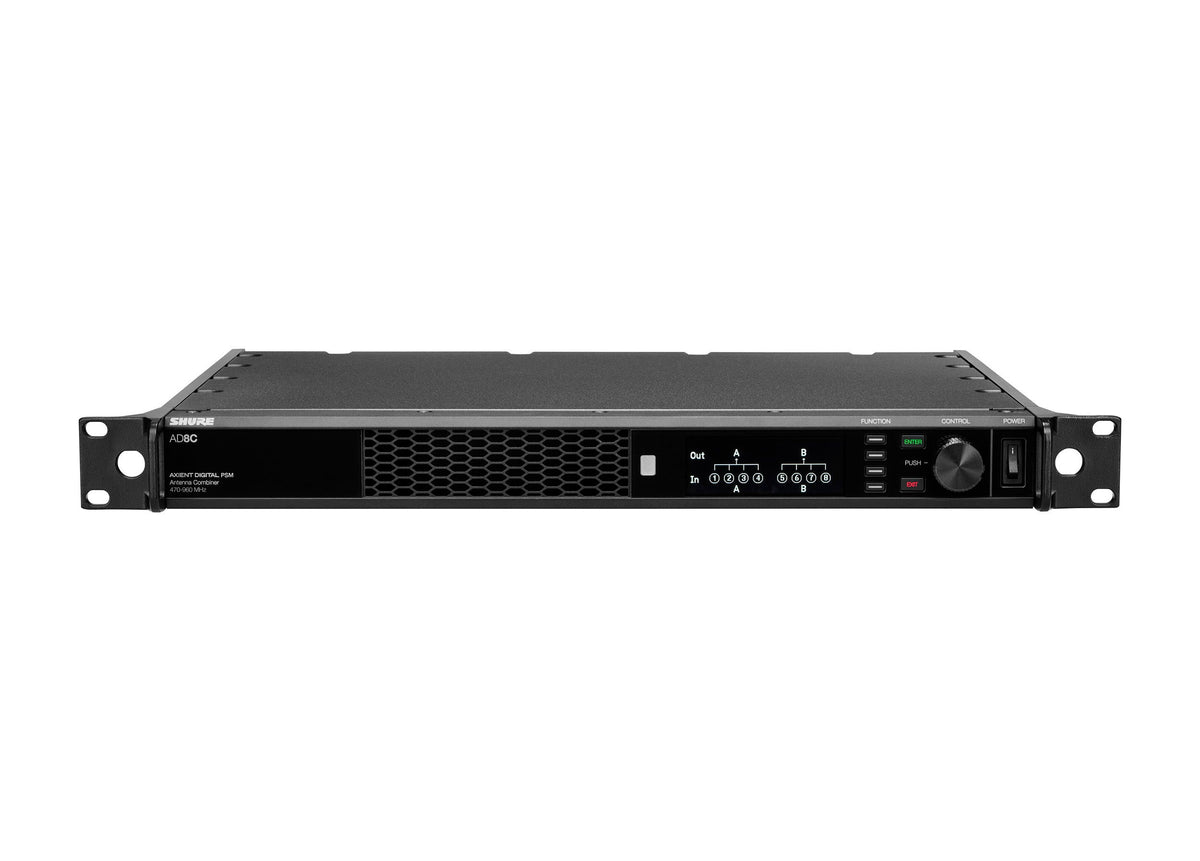

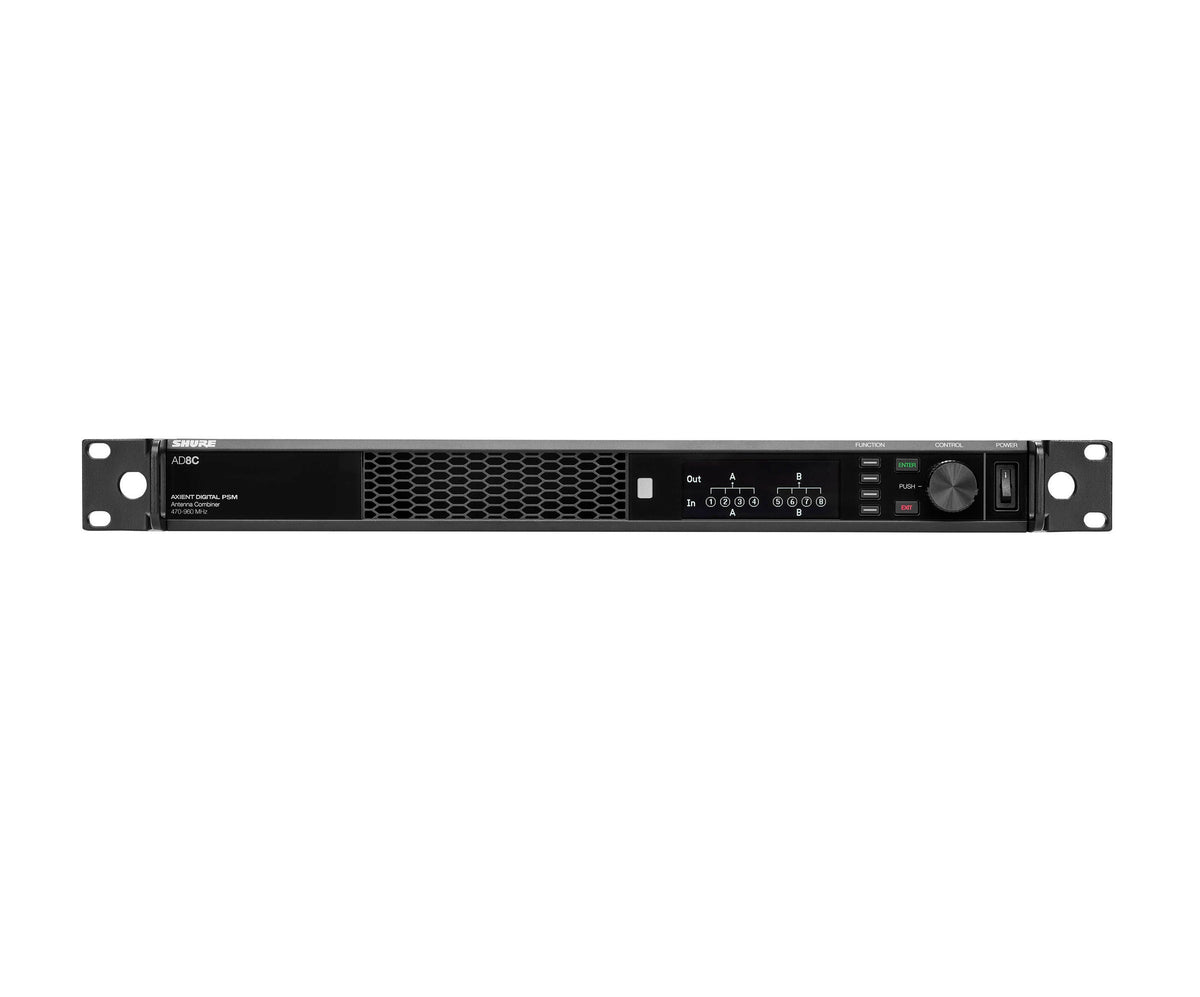

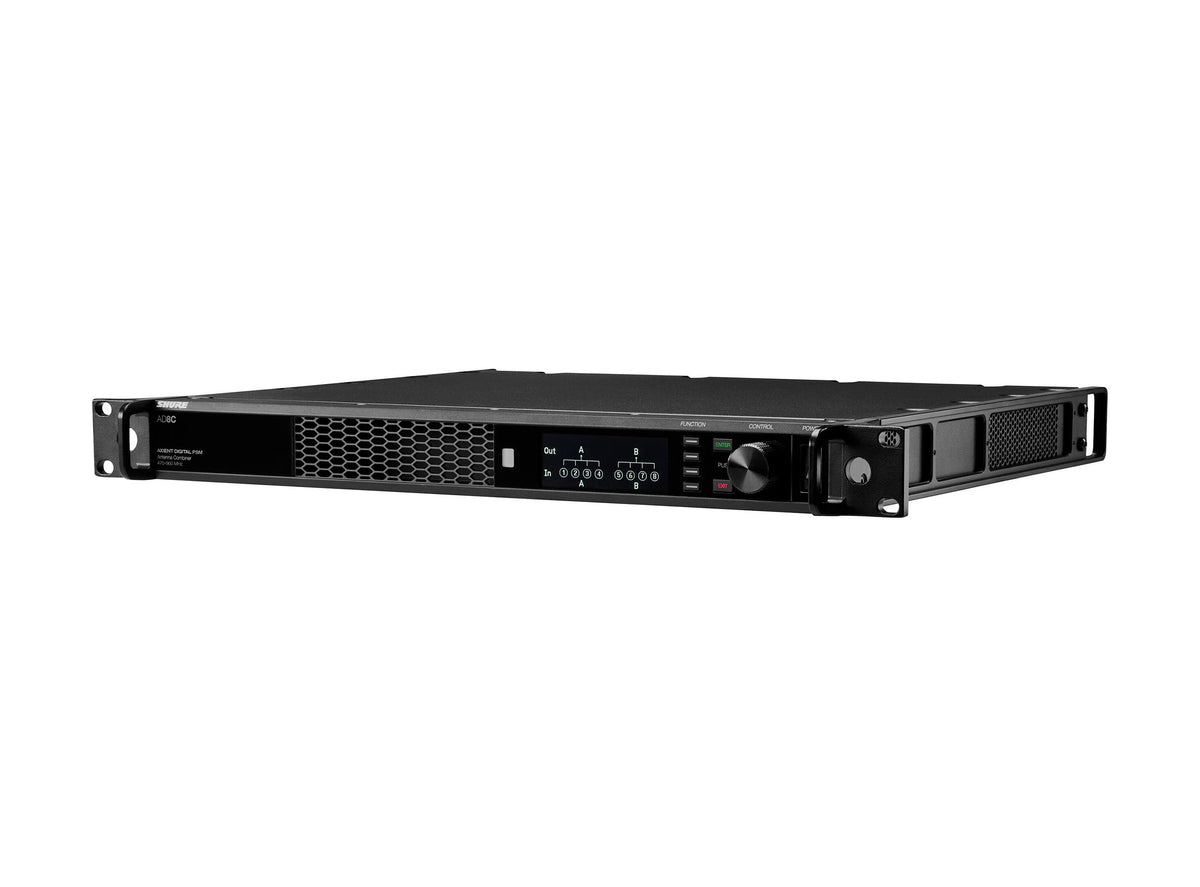

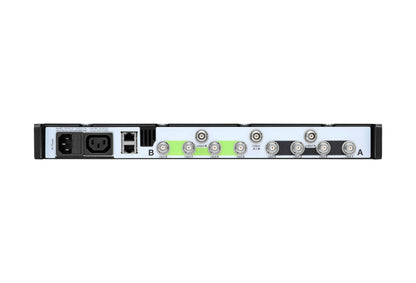

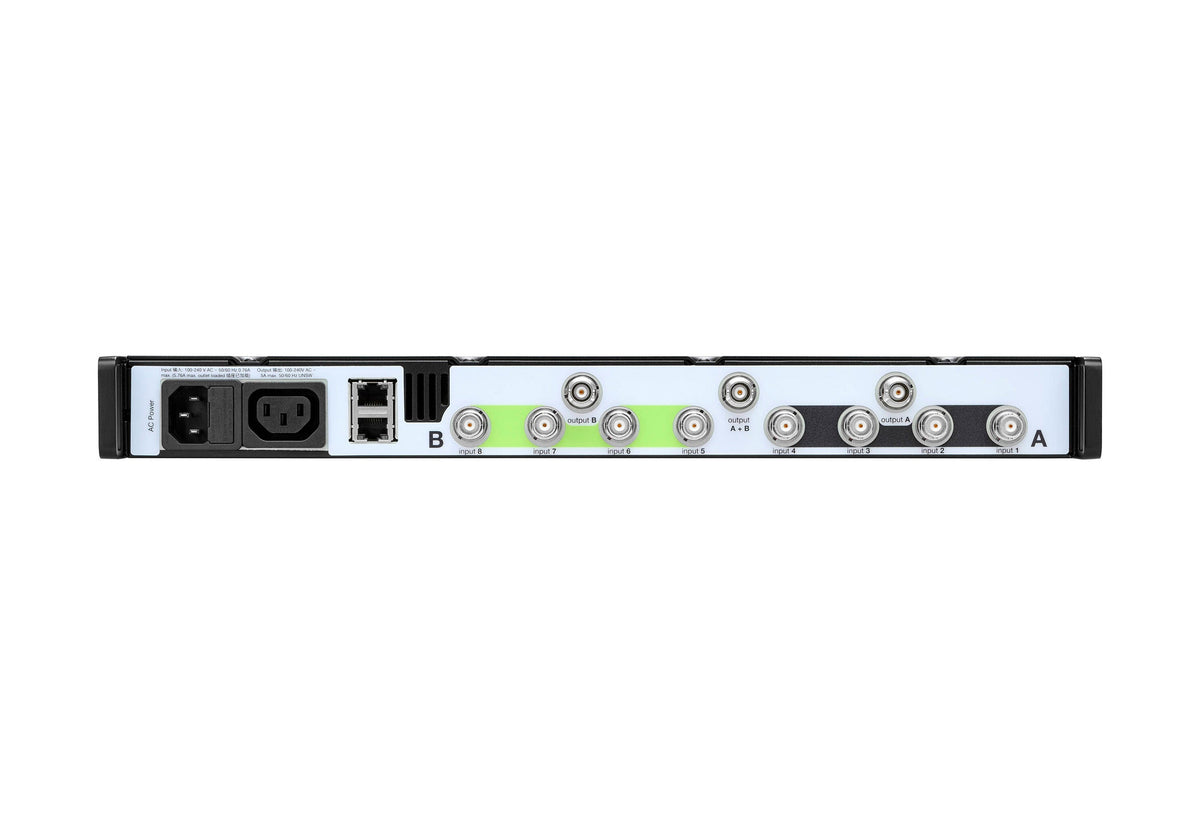

Shure AD8CUS, Axient Digital PSM 8-Port Combiner - 470 to 960 MHz
Shure AD8CUS, Axient Digital PSM 8-Port Combiner - 470 to 960 MHz
Model / SKU: H-SHUR-AD8CUS
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Shure AD8CUS, Axient Digital PSM 8-Port Combiner - 470 to 960 MHz combines the RF outputs from up to 8 different ADTQ or ADTD Axient PSM transmitters into a single output to feed a single transmit antenna, helping to eliminate intermodulation noise when multiple antennas are deployed in the same space. Alternatively, the AD8C can combine the output of up to 4 Axient PSM transmitters to feed two antennas; this supports Spatial Diversity for improved reception and greater coverage area. The combiner enables Automatic Transmitter Compensation with the ADTQ or ADTD Axient Digital PSM transmitters, which helps defend against passive signal loss.
At a Glance
Eight-port passive antenna combiner for Axient Digital PSM
Selectable 8:1 or 2x 4:1 mode
8:1 mode combines up to 32 WMAS channels
2x 4:1 mode combines up to 16 WMAS channels
Automatic Transmitter Compensation with ADTQ or ADTD Axient Digital PSM transmitters
Ethernet switch for remote control and firmware updates
What’s In the Box:
1 AD8C 8-Port Combiner
1 AC Locking Power Cable
1 AC Locking Power Jumper Cable
1 Ethernet Cable
1 Ethernet Jumper Cable
1 Hardware Kit
2 8 BNC Coaxial Jumper Cable
Product Specifications:
Type: Passive antenna combiner
Compatibility: ADTQ and ADTD Axient Digital PSM transmitters
Modes: Selectable 8:1 or 2x 4:1
Channel Capacity: Up to 32 WMAS channels (8:1 mode), 16 WMAS channels (2x 4:1 mode)
Functionality: Automatic Transmitter Compensation
Shipping Weight: 13 lb.
Shipping Dimensions: 17 x 27 x 3 inches
