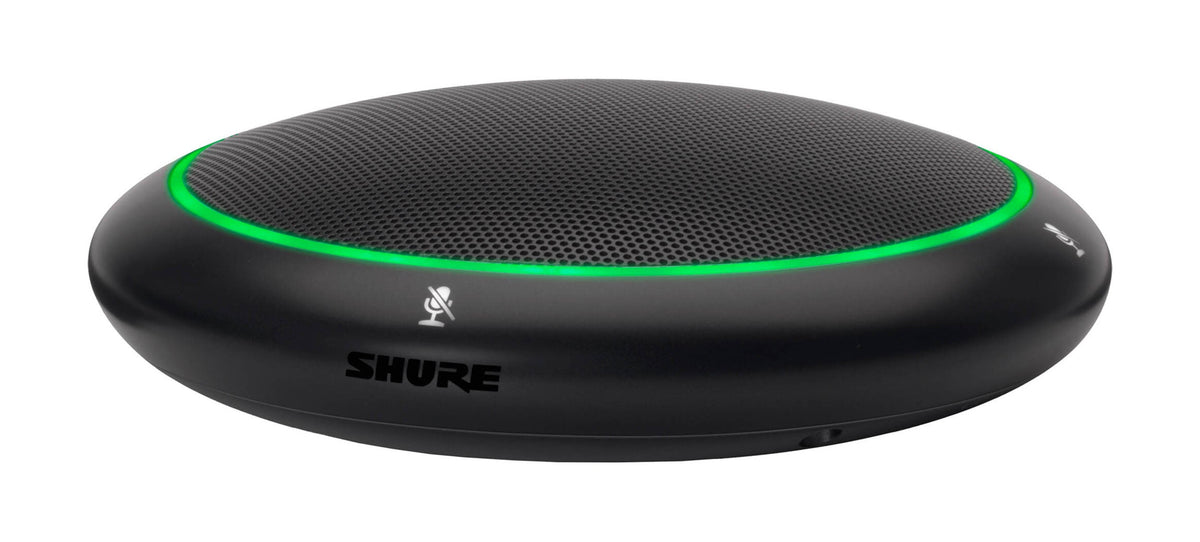

The MXA310 from Shure is a tabletop array microphone with a black finish designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).
Product Specifications:
Control: HTML5 Browser-Based
Frequency Response: 100 Hz to 20 kHz
Digital:
AES67 or Dante Digital Output
Channel Count: 5 Total Channels
Sampling Rate: 48 kHz
Bit Depth: 24
Sensitivity: -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)
Maximum SPL: 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)
Signal to Noise Ratio:
Cardioid: 75 dB
Toroid:67 dB
(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
Latency: <1 ms (Not Including Dante Latency)
Noise Level:
Cardioid: 19.2 dB SPL-A
Toroid: 26.8 dB SPL-A
(-15 dB Gain Setting)
Dynamic Range:
Cardioid: 96 dB
Toroid: 90 dB
(-15 dB Gain Setting)
DSP: Per Channel:
Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)
Audio I/O: 1x RJ45 Dante Output
Power Source: PoE
Power Consumption: 4 W (Maximum)
Certifications: CANICES-3 (B)/NMB-3(B), FCCPart 15, CE
Operating Temperature: 20 to 104°F / -6 to 40°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Mounting: Bottom: 1 x Surface Mount
Color: Black
Shipping Weight: 3 lbs
Shipping Dimension: 7" x 6" x 3"
