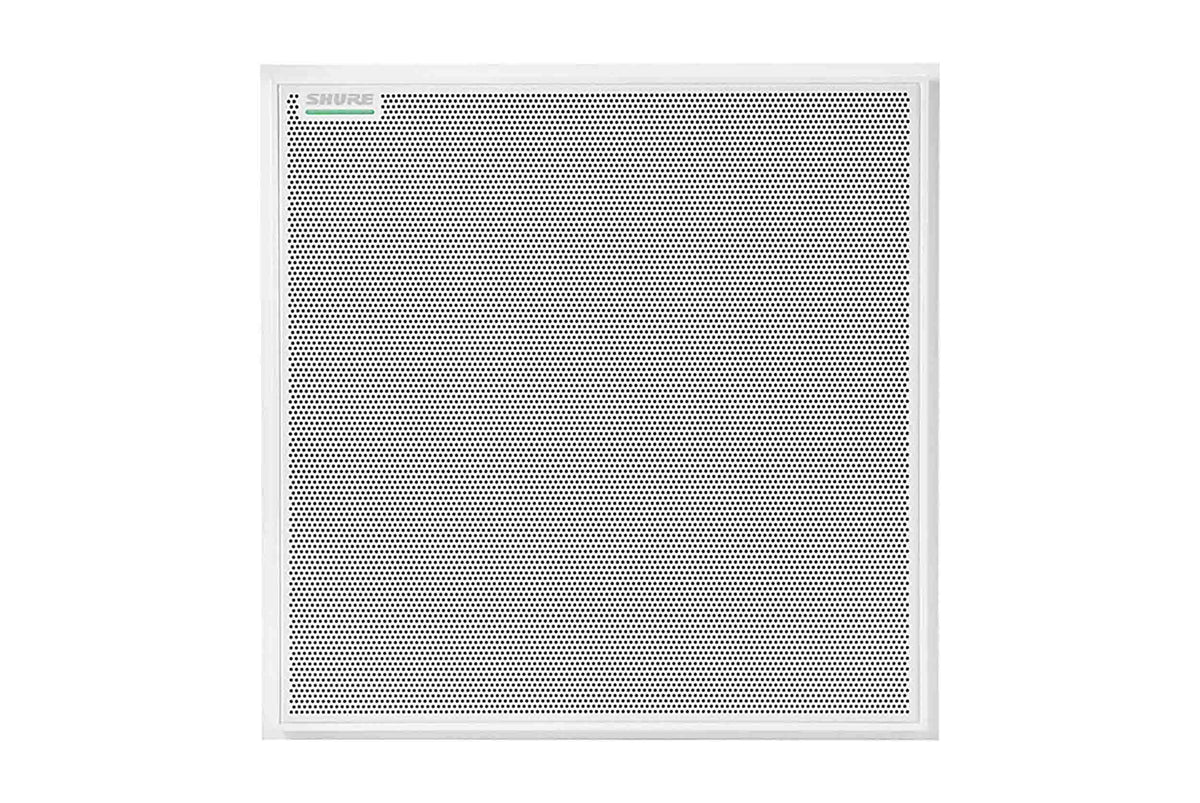

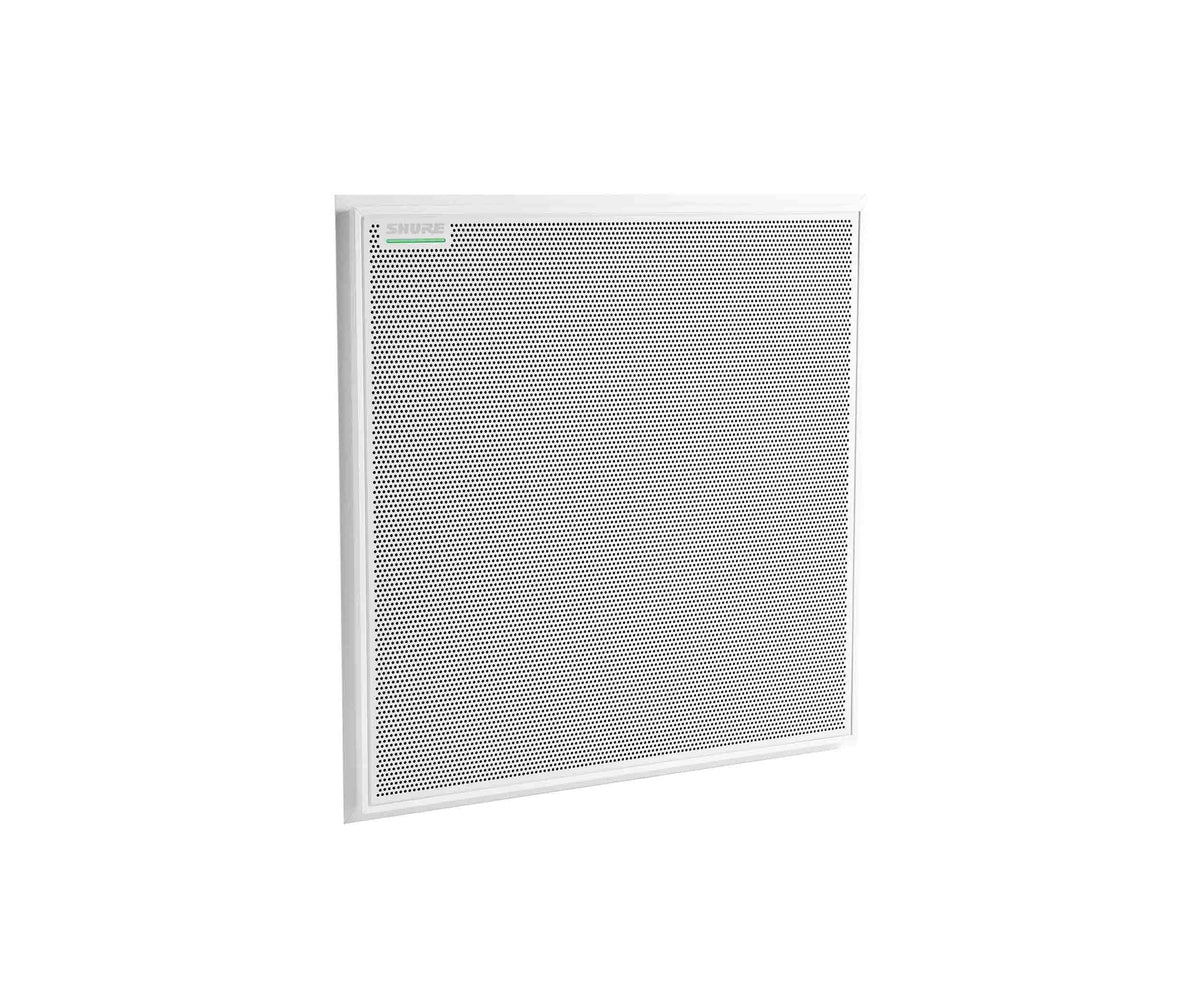

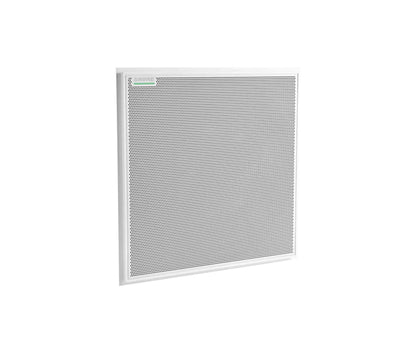

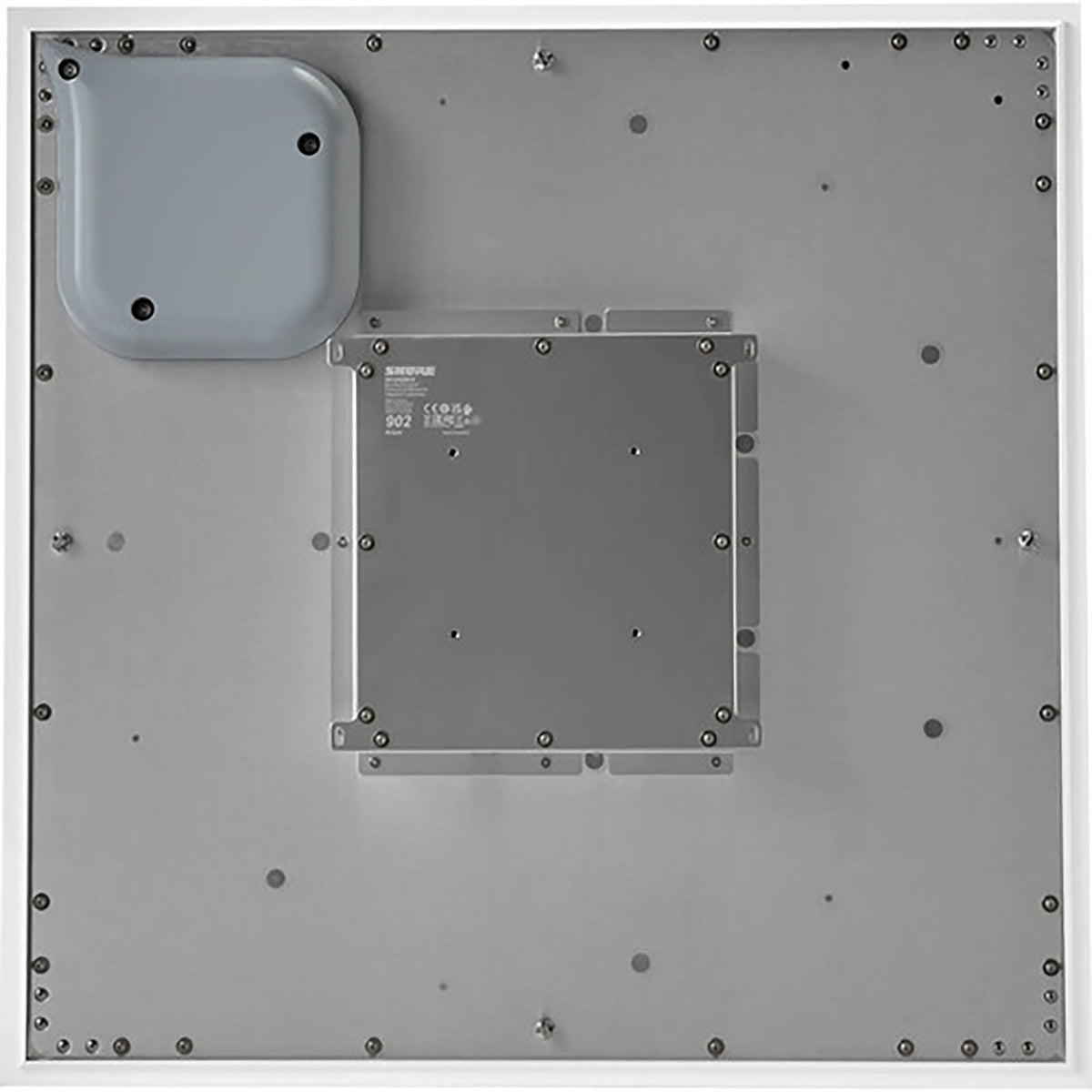

Shure MXA902W-S-60CM Microflex Advance White Ceiling Array Mic

The Shure MXA902W-S-60CM, Microflex advance white ceiling combines a microphone array and loudspeaker in one elegant solution - ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.

How It Works:

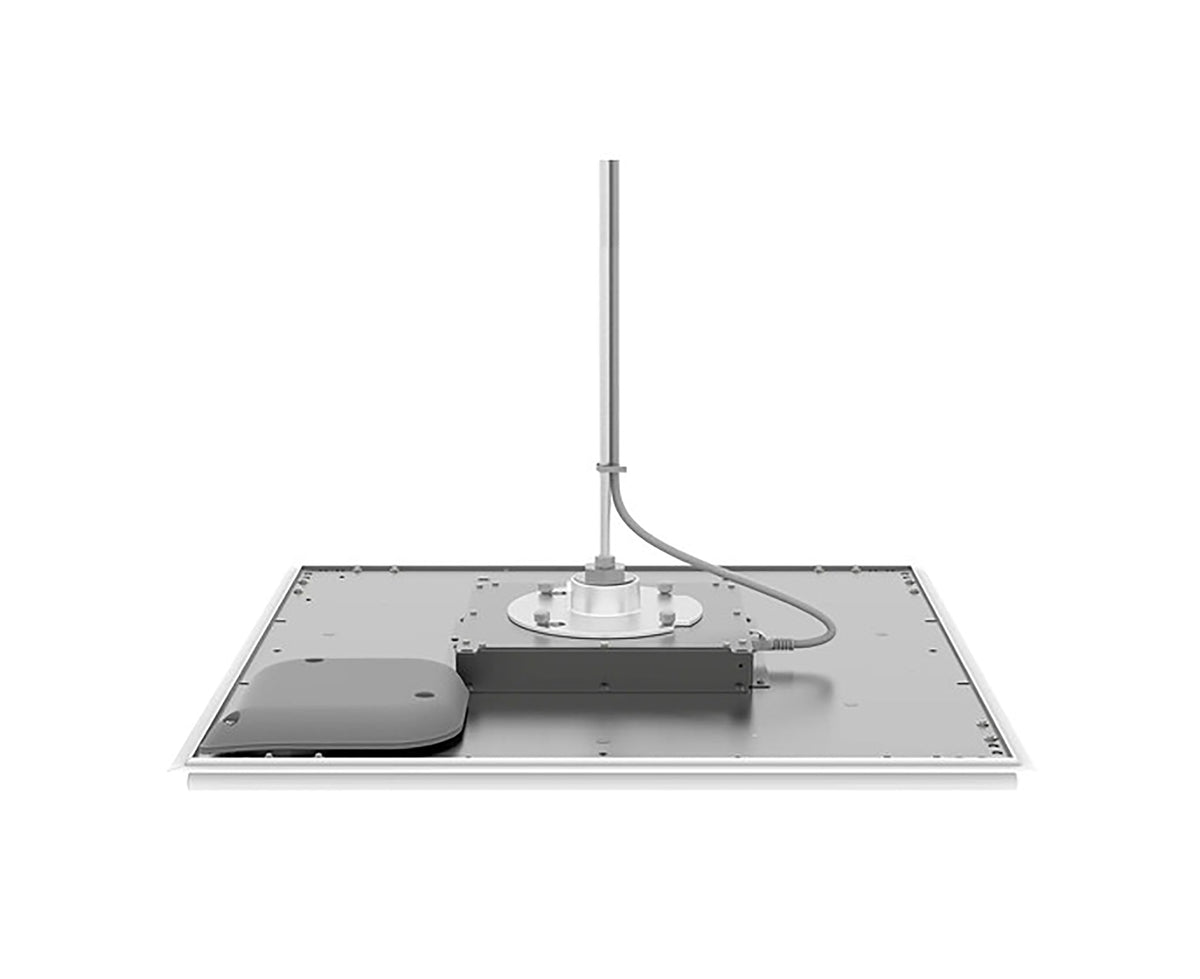

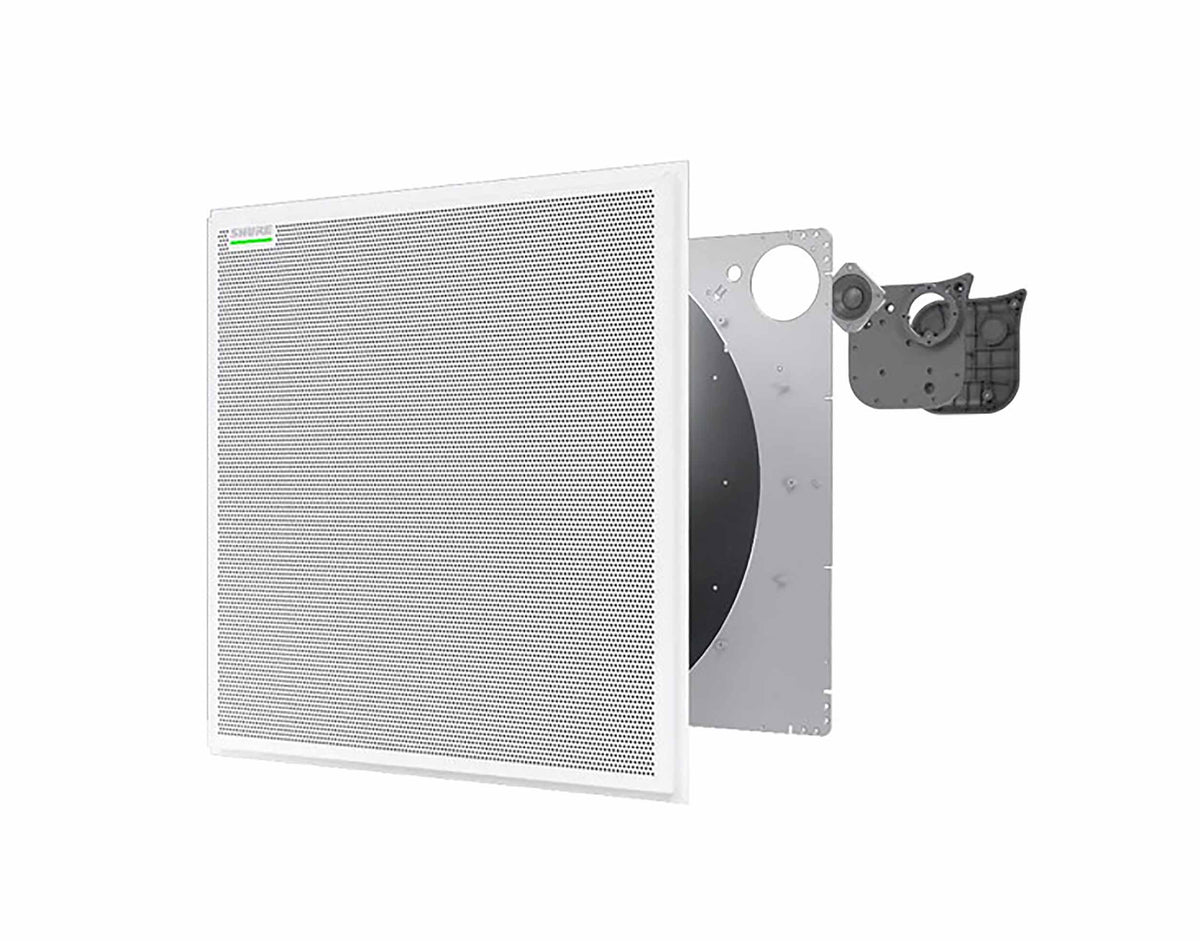

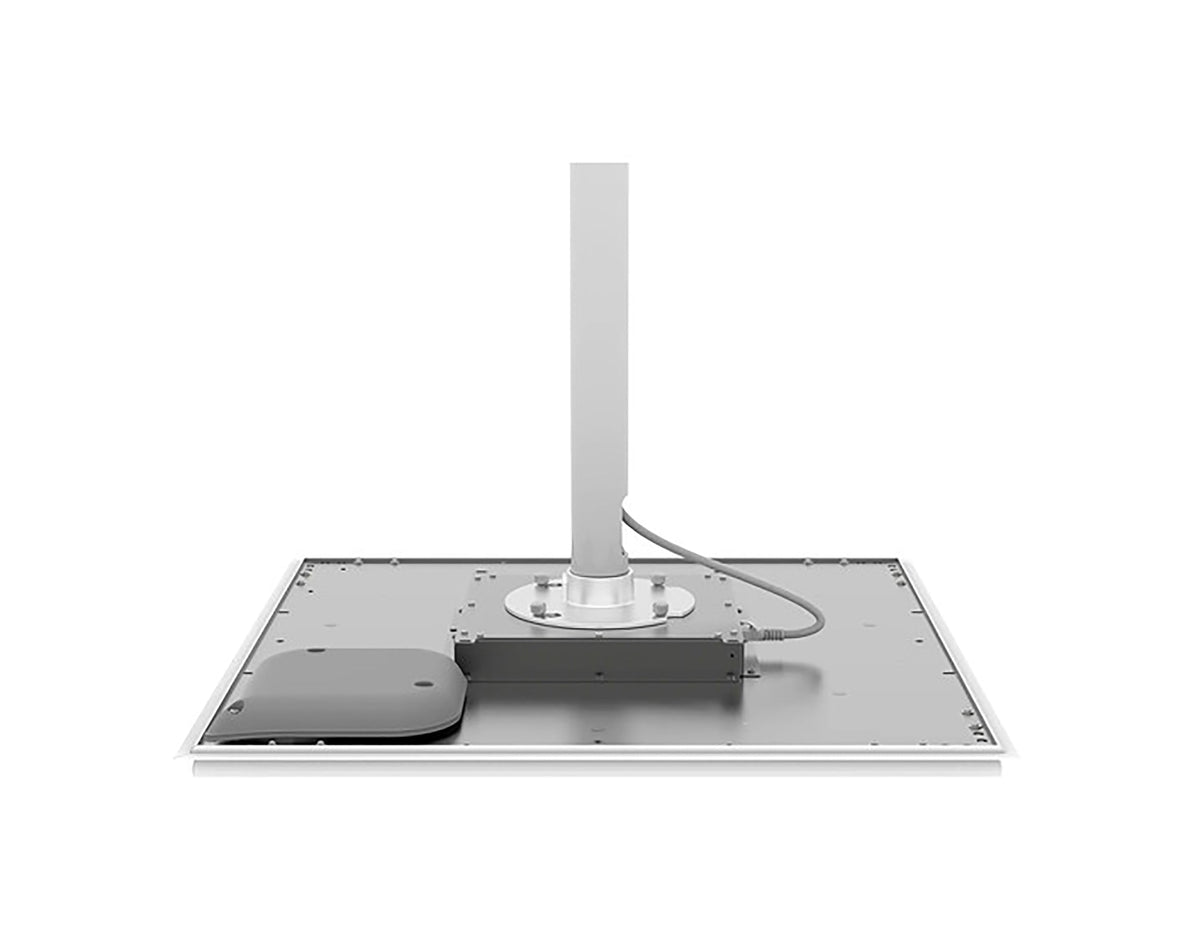

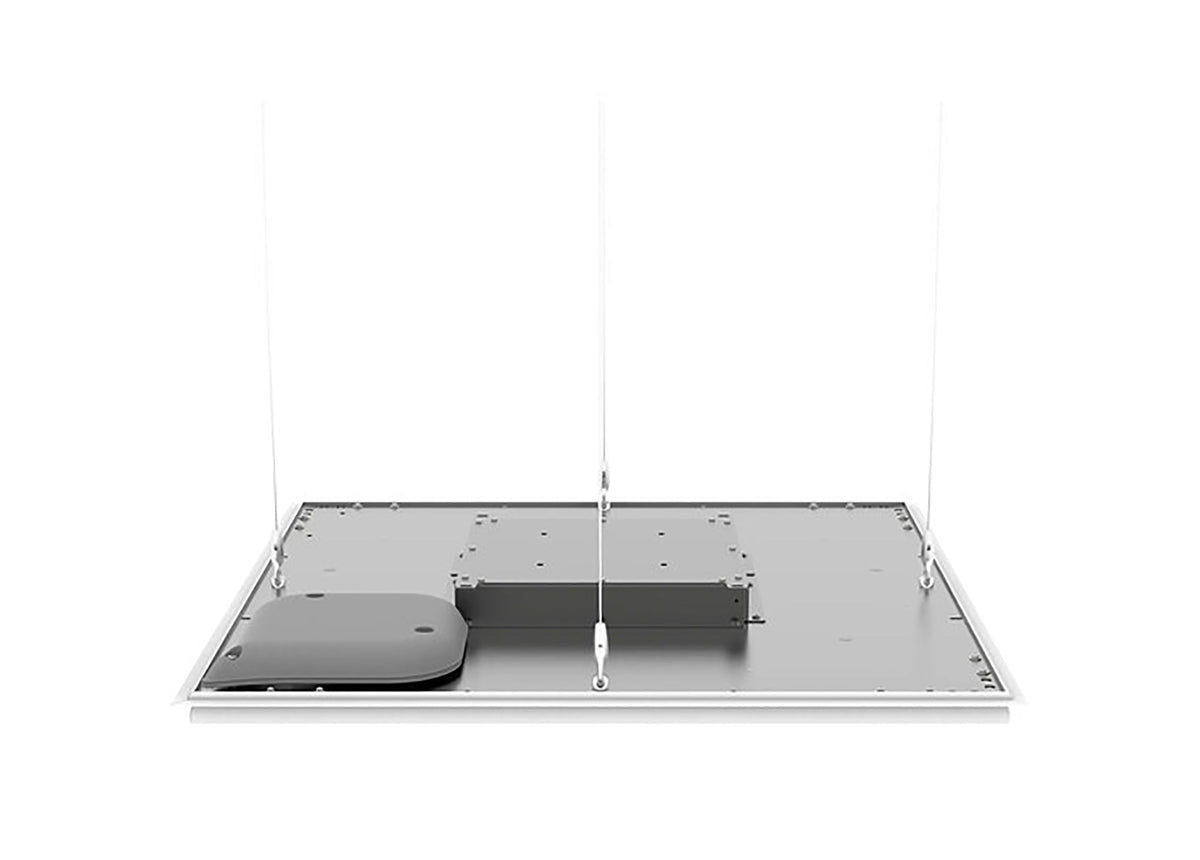

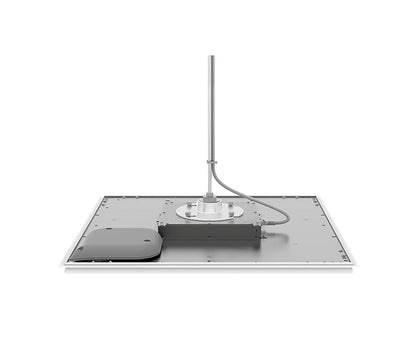

The Shure MXA902W-S-60CM is an advanced all-in-one solution, combining an array microphone, wide-dispersion loudspeaker, and powerful signal processor for premium sound. Its Single-Zone Automatic Coverage technology captures every speaker within a 20 x 20' area while minimizing interference from surrounding noise. Equipped with a 2.5-inch high-output loudspeaker optimized for voice reproduction, the MXA902 ensures clear, effortless communication. Onboard IntelliMix DSP enhances the audio with automatic mixing, echo cancellation, noise reduction, and automatic gain control. Designed for ceiling installation, it eliminates table and wall clutter, offering a clean and streamlined interior. Its next-generation array architecture provides enhanced low-frequency directionality and natural speech quality. Unlike wall-mounted soundbars, the ceiling-mounted array mic and speaker deliver consistent sound for all participants. It fits perfectly in European-standard 60cm ceiling tiles, with additional mounting options for ceiling, pole, or wire rope suspension available separately.

Quality Details:

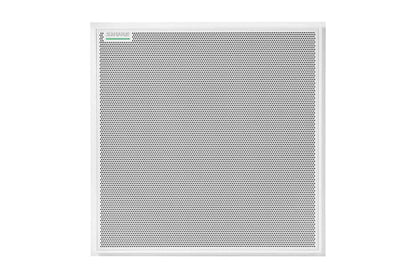

The Shure MXA902W-S-60CM is certified for use with Microsoft Teams, Zoom, and compatible with other popular collaboration tools, making it ideal for modern meeting spaces. Its square form factor, featuring a paintable white finish, seamlessly blends with any architectural design. Audio, PoE+ power, and control signals are efficiently transmitted via a single cable using Dante/AES67 digital audio networking. Shure Audio Encryption ensures secure communication between the MXA902 and other Microflex Ecosystem devices, protecting sensitive meeting content. The configurable LED status bar allows customization of colors and brightness, while command strings enable smooth integration with third-party room control systems for a fully connected experience.

Product Specifications:

Compatibility: Shure Microflex Advance

Coverage Area Size: 20 x 20" / 6.1 x 6.1 m

Microphone:

Frequency Response: 125 Hz to 20 kHz

Sensitivity: −1.74 dBFS/Pa (at 1 kHz)

Maximum SPL: 95.74 dB SPL (Relative to 0 dBFS Overload)

Signal-to-Noise Ratio: 75.76 dB A-Weighted (Ref. 94 dB SPL at 1 kHz)

Latency: 26.6 ms (Does Not Include Dante Latency)

Self-Noise: 18.24 dB SPL-A

Dynamic Range: 77.5 dB

DSP: Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)

Acoustic Echo Cancellation Tail Length: Up to 250 ms

Speaker:

Frequency Range (−10 dB): 120 Hz to 20 kHz - Maximum Output Level at 3.3' / 1 m

Pink Noise: 86 dB SPL

1 kHz Sine Tone: 88 dB SPL

Coverage Angle: 80° (Average of 1 Octave Band Centered on 4 kHz)

DSP: Delay, Compressor, Signal Generator, Equalizer (4-Band Parametric)

Latency: 6.3 ms (Not Including Dante Latency)

Audio I/O: 1x RJ45 Input/output

Digital: Microphone - AES67 or Dante Digital Output

Channel Count: 1 Output Channel

Sampling Rate: 48 kHz

Loudspeaker: AES67 or Dante Digital Input

Channel Count: 2 Input Channels

Bit Depth: 24

Power Source: PoE

Power Consumption: 24 W (Maximum)

Certifications: REACH, FCC, WEEE, CE, UKCA, ICES-003, PlenumUL2043

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Color: White

Product Weight: 12.7 lbs. / 5.8 kg

Product Dimensions: 23.4 x 2.21" / 593.8 x 56.04 mm

Shipping Weight: 20 lbs.

Shipping Dimensions: 30 x 29 x 5 inches
