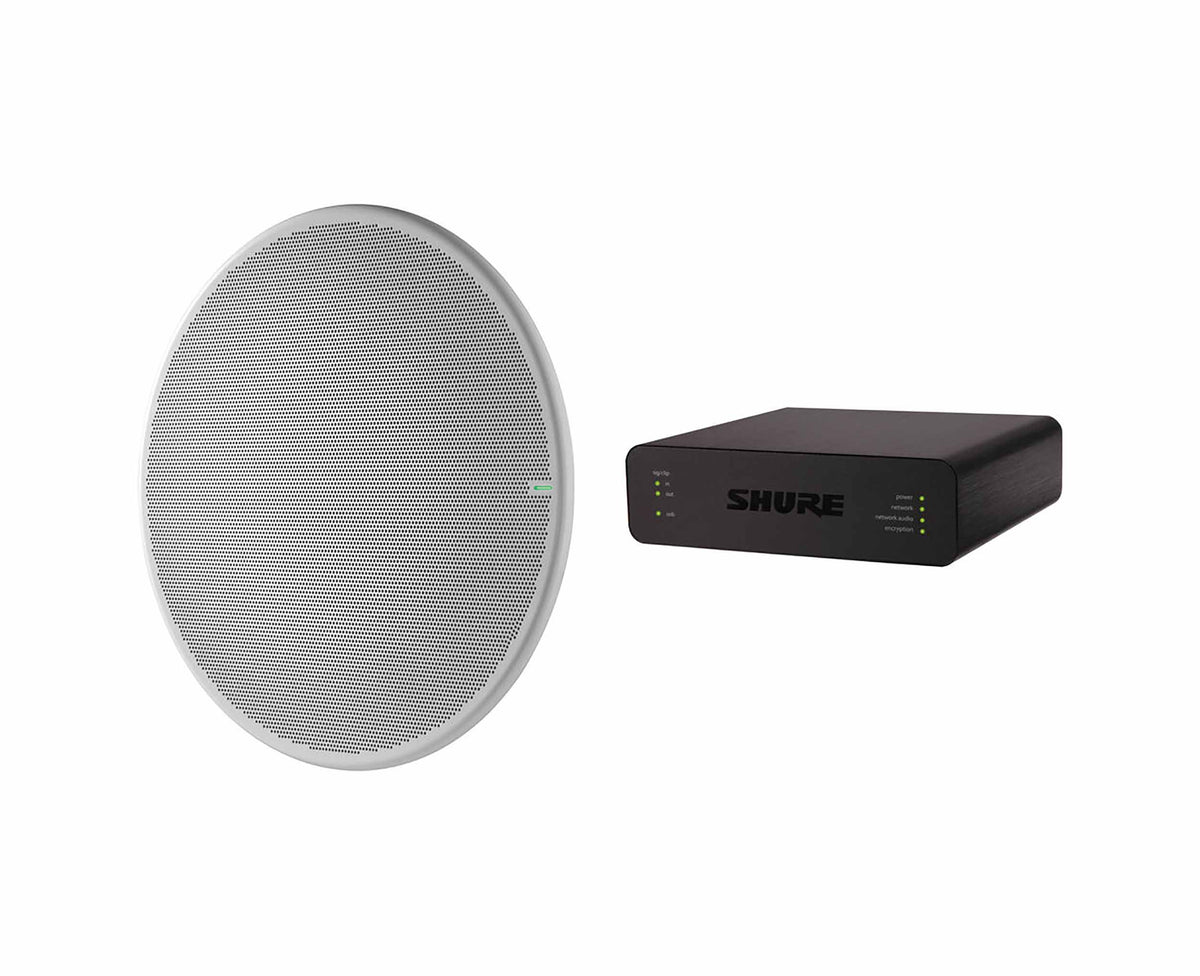

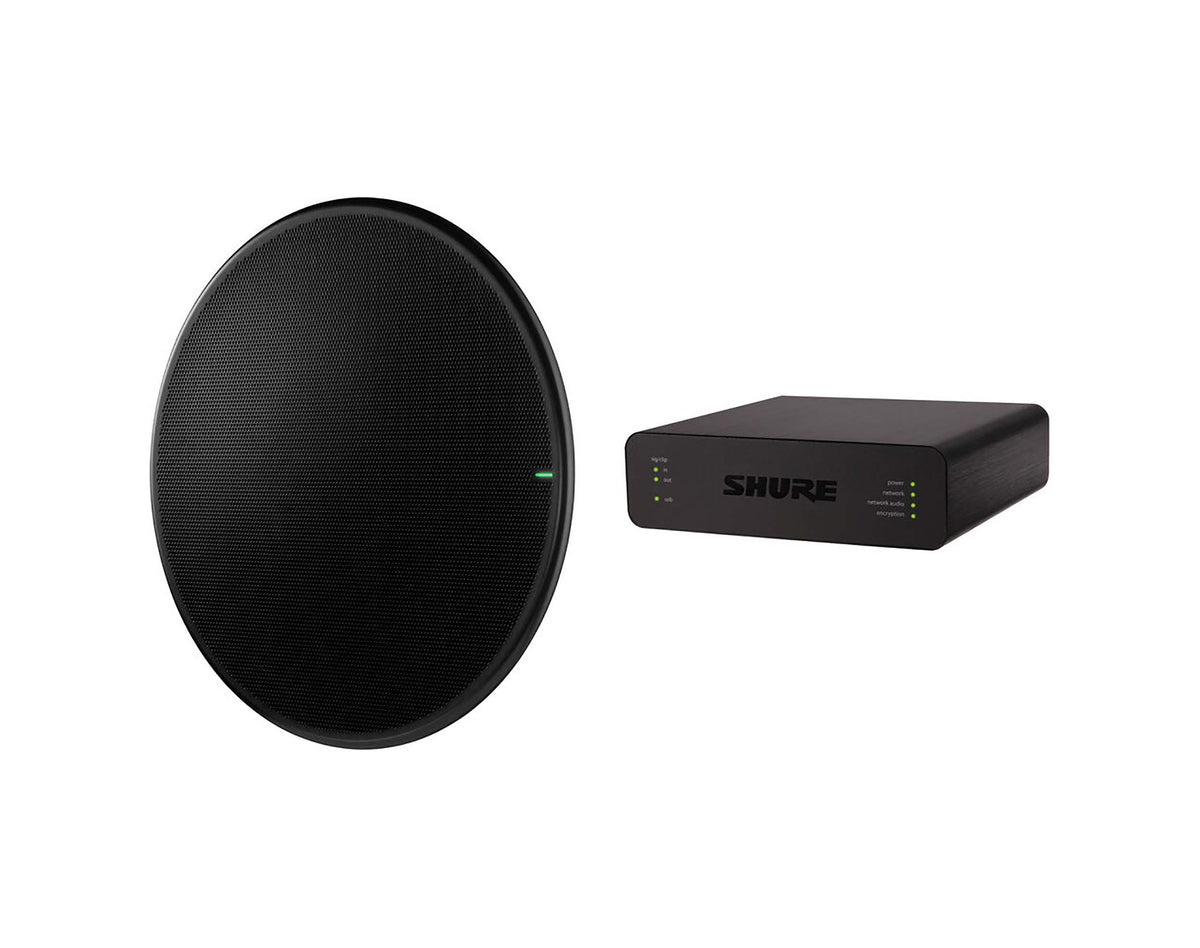

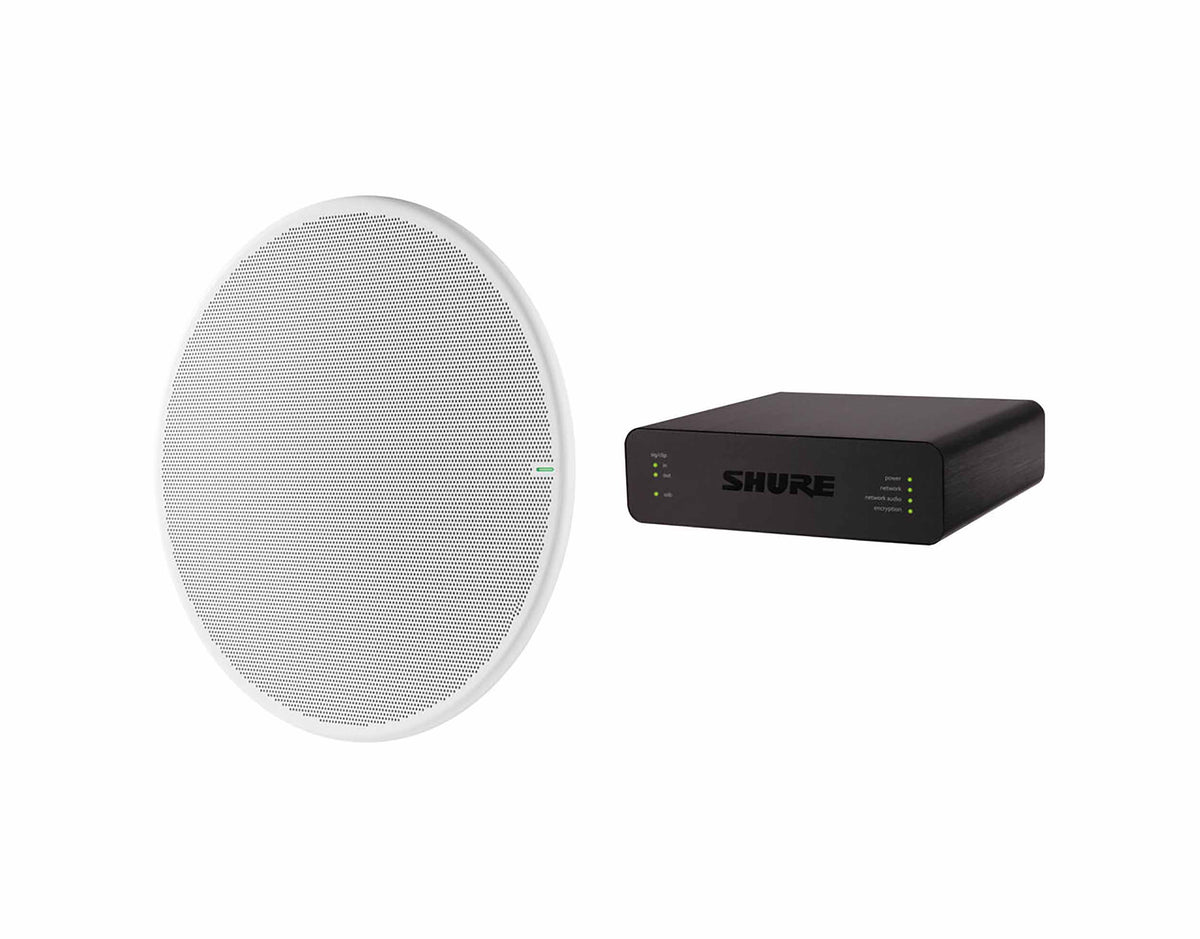

Shure MXA920 Conf Room Bundle w/ Ceiling Mic Array

The Shure MXA920 Large Conferencing Room Bundle provides a high-quality, expandable audio solution for large rooms and conferencing spaces, featuring the Shure MXA920 ceiling microphone array and the ANIUSB-MATRIX Dante Network Interface. The MXA920 microphone array offers advanced Automatic Coverage and Steerable Coverage technologies, capturing precise, high-quality audio from multiple participants across the room. This setup is designed to simplify AV conferencing, voice lift, camera tracking, and sound reinforcement applications, making it ideal for modern, large-scale meeting environments. The bundle also includes Shure’s ANIUSB-MATRIX, which offers flexible audio routing, multiple connectivity options, and Power over Ethernet (PoE), creating a comprehensive, secure, and highly adaptable conferencing solution.

Product Specifications:

Microphone Array (MXA920):

Microphone Type: Ceiling array (Round and Square options)

Pickup Lobes: 8 with separate outputs and an automix

Coverage Area: Up to 30 x 30 ft, configurable via web interface

Integrated DSP: IntelliMix DSP for automatic mixing, echo cancellation, and noise reduction

Color Options: Round in black, white, aluminum; Square in white

LED Status Bar: Configurable colors and brightness

Network Interface (ANIUSB-MATRIX):

Audio Inputs: 4 Dante, 1 analog

Audio Outputs: Analog block, USB, and Dante

Routing: Flexible internal matrix mixer with 4-band parametric EQ

Power Source: Power over Ethernet (PoE)

Certifications: FCC Class B, CE, CANICES-003

Operating Temperature: 20 to 104°F / -6 to 40°C

Shipping Weight: 16.675 lbs.

Shipping Dimensions (LxWxH): 30.6 x 29.3 x 5.6 inches
