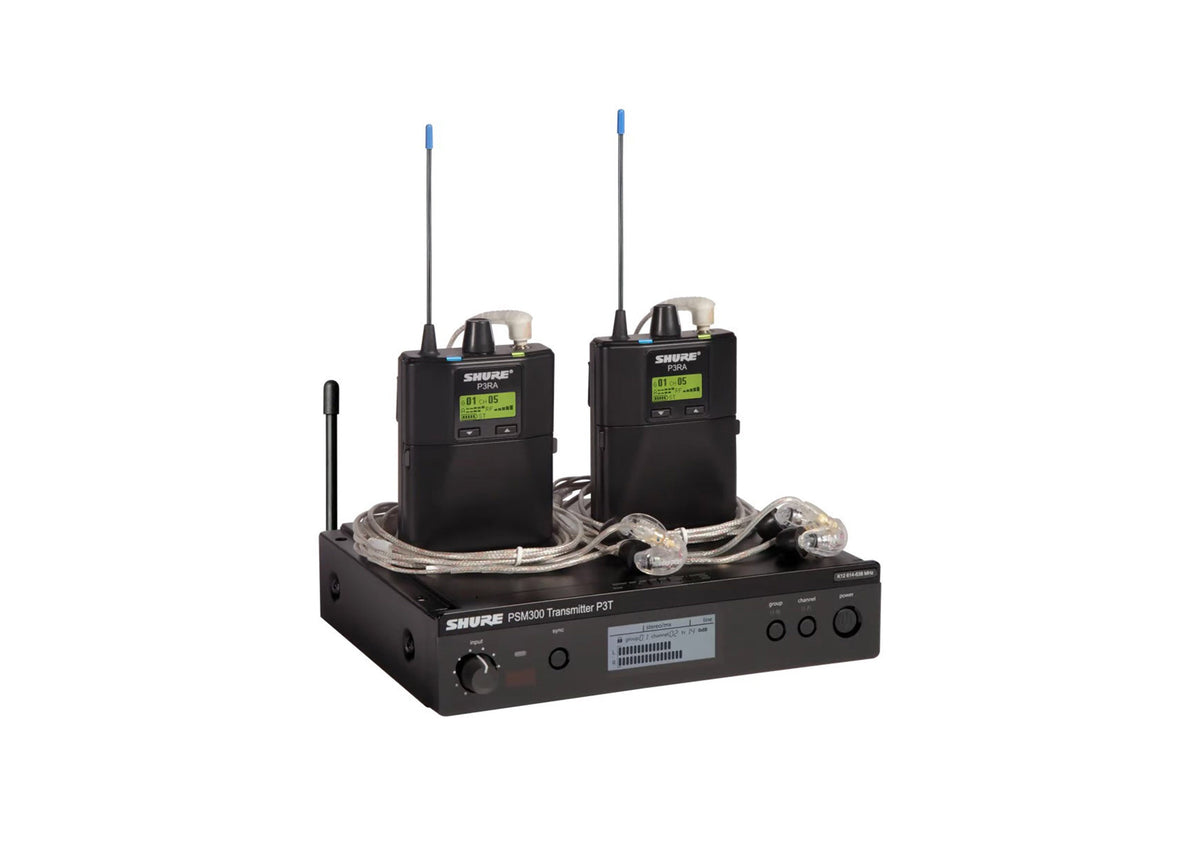

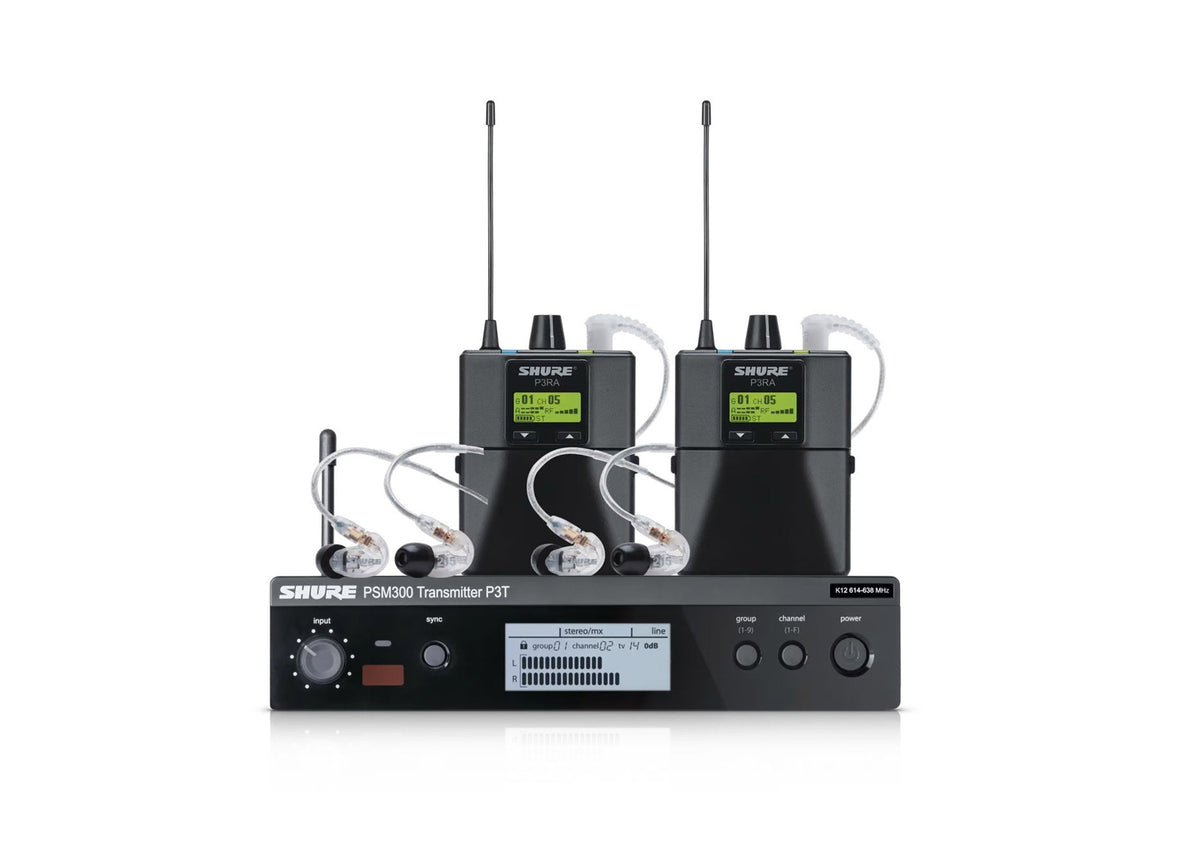

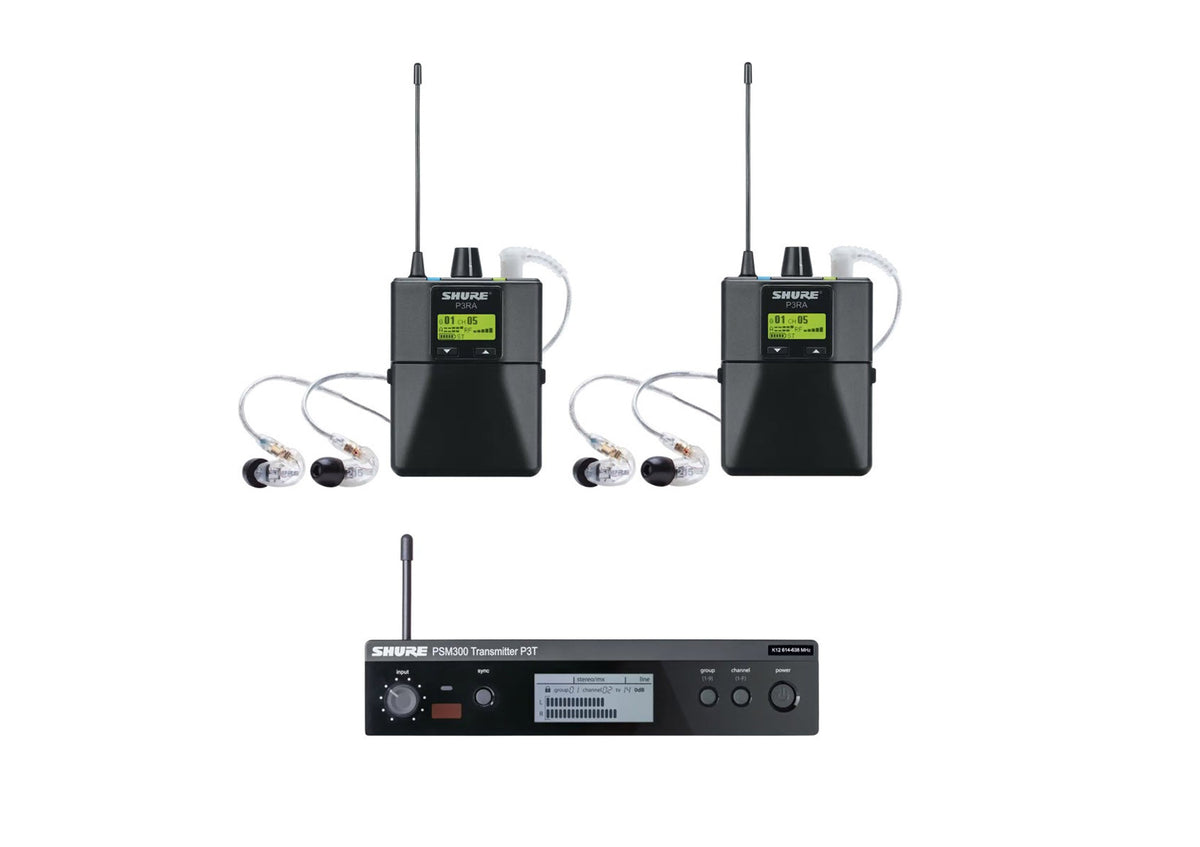

The Shure P3TRA215TWP PSM 300 Twin Pack Pro (PSM300 Twinpack Pro) is a wireless stereo in-ear monitor system for up to two performers: one P3T half-rack transmitter, two all-metal P3RA bodypack receivers and two pairs of SE215 Sound Isolating earphones in clear. It sends two channels of audio over a range of up to 300 ft (90 m) with up to 90 dB signal-to-noise ratio, and each bodypack runs up to 7 hours on two AA batteries.
It is built for bands, worship teams, theater and rehearsal spaces that want to replace stage wedges with in-ear mixes. Each performer sets their own blend at the bodypack, either with MixMode, which mixes the two channels into a custom mono blend, or in stereo mode with adjustable left/right balance. One-touch scan and IR sync find a clean channel and assign it to the receivers.
The P3RA receivers use 24-bit digital audio processing with Shure's Audio Reference Companding, an all-metal aluminum body and a high-contrast LCD with menu navigation, plus a 2-band shelving EQ, a volume limiter and a power save mode. The SE215 earphones block up to 37 dB of outside noise and use detachable MMCX cables.
PSM 300 Twin Pack Pro specifications
| In the box | 1 P3T transmitter, 2 P3RA bodypack receivers (each with a zippered bag and 2 AA batteries), 2 SE215-CL earphones |
|---|---|
| Frequency bands | G20: 488 to 512 MHz; H20: 518 to 542 MHz; J13: 566 to 590 MHz (choose the band on this page) |
| Range | Up to 300 ft (90 m) |
| Signal-to-noise ratio | Up to 90 dB |
| Transmitter RF output | 10, 20 or 30 mW, varies by region (30 mW on G20, H20 and J13) |
| Transmitter inputs | Two 1/4 in (6.35 mm) TRS, electronically balanced, with loop outputs; switchable +4 dBu or -10 dBV nominal level; maximum +22 dBu (+4 setting) or +12.2 dBu (-10 setting); phantom power protected up to 60 V DC |
| Transmitter power | 12 to 15 V DC, 260 mA maximum |
| Transmitter size and weight | 1.7 x 7.8 x 6.8 in (43 x 198 x 172 mm), 27.6 oz (783 g), all-metal half-rack |
| Receiver | P3RA, aluminum body, LCD, 2-band EQ, MixMode and stereo mode, volume limiter, frequency scan and IR sync, 3.5 mm (1/8 in) stereo headphone output |
| Receiver battery | 2 AA batteries, up to 7 hours continuous; optional Shure SB900C rechargeable battery |
| Earphones | SE215, single high-definition MicroDriver, 17 ohms, 107 dB SPL/mW sensitivity, 22 Hz to 17.5 kHz, up to 37 dB noise isolation, detachable MMCX cable |
Can two performers have different mixes?
Yes, within the two channels the P3T sends. Both bodypacks receive the same two channels, and each performer uses MixMode or the stereo balance control on their own P3RA to set a personal blend and volume.
How far does the signal reach?
Up to 300 ft (90 m), according to Shure.
How long do the bodypacks run?
Up to 7 hours of continuous use on two AA batteries. Shure's optional rechargeable battery extends runtime and charges in the unit.
Which frequency band should I choose?
This listing is offered in G20 (488 to 512 MHz), H20 (518 to 542 MHz) and J13 (566 to 590 MHz). Match the band to any PSM 300 transmitters or receivers you already own so they work together.
Twin Pack Pro or a single PSM 300 system?
The Twin Pack Pro puts two P3RA receivers and two pairs of SE215 earphones on one P3T transmitter. The P3TRA215CL is the same P3T, P3RA and SE215 combination for one performer. The P3TR112GR is Shure's entry-level PSM 300 set with SE112 earphones for one performer. Expand later with the PA411 antenna combiner or a SB900C rechargeable battery.
