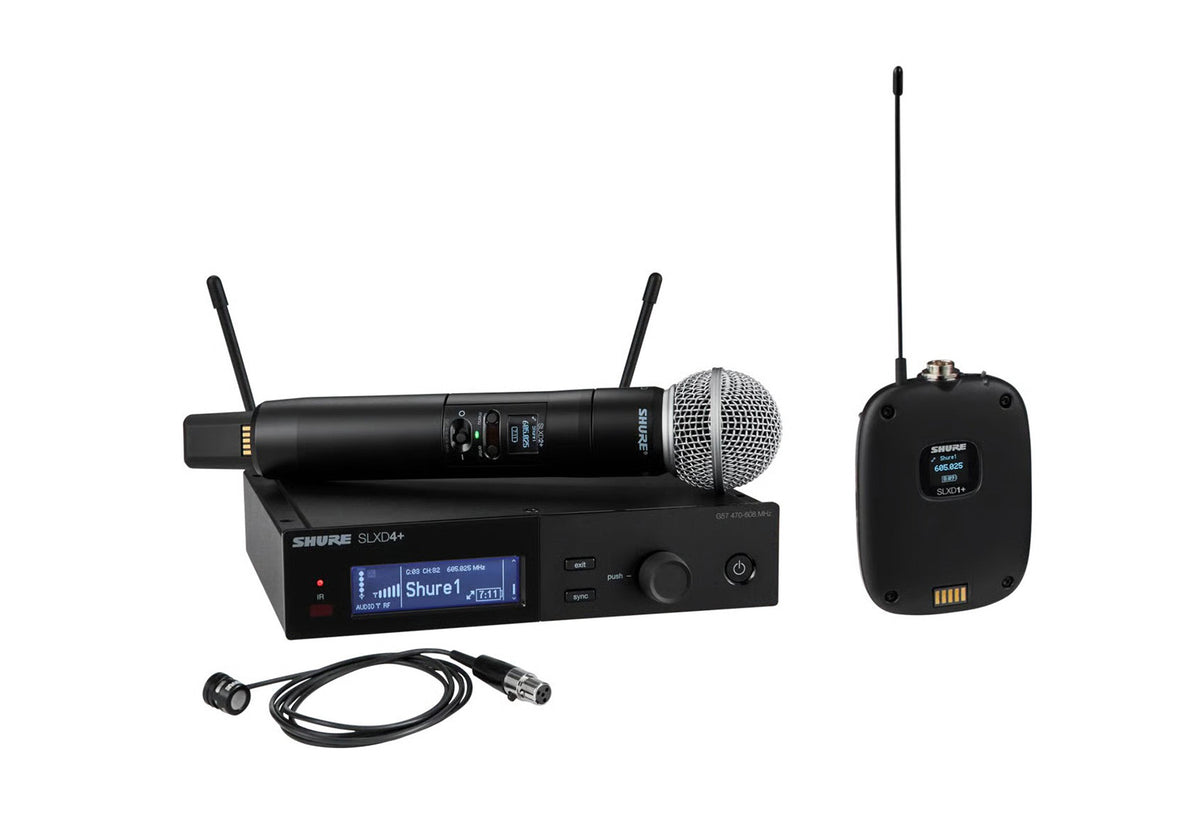

Shure SLXD124+/85M Wireless Combo Mic System - G57 (470-608 MHz)

The Shure SLXD124+/85M wireless system combines the legendary SM58® cardioid dynamic microphone on the SLXD2+ handheld transmitter with the SLXD1+ bodypack transmitter and WL185m lavalier microphone, delivering exceptional versatility for presentations, performances, and professional audio applications. With transparent 24-bit digital audio and an impressive dynamic range of over 118 dB, the system captures vocals and speech with remarkable clarity and natural detail. Its reliable RF performance features a 138 MHz wide tuning range, providing dependable operation across a wide range of environments and geographic locations.

Built for dependable wireless performance, the system supports up to 11 simultaneous systems in 6 MHz TV bands and up to 14 systems in 8 MHz bands, making it suitable for multi-microphone setups. Automatic Setup ensures that once the receiver and transmitters are linked, they remain connected even in challenging RF environments. With ShowLink Ease, users can remotely control transmitter settings from the receiver, including changing frequencies, adjusting power output, locking or unlocking transmitter controls, and performing firmware updates.

Advanced monitoring and system management are available through Wireless Workbench desktop software or the WWB Mobile app via Wi-Fi or Bluetooth, allowing engineers to easily monitor RF status and adjust parameters. The receiver also features Shure’s patented Digital Feedback Reducer to automatically minimize unwanted audio feedback. Each SLX-D+ component includes AES-256 encryption for secure transmission, and the system delivers up to 8 hours of operation using two AA batteries or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.

Included in the Box:

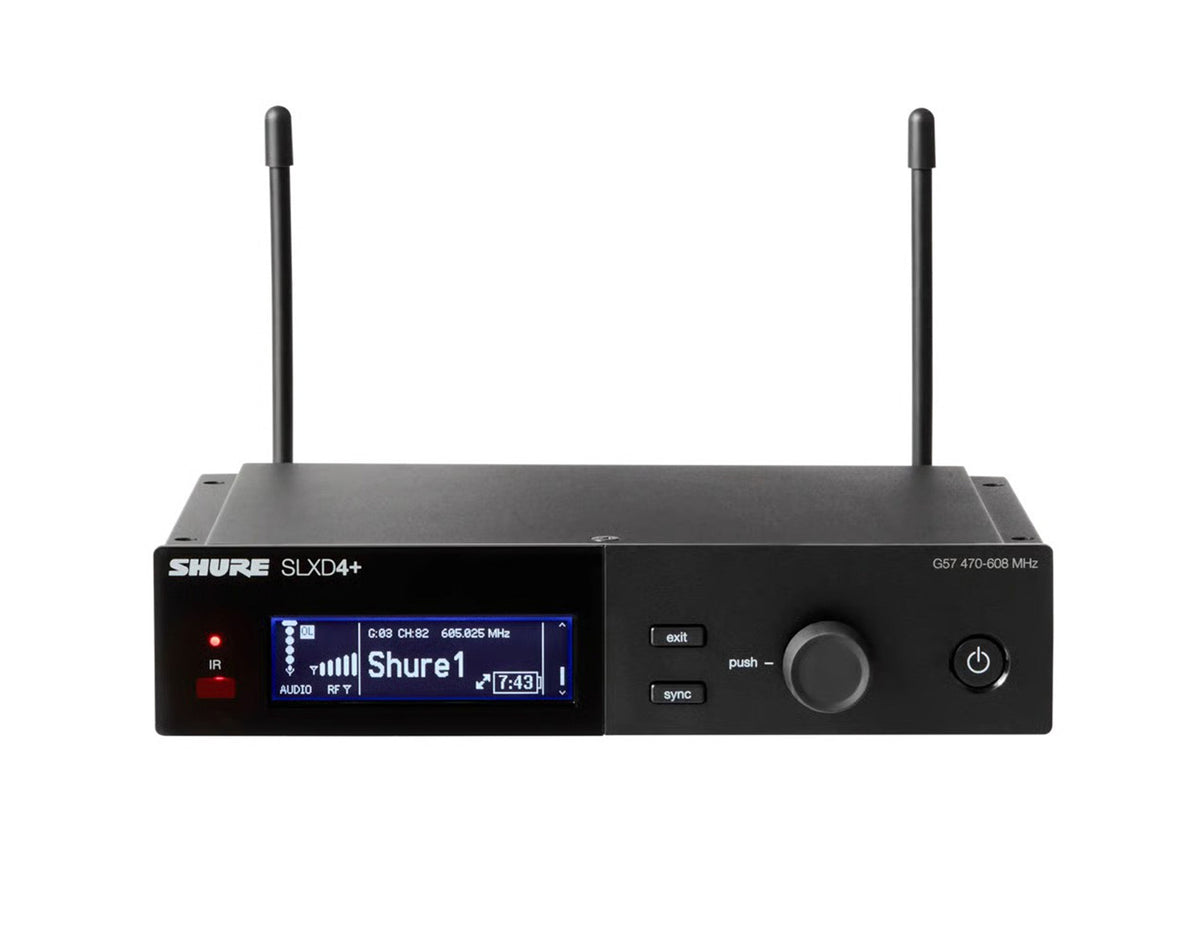

1 x SLXD4+ Digital Wireless Receiver

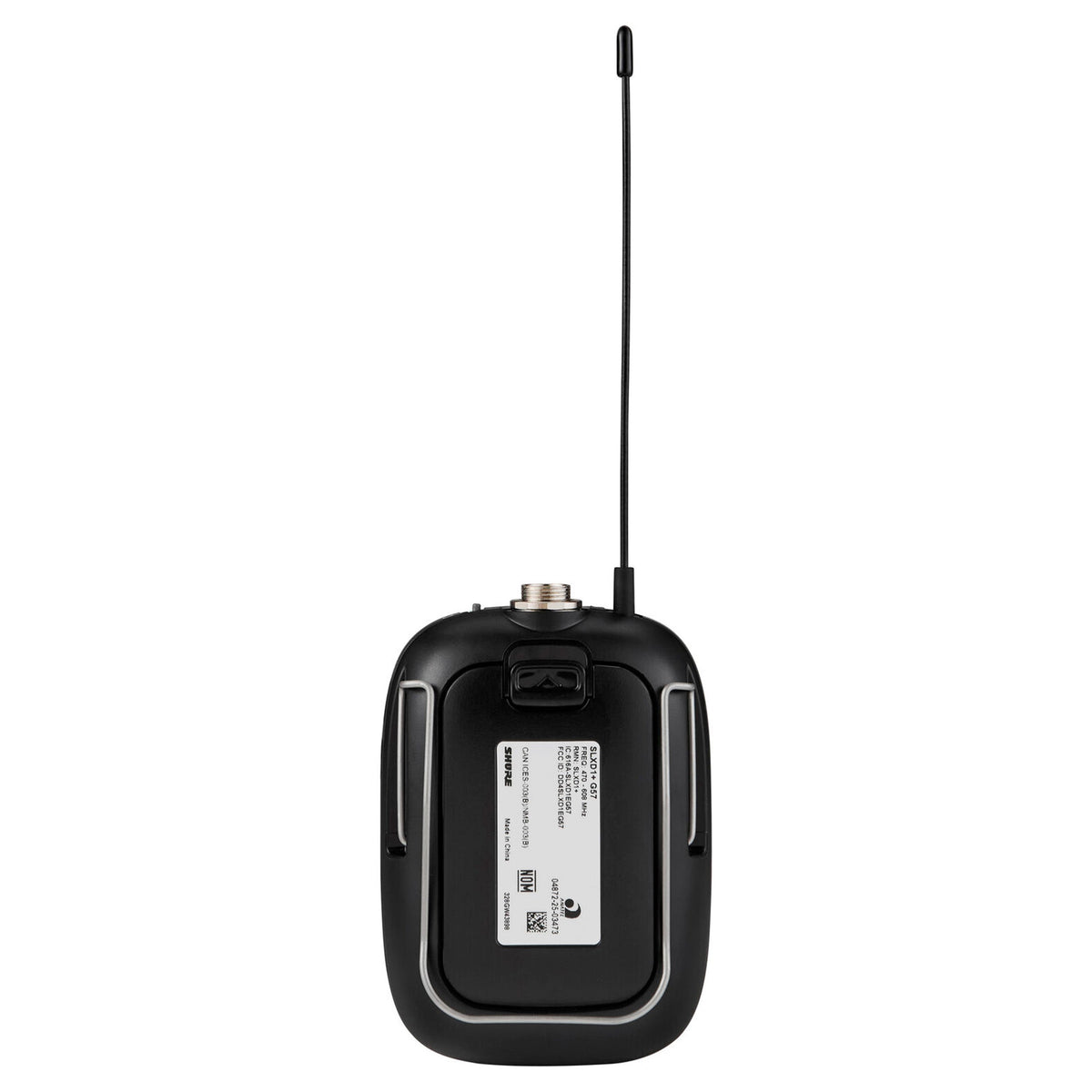

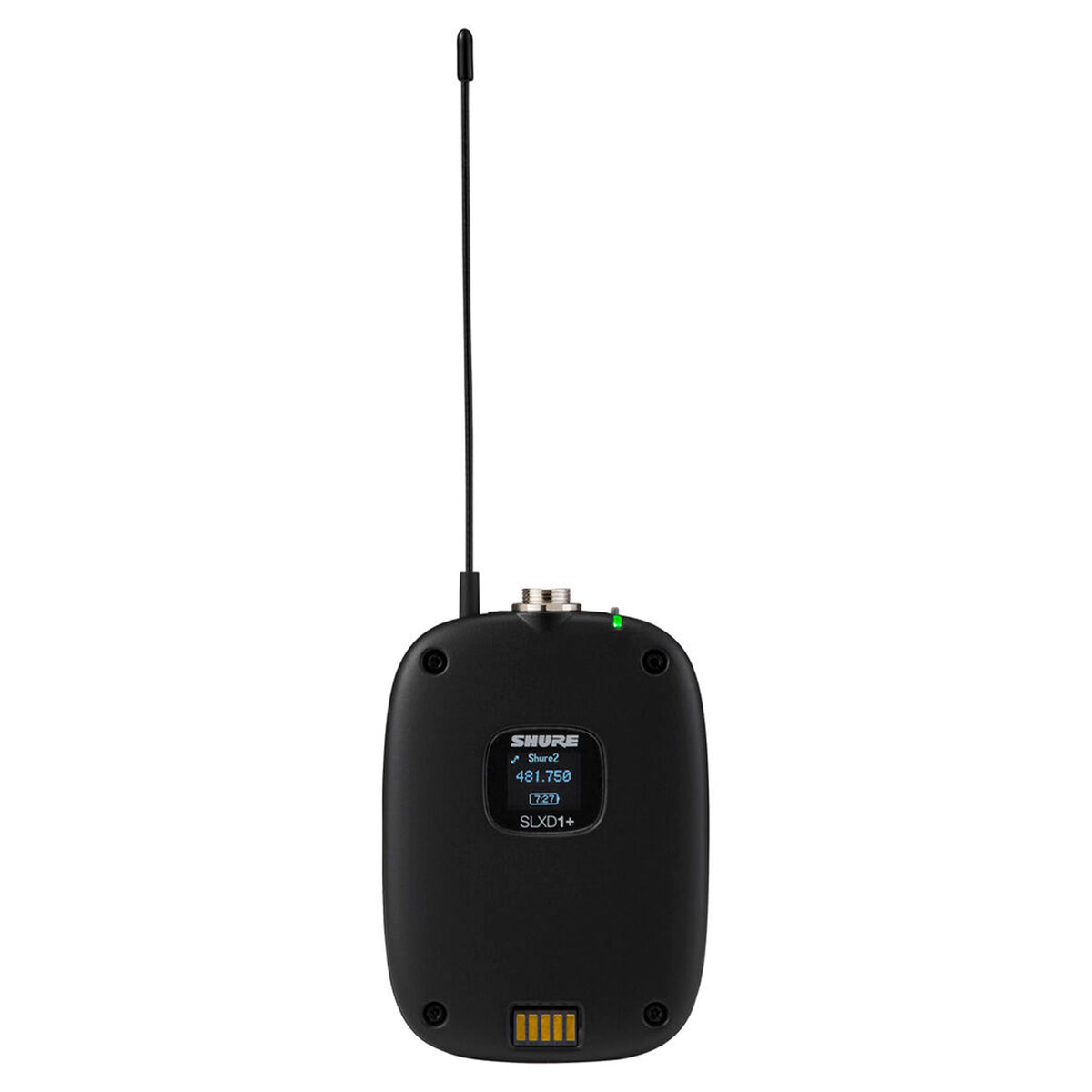

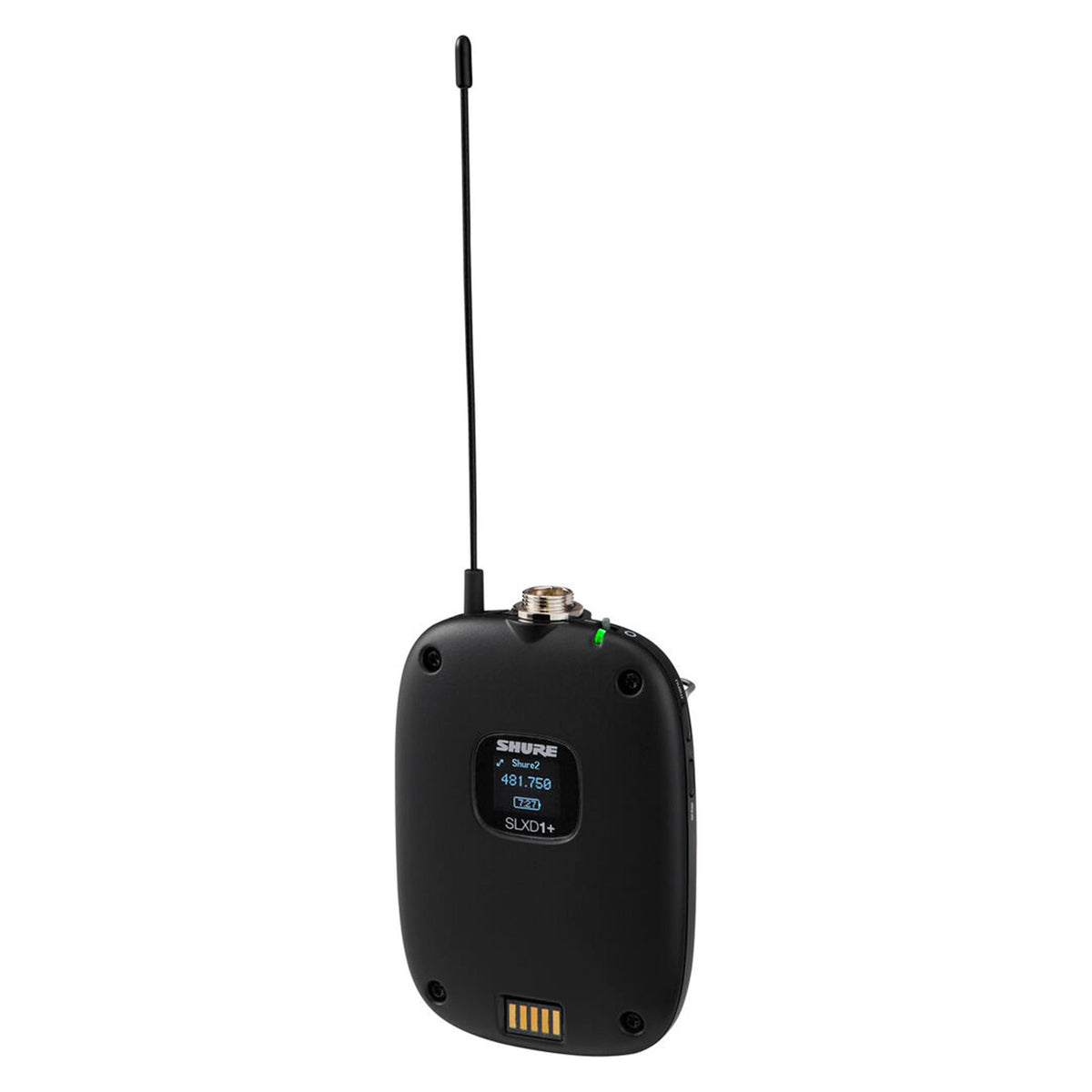

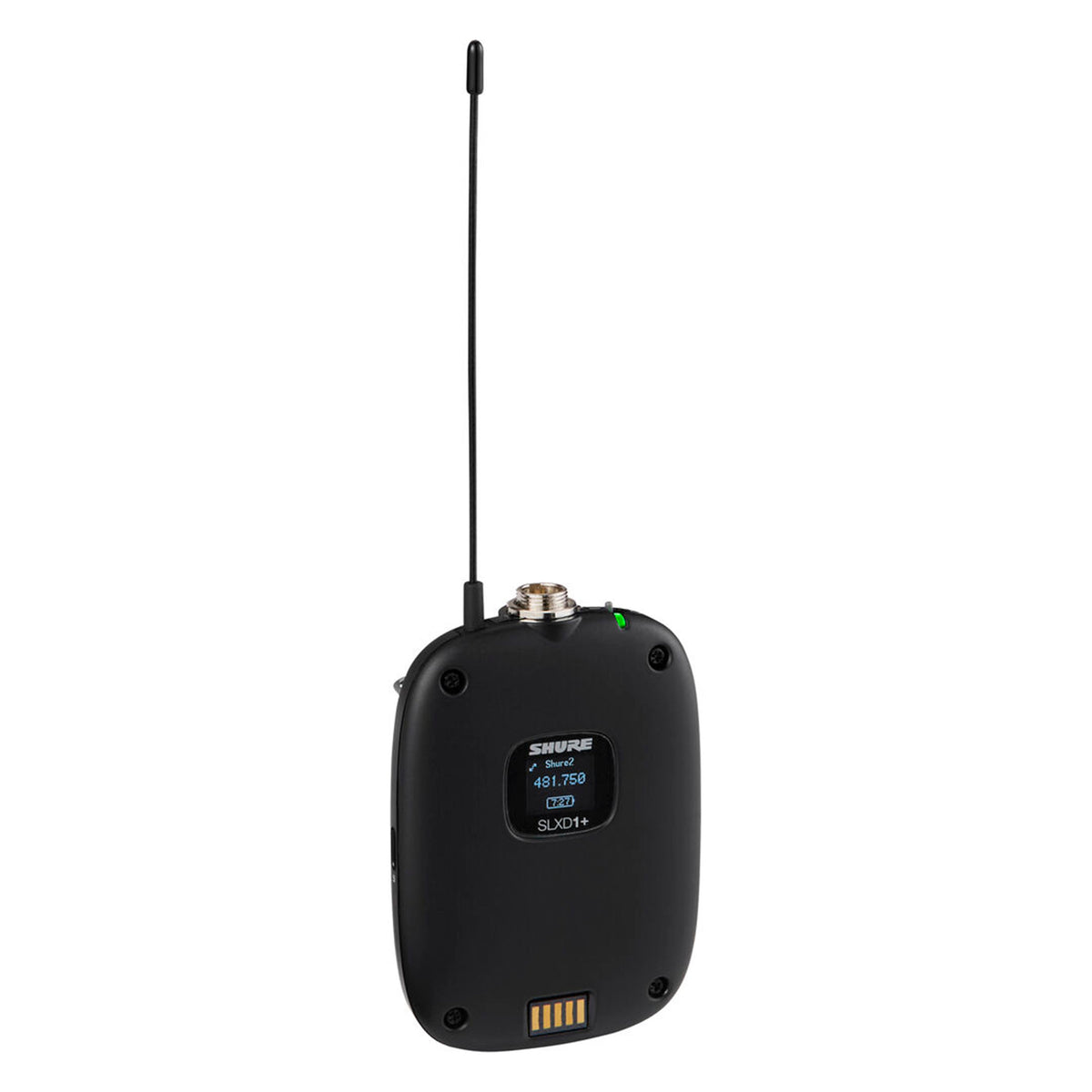

1 x SLXD1+ Bodypack Transmitter

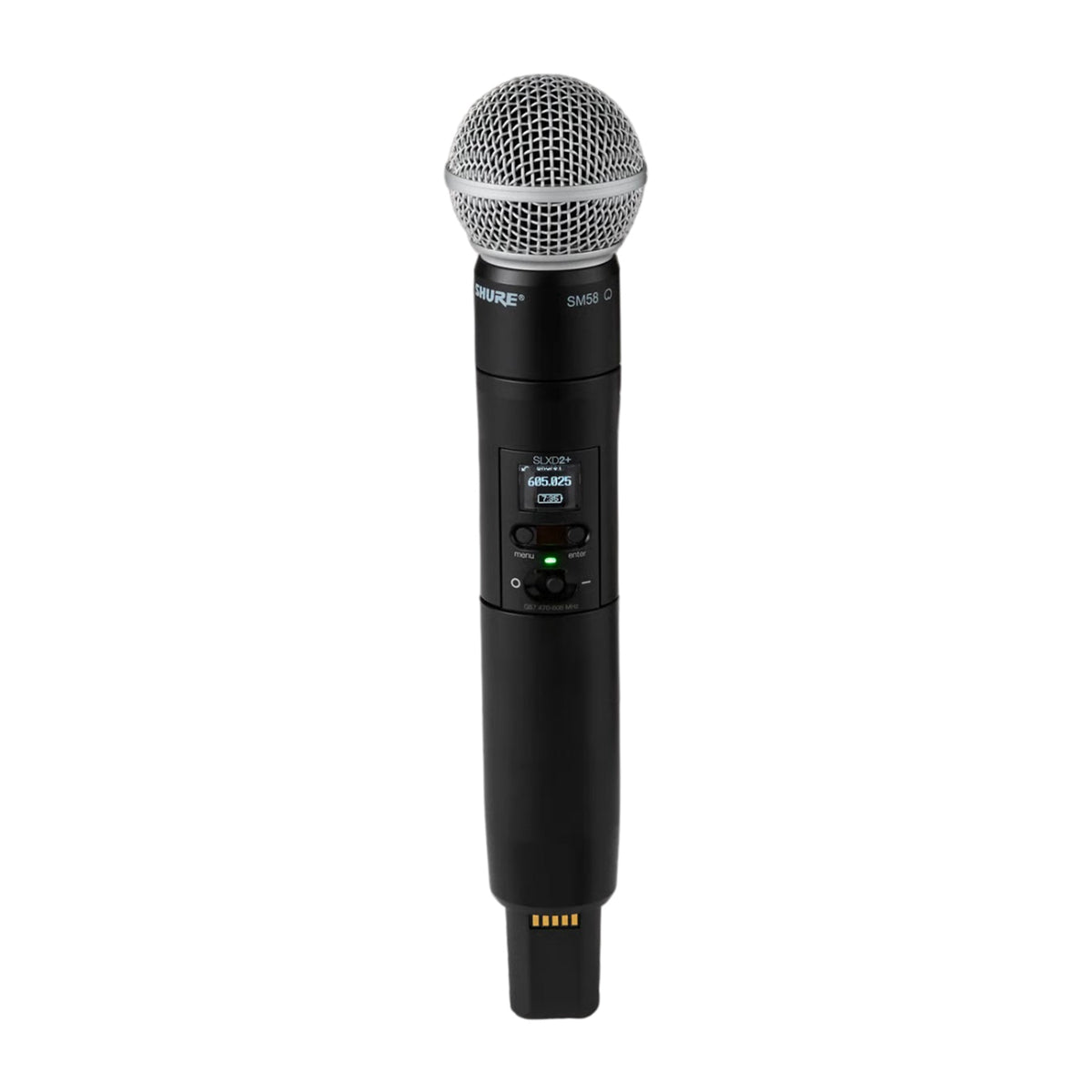

1 x SLXD2+/58 Digital Wireless Handheld Transmitter with SM58 Vocal Microphone

1 x Rackmount Kit

4 x AA Batteries

1 x Power Supply

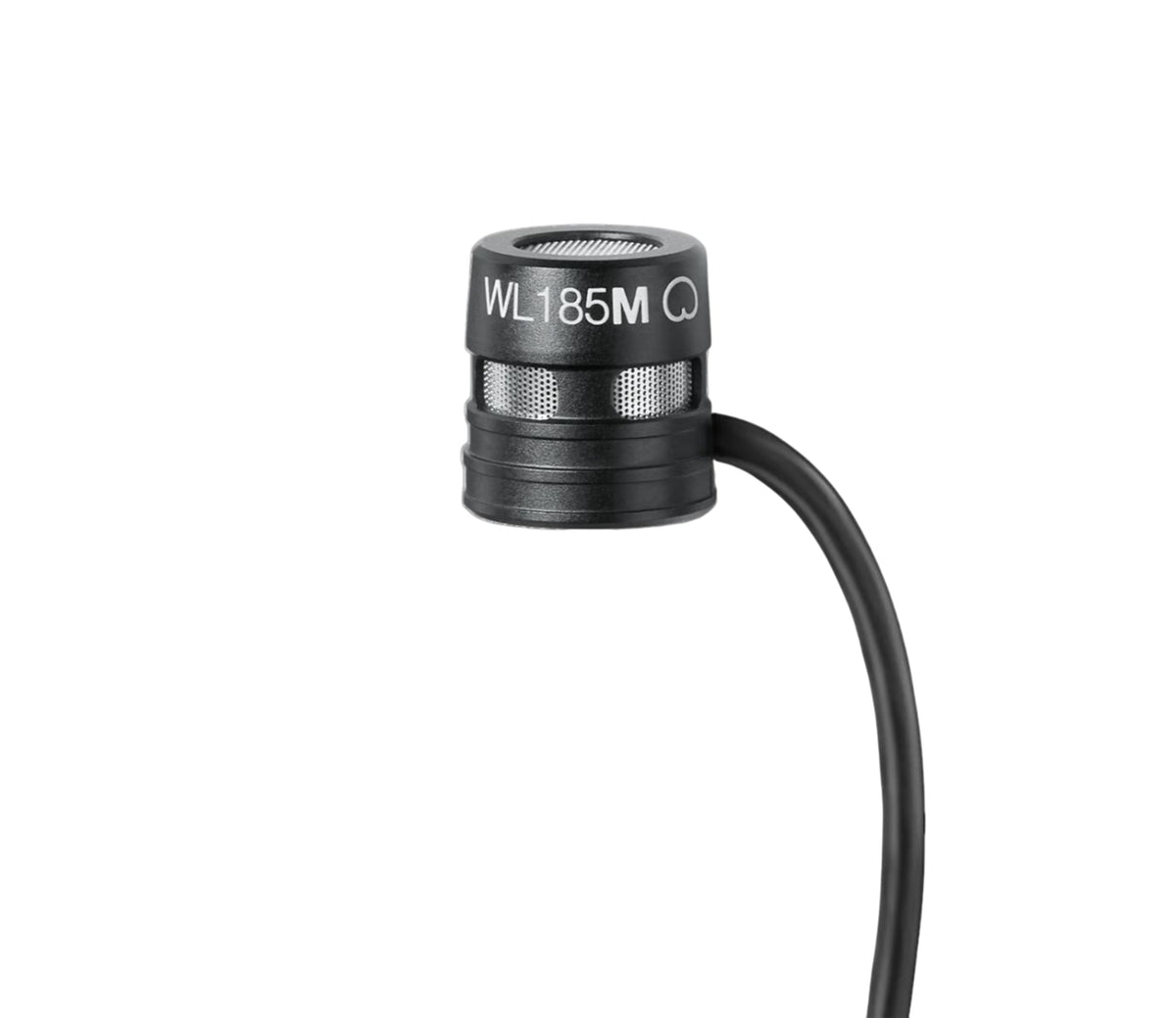

1 x WL185m Low-Profile Cardioid Lavalier Microphone

1 x Single-Mount Tie Clip

1 x Snap-Fit Windscreen

2 x Carrying Pouches

Product Specifications:

Wireless Technology: Digital UHF

Diversity: Yes

RF Frequency Band: 470 to 608 MHz

Number of RF Channel Frequencies: 5520

Max Operating Range: 328.1' / 100 m

Max Transmitters per Band: 14

Dynamic Range: 118 dB

Latency: 2.8 ms

Encryption: AES 256

Mobile App Compatible: Yes (Android & iOS)

Receiver Type: 1x Tabletop/Rack-Mountable

Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)

Antenna (Receiver): 2x Removable

Number of Audio Channels: 2

Audio I/O (Receiver): 2x XLR 3-Pin Balanced Mic/Line Output, 2x 1/4" TS Unbalanced Output

Network I/O: 1x RJ45

Gain Range: -18 to +42 dB

Display: Backlit LCD

Power Requirements: AC Input

Included Transmitters: 1x Handheld, 1x Bodypack

RF Output Power: 1 / 10 mW

Antenna (Transmitters): Fixed Single-Band Helical (Handheld), Fixed Flexible Whip (Bodypack)

Input Level: Microphone / Instrument

Audio I/O (Transmitter): 1x TA4M / Mini-XLR 4-Pin Male Input (Bodypack Transmitter)

Bias/Plug-In & Phantom Power: N/A (Fixed-Capsule Handheld Transmitter)

Muting: Off/On Switch

Sync Method: IR

Display (Transmitter): Backlit LCD

Microphone Type: 1x Handheld with Interchangeable Capsule (SM58 Included), 1x Lavalier

Polar Pattern: Cardioid (Handheld), Cardioid (Lavalier)

Frequency Response: 50 Hz to 15 kHz (Handheld), 70 Hz to 20 kHz (Lavalier)

Maximum SPL: 140.5 dB (Lavalier)

Sensitivity: -54.5 dBV/Pa (Handheld), -43.5 dBV/Pa (Lavalier)

Output Connector (Lavalier): 1x TA4F / Mini-XLR 4-Pin Female

Cable Length: 4' / 1.2 m

Color: Black

Transmitter Battery Type: 2x AA (Included)

Transmitter Battery Life: 8 Hours

AC/DC Power Adapter: 15 VDC (Included)

Receiver:

Weight: 2 lbs. / 930 g (without Antennas)

Dimensions (L x W x H): 7.8 x 6 x 1.7" / 197 x 152 x 42 mm

Bodypack Transmitter:

Weight: 3.1 oz / 89 g

Dimensions (L x W x H): 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm

Handheld Transmitter:

Weight: 5.1 oz / 144 g

Dimensions (L x W x H): 6.9 x 1.5" / 176 x 37 mm

Shipping Weight: 7.88 lbs.

Shipping Dimensions (L x W x H): 17.9 x 14.5 x 4.4 in
