Shure SLXD14D+ Dual Wireless Bodypack System - G57: 470 to 608 MHz

The Shure SLXD14D+-G57 dual wireless system unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike that delivers wireless excellence, wherever required. Features a 1/2-rack space dual-channel SLXD4D+ and two SLXD1+ bodypack transmitters.

SLX-D+ delivers transparent 24-bit digital audio quality with greater than 118 dB dynamic range, providing clear, detailed sound performance. Its rock-solid RF stability and expansive 138 MHz wide tuning range ensure reliable operation across a wide geographical area, supporting up to 11 simultaneous systems in 6 MHz TV bands and up to 14 simultaneous systems in 8 MHz TV bands. Automatic Setup keeps receivers and transmitters securely linked once paired, maintaining connection even in challenging RF environments.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including changing the transmitter frequency when an open channel is identified, adjusting power output levels, locking or unlocking controls, and performing firmware updates. Monitor RF status and control both receiver and transmitter settings through Wireless Workbench desktop software or remotely using the WWB Mobile app via Wi-Fi or Bluetooth.

Every SLX-D+ receiver features patented Digital Feedback Reducer technology from Shure to automatically minimize unwanted audio feedback. Each component and system ships with AES-256 encryption installed for secure operation and delivers up to 8 hours of use with included AA batteries or optional SB903 Li-ion rechargeable batteries and charging accessories.

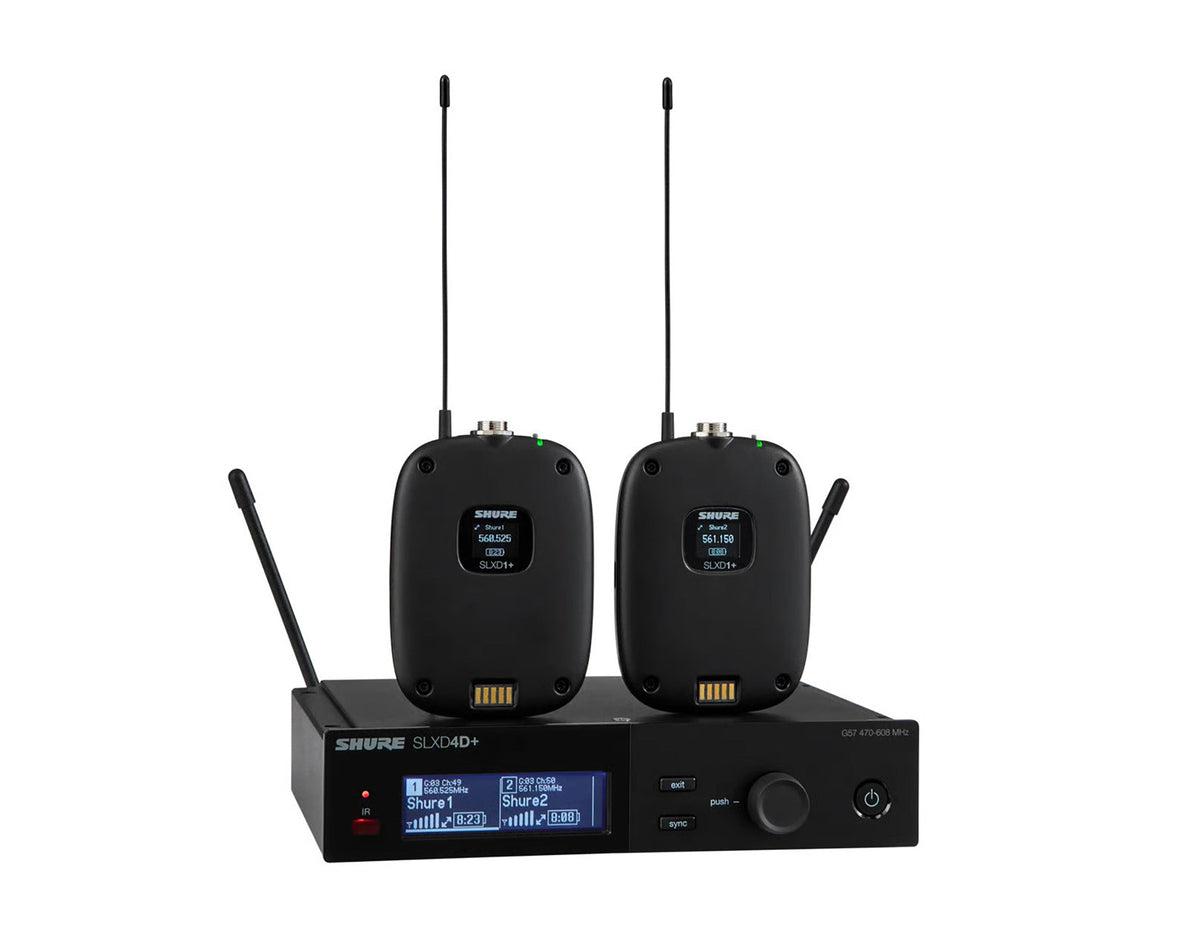

What’s included:

1 SLXD4D+ Dual Channel Receiver

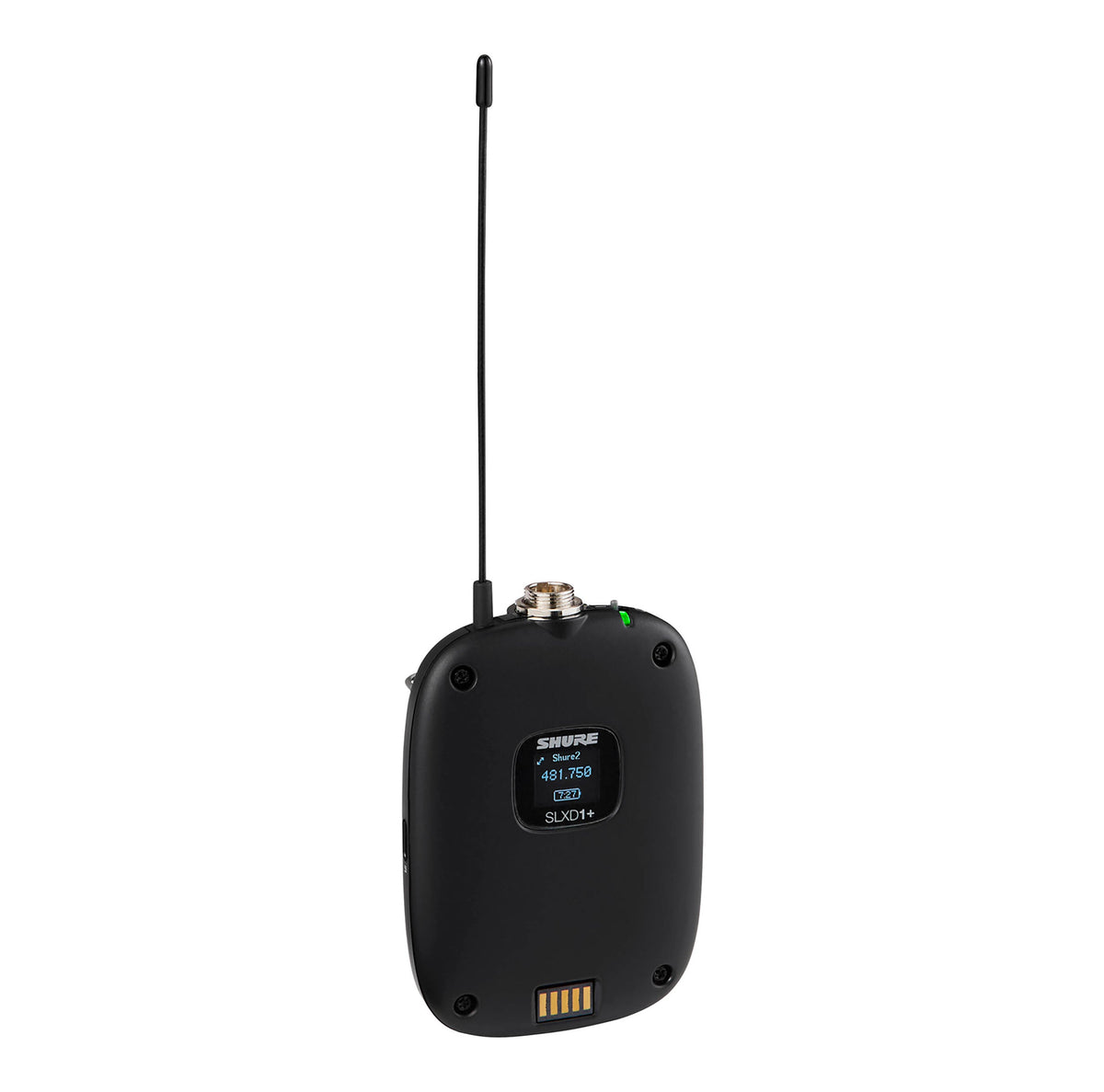

2 SLXD1+ Bodypack Transmitters

2 1/4 wave antennas

1 rackmount kit

4 AA batteries

1 power supply

2 carrying pouches

Product Specifications:

Wireless Technology: Digital UHF

Diversity: Yes

RF Frequency Band: 470 to 608 MHz

Number of RF Channel Frequencies: 5520

Max Operating Range: 328.1' / 100 m

Max Transmitters per Band: 14

Dynamic Range: 118 dB

Latency: 2.8 ms

Encryption: AES 256

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: Yes: Android & iOS

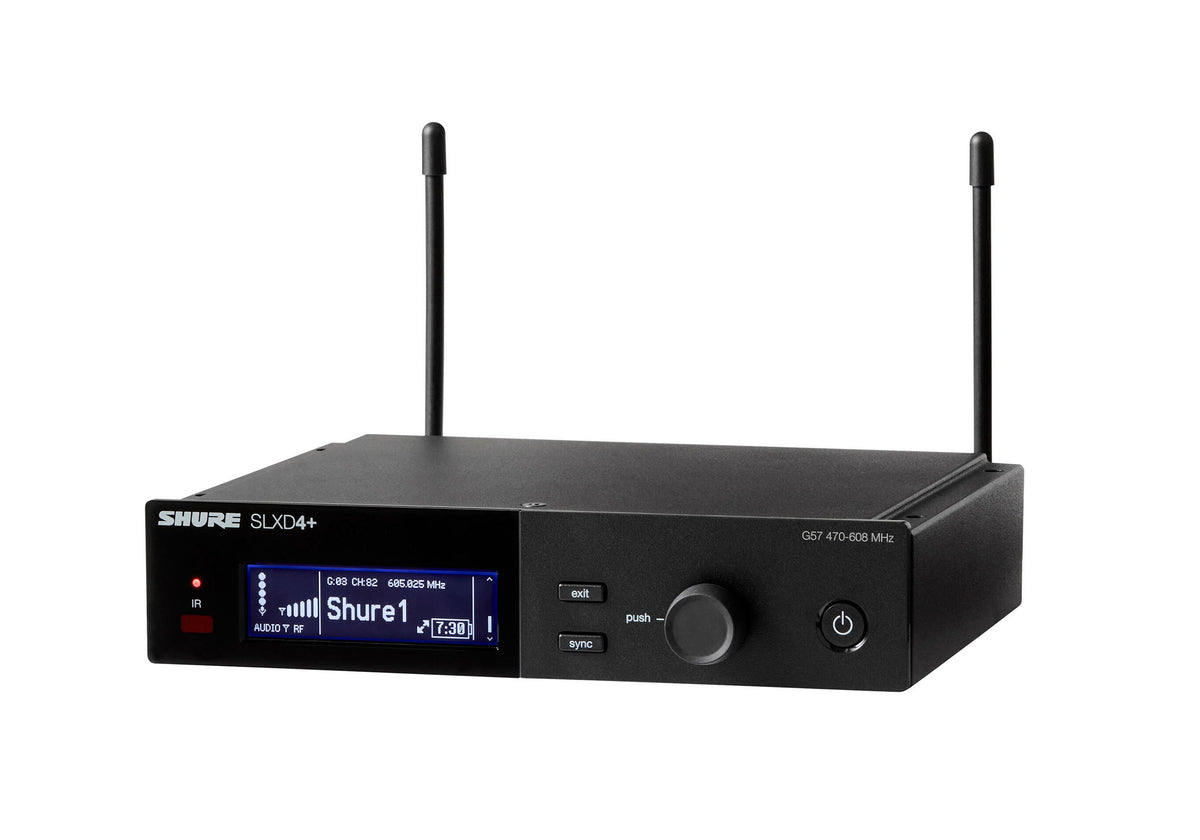

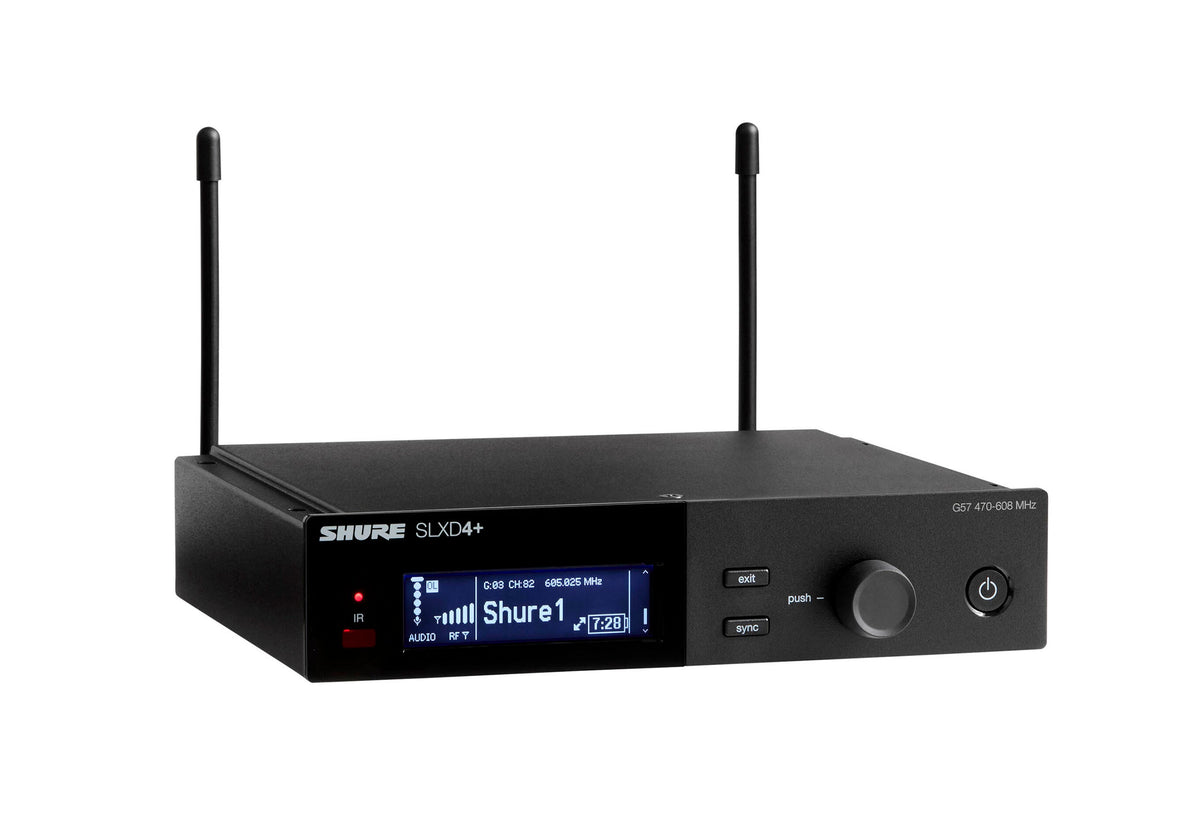

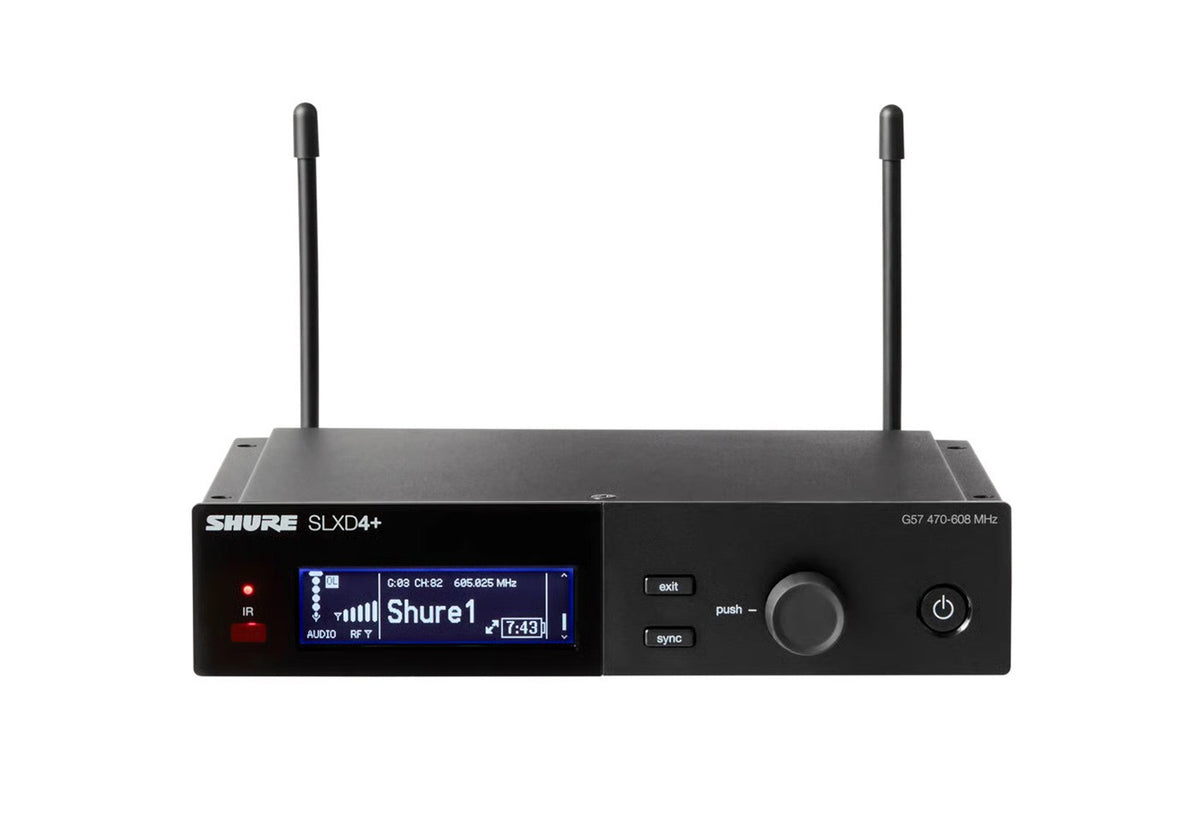

Receiver:

Receiver Type: 1x Tabletop/Rack-Mountable

Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)

Antenna: 2x Removable

Number of Audio Channels: 1

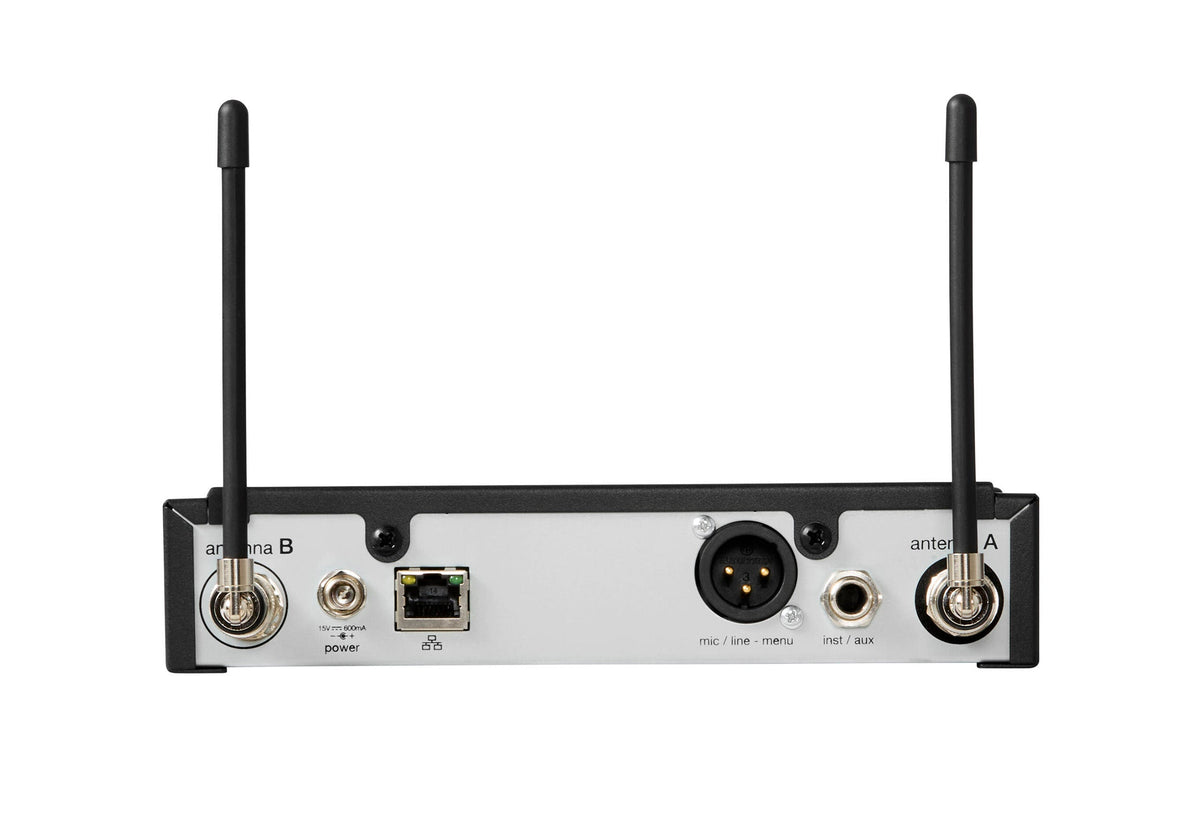

Audio I/O:

1x XLR 3-Pin Balanced Mic/Line Output

1x 1/4"" TS Unbalanced Output

Network I/O: 1x RJ45

USB/Lightning Connectivity: No

Gain Range: -18 to +42 dB

Display: Backlit LCD

Power Requirements: AC Input

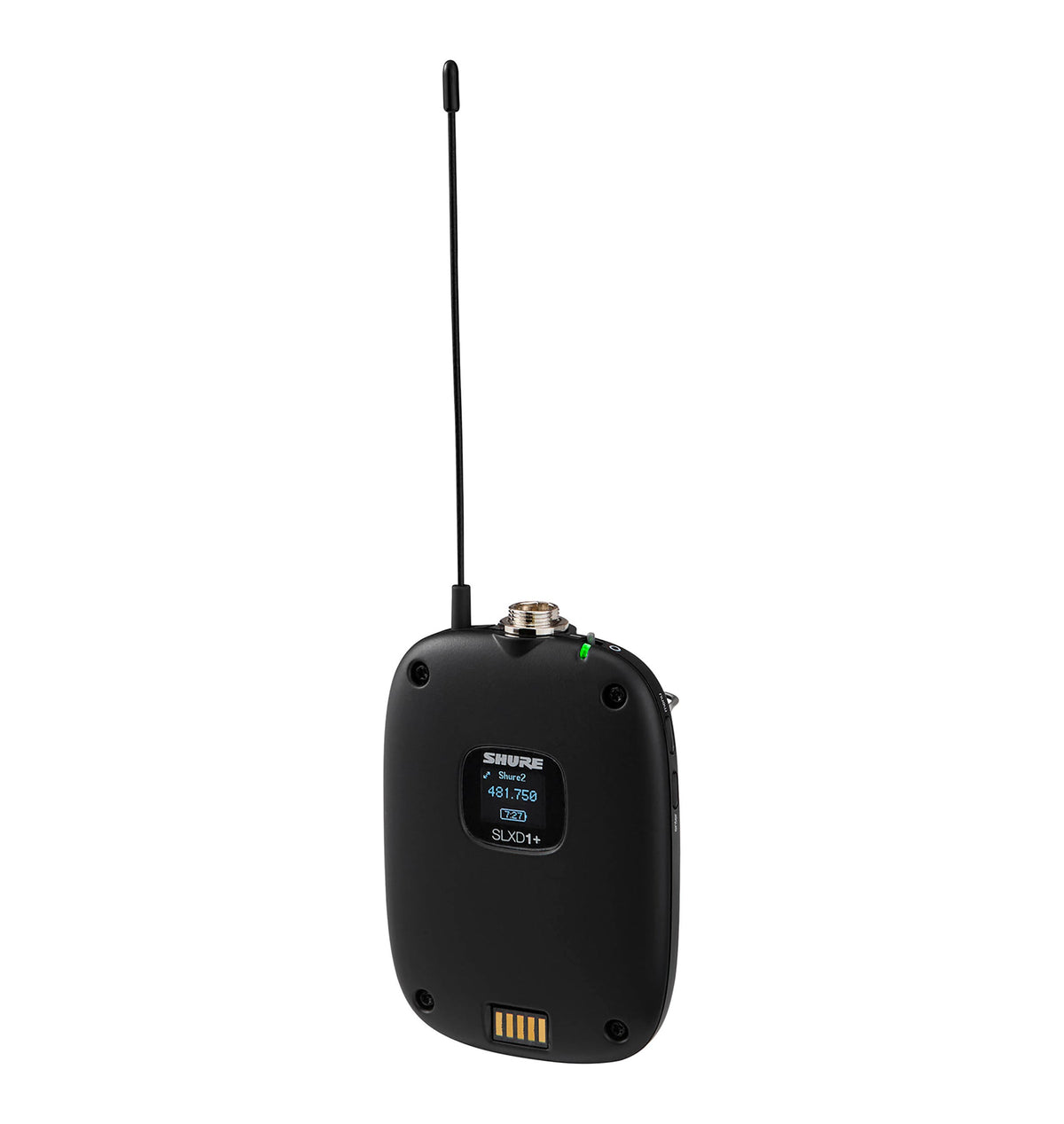

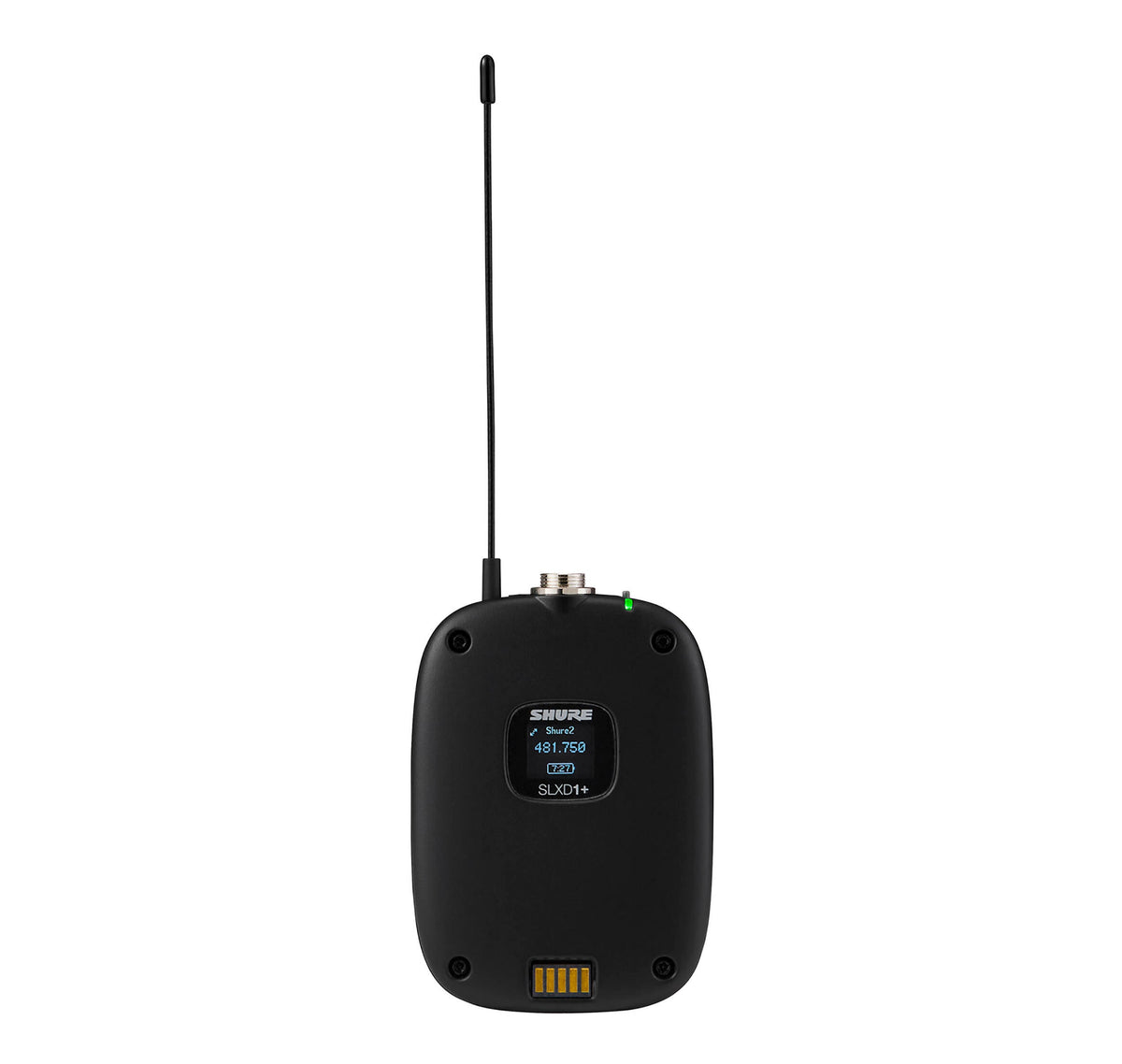

Transmitters:

Included Transmitters: 1x Bodypack

RF Output Power: 1 / 10 mW

Antenna: Fixed 1/4 Wave

Input Level: Microphone / Instrument

Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input

Bias/Plug-In & Phantom Power:

Has Bias/Plug-In Power:

Voltage is Unspecified

No Phantom Support

USB I/O: No

Muting: Off/On Switch

Auto-Level/Gain: No

Sync Method: IR

Display: Backlit LCD

Microphones:

Microphone Type: No Microphone Included

Power:

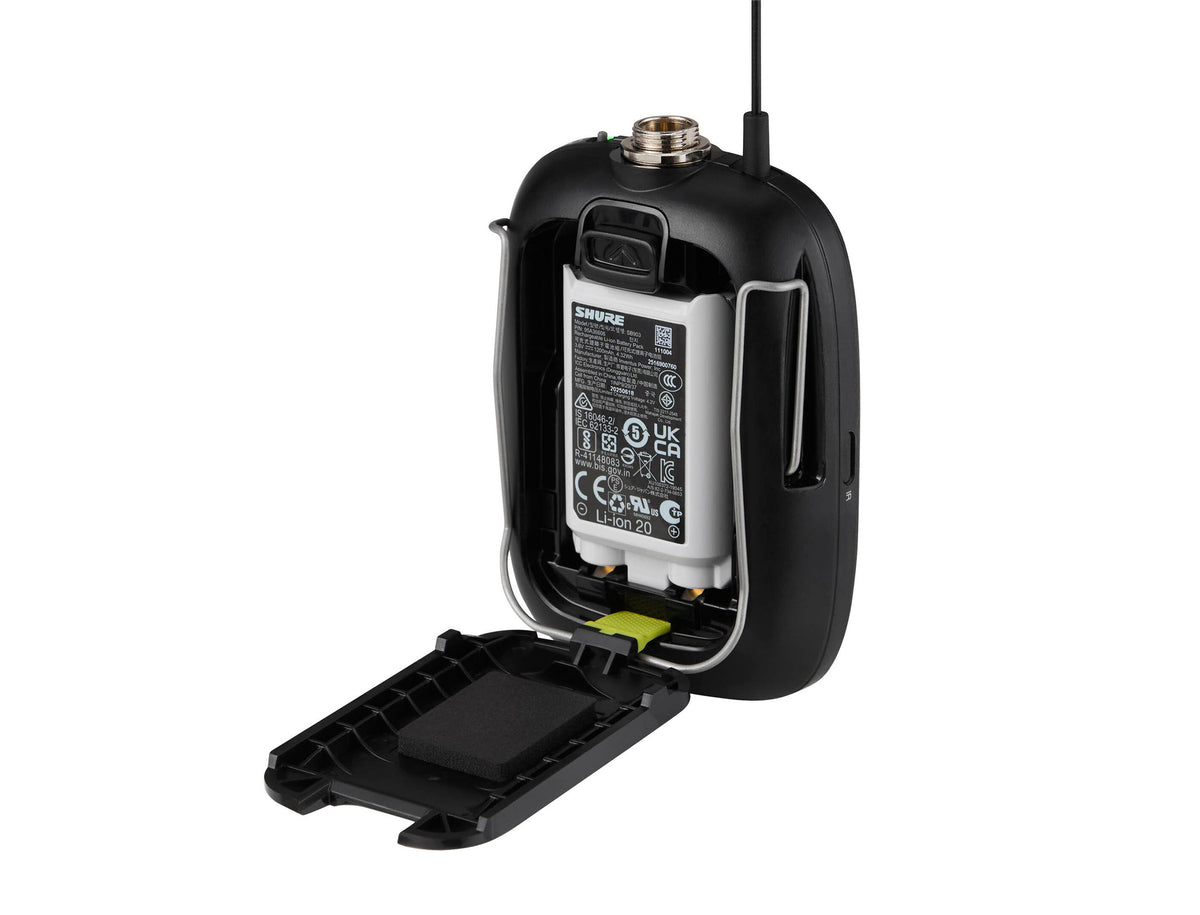

Transmitter Battery Type:

2x AA (Included)

1x Shure SB903 (Not Included)

Transmitter Battery Life: 8 Hours

Included Charging Case: No

AC/DC Power Adapter: 15 VDC (Included)

Physical:

Environmental Resistance: No

Housing:

Steel (Receiver)

ABS (Bodypack Transmitter)

Dimensions: Receiver: 7.8 x 6 x 1.7"" / 197 x 152 x 42 mm

Bodypack Transmitter: 3.9 x 2.7 x 1"" / 98 x 68 x 25.5 mm

Weight: Receiver: 2 lb / 900 g (without Antennas)

Bodypack Transmitter: 3.1 oz / 89 g"

Shipping Weight: 7 lbs.

Shipping Dimensions (LxWxH): 17.8 x 14.5 x 4.3"
