Yamaha CTL-DM7 Expansion Controller for DM7 and DM7C Mixers
Yamaha CTL-DM7 Expansion Controller for DM7 and DM7C Mixers
Model / SKU: H-YAMA-CTLDM7
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.

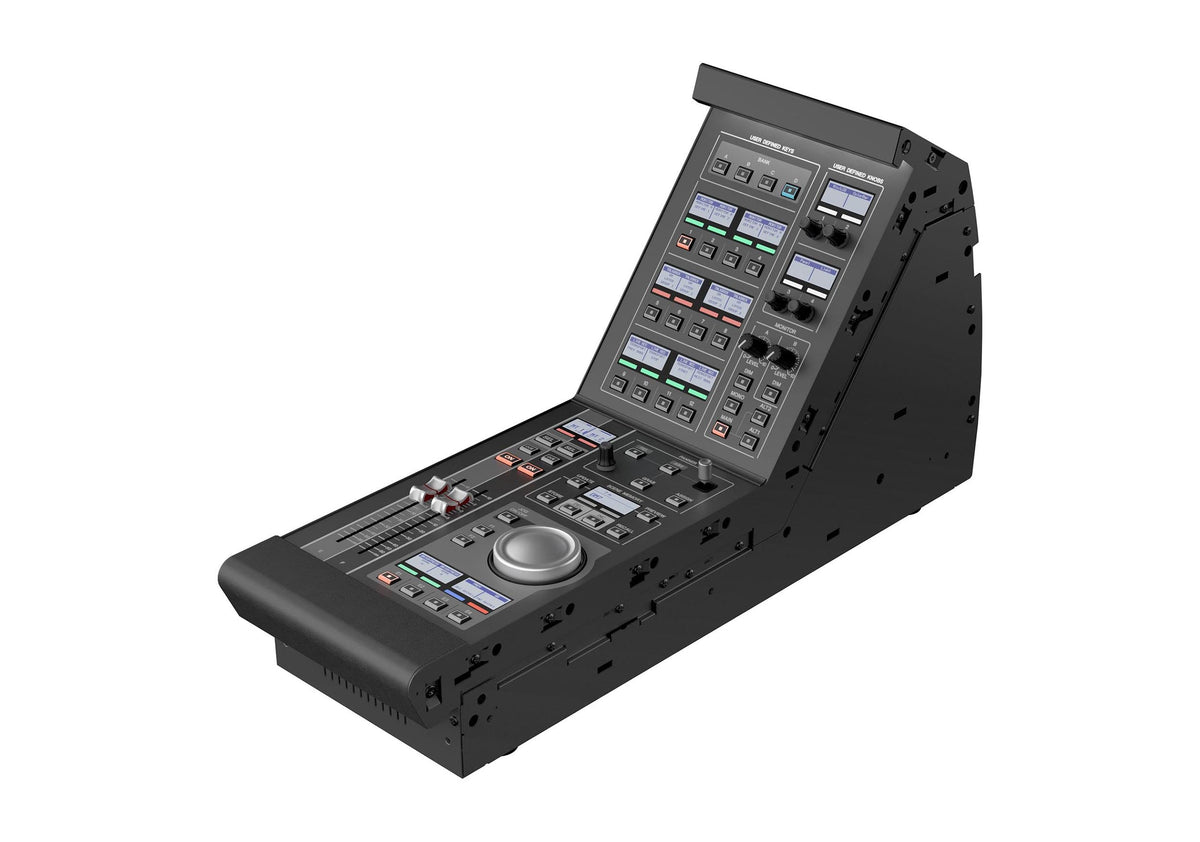

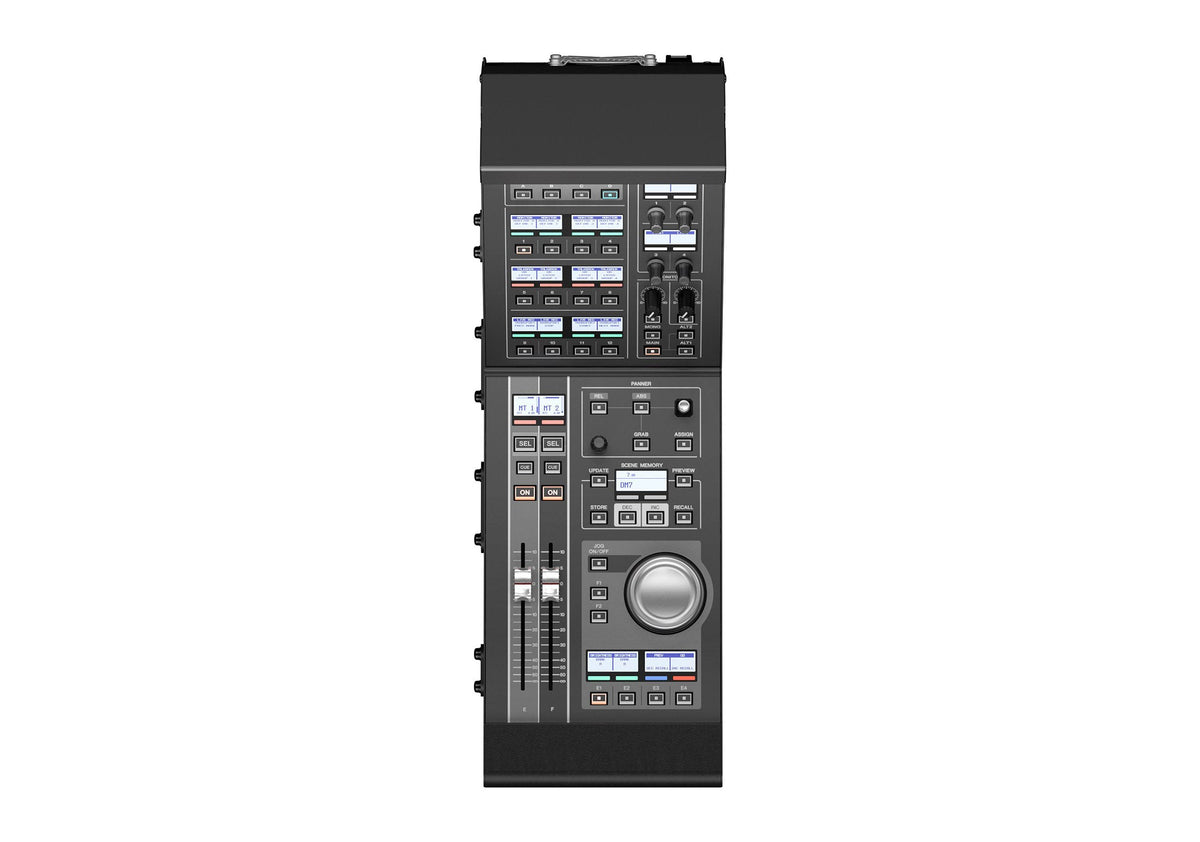

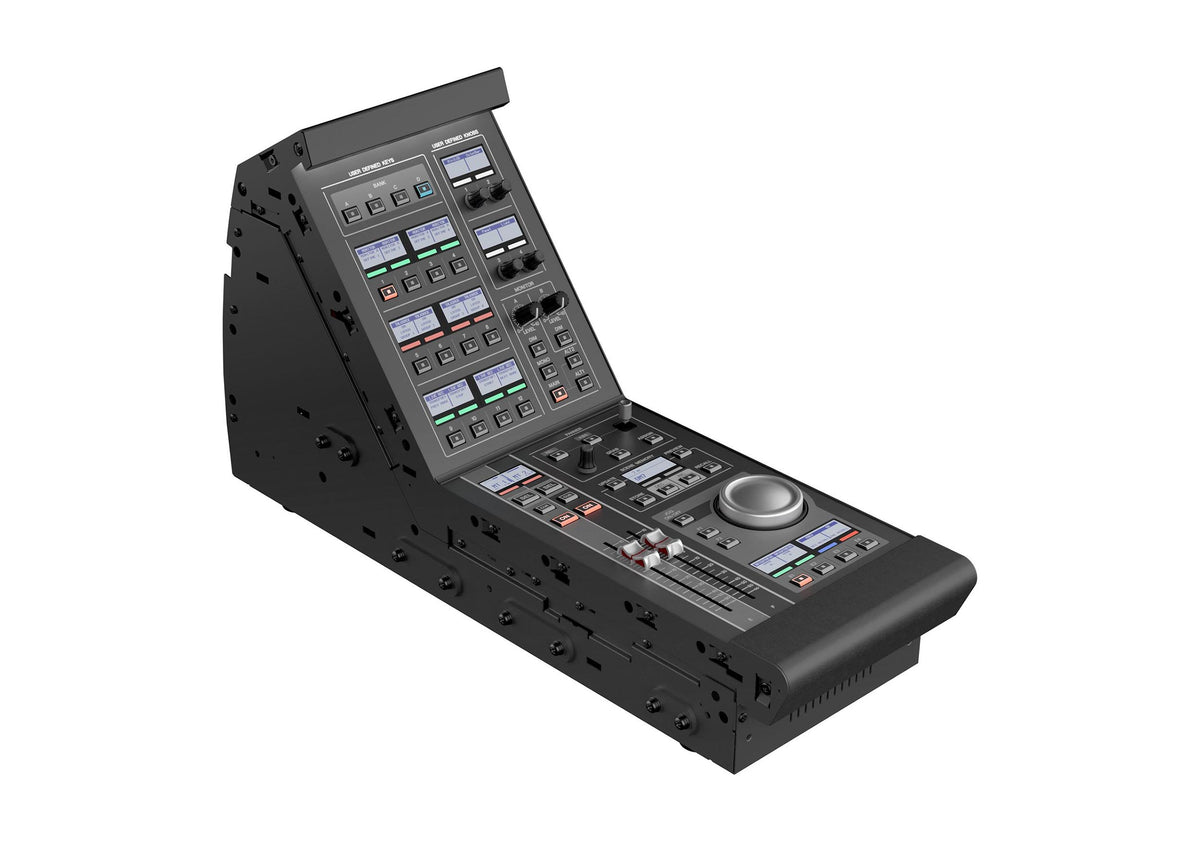

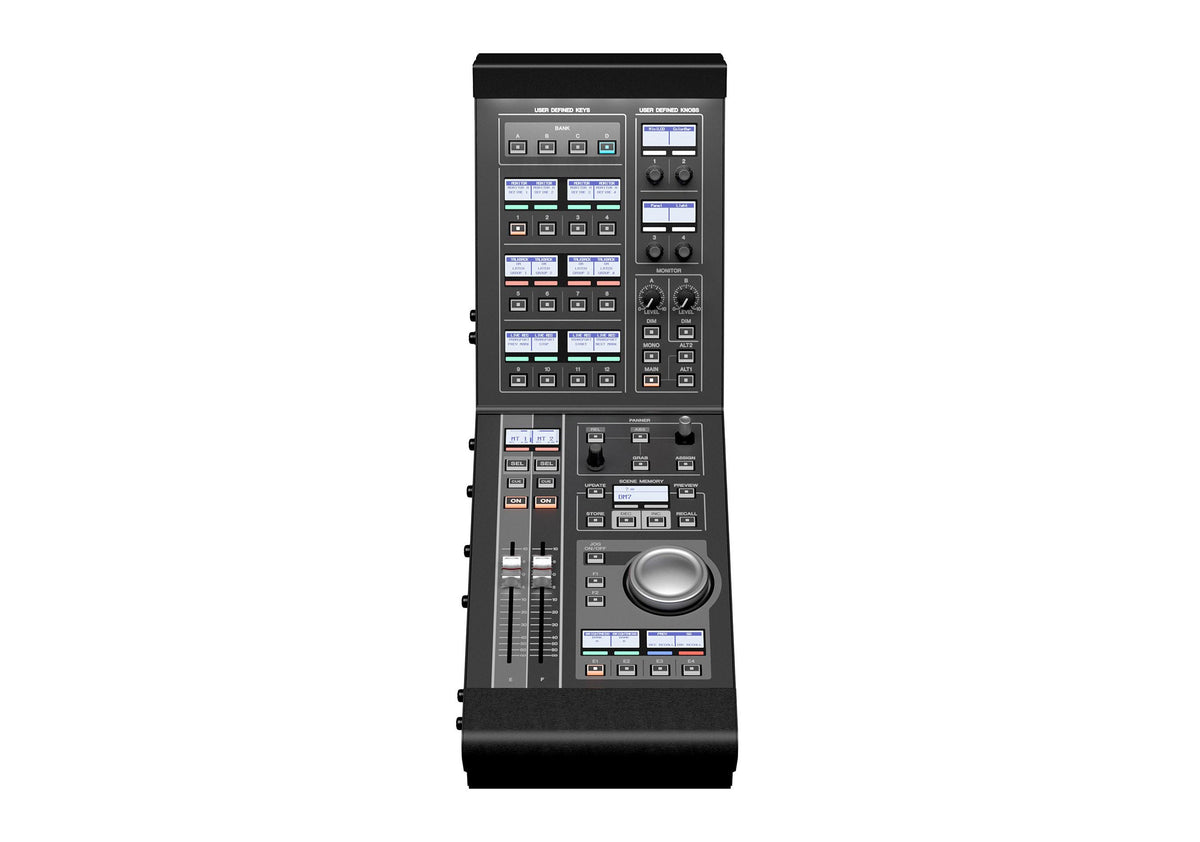

The Yamaha CTL-DM7 is a versatile expansion controller designed to enhance the capabilities of the DM7 series digital mixers. It provides a wide range of physical controls, including 2 faders, 16 User Defined Keys, 4 User Defined Knobs, Scene Memory Keys, Monitor Control, a Panner joystick, and a Jog Wheel, allowing engineers to operate complex mixes quickly and intuitively. Ideal for broadcast, theater, musicals, and immersive productions, the CTL-DM7 ensures perfectly timed triggers, scene changes, and hands-on control of essential functions.
Advanced Workflow with Specialized Packages
Bundled with the Broadcast and Theatre Packages, the CTL-DM7 gives access to specialized features such as 5.1 surround support, Mix Minus, Actor Library, DCA Scene Grid, and AFC Image Control. These tools streamline workflows in demanding live, theatrical, and broadcast environments, making complex operations more efficient. By connecting via Ethernet to any DM7 console, the CTL-DM7 integrates seamlessly, functioning as an extension of the mixer itself while providing immediate access to user-defined keys and scene recall.
Reliable, Flexible, and Expandable Design
Built for professional reliability, the CTL-DM7 includes dual power supply options and consumes only 20W. Its compact design allows flexible placement alongside any DM7 console, and it supports advanced connectivity and control via ProVisionaire Cloud for license management. With its intuitive layout, specialized functions, and seamless integration, the CTL-DM7 gives sound engineers maximum precision, creative freedom, and operational efficiency in any demanding mixing scenario.
Product Specifications:
Channels: 2
Sample Rate: Up to 96kHz
Fader: 3.94" touch-sensitive motorized fader × 2

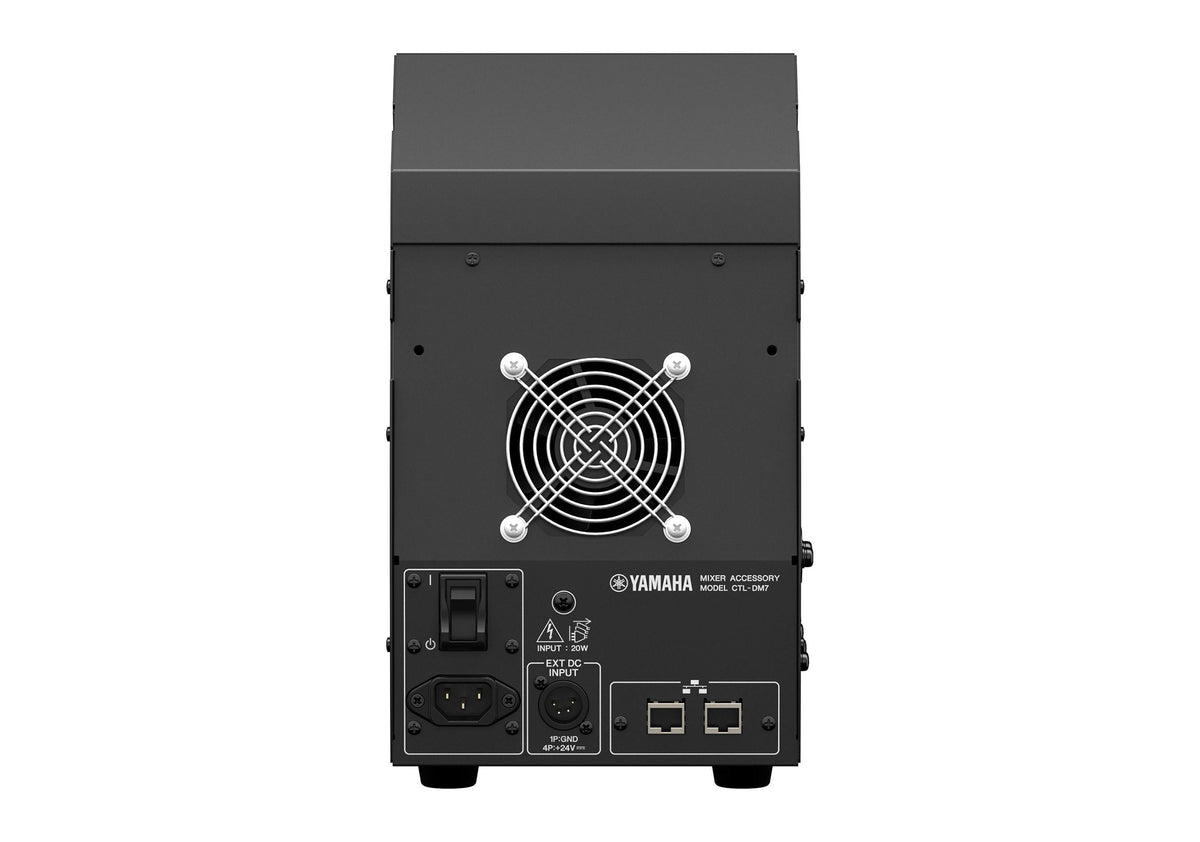

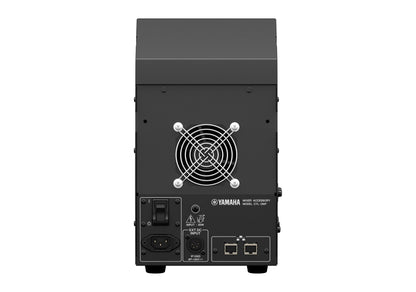

AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type
EXT DC INPUT: DC 24 V ±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1
Power Consumption: 20 W
Fan Speed LOW: NC=20
Fan Speed HIGH: NC=30
Operating Temperature Range: Min: 0°C, Max: 40°C
Storage Temperature Range: Min: −20°C, Max: 60°C
Product Weight: 15.5 lbs / 7 kg
Product Dimensions (L × W × H): 22.2" × 7.6" × 12.8"
