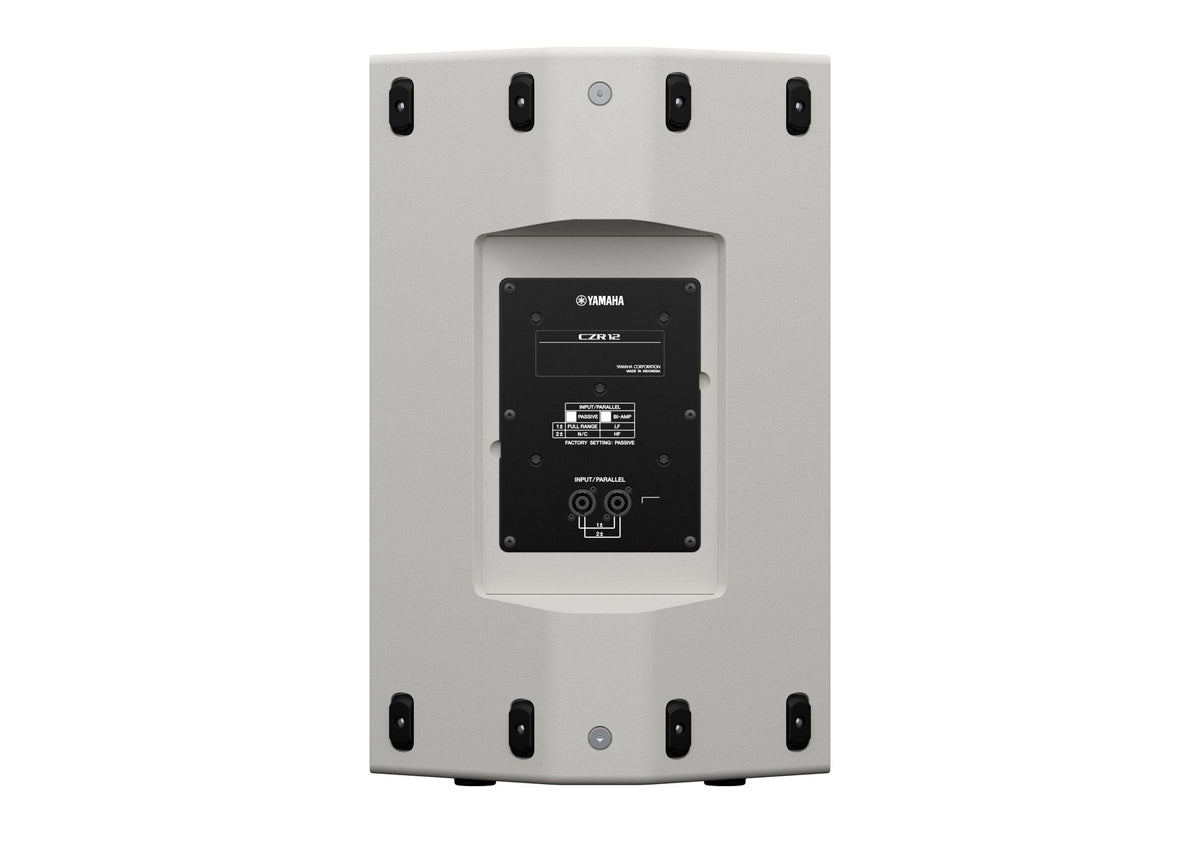

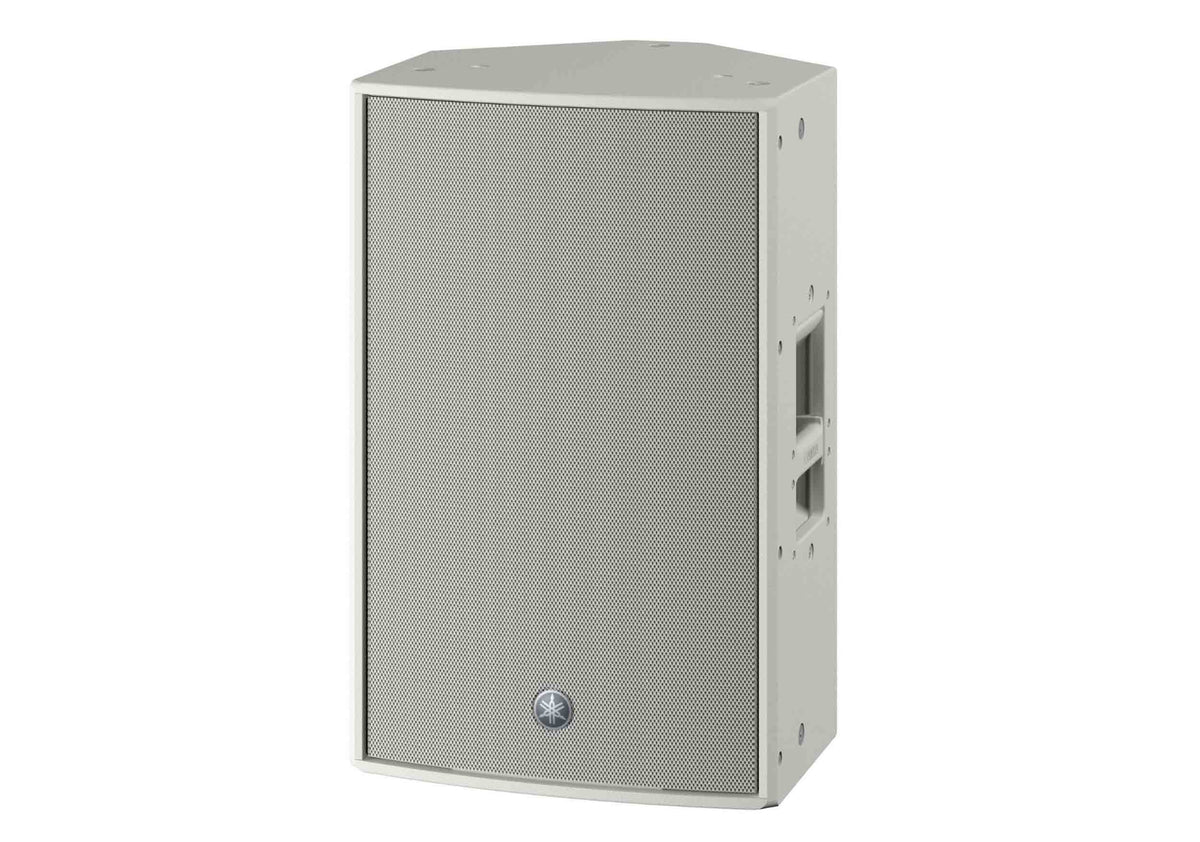

Yamaha CZR12W 1600W 12-Inch Passive 2-Way LoudSpeaker - White
Yamaha CZR12W 1600W 12-Inch Passive 2-Way LoudSpeaker - White
Model / SKU: H-YAMA-CZR12W
That combination of options is not offered. Choose different options, or call us and we will sort it out.
Added to your quote list. View quote list (0)
In a hurry? Call us.
- 1-800-700-4542
- System design direct line: (213) 816-4102
Free system design. Real people, Mon to Sat, 10 to 5 Pacific.
The Yamaha CZR12W (White) is a high-performance 2-way loudspeaker designed for professional live sound and installed applications. Its compact, portable enclosure delivers crystal-clear audio with impressive low-frequency response, making it ideal for live bands at outdoor festivals, or any environment requiring robust, high-quality sound. Despite its powerful output, the CZR12W remains lightweight and easy to transport.
Featuring a 12" low-frequency driver and a 2" high-frequency compression driver, the CZR12W utilizes Yamaha’s proprietary Wide Dispersion CD Waveguide horn for consistent coverage and smooth sound across the listening area. With 800W (PGM) power handling and bi-amp capability, the speaker provides ample headroom for dynamic performances. The floor monitoring setting also allows flexible use as a stage monitor.
Built to withstand the rigors of touring, the CZR12W (White) sports a rugged plywood enclosure with premium Polyurea coating. The dual-angle pole socket, rotatable horn, and optional U-bracket rigging options (UB-DZR12H/V) enable versatile placement and mounting configurations. With its professional white finish, the CZR12W blends seamlessly into any stage or installation setup while delivering reliable performance.
Product Specifications:
Speaker Type: 2-way Speaker, Bass-reflex
Color: White
Frequency Range (-10 dB): Passive 43 Hz, 20 kHz; Normal 42 Hz, 20 kHz; FOH 38 Hz, 20 kHz
Coverage Area: H90° × V60° Rotatable Constant Directivity Horn
Floor Monitor Angle: 50° Symmetrical
LF Component: 12" Cone, 3" Voice Coil, Neodymium Magnet
HF Component: 2" Voice Coil, 1" Throat Compression Driver, Titanium Diaphragm, Neodymium Magnet
Crossover: 2.0 kHz
Power Rating (NOISE): Passive 400 W; Bi-amp LF 400 W, HF 50 W
Power Rating (PGM): Passive 800 W; Bi-amp LF 800 W, HF 100 W
Power Rating (PEAK): Passive 1600 W; Bi-amp LF 1600 W, HF 200 W
Nominal Impedance: Passive 8 Ω; Bi-amp LF 8 Ω, HF 16 Ω
SPL Sensitivity (1 W, 1 m, on axis): Passive 97 dB; Bi-amp LF 97 dB, HF 108 dB
Peak SPL (Calculated): Passive 129 dB; Bi-amp LF 129 dB, HF 131 dB
I/O Connectors: SpeakON NL4MP ×2 (Parallel)
Handle: Aluminium Die-cast, Side ×2
Pole Socket: Ø35 mm ×2 (0° or −7°)
Rigging: M10 ×12
Options: Bracket UB-DZR12H/V; Cover SPCVR-DZR12
Product Weight: 18.0 kg / 39.7 lbs.
Product Dimensions (L × W × H): 15.5" × 16.1" × 25.4"
