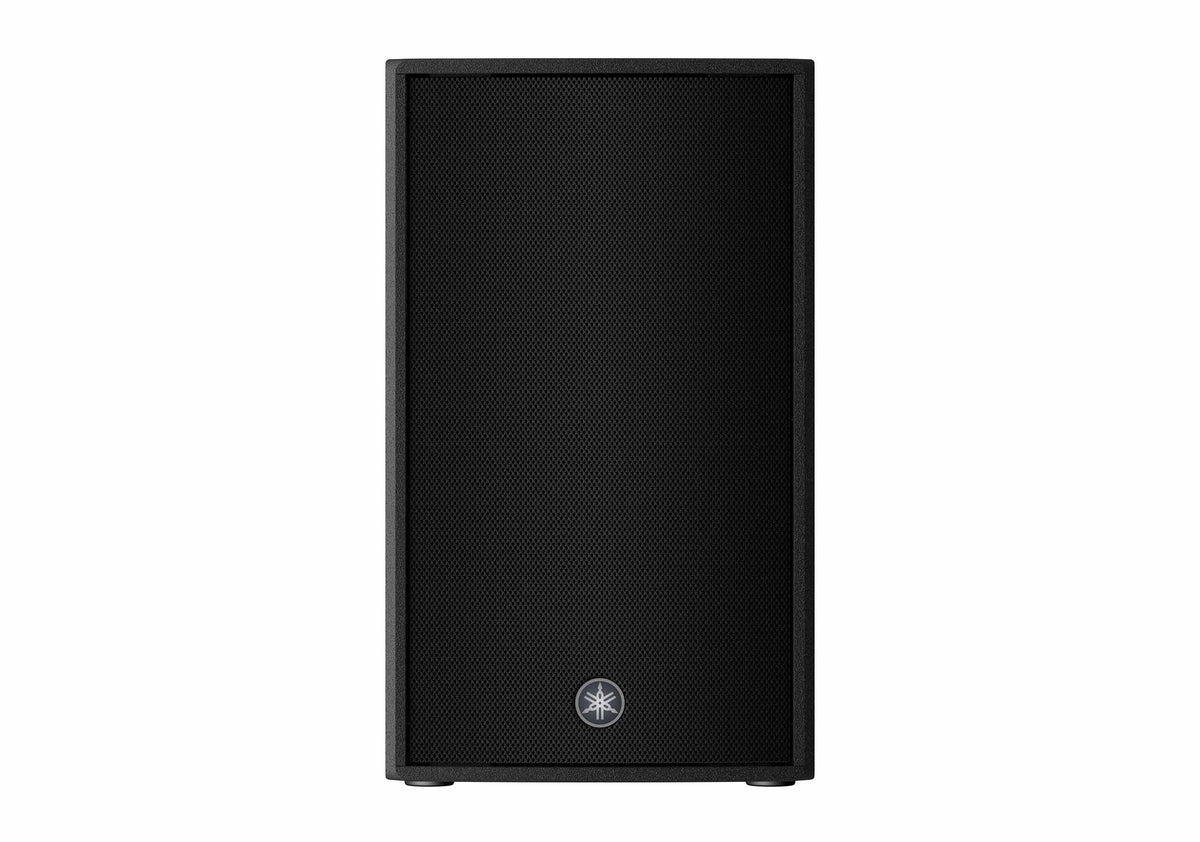

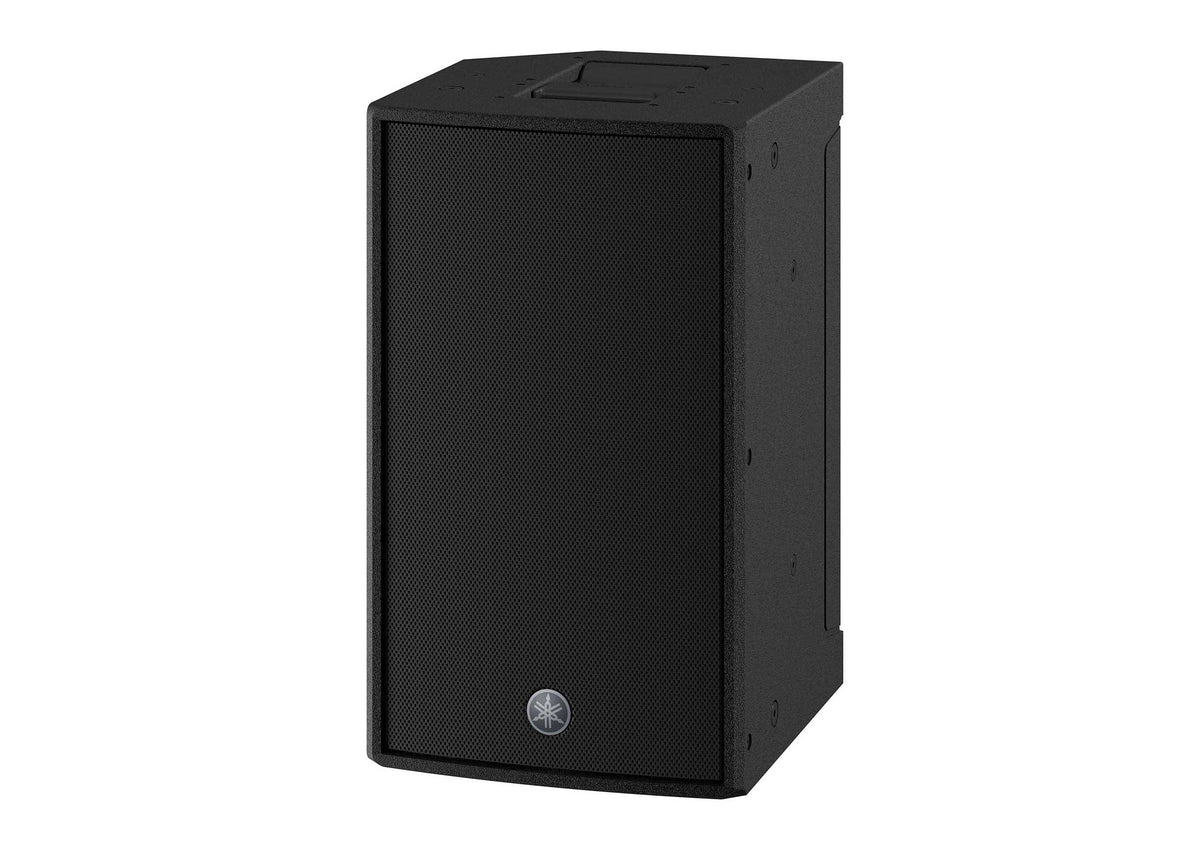

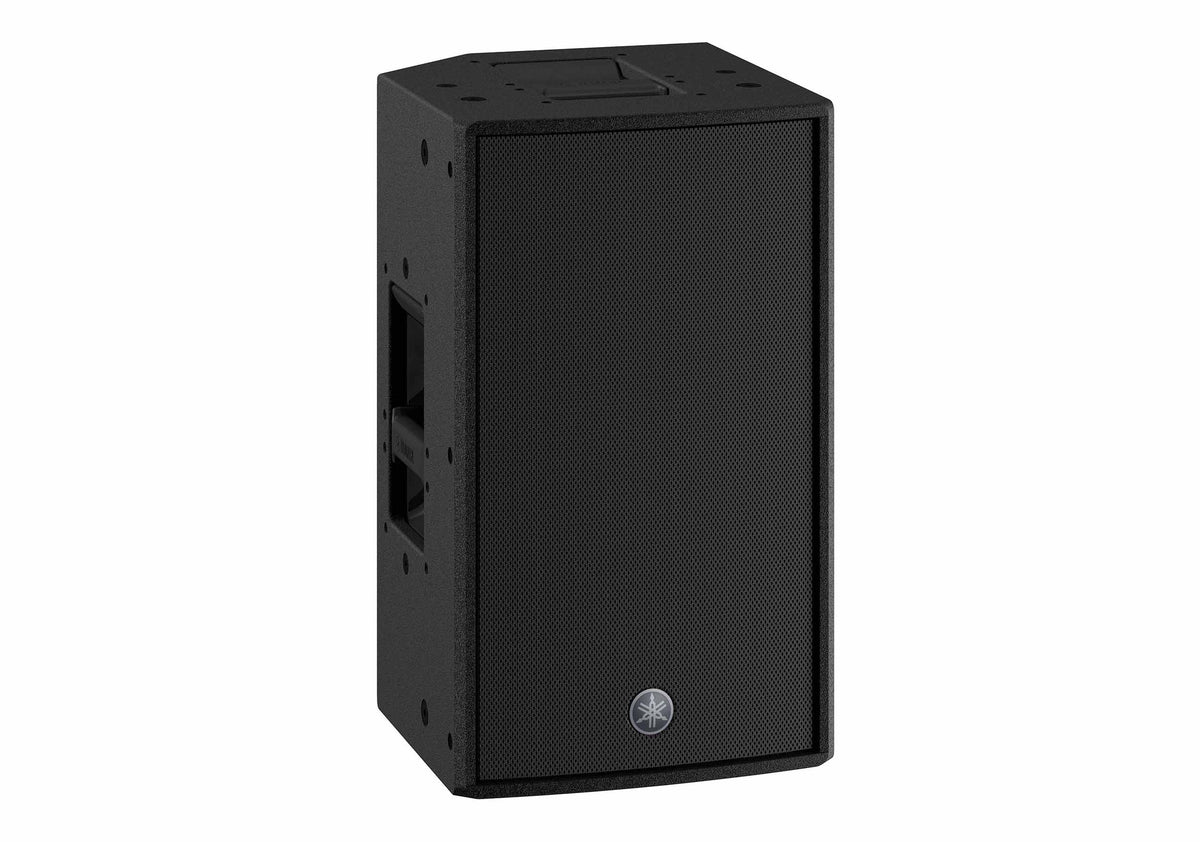

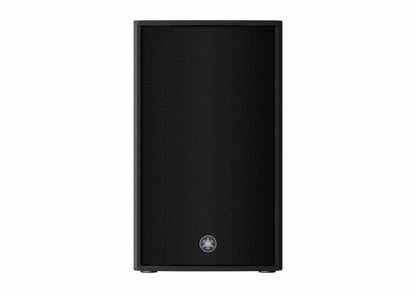

Yamaha DZR10 10" Two-Way Powered LoudSpeaker - Black

The Yamaha DZR10 (Black) is a 2-way bi-amped powered loudspeaker designed to deliver professional-grade audio in a compact, lightweight cabinet. Featuring a 10" low-frequency driver and a 2" high-frequency compression driver, it produces a maximum 137 dB SPL with a full 44 Hz, 20 kHz frequency range. This combination ensures clear, dynamic sound for a variety of applications, from live performance to portable sound reinforcement.

Advanced DSP & High-Definition Audio:

Equipped with 96 kHz DSP and Advanced FIR-X tuning, the DZR10 minimizes phase distortion while providing high-resolution, low-latency sound. Yamaha’s proprietary digital processing allows precise control of crossover, EQ, and time alignment, ensuring consistent clarity and imaging at all volume levels. Users can easily adjust PEQ, delay, routing, and load presets via the intuitive LCD display for ultimate system flexibility.

Intelligent Dynamic Control & Protection:

The DZR10 features D-Contour multi-band dynamic processing, maintaining natural and musical sound even at high output levels. Combined with highly reliable protection circuits, the speaker safeguards both the amplifier and transducers against overload or damage. A dedicated floor monitoring setting allows the DZR10 to function efficiently as a stage monitor without compromising sound quality.

Durable, Flexible, and Road-Ready:

Built in a rugged plywood cabinet with premium Polyurea coating, the DZR10 is designed for reliability on the road. A rotatable horn and multiple rigging options, including UB-DZR U-brackets, provide flexible mounting and positioning. Optional accessories like the SPCVR-DZR10 cover further protect the speaker during transport, making it a versatile solution for professional audio applications.

Product Specifications:

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex

Frequency Range (-10dB): 44Hz - 20kHz

Coverage Area: H90° x V60° (Rotatable)

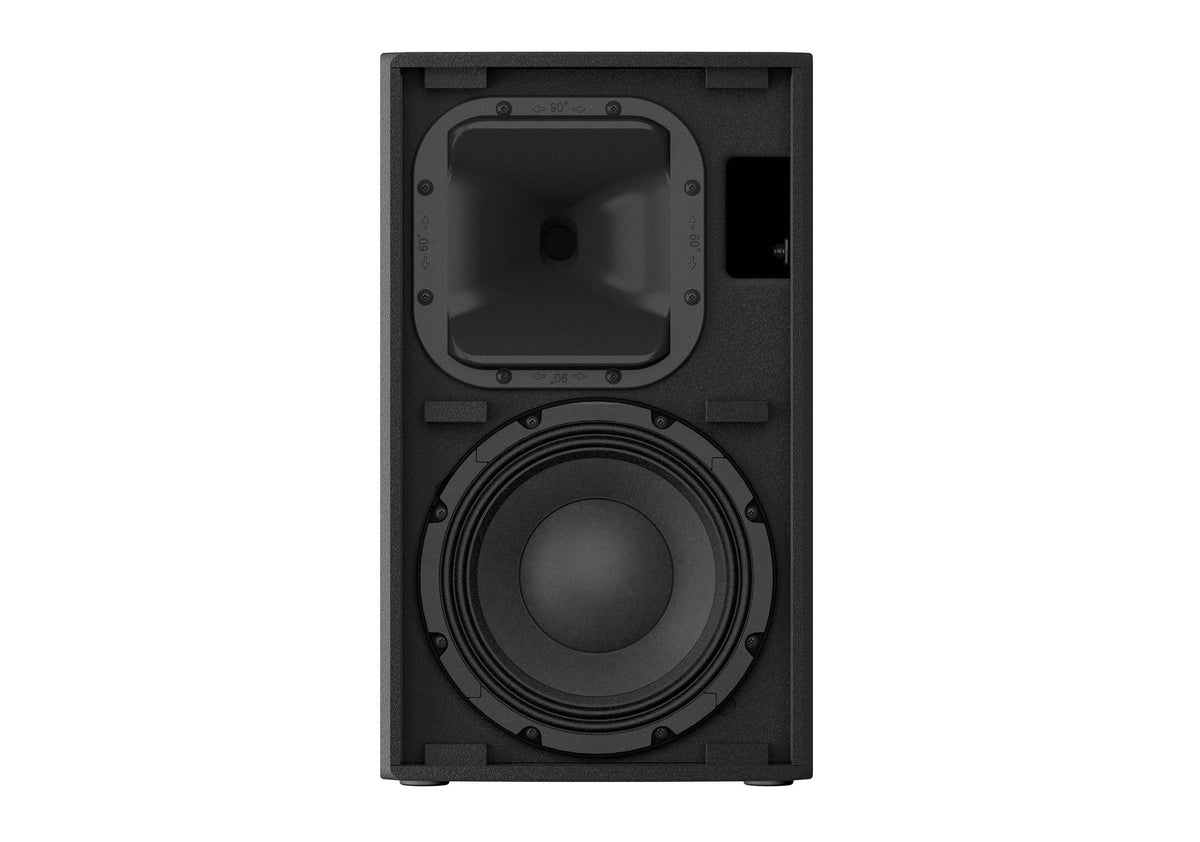

Components:

LF: 10" Cone, 3" Voice Coil, Neodymium magnet

HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover: 1.8kHz (FIR-X)

Sampling Frequency Rate: 96kHz and FIR Filter

A/D D/A Converters: 96kHz AD/DA

Maximum Output Level (1m; on axis): 137dB SPL *1

Power Rating:

Dynamic: 2000W; Burst (20ms): 1100W

Continuous: 950W

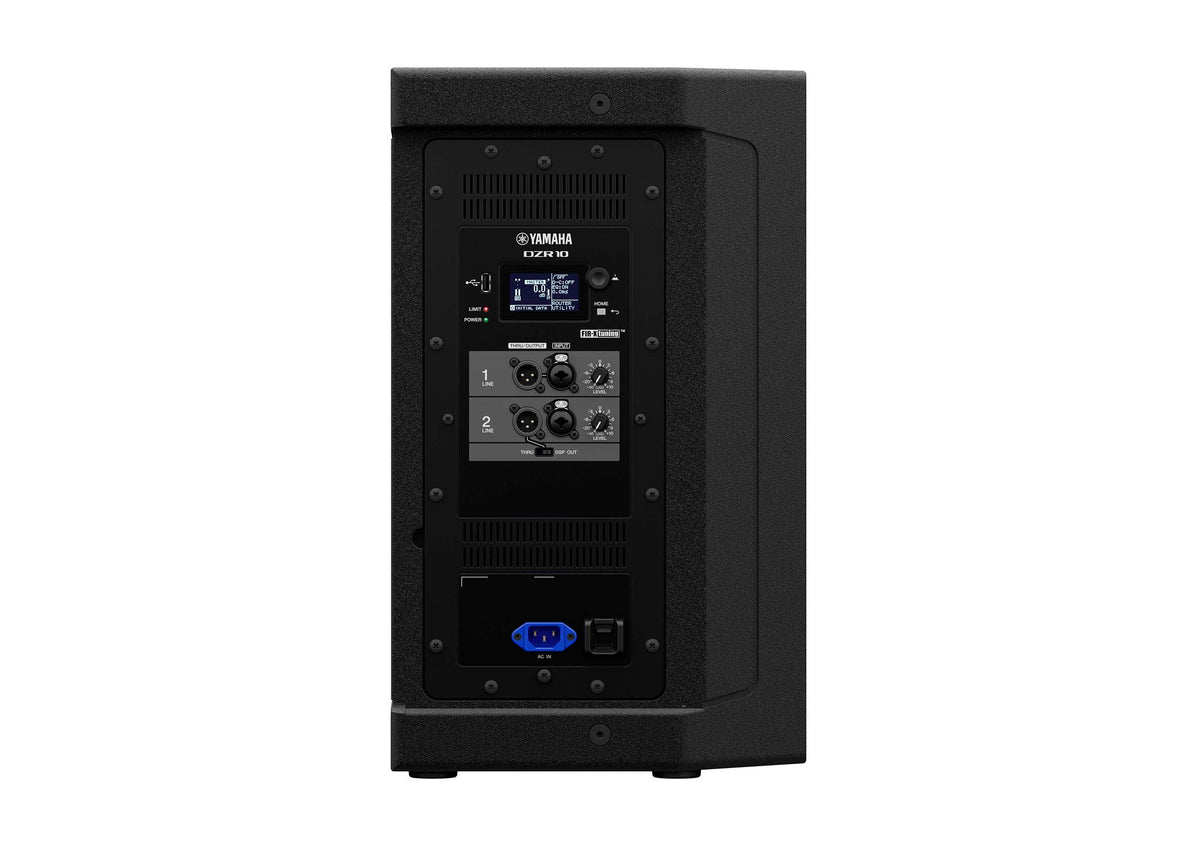

I/O Connectors:

Analog IN: Combo x2

Analog OUT: XLR3-32 x2

Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC: IEC AC inlet x1 (V-Lock)

Amplifier Class: Class-D

Cooling: Fan cooling, Variable speeds

Power Consumption: 45W (Idle), 150W (1/8)

Handle: Aluminium die-cast, Top x1, Side x1

Rigging: M10 x8, M8 x2

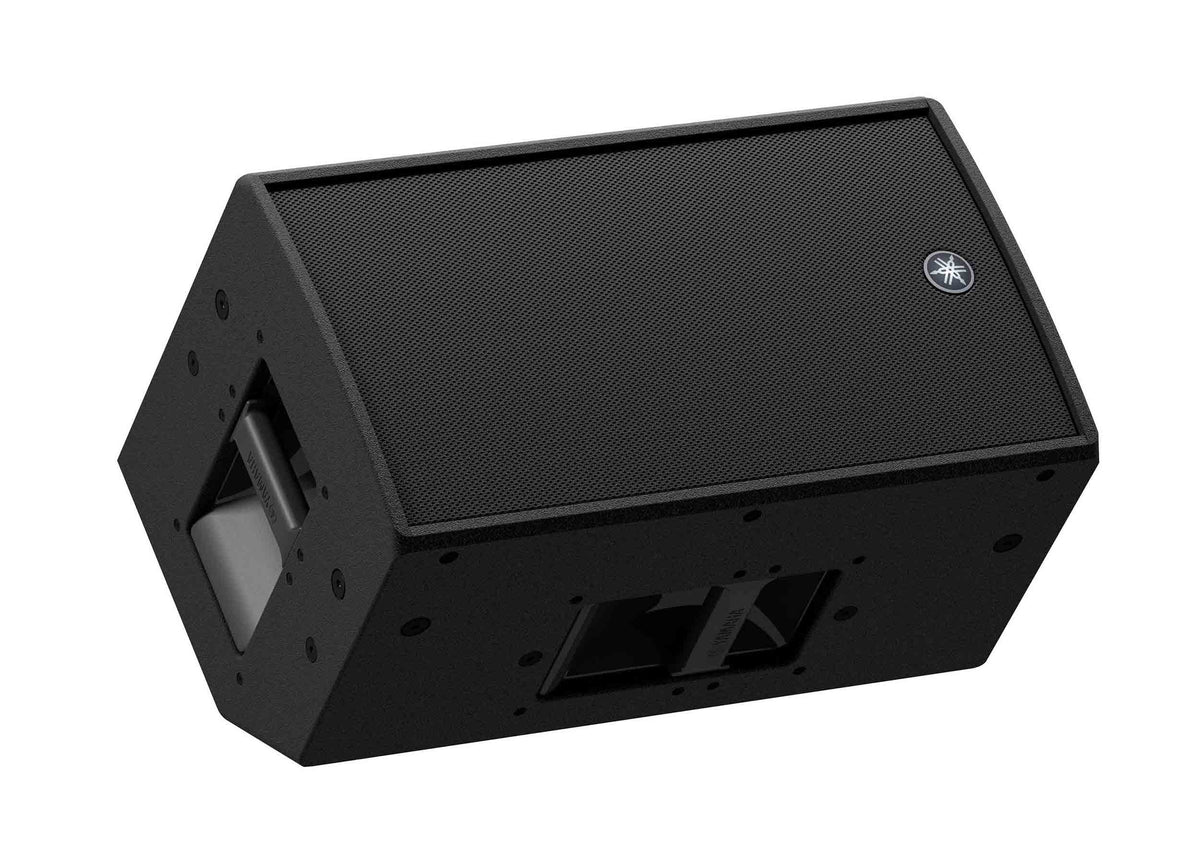

Floor Monitor Angle: 50°

Pole Socket: Φ35 mm x2 (0° or -7°)

Product Weight: 39.5lbs / 17.9kg

Product Dimensions (L × W × H): 13.6" × 12.4" × 21.1"
