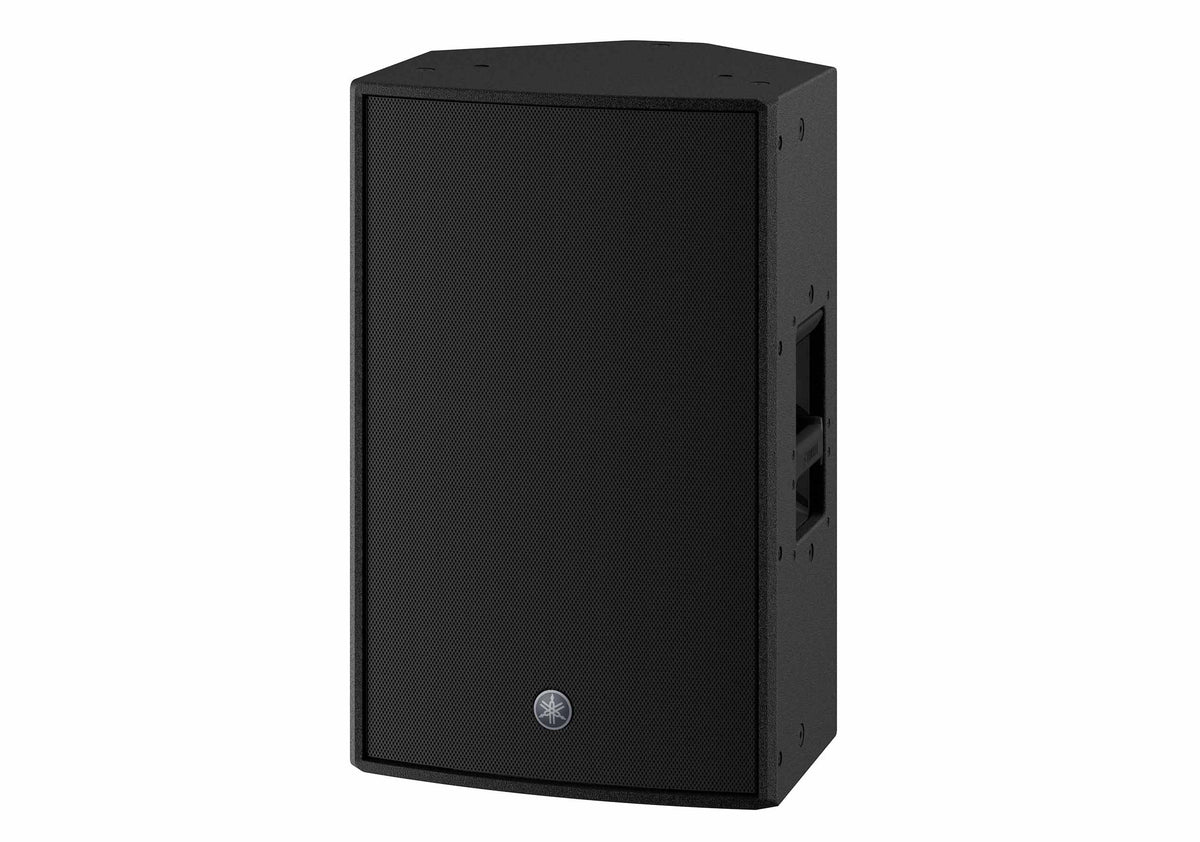

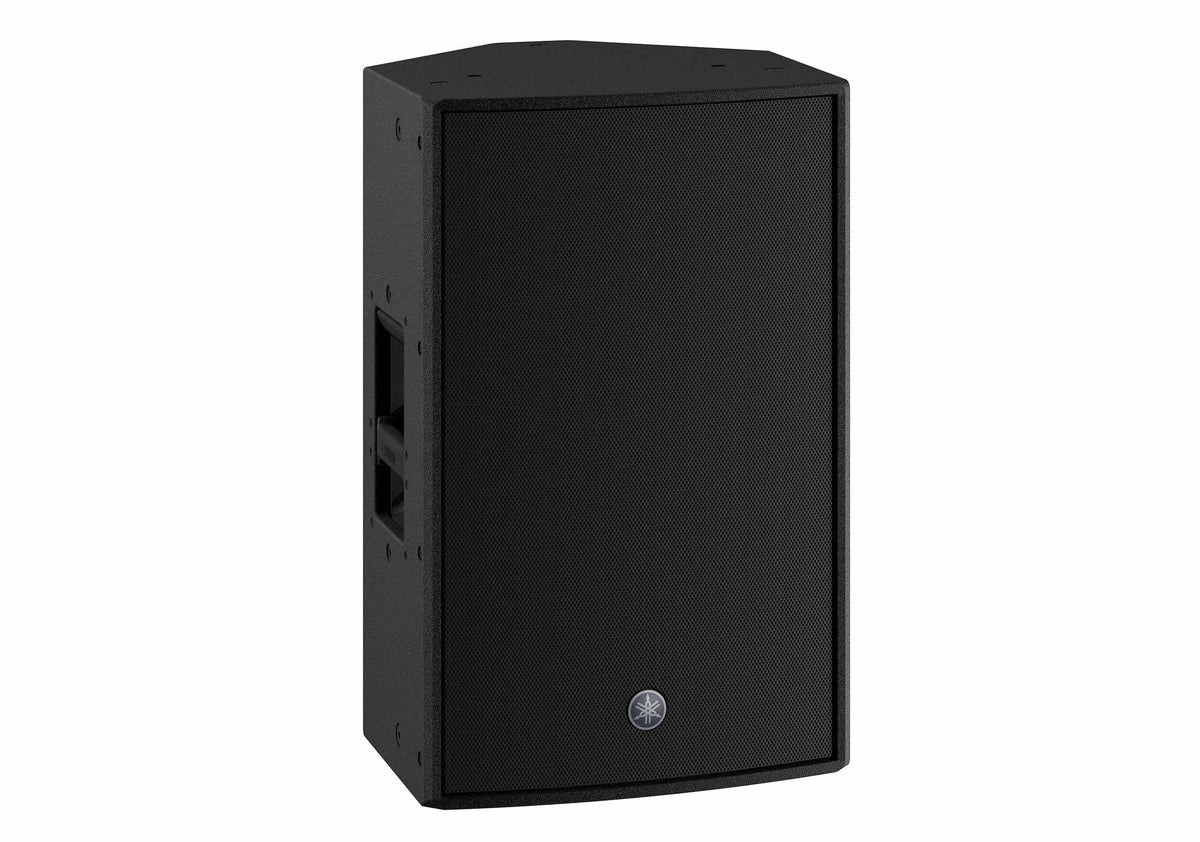

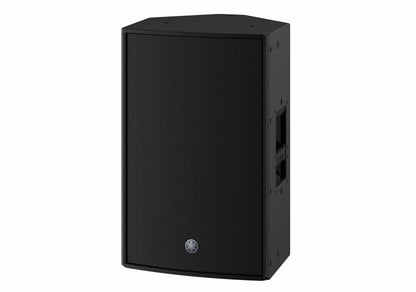

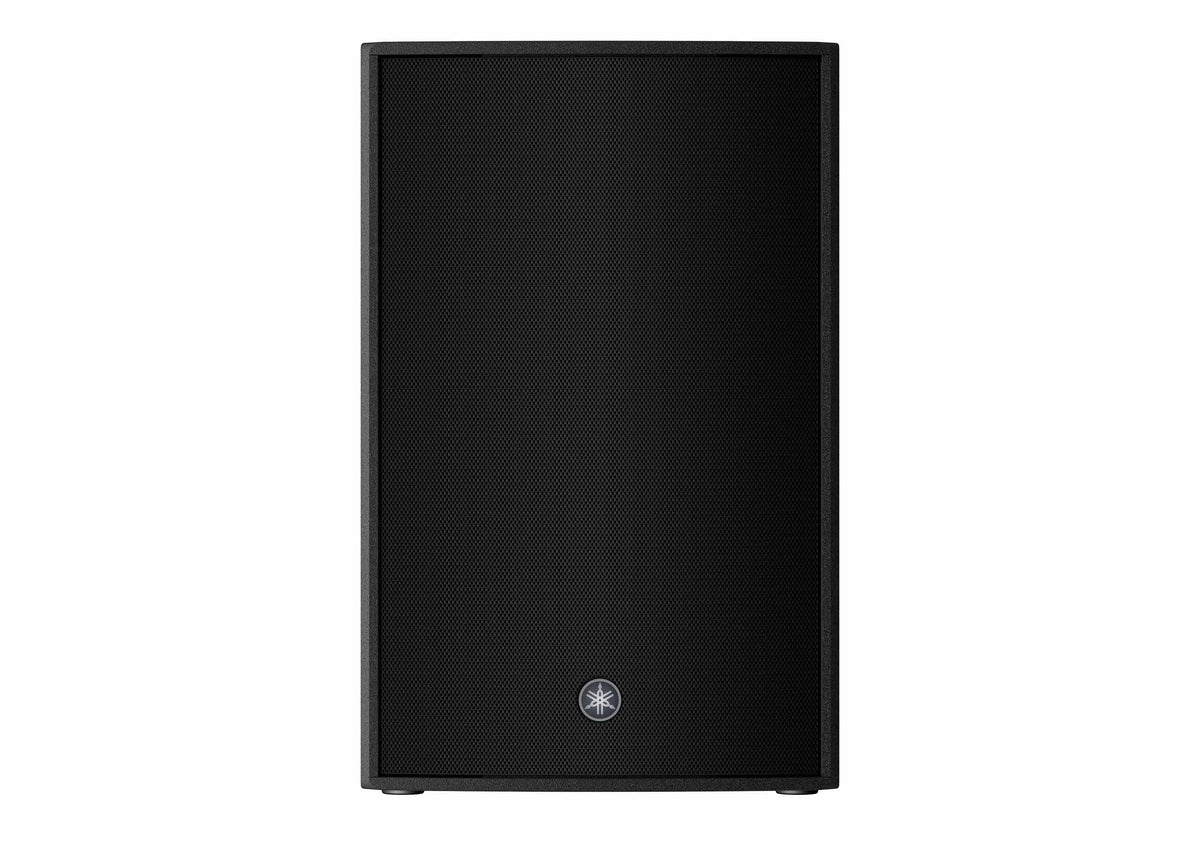

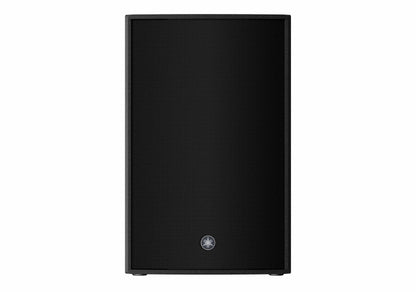

Yamaha DZR12 12" Two-Way Powered LoudSpeaker - Black

The Yamaha DZR12 (Black) is a 2-way bi-amped powered loudspeaker engineered to deliver exceptional clarity and power in demanding professional environments. With a 12" low-frequency driver and 2" high-frequency compression driver, it achieves a class-leading 139 dB SPL and a wide 39 Hz, 20 kHz frequency range, making it ideal for live sound, touring, and fixed installations where high output and accuracy are essential.

Advanced Amplification & DSP Processing:

Powered by a 2000W Class-D amplifier, the DZR12 combines massive headroom with efficiency and reliability. Its 96 kHz DSP with FIR filtering and Advanced FIR-X tuning ensures precise time alignment and minimal phase distortion, resulting in high-resolution sound with ultra-low latency. The intuitive LCD display provides easy access to presets and detailed control over PEQ, delay, and routing.

Intelligent Sound Control & Monitoring:

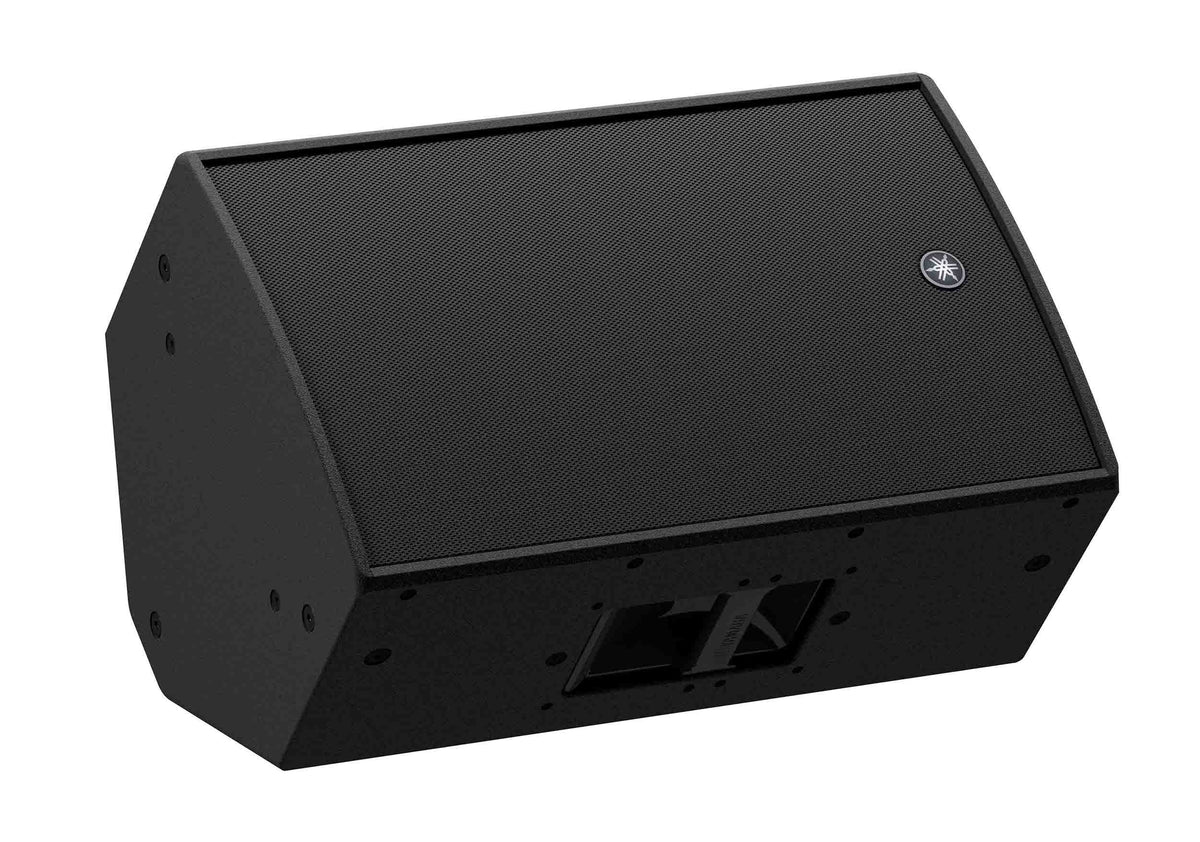

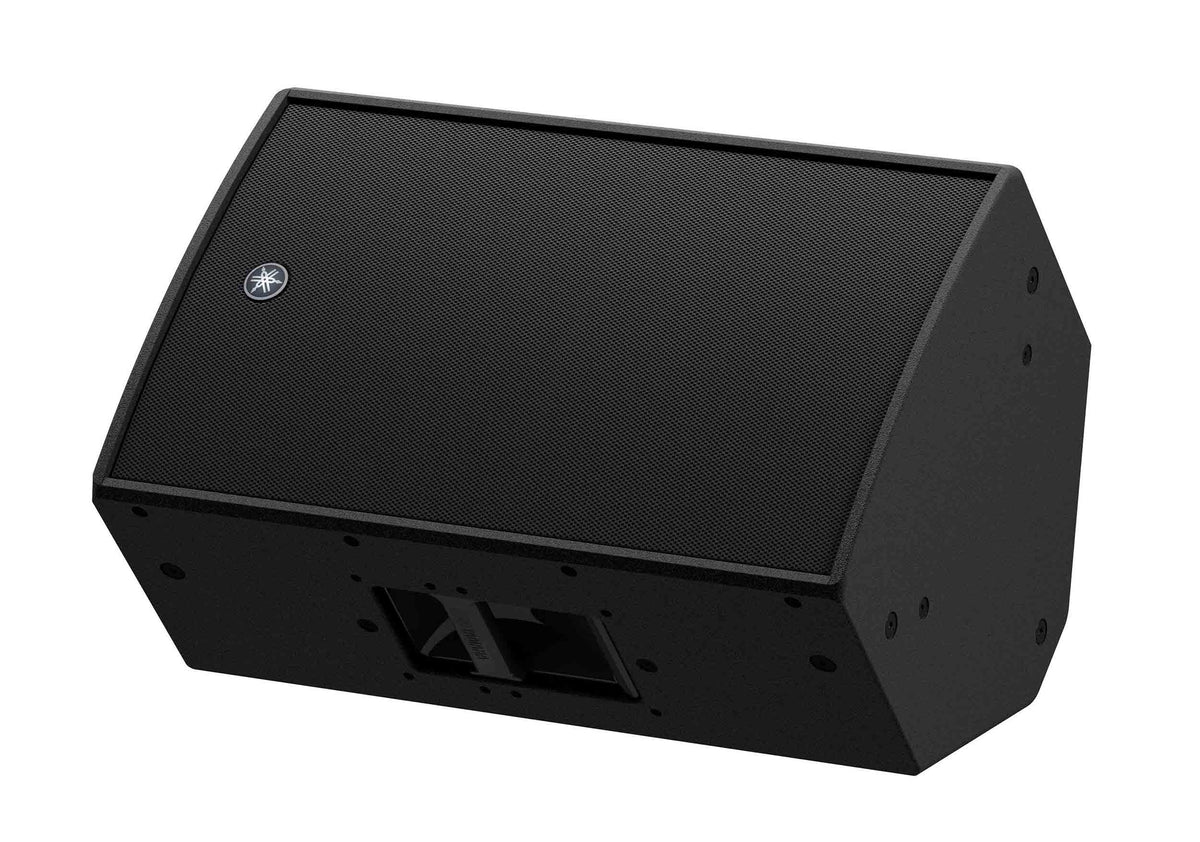

The DZR12 features D-Contour multi-band dynamic processing to maintain consistent tonal balance and clarity at any volume level. Highly reliable protection circuits safeguard performance even under extreme conditions. A dedicated floor monitoring mode with mirror configuration allows the speaker to perform equally well as a main PA or a stage monitor, offering outstanding versatility.

Rugged, Flexible, and Road-Ready Design:

Housed in a lightweight yet durable plywood cabinet with premium Polyurea coating, the DZR12 is built for long-term professional use. A rotatable horn and multiple UB-DZR U-bracket options allow flexible installation and precise coverage control. Optional accessories such as the SPCVR-DZR12 protective cover further enhance portability and protection, making the DZR12 a reliable choice for any professional sound system.

Product Specifications:

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex

Frequency Range (-10dB): 39Hz - 20kHz

Coverage Area: H90° x V60° (Rotatable)

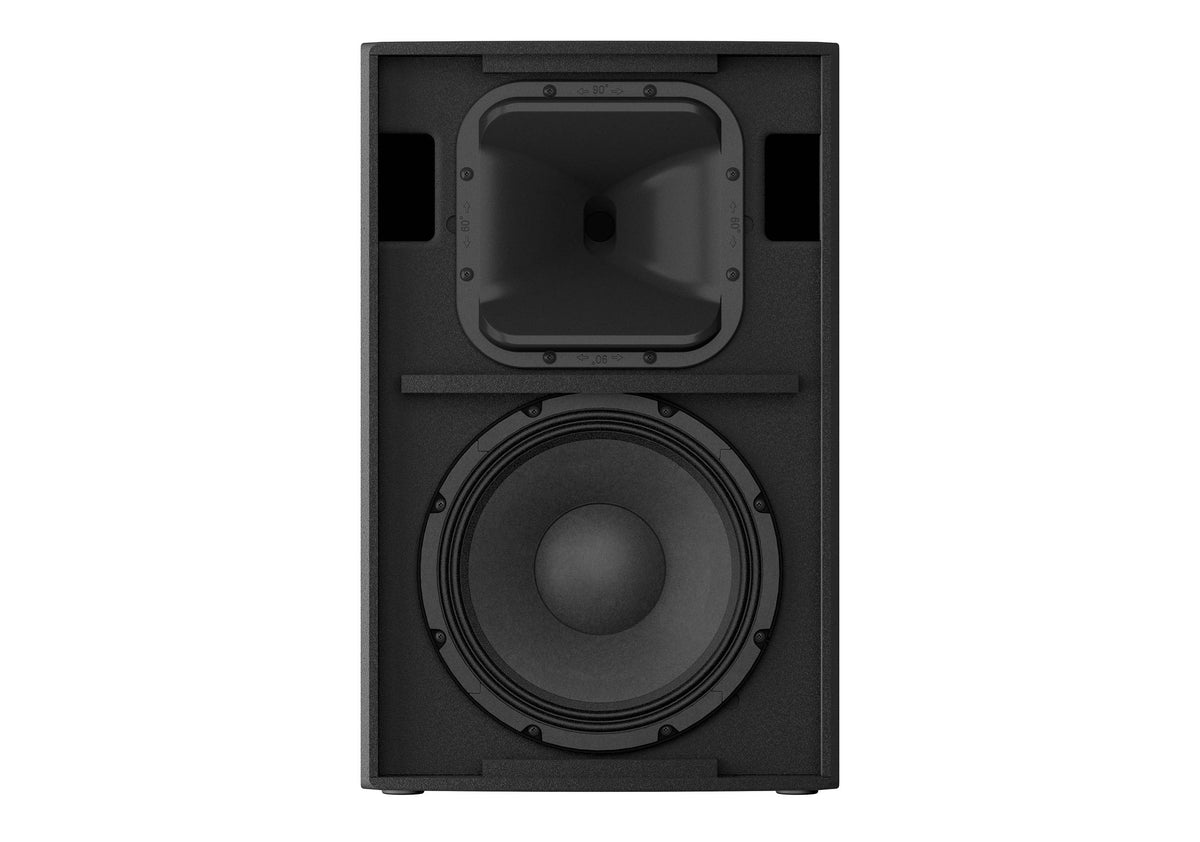

Components:

LF: 12" Cone, 3" Voice Coil, Neodymium magnet

HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover: 1.8kHz (FIR-X)

Sampling Frequency Rate: 96kHz and FIR Filter

A/D D/A Converters: 96kHz AD/DA

Maximum Output Level (1m; on axis): 139dB SPL *1

Power Rating:

Dynamic: 2000W

Burst (20ms): 1100W

Continuous: 950W

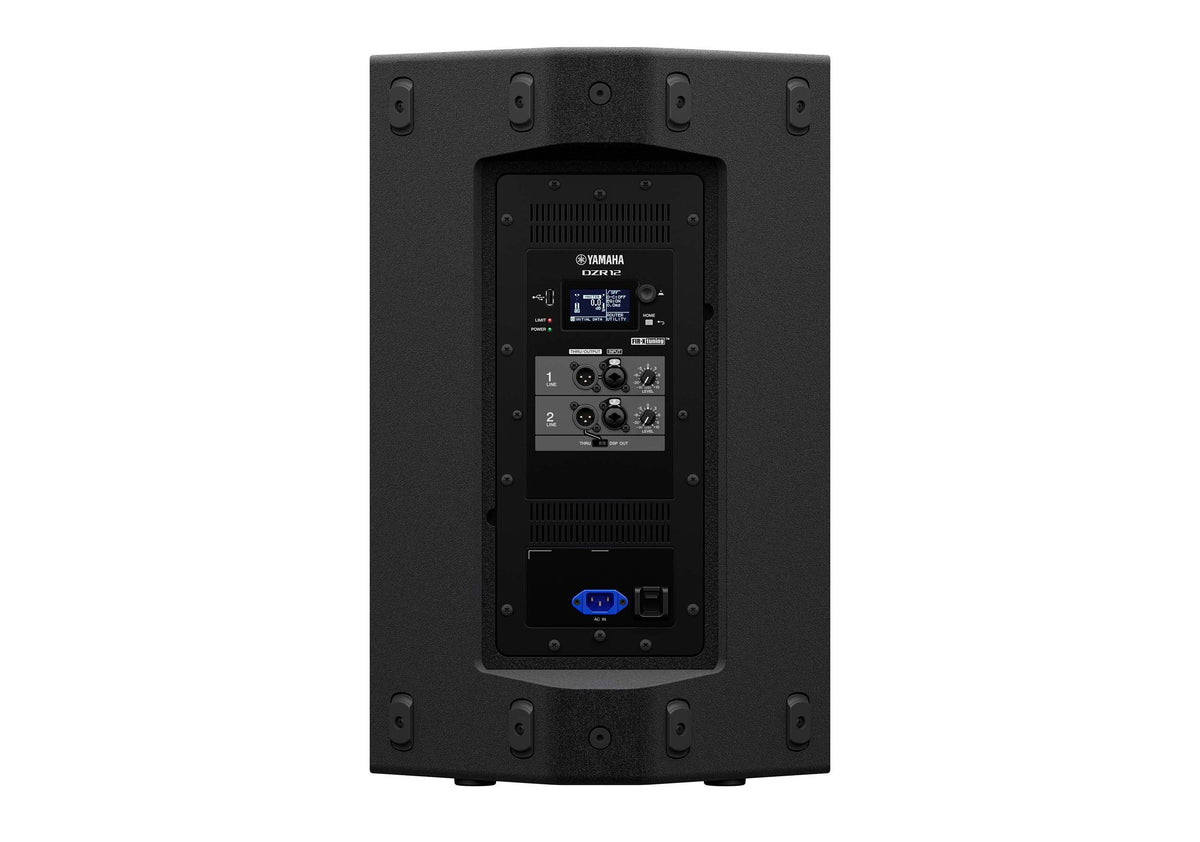

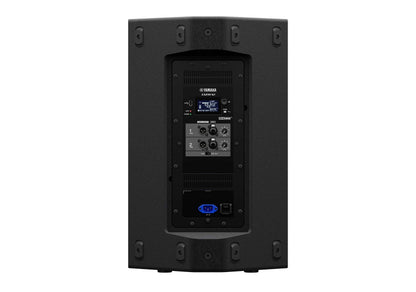

I/O Connectors:

Analog IN: Combo x2

Analog OUT: XLR3-32 x2

Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC: IEC AC inlet x1 (V-Lock)

Amplifier Class: Class-D

Cooling: Fan cooling, Variable speeds

Power Consumption: 45W (Idle), 150W (1/8)

Handle: Aluminum die-cast, Side x2

Rigging: M10 x12

Floor Monitor Angle: 50° Symmetrical

Pole Socket: Φ35 mm x2 (0° or -7°)

Product Weight: 47.2lbs / 21.4kg

Product Dimensions (L × W × H): 15.5" × 16.1" × 25.4"
