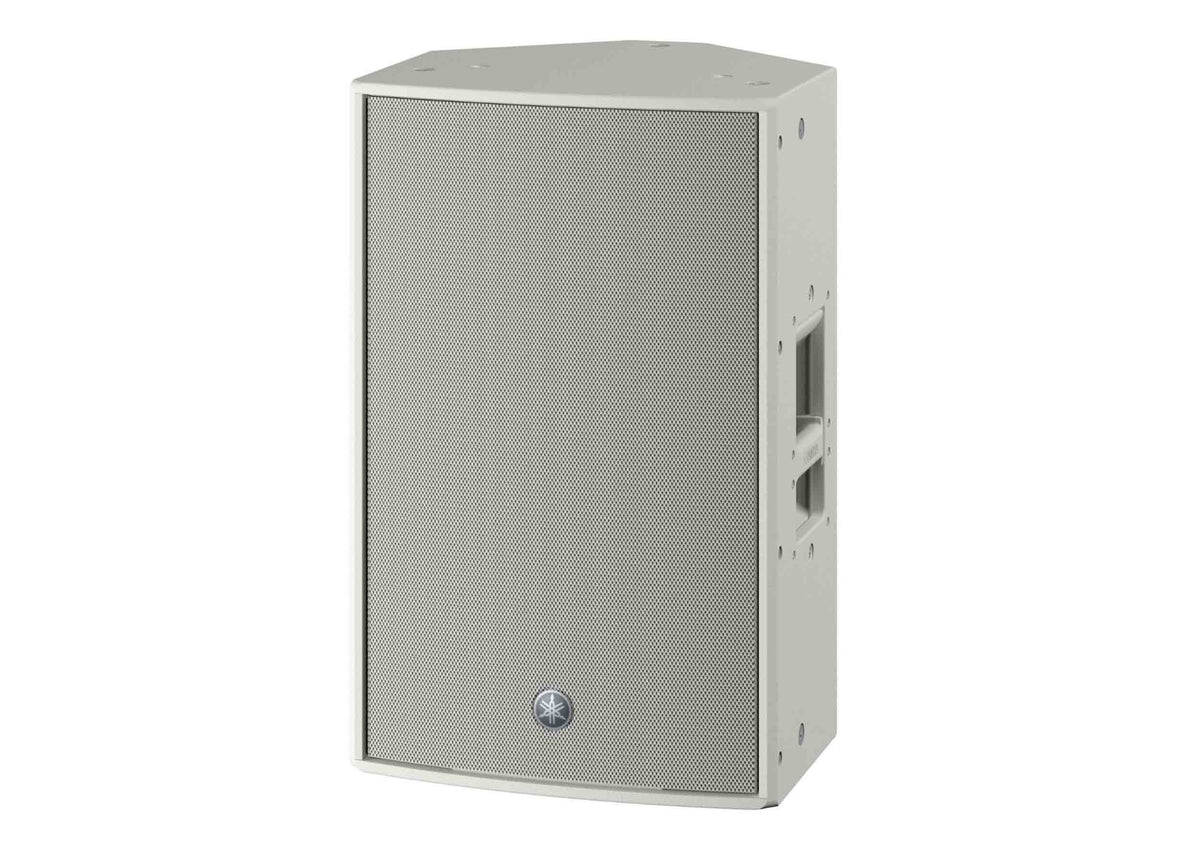

Yamaha DZR12-DW 12" Two-Way Powered LoudSpeaker & Dante - White

The Yamaha DZR12-DW (White) is a Dante-equipped, 2-way bi-amped powered loudspeaker designed for professional sound reinforcement where power, clarity, and networked audio integration are essential. Featuring a 12" low-frequency driver and a 2" high-frequency compression driver, it delivers an impressive 139 dB maximum SPL with a wide 39 Hz, 20 kHz frequency range, providing exceptional definition and impact in live, installed, and touring applications.

Advanced Amplification & High-Resolution DSP:

At the heart of the DZR12-DW is a 2000W Class-D amplifier paired with 96 kHz DSP processing and FIR filtering for true high-resolution sound with ultra-low latency. Yamaha’s Advanced FIR-X tuning precisely aligns phase and frequency response, ensuring transparent, natural sound even at extreme output levels. The onboard LCD display allows quick access to presets and detailed control of PEQ, delay, and routing for precise system tuning.

Dante Connectivity & Intelligent Control:

Equipped with Dante I/O (2-in / 2-out) and SRC support, the DZR12-DW integrates seamlessly into modern networked audio systems while maintaining compatibility with 48 kHz devices. It pairs perfectly with Yamaha digital mixing consoles for simplified routing and system configuration. D-Contour dynamic processing and highly reliable protection circuits maintain consistent tonal balance and clarity while safeguarding performance in demanding environments.

Rugged Design with Flexible Deployment:

Housed in a lightweight yet extremely durable plywood cabinet finished in premium white Polyurea coating, the DZR12-DW is built for the rigors of professional use. A floor-monitoring mode with mirror configuration, rotatable horn, and multiple UB-DZR U-bracket options provide exceptional flexibility for stage, flown, or installed setups. Optional accessories such as the SPCVR-DZR12 protective cover further enhance protection and portability, making the DZR12-DW a reliable centerpiece for any high-end sound system.

Product Specifications:

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex

Frequency Range (-10dB): 39Hz - 20kHz

Coverage Area: H90° x V60° (Rotatable)

Components:

LF: 12" Cone, 3" Voice Coil, Neodymium magnet

HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover: 1.8kHz (FIR-X)

Sampling Frequency Rate: 96kHz and FIR Filter

A/D D/A Converters: 96kHz AD/DA

Maximum Output Level (1m; on axis): 139dB SPL *1

SRC: Yes

Power Rating:

Dynamic: 2000W;

Burst (20ms): 1100W

Continuous: 950W

I/O Connectors:

Analog IN: Combo x2

Analog OUT: XLR3-32 x2

Digital I/O:

Dante: etherCON CAT5e x2, 2 IN / 2 OUT, Remote Control, 1000BASE-T

Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC: IEC AC inlet x1 (V-Lock)

Amplifier Class: Class-D

Cooling: Fan cooling, Variable speeds

Power Consumption: 45W (Idle), 150W (1/8)

Handle: Aluminum die-cast, Side x2

Rigging: M10 x12

Floor Monitor Angle: 50° Symmetrical

Pole Socket: Φ35 mm x2 (0° or -7°)

Product Weight: 47.2lbs / 21.4kg

Product Dimensions (L × W × H): 15.5" × 16.1" × 25.4"
