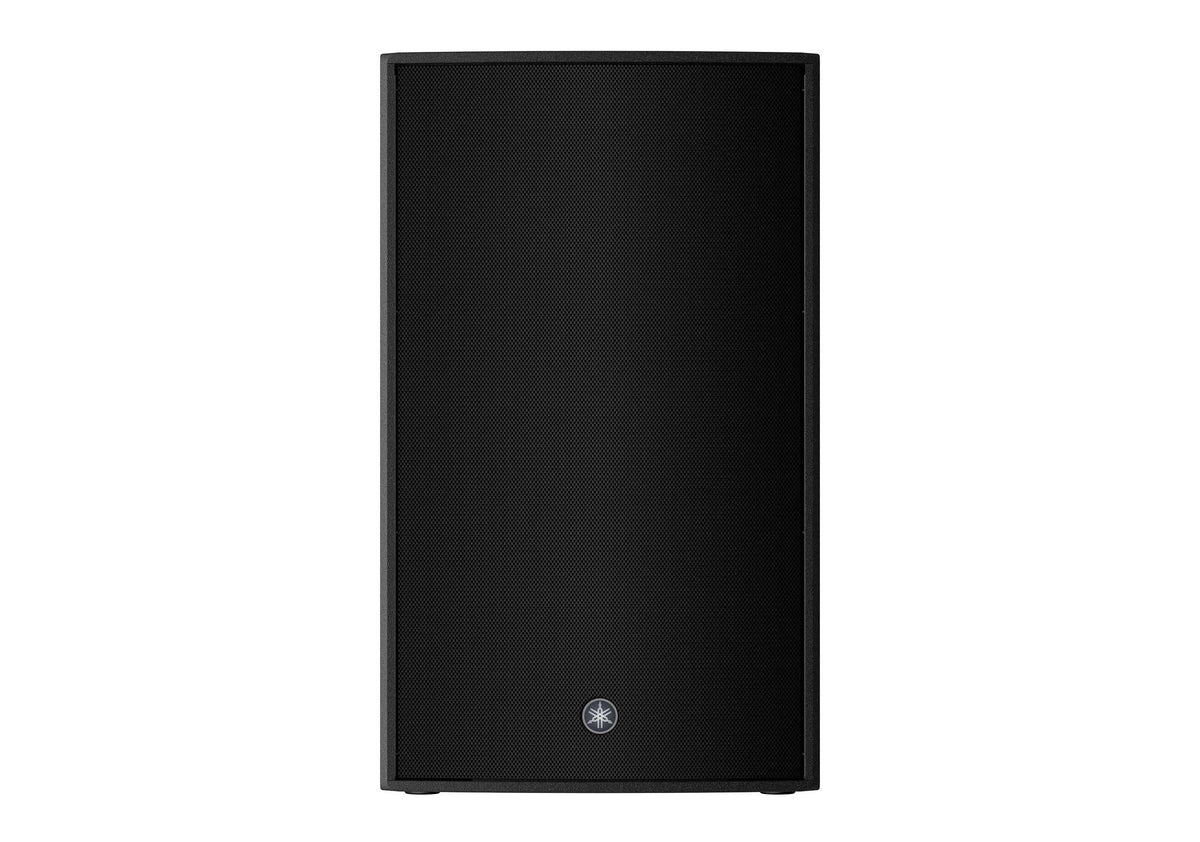

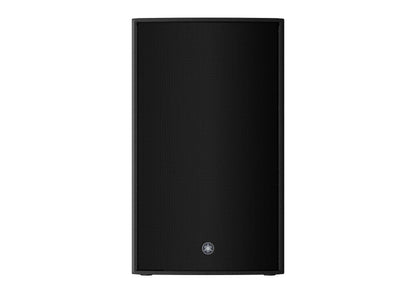

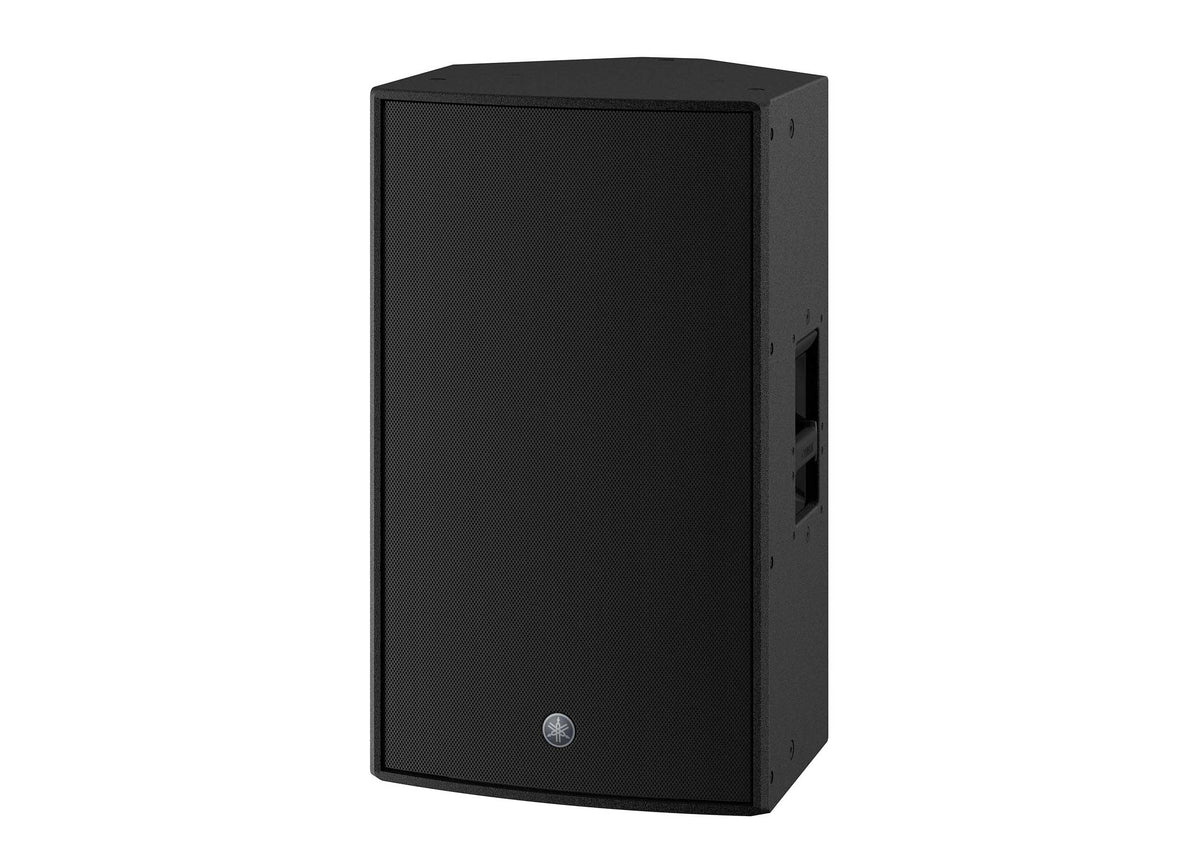

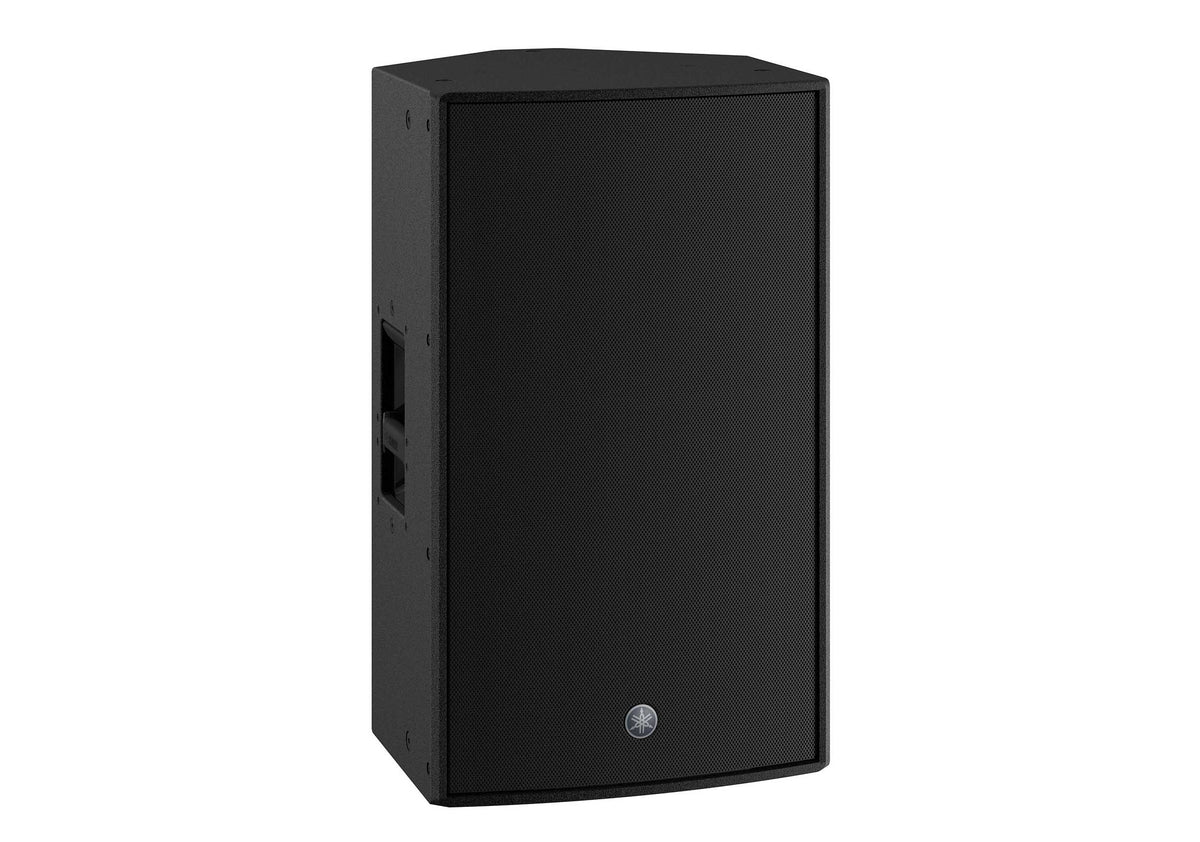

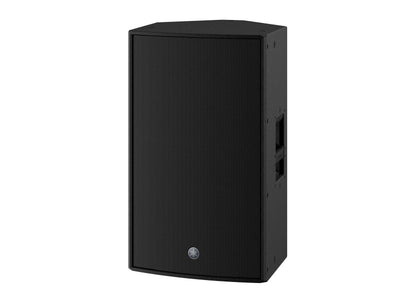

Yamaha DZR15-D 15" Two-Way Powered LoudSpeaker, Dante Equipped - Black

The Yamaha DZR15-D (Black) is a Dante-equipped, 2-way bi-amped powered loudspeaker engineered for demanding professional sound applications. Featuring a 15" low-frequency driver and a 2" high-frequency compression driver, it delivers a commanding 139 dB maximum SPL with a wide 34 Hz, 20 kHz frequency range. This powerful performance makes it ideal as a front-of-house main speaker for live sound, touring, and high-level fixed installations where clarity and impact are critical.

Powerful Amplification & Advanced DSP:

At the heart of the DZR15-D is a 2000W Class-D amplifier paired with Yamaha’s 96 kHz DSP platform and FIR filtering for ultra-low latency, high-resolution audio. Advanced FIR-X tuning precisely aligns frequency and phase response, delivering natural, detailed sound even at extreme output levels. An intuitive LCD control panel allows quick access to presets and detailed adjustment of PEQ, delay, and routing, ensuring optimal tuning for any venue or application.

Dante Integration & Intelligent Processing:

With integrated Dante I/O (2-in / 2-out) and sample rate conversion (SRC), the DZR15-D seamlessly integrates into modern digital audio networks and remains compatible with 48 kHz systems. Yamaha’s D-Contour dynamic processing maintains consistent tonal balance at all volumes, while advanced protection circuits safeguard the amplifier and transducers during intensive use. A floor-monitor mode with mirror configuration further enhances versatility for stage or monitor applications.

Rugged Design & Flexible Installation:

Built for real-world professional use, the DZR15-D features a lightweight yet highly durable plywood cabinet finished in a premium black Polyurea coating for excellent resistance to scratches and impact. A rotatable horn, multiple UB-DZR U-bracket options, and comprehensive rigging support allow flexible placement in flown, pole-mounted, or installed setups. Optional accessories such as the SPCVR-DZR15 protective cover provide added protection, ensuring long-term reliability on the road or in permanent installations.

Product Specifications:

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex

Frequency Range (-10dB): 34Hz - 20kHz

Coverage Area: H90° x V50° (Rotatable)

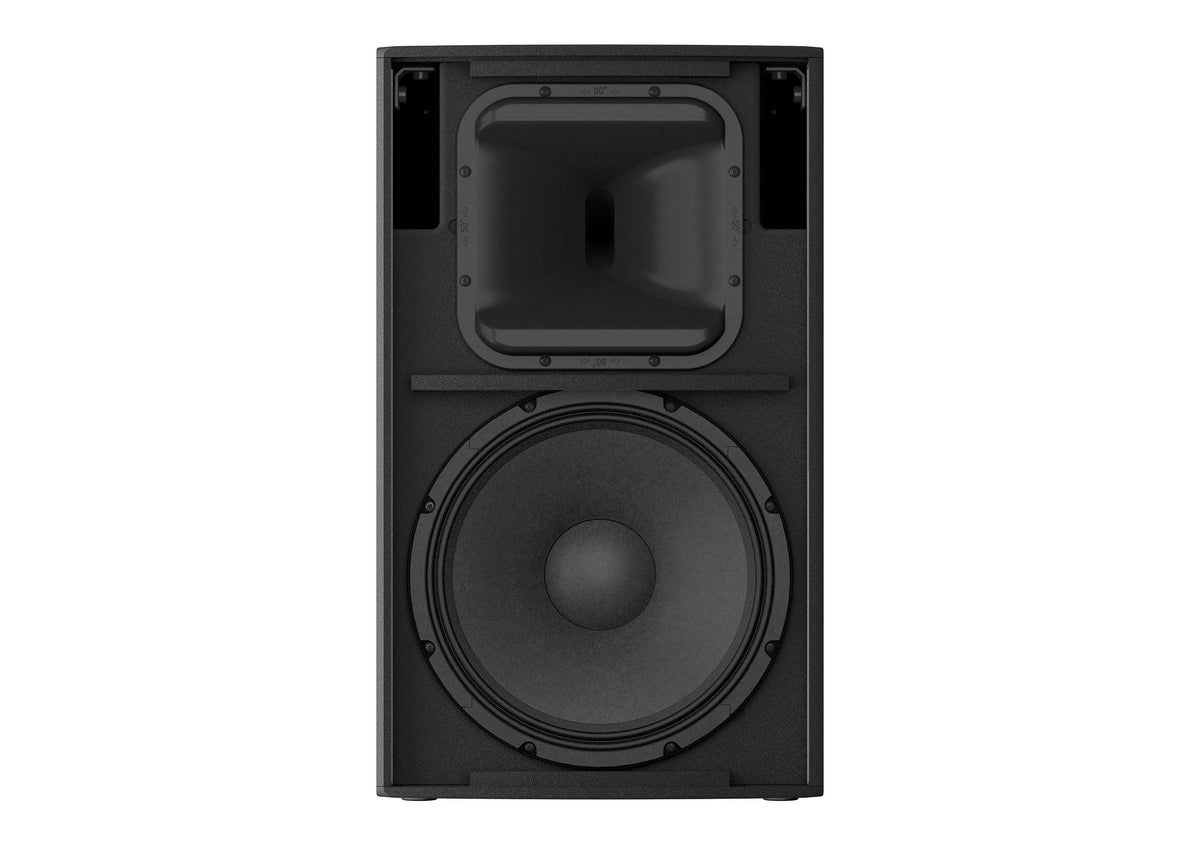

Components:

LF: 15" Cone, 3" Voice Coil, Neodymium magnet

HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover: 1.7kHz (FIR-X)

Sampling Frequency Rate: 96kHz and FIR Filter

A/D D/A Converters: 96kHz AD/DA

Maximum Output Level (1m; on axis): 139dB SPL *1

SRC: Yes

Power rating:

Dynamic: 2000W (LF: 1000W, HF: 1000W) *2

Burst (20ms): 1100W

Continuous: 950W

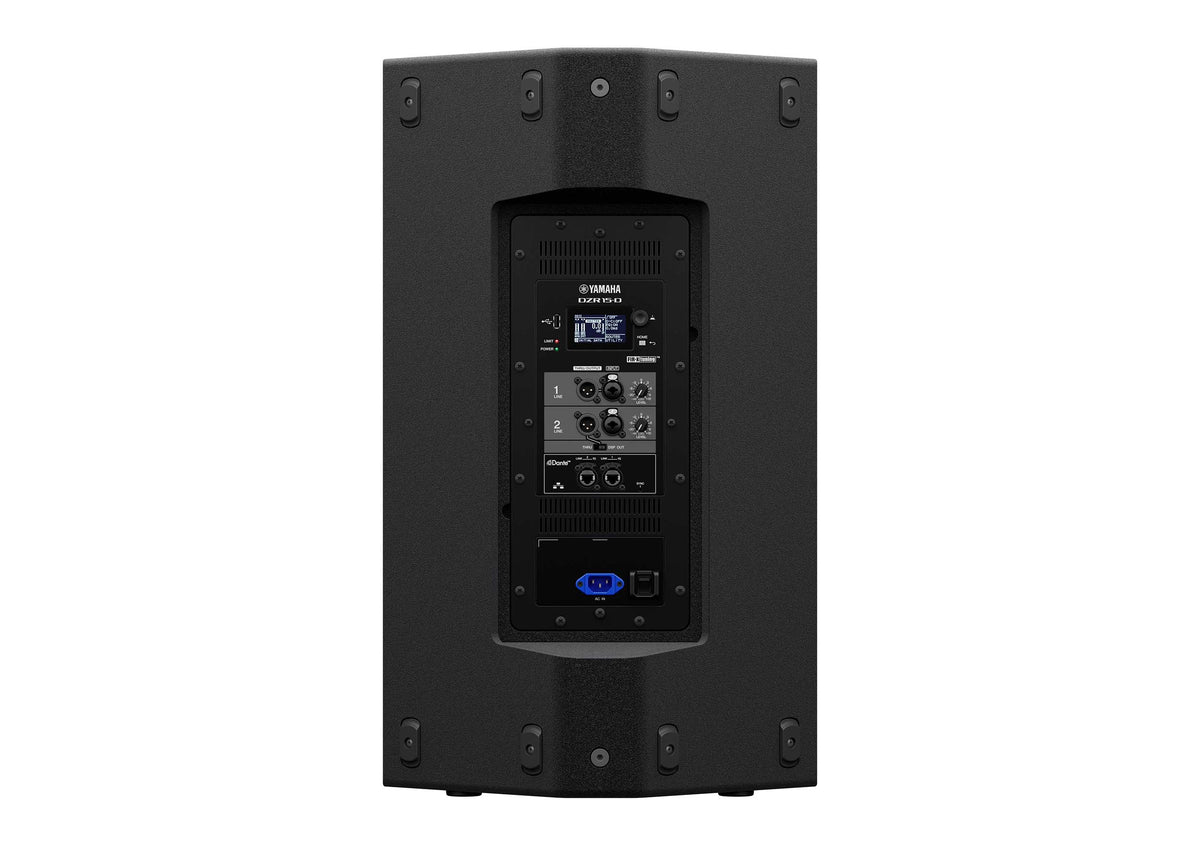

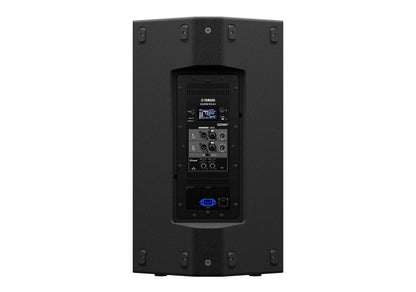

I/O Connectors:

Analog IN: Combo x2, Line level (Max +24dBu), Input impedance 20kΩ

Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT

Digital I/O: Dante: etherCON CAT5e x2, 2 IN / 2 OUT, Fs: 44.1k, 48k, 88.2k, 96k, Remote Control,

1000BASE-T

Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC: IEC AC inlet x1 (V-Lock)

Amplifier Class: Class-D

Cooling: Fan cooling, Variable speeds

Power Consumption: 45W (Idle), 150W (1/8)

Handle: Aluminum die-cast, Side x2

Rigging: M10 x12

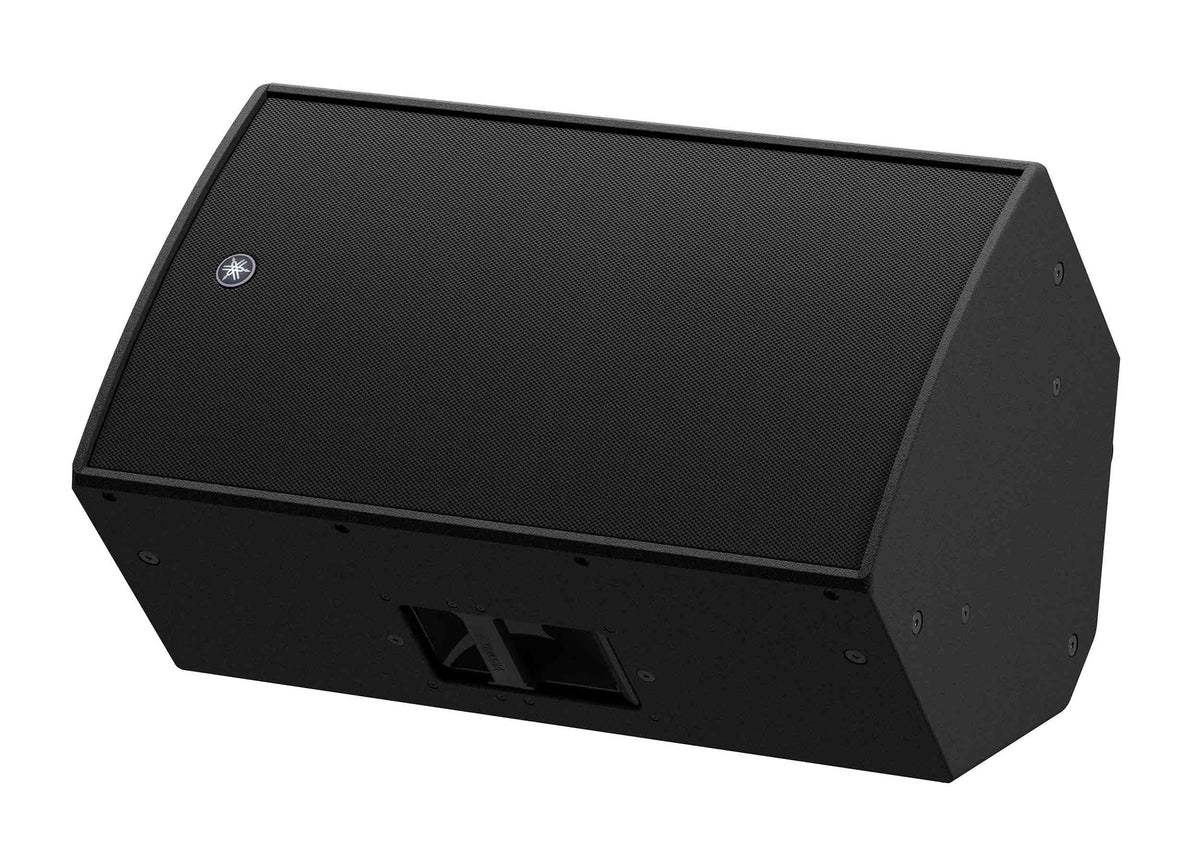

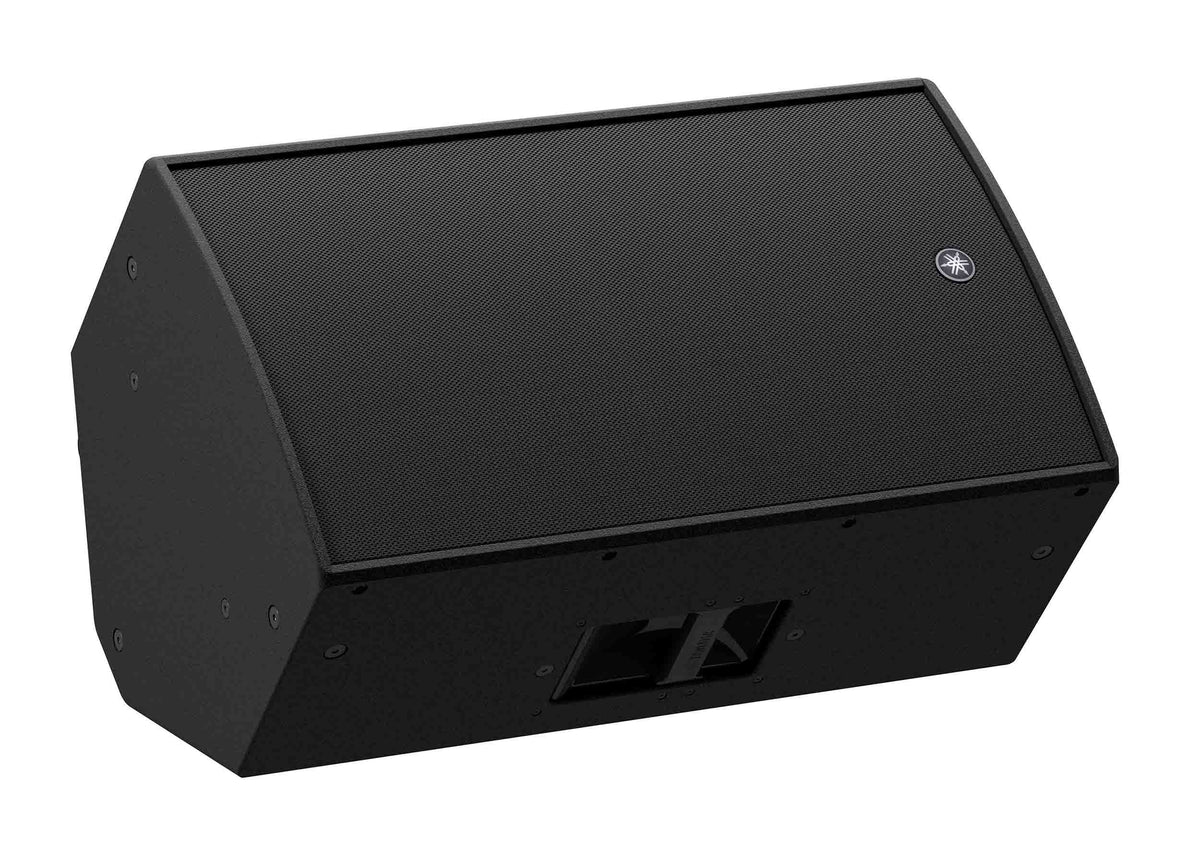

Floor Monitor Angle: 50° Symmetrical

Pole Socket: Φ35 mm x2 (0° or -7°)

Product Weight: 55.6lbs / 25.2kg

Product Dimensions (L × W × H): 18.1" × 17.7" × 30.0"
