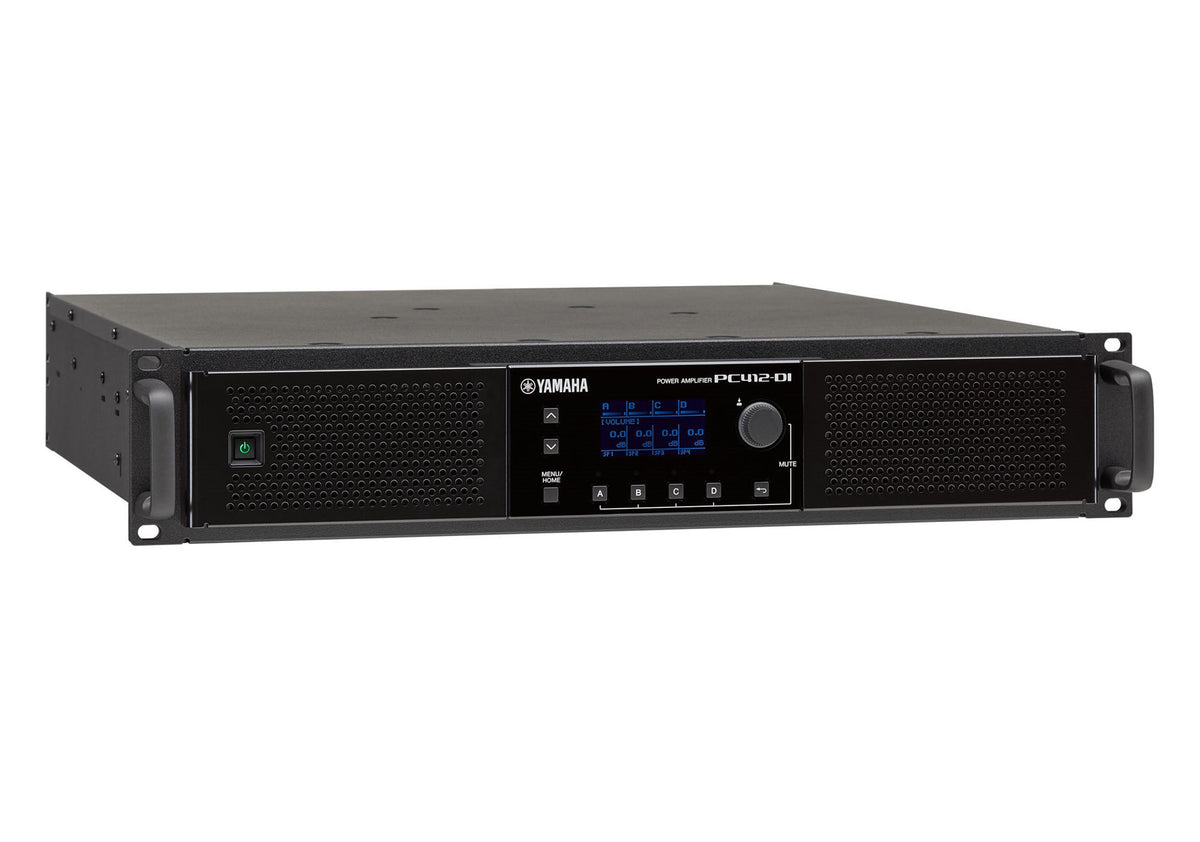

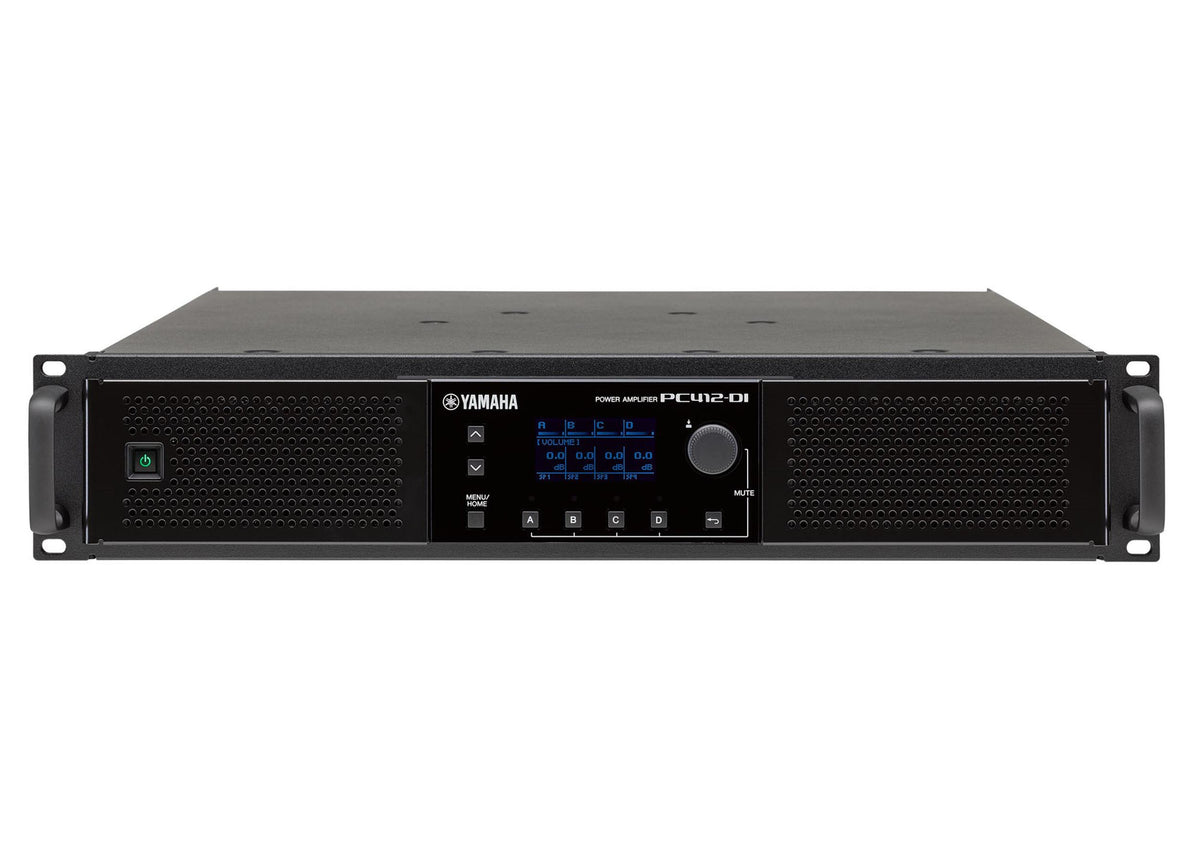

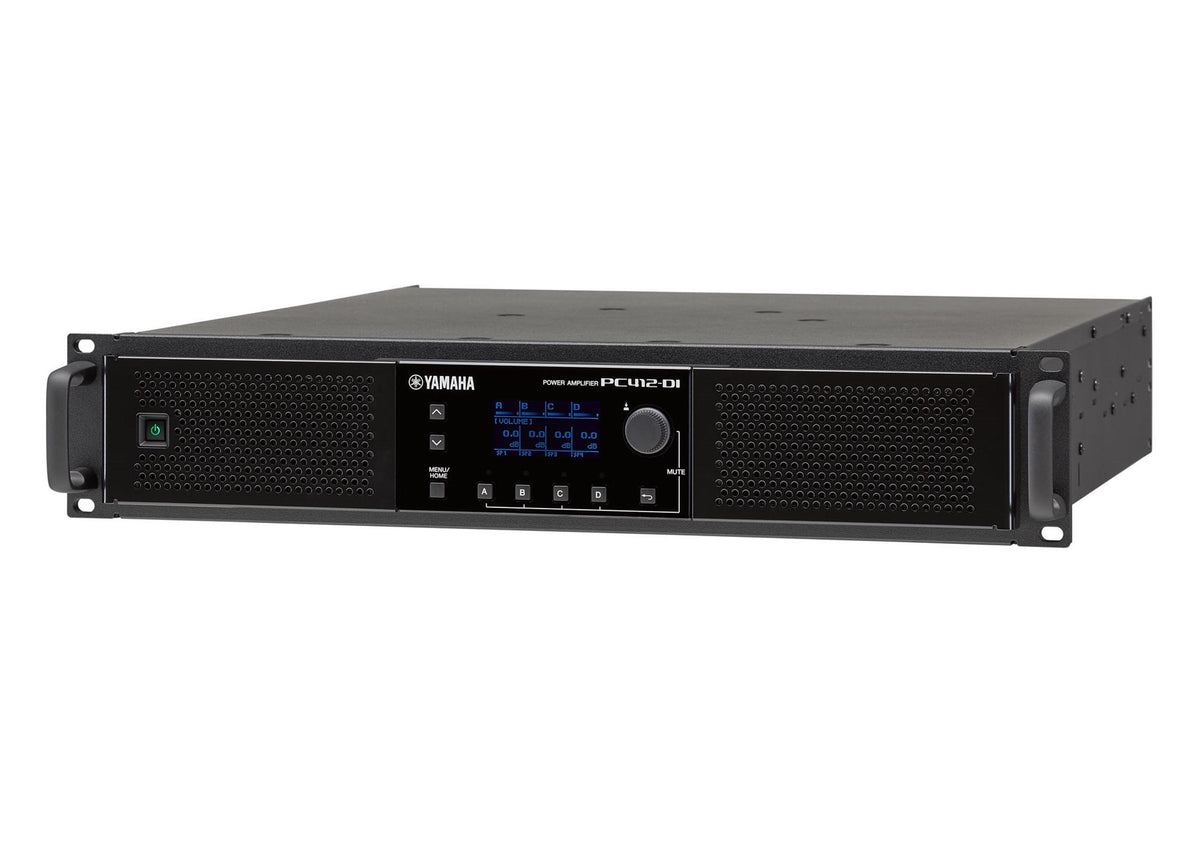

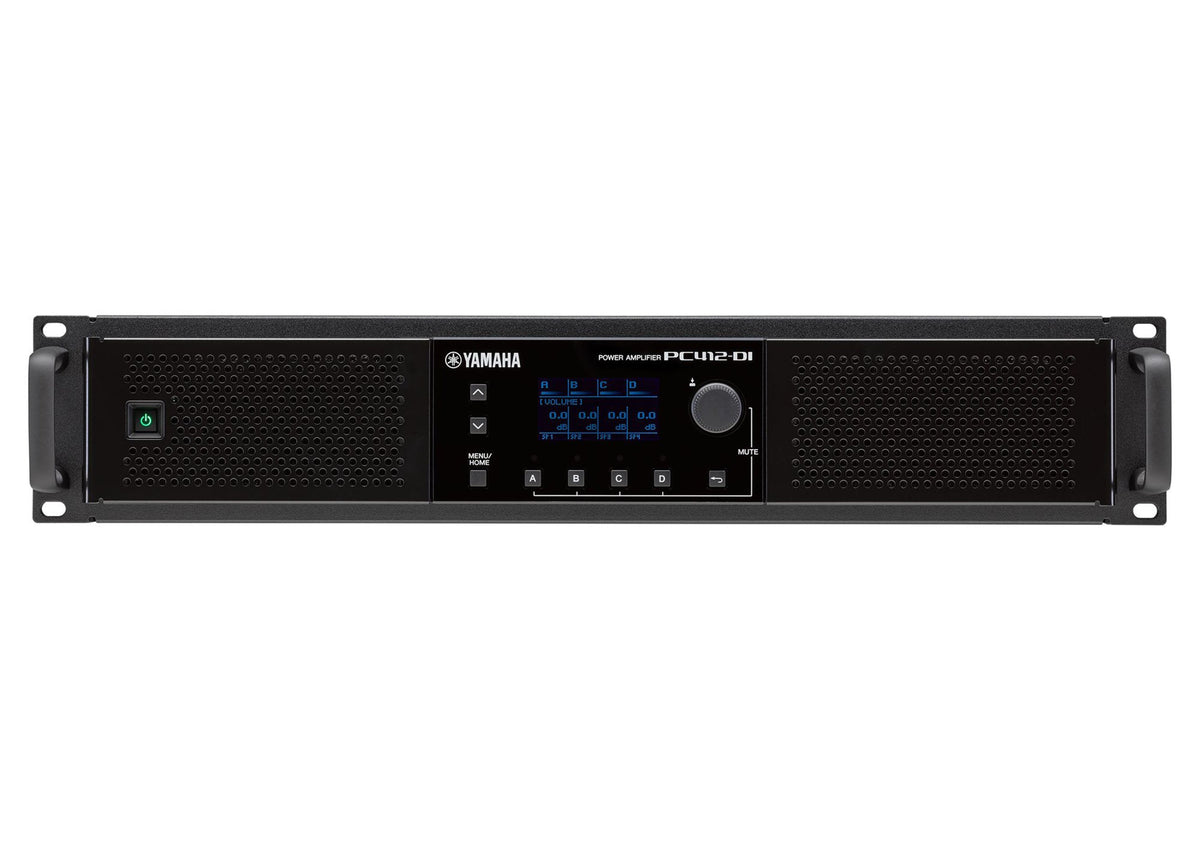

Yamaha PC412-DI Class-D Hi-Z Power Amplifier with Dante I/O

The Yamaha PC412-DI is a high-power Class-D installation amplifier delivering 4 × 1200W at 8Ω and 4 × 1200W at 70V/100V, making it fully compatible with both low- and high-impedance speaker systems. Designed for professional audio installations, it combines powerful amplification with advanced system flexibility, allowing integrators to drive multiple speaker zones reliably and efficiently while maintaining precise sound quality across all channels.

At the core of the PC412-DI is its 20 × 8 input matrix, which enables flexible routing of multiple audio sources, even in systems without additional mixers or DSP. Combined with 16-channel Dante input/output at up to 96 kHz, the amplifier supports low-latency digital audio distribution and redundant connections, allowing precise routing of analog and digital signals to speakers or other Dante-equipped devices. This flexibility makes it ideal for complex multi-zone setups, mixer-less systems, or as a supplementary matrix to expand existing installations.

Equipped with powerful onboard DSP, the PC412-DI offers 16-band PEQ, crossover, filters, delay, FIR filtering, and RMS/peak limiting, along with Yamaha-optimized speaker presets for fast and accurate system setup. Control and monitoring are streamlined through ProVisionaire Touch, ProVisionaire Control, and the dedicated ProVisionaire Amp Editor, allowing individual or grouped amplifier adjustments for EQ, delay, and volume from a single interface. Detachable handles and replaceable filters ensure easy maintenance, making the PC412-DI a complete, reliable, and professional solution for modern commercial audio installations.

Product Specifications:

Power Output 16Ω: 600W x 4

Power Output 8Ω: 1200W x 4

Power Output 4Ω: 1900W x 4

Power Output 2Ω: 2500W x 4

Power Output 8Ω Bridge Mode: 3800W x 2

Power Output 4Ω Bridge Mode: 5000W x 2

Power Output Hi-Z 70V: 1200W x 4

Power Output Hi-Z 100V: 1200W x 4

Amplifier Class: Class D single-ended output

Total Harmonic Distortion: 0.01% 8Ω 10W all channels 0.1% 4Ω half power all channels 0.01% 100V/70V

10W all channels 0.1% 100V/70V half power all channels

Frequency Response: +0.5 -1.5 dB 8Ω 1W 20Hz to 20kHz HPF Thru

Crosstalk: ≤ -60 dB 8Ω 1kHz half power

Signal-to-Noise Ratio: 112dB 8Ω Gain 32dB A-weighted

Gain / Sensitivity 8Ω Volume Max: 32dB +10.0dBu/26dB +16.0dBu/38dB +4.0dBu/28dB +14.0dBu

Gain / Sensitivity Hi-Z 100V: 32dB +10.2dBu/26dB +16.2dBu/38.2dB +4.0dBu/28.2dB +14.0dBu

Gain / Sensitivity Hi-Z 70V: 32dB +7.2dBu/26dB +13.2dBu/35.2dB +4.0dBu/25.2dB +14.0dBu

Protection Circuit: Load Protection POWER switch on/off Output mute Output voltage protection Over

voltage limiter DC-fault Power supply shutdown

Amplifier Protection: Thermal Output limiter Output mute Over current Output mute Over voltage Output

limiter Integrated Power Limit Output limiter

Power Supply Protection: Thermal Output limiter Power supply shutdown Over voltage Power supply

shutdown Over current Power supply shutdown

Cooling: 7 step variable speed fan x 3 front to rear airflow

Maximum Input Voltage: +28dBu

Input Impedance: 20kΩ balanced

Sampling Frequency Rate: 96kHz

A/D & D/A Converters: AD 24-bit linear DA 24-bit linear

Dante Channel Count: 16 IN with Dante Redundancy 16 OUT

Dante Sampling Frequency: 96 88.2 48 44.1kHz

Dante Latency: 0.25 0.5 1 2 5ms

Dante Bit Depth: 32 24-bit

Processors: 20 x 8 input matrix mixer Room EQ 16 band IIR EQ Room Delay 0 - 1000msec Speaker

Processor X-Over IIR/FIR PEQ 16 band IIR/FIR Delay Peak Limiter RMS Limiter

Latency Input to Output: Analog Input to Speakers 1.5msec Dante Input to Speakers 1.8msec 96kHz

1.9msec 88.2kHz 2.5msec 48kHz 2.7msec 44.1kHz

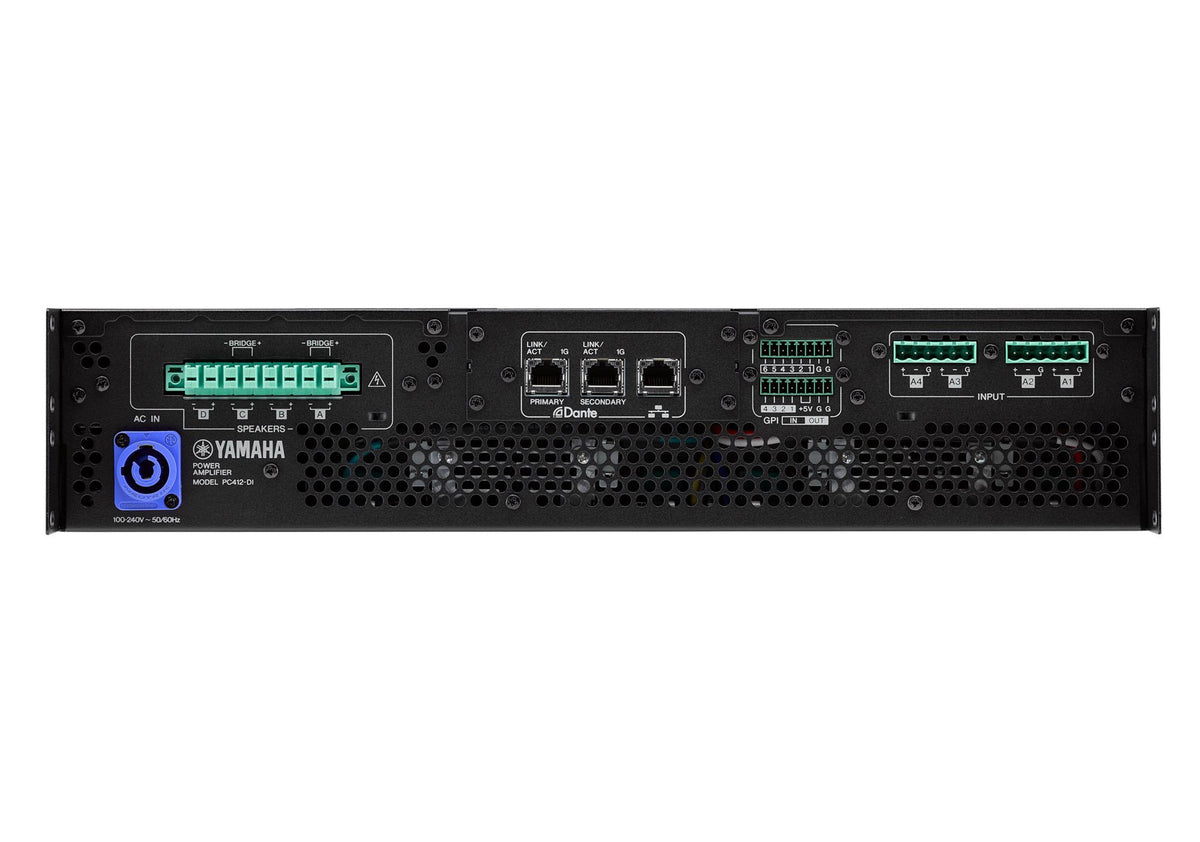

Analog Input: Euro block 6pin x 2 4ch balanced input

Digital I/O: Dante Interface RJ45 x 2 Redundant/Daisy Chain

Speaker Output: 7.62mm Euro block 8pin x 1

Control Ports: RJ45 x 1

AC Input: AC inlet powerCON 20A x 1

Other: Remote Fault Output Euro block mini x 2 GPI x 4 GPO x 6 +5V x 2

Indicators: Power Green x 1 Channel Status LEDs Signal Green Limit Yellow Protect/Mute Red x 4 Auto LED

off dimmer feature

Power Requirements: 100V - 240V 50Hz/60Hz

Power Consumption: 1850W 1/8 MAX power 2Ω Pink noise all channels 190W Idle 105W Sleep all

channels 9W Standby 100V/120V 12W Standby 230V

Operating Temperature: 0°C to +40°C

Storage Temperature: -20°C to +60°C

Product Weight: 35.3 lbs / 16.0 kg

Product Dimensions (L × W × H): 20.79" × 18.90" × 3.46"
