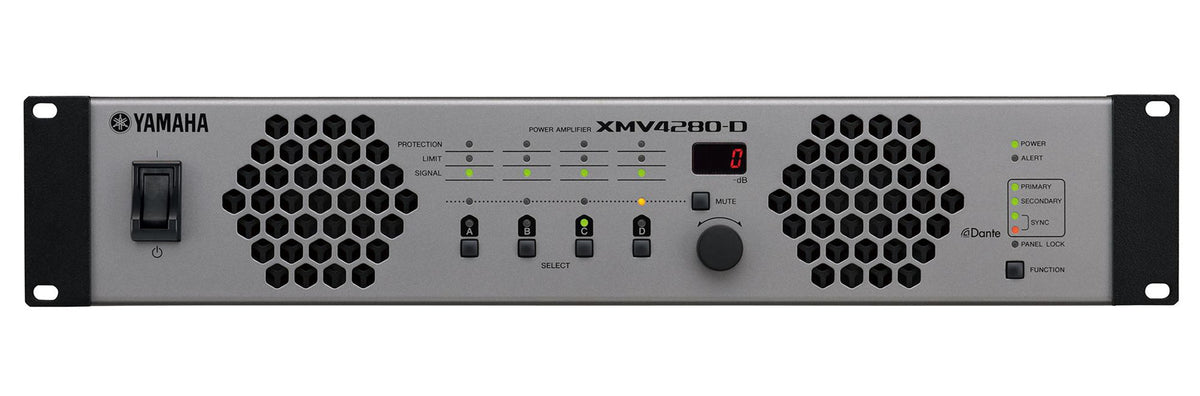

Yamaha XMV4280-D 4-Channel Dante-Enabled Powered Amplifier - 1120W

The Yamaha XMV4280-D is a high-power, Dante-enabled installation amplifier designed for large venues where long-distance audio networking and flexible system design are critical. Delivering 4 × 280W at 8Ω/4Ω or 4 × 250W on 70V/100V lines, it provides ample output for demanding commercial environments such as auditoriums, convention centers, houses of worship, and large retail spaces. Integrated Dante connectivity over Ethernet ensures clean, reliable audio transport across long cable runs while supporting modern networked audio systems.

Engineered to simplify complex installations, the XMV4280-D can operate high-impedance and low-impedance outputs simultaneously, removing the need for external transformers or multiple amplifiers. Each pair of channels can be independently set for 70V or 100V operation, and Yamaha’s Double Power Mode allows selected channels to deliver up to 560W to drive higher-power loudspeakers. This flexibility makes it possible to power speakers with different output requirements from a single amplifier, reducing rack space and overall system complexity.

At the core of the XMV4280-D is an advanced Class-D amplifier design with over 90% efficiency, combined with a PFC-equipped switching power supply for stable output and reduced current draw. Comprehensive protection circuits guard against low-impedance loads, overcurrent, and overheating, ensuring dependable long-term operation. Support for Dante Domain Manager, AES67, and Dante Device Lock, along with seamless integration with Yamaha MTX/MRX processors, Ethernet-based external control, and built-in redundancy modes, makes the XMV4280-D a powerful, secure, and future-ready solution for professional installed sound systems.

Product Specifications:

Output Power 1kHz (THD+N=1% 4Ω): 280 W x 4

Output Power 1kHz (THD+N=1% 8Ω): 280 W x 4

Output Power 1kHz (THD+N=1% 4Ω Double Power Mode): 560 W x 2

Output Power 1kHz (THD+N=1% 8Ω Double Power Mode): 560 W x 2

High Impedance 100V line: 250 W x 4 / 40 Ω

High Impedance 70V line: 250 W x 4 / 20 Ω

Voltage Gain RL 8Ω: 31.7 dB

Voltage Gain RL 8Ω Double Power Mode: 34.7 dB

Voltage Gain 100V: 38.2 dB

Voltage Gain 70V: 35.2 dB

Power Consumption: 1/8 power 250 W, Idle 37 W, Standby 18.5 W

Total Harmonic Distortion: ≤ 0.2%

Frequency Response: 20 Hz, 20 kHz ±1.0 dB

S/N Ratio: ≥ 100 dB

Crosstalk: ≤ -60 dB

Input Sensitivity: +4 dBu

Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced

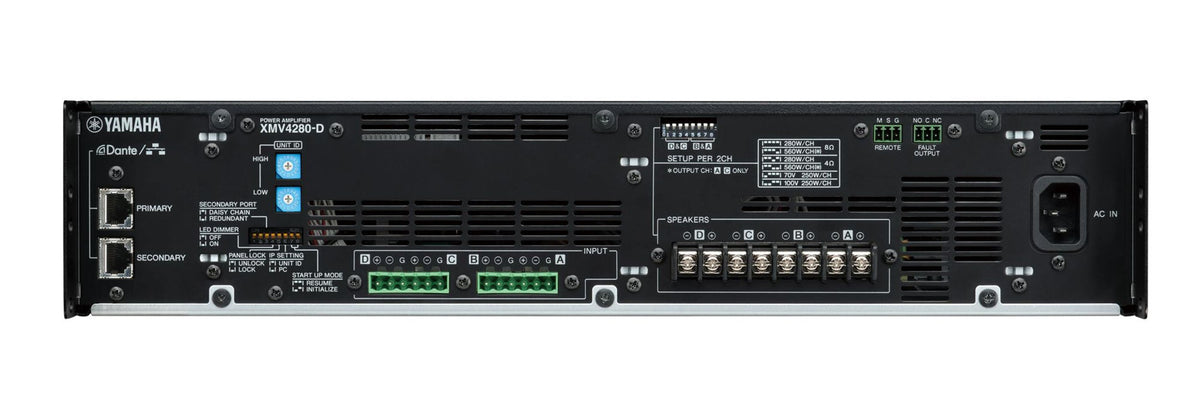

Analog I/O: Euroblock x 2 6P balanced

Digital I/O: RJ45 x 2 Dante Primary / Secondary

Speaker Output: Barrier strip x 4 pairs

Control Ports: Remote and Fault Output Euroblock 3P x 1

Network: Shared with Dante ports

Maximum Input Level: +24 dBu

Load Protection: Output mute on power on/off, DC fault shuts down power supply, clip limiting

Amplifier Protection: Thermal mute at ≥90°C, overcurrent mute, low load impedance mute

Power Supply Protection: Thermal shutdown at ≥100°C, gain reduction

Cooling: Dual 3-speed fans front to back airflow

Power Requirements: 100V, 120V, 230-240V 50/60 Hz

Product Weight: 17.9 lbs / 8.1 kg

Product Dimensions (L × W × H): 16.6 × 18.9 × 3.5 in
