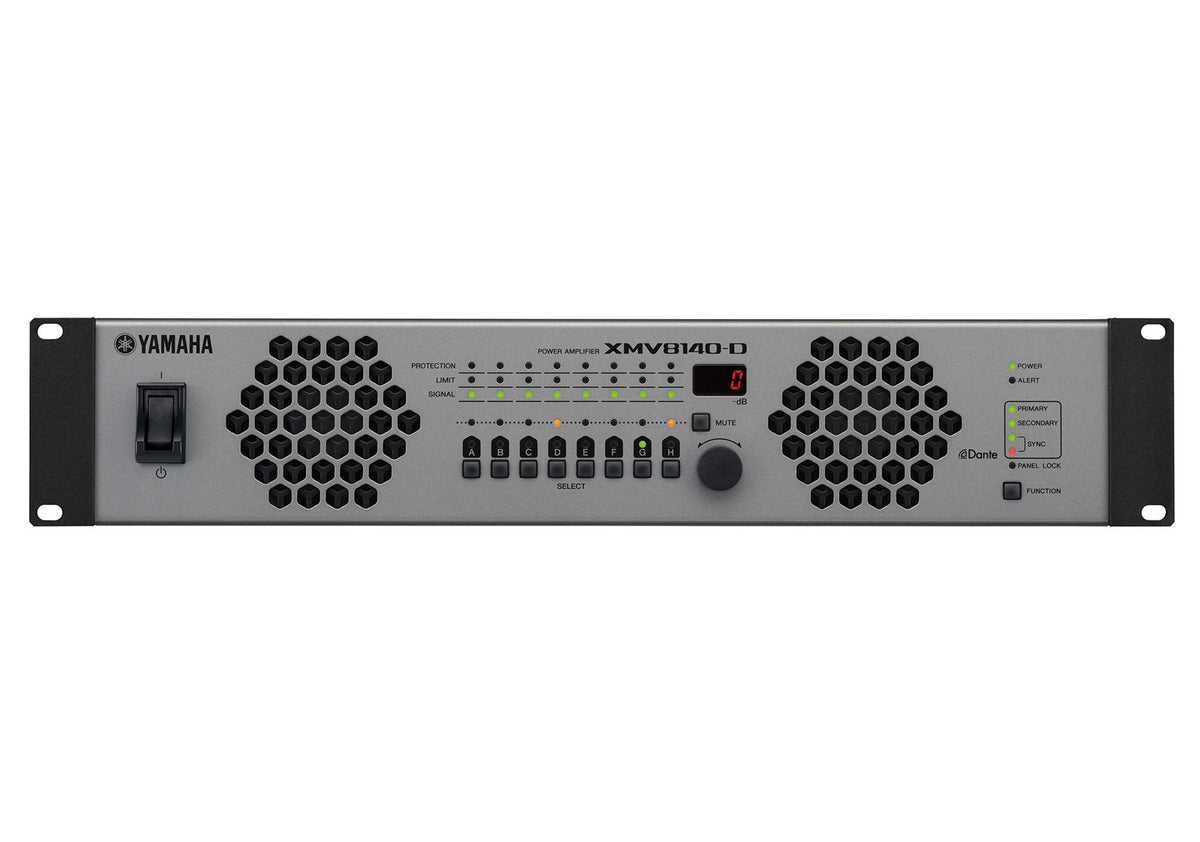

Yamaha XMV8140-D 8-Channel Dante Equipped Powered Amplifier - 1120W

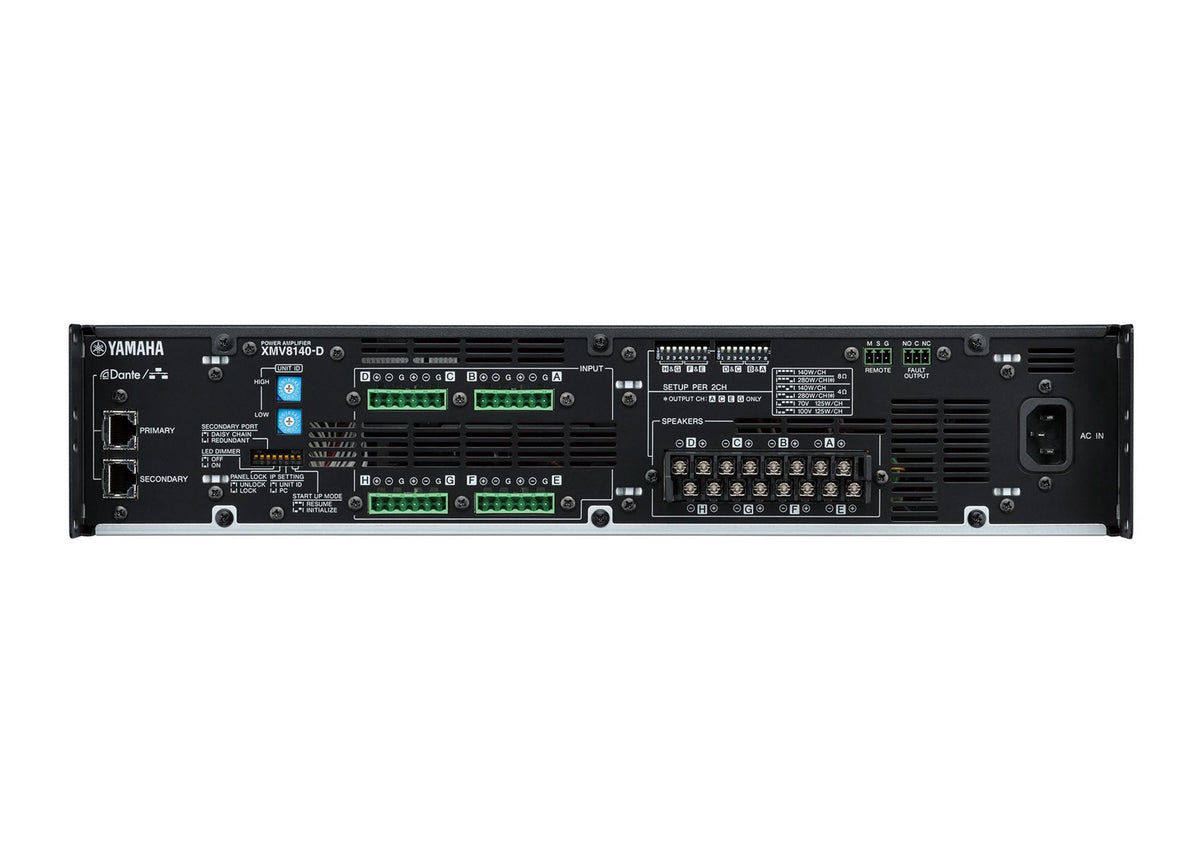

The Yamaha XMV8140-D is a versatile multi-channel power amplifier designed for professional installed sound applications that require both high- and low-impedance connectivity. Delivering 8 × 140W at 8Ω/4Ω, 8 × 125W on 70V/100V lines, and 4 × 280W in Double Power Mode, it allows the simultaneous operation of high- and low-impedance speakers without additional transformers or amplifiers. Each pair of channels can be independently assigned to 70V or 100V operation via rear-panel DIP switches, providing maximum flexibility for complex venue configurations. The Double Power Mode enables selected channels to deliver twice the output, powering speakers with higher demands while optimizing system design.

Equipped with Yamaha’s YDIF digital audio format and Audinate’s Dante network connectivity, the XMV8140-D supports long-distance digital audio transmission, making it ideal for large venues. Dante Domain Manager, AES67 compatibility, and Dante Device Lock further enhance network security and expandability, while seamless integration with MTX/MRX series processors allows precise control of settings such as mute and attenuation via the MTX-MRX Editor software. These features simplify installation and provide professional-grade configurability for multi-zone and large-scale audio systems.

Built for reliability and efficiency, the XMV8140-D features a patent-pending Class-D amplifier circuit achieving over 90% efficiency, paired with a PFC-equipped switching power supply for stable power delivery. Intelligent protection circuits guard against low load impedance, overcurrent, and overheating, ensuring long-term durability. Additional capabilities such as per-channel source selection, Backup and Override modes, and Ethernet-based external control make this amplifier an ideal choice for concert halls, corporate facilities, and large-scale installations where performance, flexibility, and safety are critical.

Product Specifications:

Output Power 1kHz (THD+N=1% 4Ω): 140 W x 8

Output Power 1kHz (THD+N=1% 8Ω): 140 W x 8

Output Power 1kHz (THD+N=1% 4Ω Double Power Mode): 280 W x 4

Output Power 1kHz (THD+N=1% 8Ω Double Power Mode): 280 W x 4

High Impedance 100V line: 125 W x 8 / 80 Ω

High Impedance 70V line: 125 W x 8 / 40 Ω

Voltage Gain RL 8Ω: 28.7 dB

Voltage Gain RL 8Ω Double Power Mode: 31.7 dB

Voltage Gain 100V: 38.2 dB

Voltage Gain 70V: 35.2 dB

Power Consumption: 1/8 power 250 W, Idle 73 W, Standby 23 W

Total Harmonic Distortion: ≤ 0.2%

Frequency Response: 20 Hz, 20 kHz ±1.0 dB

S/N Ratio: ≥ 100 dB

Crosstalk: ≤ -60 dB

Input Sensitivity: +4 dBu

Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced

Analog I/O: Euroblock x 2 6P balanced

Digital I/O: RJ45 x 2 Dante Primary / Secondary

Speaker Output: Barrier strip x 8 pairs

Control Ports: Remote and Fault Output Euroblock 3P x 1

Network: Shared with Dante ports

Maximum Input Level: +24 dBu

Load Protection: Output mute on power on/off, DC fault shuts down power supply, clip limiting

Amplifier Protection: Thermal mute ≥90°C, overcurrent mute, low load impedance mute

Power Supply Protection: Thermal shutdown ≥100°C, gain reduction

Cooling: Dual 3-speed fans front to back airflow

Power Requirements: 100V, 120V, 230-240V 50/60 Hz

Product Weight: 22.3 lbs / 10.1 kg

Product Dimensions (L × W × H): 16.6 × 18.9 × 3.5 in
