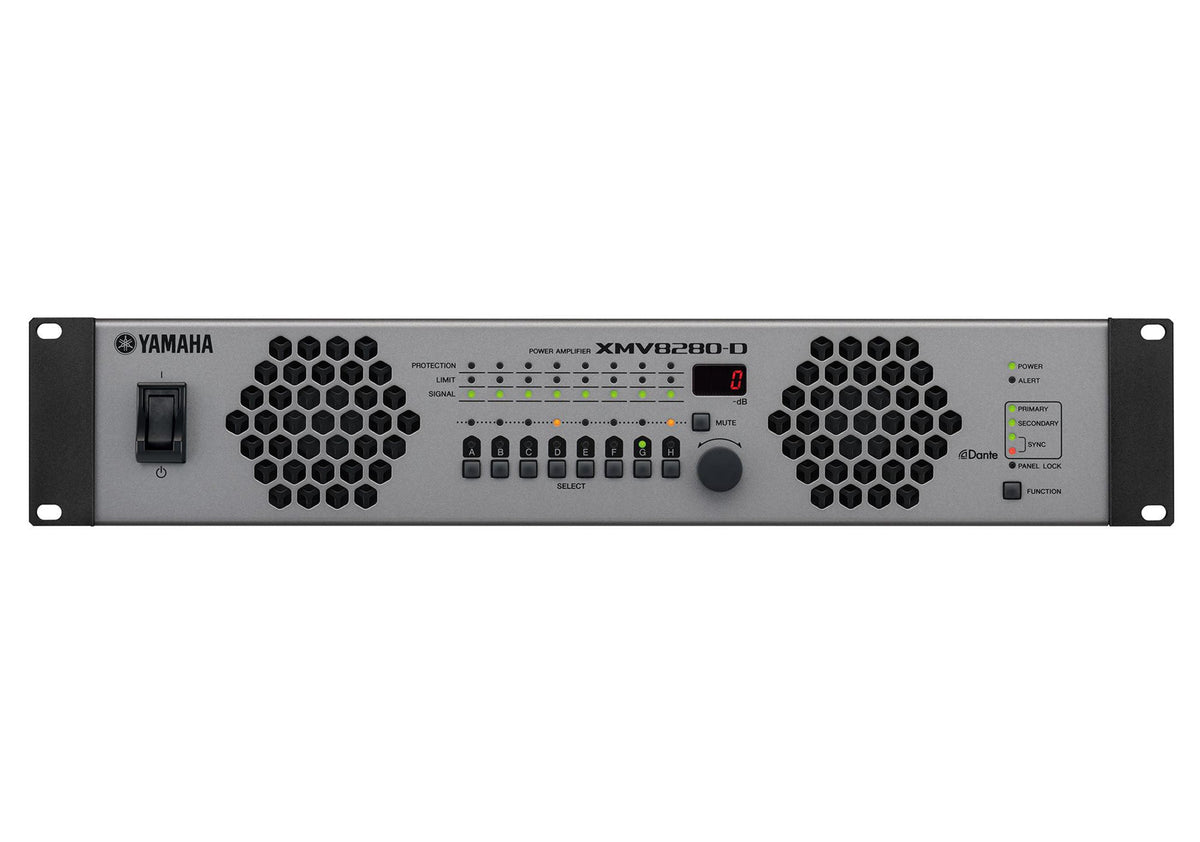

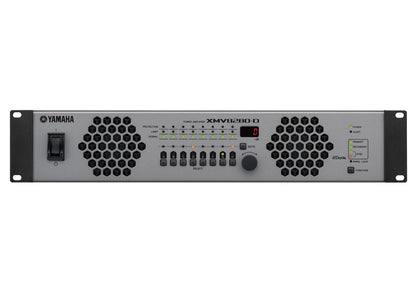

Yamaha XMV8280-D 8-Channel Dante-Equipped Powered Amplifier - 2240W

The Yamaha XMV8280-D is a professional multi-channel power amplifier designed for large-scale installations and venues requiring long-distance audio distribution. Delivering 8 × 280W at 8Ω/4Ω, 8 × 250W at 70V/100V, and 4 × 560W in Double Power Mode, it allows flexible operation for both high- and low-impedance connectivity without the need for separate amplifiers or external transformers. Each pair of channels can independently operate at 70V or 100V via rear-panel DIP switches, while the Double Power Mode doubles the output on selected channels, providing the power necessary to drive speakers with higher output requirements. This versatility ensures seamless integration in complex multi-zone systems.

Equipped with YDIF digital audio and full compatibility with Audinate Dante networks, the XMV8280-D supports large venues where long-distance cabling is required. It also supports Dante Domain Manager, AES67, and Dante Device Lock, enhancing system security and scalability while preventing unauthorized changes to networked audio settings. Integration with MTX/MRX series processors enables quick control over settings like mute and attenuator adjustments via the MTX-MRX Editor software, allowing instant connectivity and flexible system management for professional audio installations.

Designed for maximum efficiency and reliability, the XMV8280-D features a patent-pending Class-D amplifier circuit with over 90% efficiency and a PFC-equipped switching power supply, reducing energy loss and minimizing current draw. Intelligent protection circuits guard against low load impedance, overcurrent, and overheating, ensuring long-term durability and consistent performance. Additional capabilities, including per-channel source selection, Backup and Override modes, and Ethernet-based external control, make the XMV8280-D a highly adaptable and secure solution for demanding installed sound environments.

Product Specifications:

Output Power 1kHz (THD+N=1% 4Ω): 280 W x 8

Output Power 1kHz (THD+N=1% 8Ω): 280 W x 8

Output Power 1kHz (THD+N=1% 4Ω Double Power Mode): 560 W x 4

Output Power 1kHz (THD+N=1% 8Ω Double Power Mode): 560 W x 4

High Impedance 100V line: 250 W x 8 / 40 Ω

High Impedance 70V line: 250 W x 8 / 40 Ω

Voltage Gain RL 8Ω: 31.7 dB

Voltage Gain RL 8Ω Double Power Mode: 34.7 dB

Voltage Gain 100V: 38.2 dB

Voltage Gain 70V: 35.2 dB

Power Consumption: 1/8 power 450 W, Idle 73 W, Standby 23 W

Total Harmonic Distortion: ≤ 0.2%

Frequency Response: 20 Hz, 20 kHz ±1.0 dB

S/N Ratio: ≥ 100 dB

Crosstalk: ≤ -60 dB

Input Sensitivity: +4 dBu

Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced

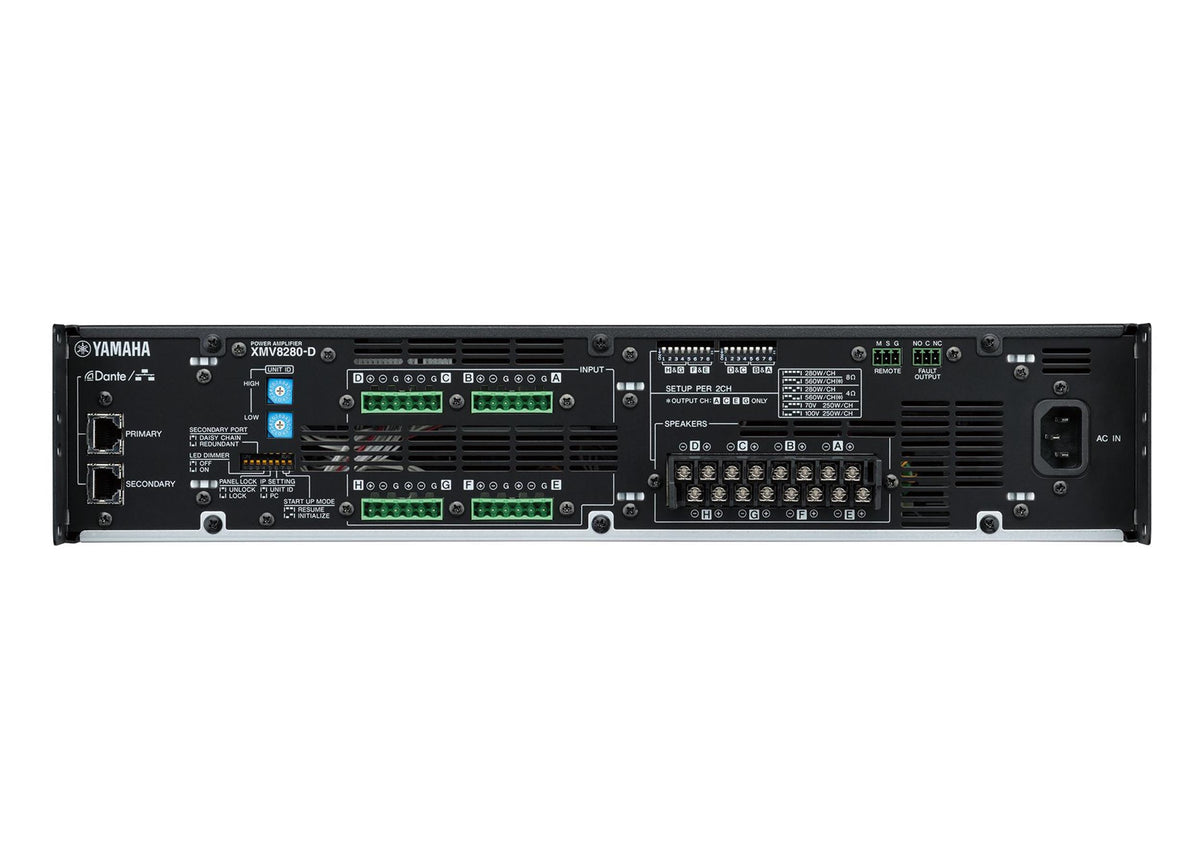

Analog I/O: Euroblock x 2 6P balanced

Digital I/O: RJ45 x 2 Dante Primary / Secondary

Speaker Output: Barrier strip x 8 pairs

Control Ports: Remote and Fault Output Euroblock 3P x 1

Network: Shared with Dante ports

Maximum Input Level: +24 dBu

Load Protection: Output mute on power on/off, DC fault shuts down power supply, clip limiting

Amplifier Protection: Thermal mute ≥90°C, overcurrent mute, low load impedance mute

Power Supply Protection: Thermal shutdown ≥100°C, gain reduction

Cooling: Dual 3-speed fans front to back airflow

Power requirements: 100V, 120V, 230-240V 50/60 Hz

Product Weight: 22.3 lbs / 10.1 kg

Product Dimensions (L × W × H): 16.6 × 18.9 × 3.5 in
